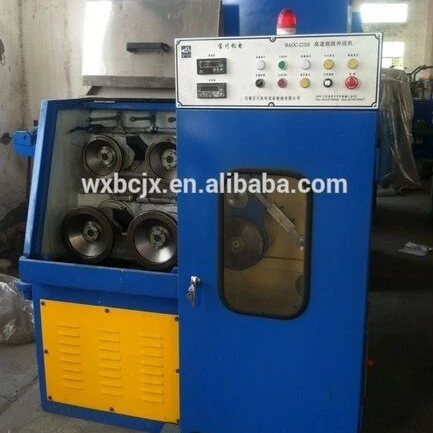

Copper clad aluminium (CCA)wire drawing machine for electric production
1 great production flexibility 2 excellent wire quality
Main techinical specification
machine type
BAOC-24DG
driver
dual inverters
wire finished
0.1-0.6mm(CCA)
wire inlet
0.5-1.2mm(CCA)
drawing speed
2000mpm/max
slip ratio of m/c
13%+8%
final slip ration
0%-2%
frame
ironed cast
capstan
ceramic coated
capstan dia.(max.)
φ194 mm
fix speed capstan dia.
φ159 mm
bobbin size
φ 300 mm/max
bobbin loading&unloading type
shafe type
main motor
11kw/15kw
spool motor
2.2kw/3.7kw
transmission type
flat belts
revise system
detecrting syneronous contret spooler
detecting device
weight balance by swing arm
tension control
weight balance type
max.loading capacity
25 kg/max
brake
magnetic brake
lubricant type for bearing
without oil
lubricantion type
spray type
power source
380V 50/60HZ
lubricant oil capacity
40 liter/minute
machine dimension
2050*1600*1900
machine weight
2500kgs
Packaging & Shipping
nude, plastic film packing or as per customers requirement for copper clad aluminium (CCA)wire drawing machine for electric production
Our Services
Installation and debugging: we will arrange mechanical engineer go to customer's factory for debugging after customer finished installation of the machines
Machine warranty: machines will be tested in our factory before shippment,one year guarantee time for all mechanical parts and electric parts except spare parts
