NEW Popular Energy Saving E27 Smart Microwave Radar Motion Detector LED Lamp Bulb
- Category: >>>
- Supplier: Zhongshan Allmay Electronic And Plastic Technology Co. Ltd.
Share on (60404758419):
Product Overview
Description

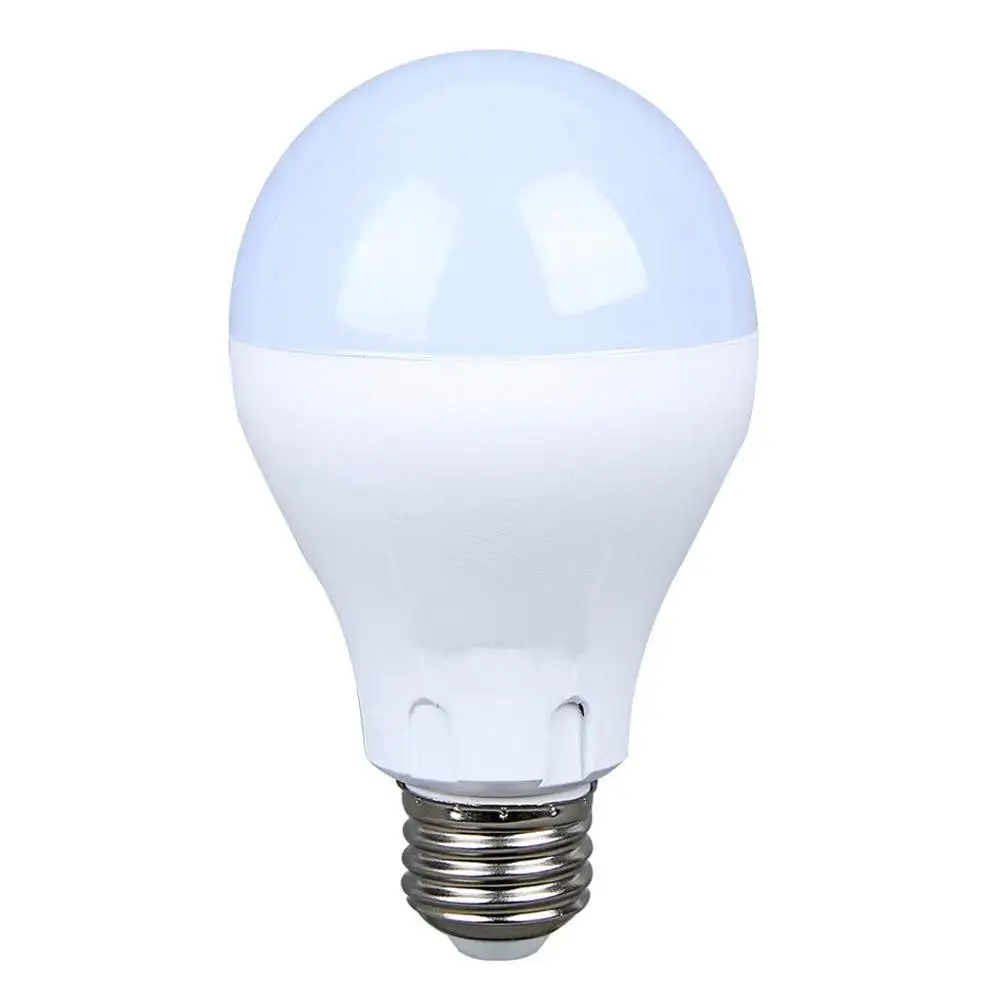

NEW Popular Energy Saving E27 Smart Microwave Radar Motion Detector LED Lamp Bulb
Sensor LED Bulb Spec
| Input Characteristics | ||||||
| Model No. | AM-QP-04 | AM-QP-06 | AM-QP-07 | AM-QP-09 | AM-QP-0501 | AM-QP-0205 |
| Mains voltage | 85~265V | 185-265V | 85-265V | 85-265V | 85-265V | 85-265V |
| Stand-by power | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W | <0.5W |
| Rated Power | 4W | 6W | 7W | 9W | 5W | 2.5W |
| LED Qty | 18pcs | 14pcs | 36pcs | 56pcs | 14pcs | 24pcs |
| LED Chips | SMD2835 | SMD2835 | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
| Output Lumen | 320 lm | 500lm | 560 lm | 900 lm | 460 lm | 300lm |
| Color Temperature | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K | 2700K/6000K |
| Power Factor | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Lumen Efficiency | 85-90lm/W | 85-90lm/W | 85-90lm/W | 85-90lm/W | 85-90lm/W | 85-90lm/W |
| CRI (Ra) | >80 | >80 | >80 | >80 | >80 | >80 |
Pictures |  |  | ||||
| Sensor Data | ||||||
| Sensor principle | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave | HF Microwave |
| Operation Frequency | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz | 5.8GHz |
| Transmission power | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW | <0.2mW |

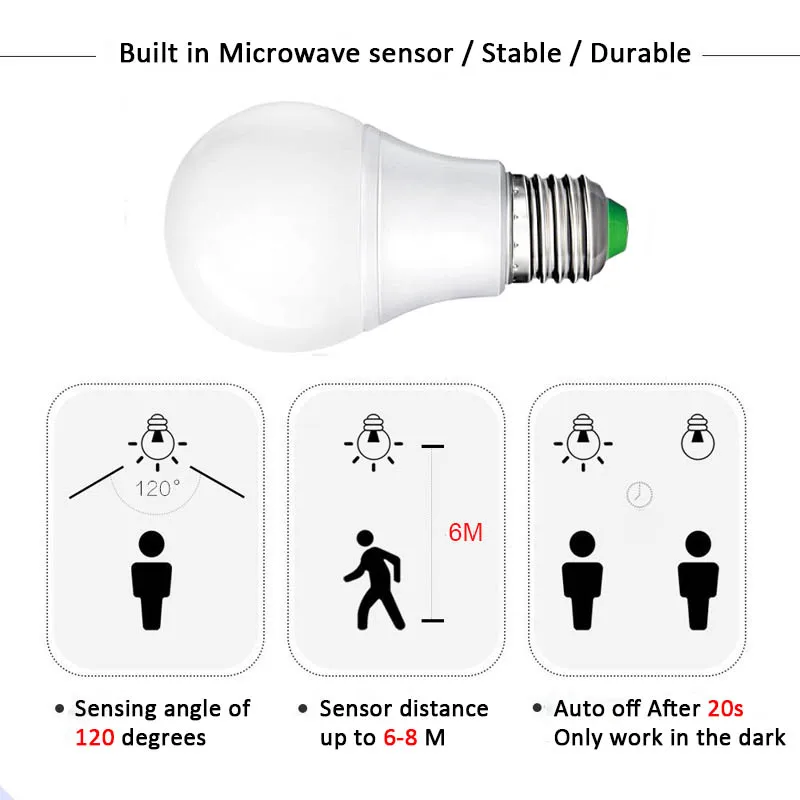

| Detection range: Max(diameter*H) | 8m*6m | 8m*6m | 8m*6m | 8m*6m | 8m*6m | 8m*6m |
| Detection angle | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° | 30° ~150° |
| Hold time | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s | 15+/-5s | 3s-160s (selectable) |
| Sensor Mode | On/Off ; Full/Dim | On/Off | On/Off ; Full/Dim | On/Off ; Full/Dim | On/Off ; Full/Dim | On/Off ; Full/Dim |
| Daylight sensor (on/off Mode) | <10 lux | <10 lux | <10 lux | <10 lux | <10 lux | 0-300lux (selectable) |
| Environment | ||||||
| Operation Temperature(Ta) | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c | -20~40°c |
| IP Rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
Product Description
Sensor Q&A
Customer Questions & Answers
- Sensor type A: ON/OFF Mode (100%-0%)
When detect movement lighting, Light turn on at 100% brightness,
No movement, stand by status light off (0%)
- Sensor type B: Full/Dim Mode (100%~20%)
When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting turn to 20% (2-3 watt)

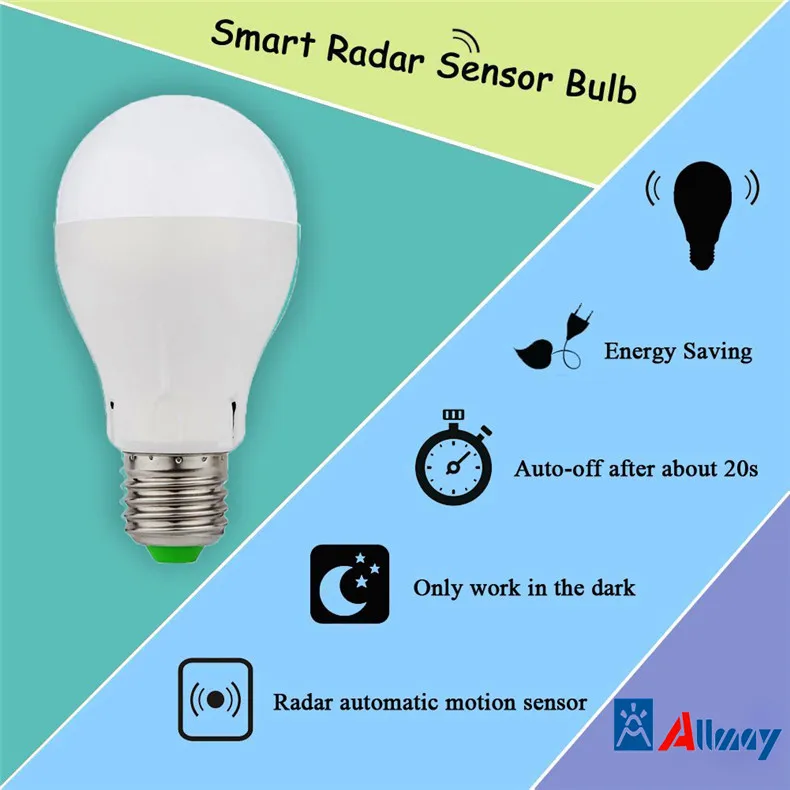

- Sensor Type C: [at daytime, ON/OFF mode, At night. Full/Dim mode: 100%~20%]
At daytime, the bulb will detect ambient brightness, if LUX higher than 10lux, the bulb will not work and keep off.
At night, When detect movement lighting, Light turn on at 100% Brightness,
No movement, stand by status lighting turn to 20% (2-3 watt)
- Delay time: 20 seconds
Mean: the last movement past, light still keep on lighting 20 seconds
- Brightness(Daylight) Sensor <10 lux (Optional)
With brightness sensor, that mean motion sensor only work at night,
Even if there is movement at daytime, the light doesn't light on.
- Quality control:
We have three sensor test rooms, make sure each lamps passed stricly sensor function test and aging test before shipping.
- Warranty : 2 years

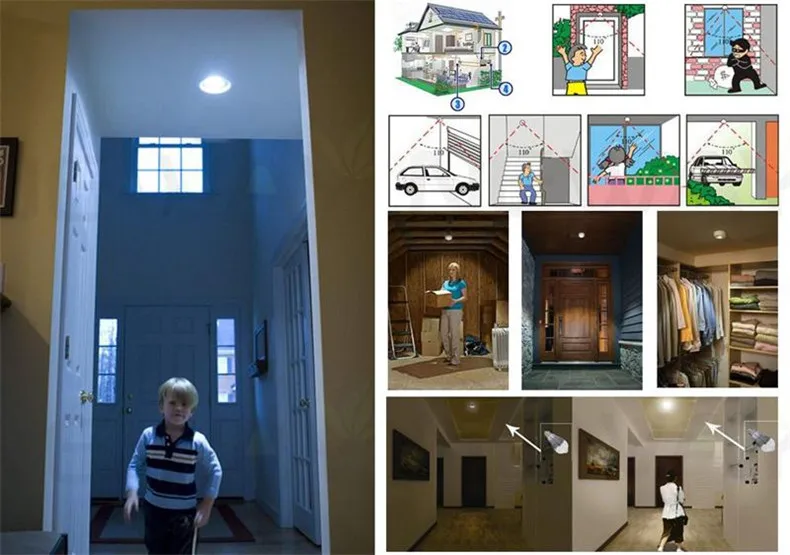

- Application:
Ideal for domestic applications such as Corridor, cabinets, hallway, Stairways, attics, Basement, Warehouse, hallyway, Closet, Depot, Bathroom, Toilet, Childern Room.etc.
Business applications include shops, offices, warehouses, storerooms, workshops, cable ways, substations and archives
Applications
Contact and Company
♥ ♥ ♥ CUSTOMER FEADBACK ♥ ♥ ♥
FAQ
1. Are you a manufacturer?
A. Yes, We are one of the biggest Microwave Sensor LED Lighting manufacturers in China! Such as Sensor LED Tube for parking lot, Basement, Sensor LED Bulb for corridor, stairs, Sensor LED Downlight/Ceiling light for Porch, Hallway, Balcony. etc.
2. Can i have a sample order?
A. Yes, Welcome sample order to test and check quality, Mixed samples are acceptable.
3. What about the delivery time?
A: Sample is about 1-2 days, Mass production 7-20 days depending on the order quantity and requirement.
4. Do you have MOQ?
A: Low MOQ, small order is welcomed.
5. Is it Okay to print my logo on products?
A: Yes, We can make laser print on products free of charge. Pls inform us formally before production and confirm the design firstly based on our sample.
6. How do u ship the finnal production?
1. By Sea
2. By Plane
3. By couriers,TNT,DHL,FEDEX,UPS, etc.
