LTC 002B 002 tension controller for printing machines Alternative Mitsubishi products

Product Overview

Description

Supplying tiny manual tension controller for powder clutch/brake

Manual tension controller Product Overview:

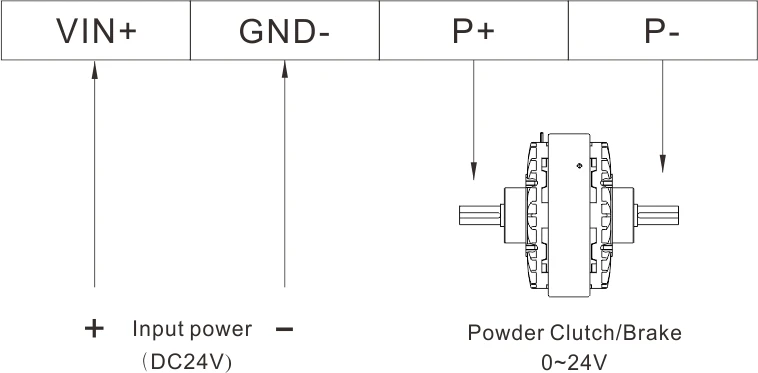

LEESUN-LTC-100 is through manual operation adjustment or external signal input control adjustment, tension control was carried out on the coil,the controller has a graphic LCD display and easy to use. , Chinese and English menu selectable, the user interface is friendly, The controller can drive the magnetic powder brake/clutch directly with its built-in, 0~24V/4A output, the controller can also outputs 0~5V, 0~+10V, this can drive the  inverter, servo motor or other power units. The LTC-100 can be used in papermaking, printing, packaging, textile, print and dyeing industries, etc.

LTC-012 manual tension controller adopts the new circle LCD monitor, display in both English and Chinese, more convenient, In view of the magnetic powder clutch/brake 0 ~ 24 VDC control voltage indicator, 0 ~ 10 v voltage signal control frequency converter, servo motor, or other high precision of tension control was carried out on the coil actuator.Use of printing, packaging, paper, rubber, electronic battery, textile printing and dyeing and other industries.

 Automatic tension controller Product Features:

1)  Chinese and English menu, easy to use.

2)  Full digital circuits, no potentiometer.

3)  High and stable measurement and easy tension calibration.

4)  lightweight,Big power, stable performance
5)  Diameter tension control.

6)  economical and practical

7)  Acceleration and deceleration operation.

8) Small and lightweight, can be installed in a capacitor

9)input voltage DC24V,outpot voltage 0~3.75/max

Manual tension controller Specification:



Working condition	Ambient temperature: 0~40 °C
	Environment humidity: 35~85% RH (no frost)
	Non-corrosiveness, no flammabel gas, no conductive dust, dust free
Grounding	D type grounding (Fordid to connect with strong electic wires together
Vibration	10~50Hz 0.55mm (Max 4.9m/s2)
Weight	Approx 3.5kg
