Toptree Double HID Bi xenon Projector Lens Light(Angel eye,CCFL Angel Eyes,Angel Eyes Xenon Kit) led angel eyes for bmw e90

Product Overview

Description

Toptree Double HID Bi-xenon Projector Lens Light(Angel eye,CCFL Angel Eyes,Angel Eyes Xenon Kit) led angel eyes for B-M-W e90

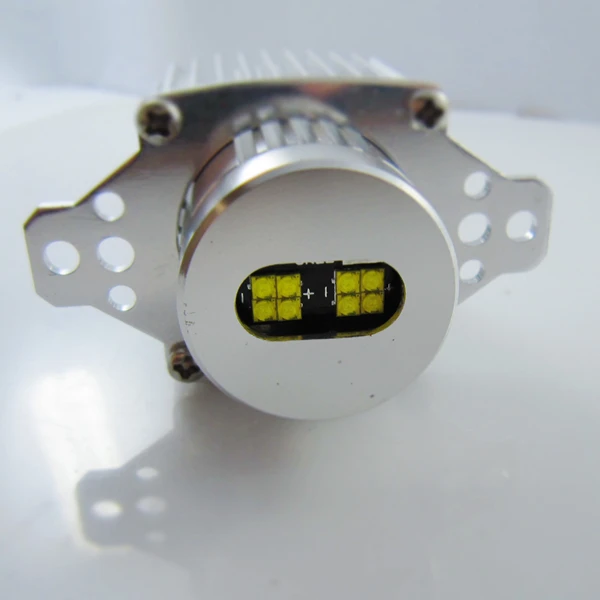

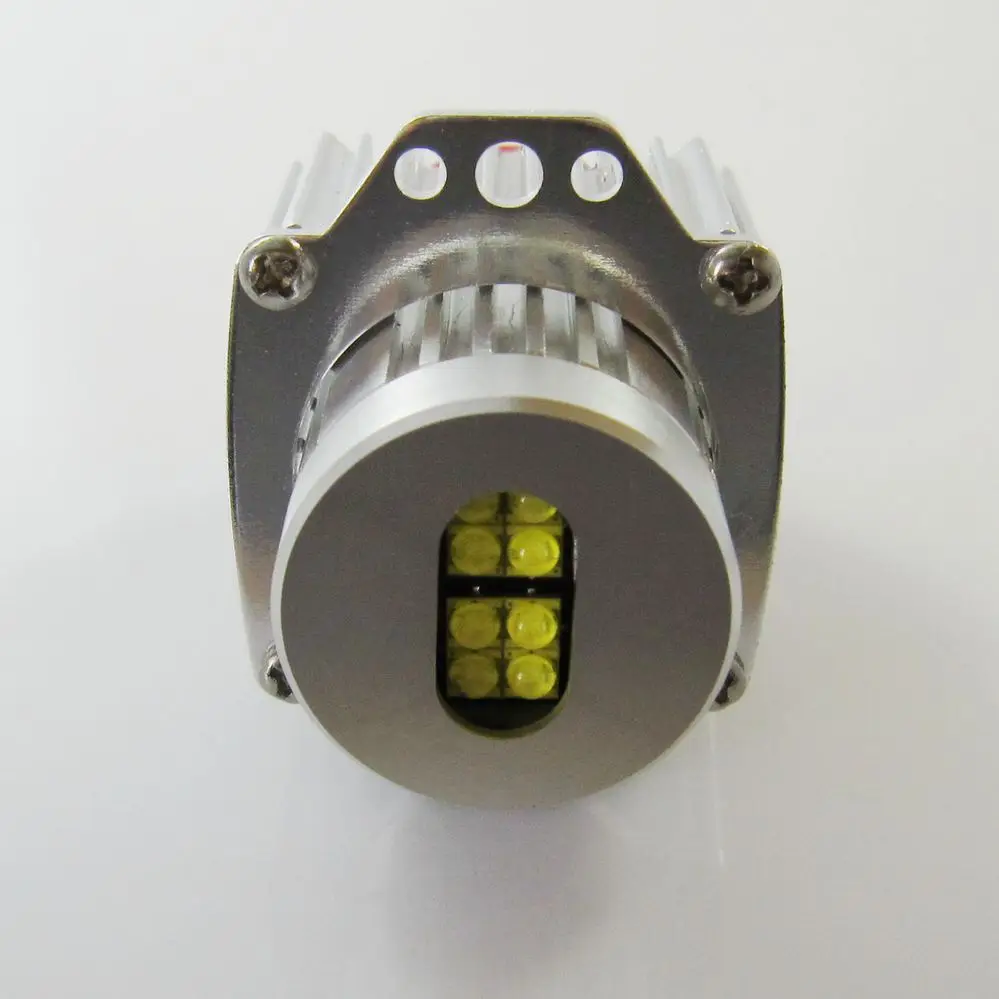

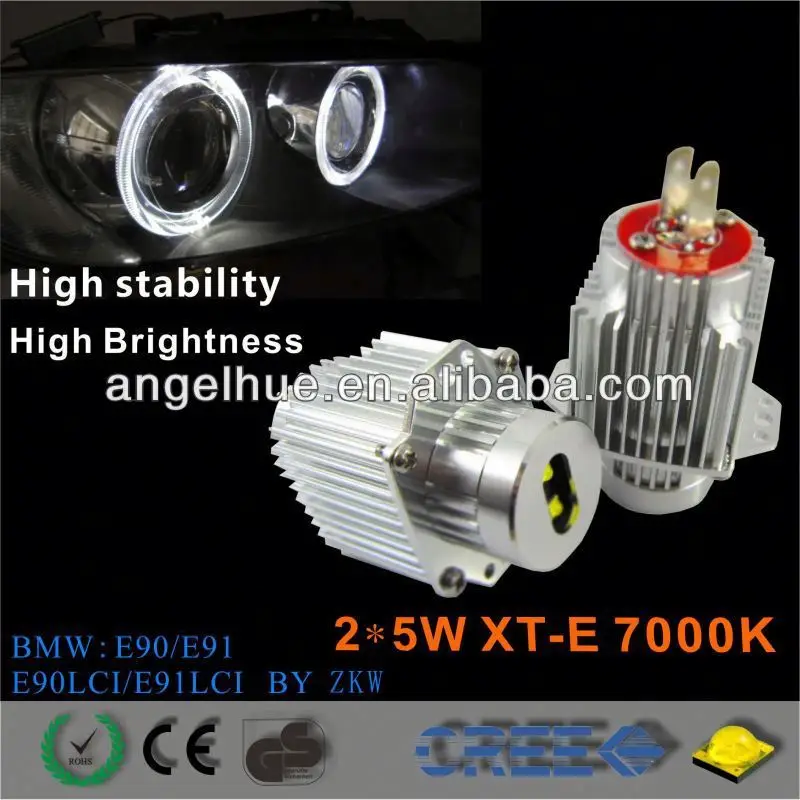

            LF-90W10 has been specially developed for E90/E91/E90LCI/E91LCI(BY ZKW ). the brightness of whole lamp can reach to 700LM;the structure of the heat dissipation have been optimized;  the power work efficiency can reach to 90%; the products have passed 90°C high temperature test , EMC test and CE certification; all products can meet the users of stability, security, brightness, light failure, high demands of energy conservation, and meet the high quality of the products in line with the B-M-W brand.





Toptree Double HID Bi-xenon Projector Lens Light(Angel eye,CCFL Angel Eyes,Angel Eyes Xenon Kit) led angel eyes for B-M-W e90

Description

1. Main parts are made up of 180W/m.k high thermal conductivity aluminum alloy material, sufficient heat dissipation.

2.  The stable temperature of the surface is controlled less than 95°C, which can improve the product stability and life.

3.  Used the brightest c-r-e-e XT-E R5, the brightness of single LED can reach to 420LM;

    The thermal resistance can reached to 2.5°C/W; And the maximum junction temperature can reach to 150°C.

4. Used greater than 2W/MK thermal conductivity of the aluminum base, The thermal resistance is less than 0.8°C/W.

5. Used the thermal conductivity of the thermal grease is greater than 4W/MK.

6. Maximum power output is greater than 8W.

7. LED light energy can make better use, because 89% LED can enter into B-M-W aperture.

8. Adopt the design of standard interface, easy to install.

9. Strictly control production process, and do 100% tests for per pc.

   operating current testing, brightness testing, color temperature testing, and aging testing.

10. No flickers, no errors, no warnings, no interference to FM radio;Best choice to replace original.

     Professional design, can be able to meet the special requires for special products,

 Able to professionally design personalized products for guests

Toptree Double HID Bi-xenon Projector Lens Light(Angel eye,CCFL Angel Eyes,Angel Eyes Xenon Kit) led angel eyes for B-M-W e90



This  LF-90W10   can fit all below models:

05-08 B-M-W 3-series E90 (316i,318i,318d,320i,320si,323i,325i,325xi,328i,328xi,330xd,330i,335i,318d,320d,325d,330d,335d)
05-08 B-M-W 3-series E91 (316i,318i,318d,320i,320si,323i,325i,325xi,328i,328xi,330xd,330i,335i,318d,320d,325d,330d,335d)
08-   B-M-W 3-series E90LCI   made by ZKW  without  HID
(316d,316i,318d,318i,320d,320i,320xd,323i,325d,325i,325xi,328i,328xi,330d,330i,330xd,330xi,325d,335i,335xi)
08-   B-M-W 3-series E91LCI   made by ZKW  without  HID
(316d,316i,318d,318i,320d,320i,320xd,323i,325d,325i,325xi,328i,328xi,330d,330i,330xd,330xi,325d,335i,335xi)
Original Part Numbers:
E90/E91-63117161444

Absolute Maximum Ratings at Ta=25 °C

 Note:

 1.IV is measured with an accuracy of ±5%

2.Luminous Flux ±5%

Typical Electrical/Optical Characteristic Curves(25°C Ambient Temperature Unless Otherwise Noted)



    Toptree Double HID Bi-xenon Projector Lens Light(Angel eye,CCFL Angel Eyes,Angel Eyes Xenon Kit) led angel eyes for B-M-W e90

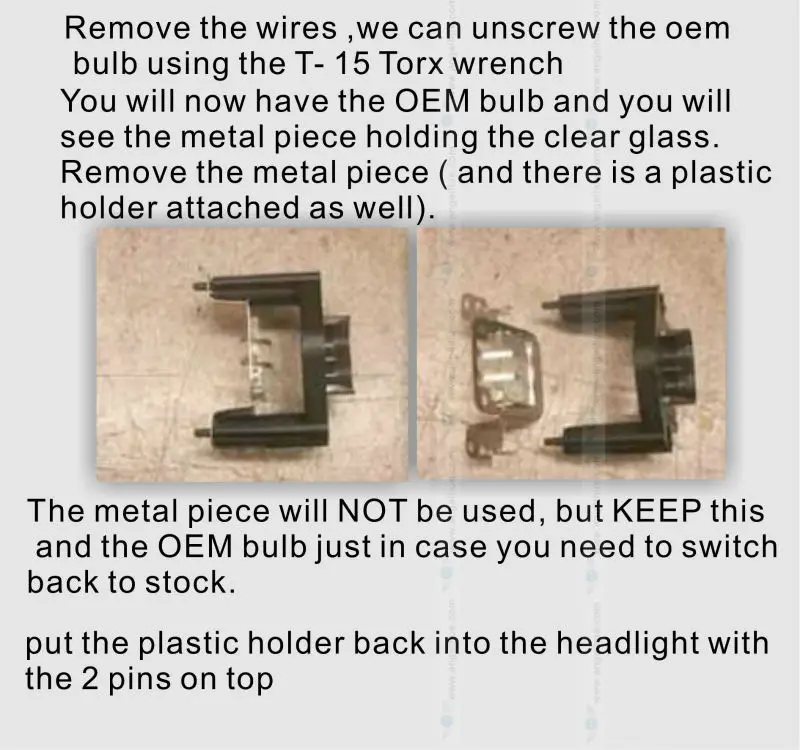

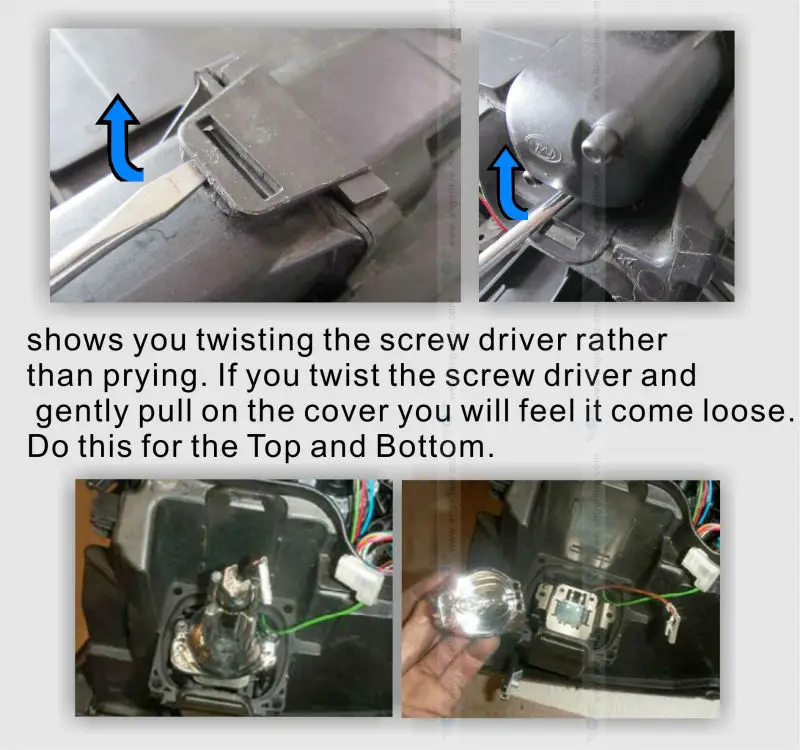

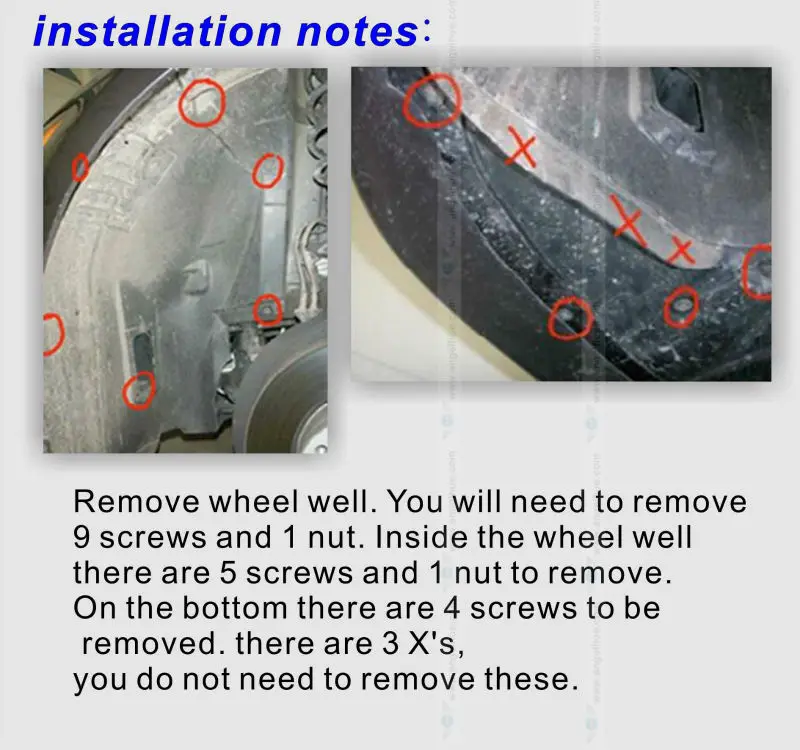

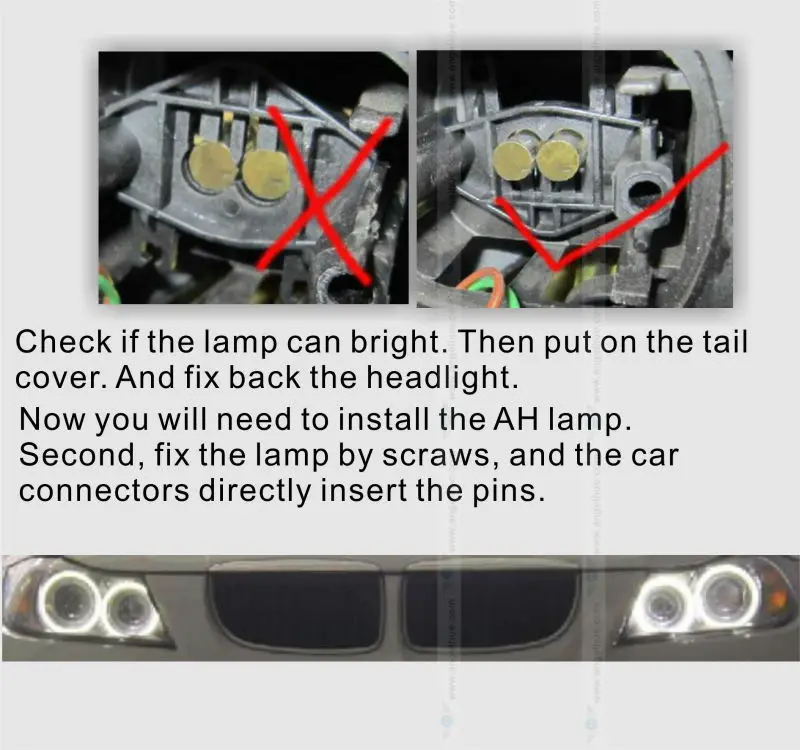

 Installation notes:

This product is only suitable for B-M-W E90 E91 , (E90LCI E91LCI made by ZKW  without  HID  connector).

•

  Please don't look directly at the LED beads, can cause eye damage.




•

  When installed, the power drive fixed, to prevent the collision lamp wall.




•

  Please confirm the connection port is closely connected.
