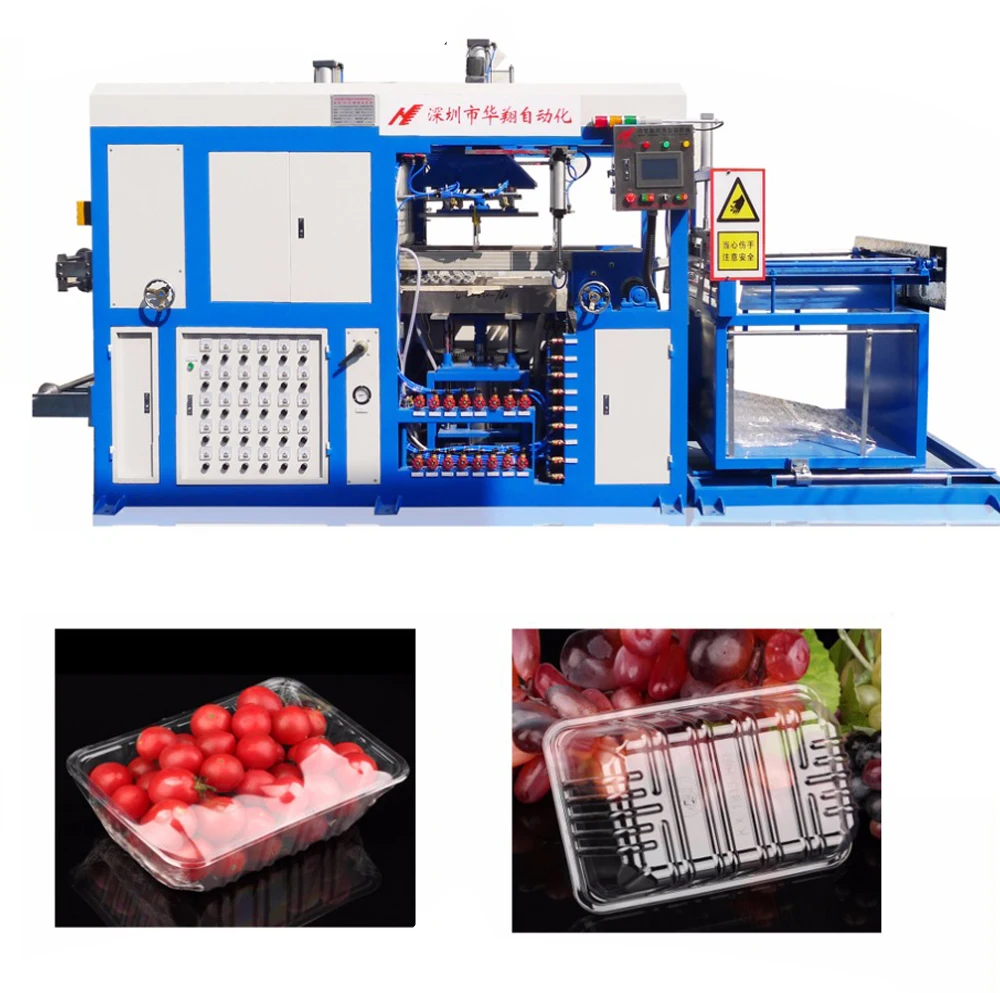

Packing Tray Automatic Plastic Vacuum Forming Machine Factory

Information

Vacuum forming is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto a single-surface mold, and forced against the mold by a vacuum is formed into permanent objects such as turnpike signs and protective covers.

Typical application

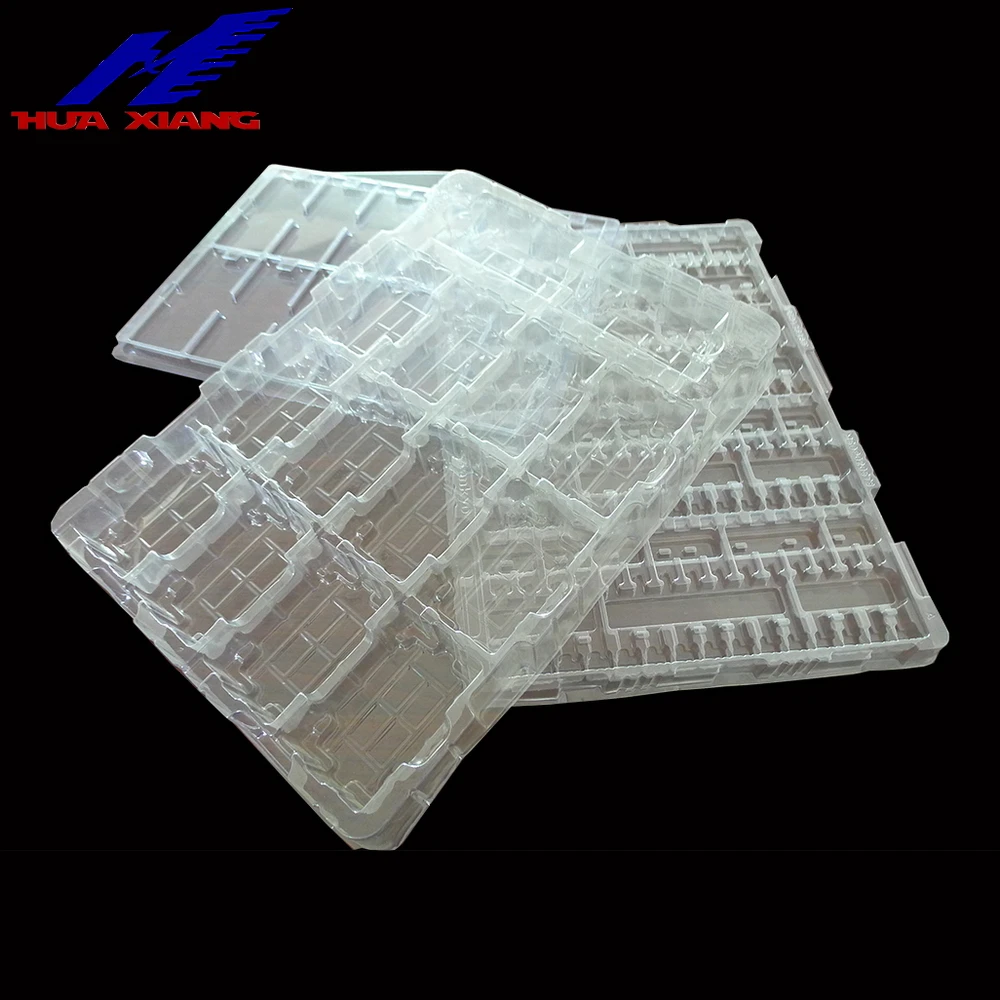

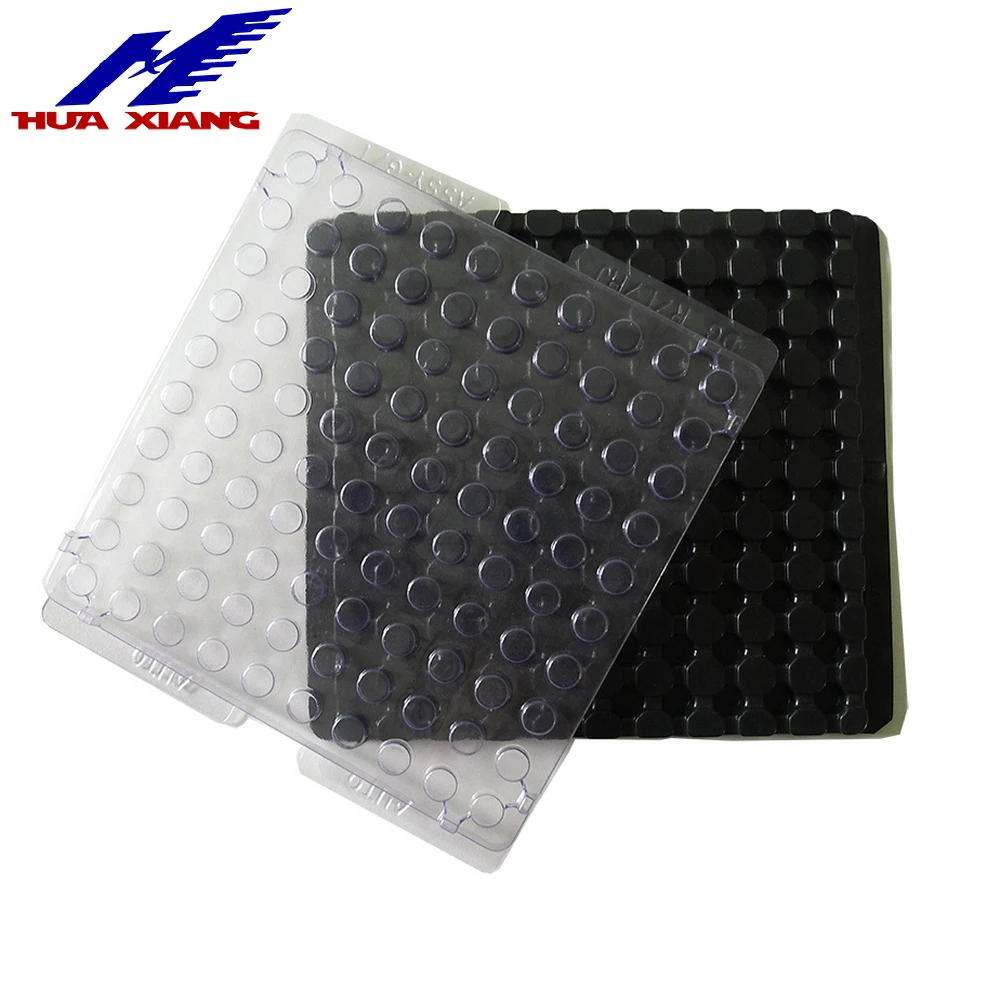

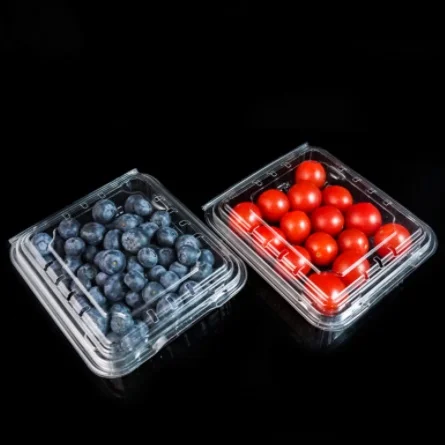

Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.

Types of thermoforming molds
Wood Patterns ;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

Main Features

1) In the digital temperature controller, temperature setting is convenient, high precision of temperature control;

2) Ceramic and radiant-panel oven heaters generally provide more precise and thorough sheet heating Allow for zoning      of ovens into areas of adjustable heat;

3) rather than air cylinders which have traditionally been the industry standard, giving more precise control over closing      and opening speeds and timing of the tooling;

4) The ability to place formed sheet into an inline trim station for more precise trim registration has been hugely                    improved due to the common use of electric servo motors for chain indexing versus air cylinders, gear racks, and            clutches on older machines;

5) Electric servo motors are used on forming machines for actuation of the machine platens where form and trim                  tooling are mounted;

Machine function

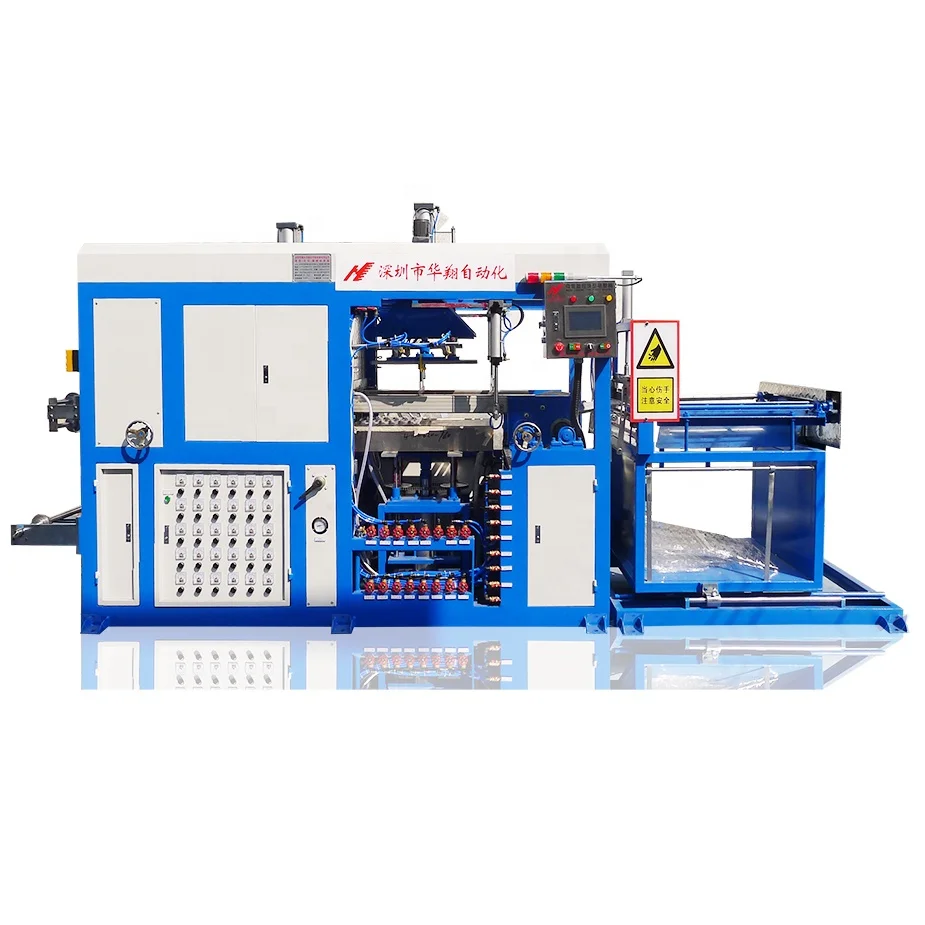

Compact type machine

We will introduce an update of its machine, as well as some new small machine. A new line of fuel-efficient engines will also be available. Further information you will find in sections "Brochure" and "Technical Data".

Forming size:
HX-700:610*710 mm
HX-18: 710-1220 mm

Machine Video
Please copy below youtube link to see our machine HX-700 Series.
YouTube link:
https://www.youtube.com/watch?v=uhZS54-wDpM&feature=youtu.be

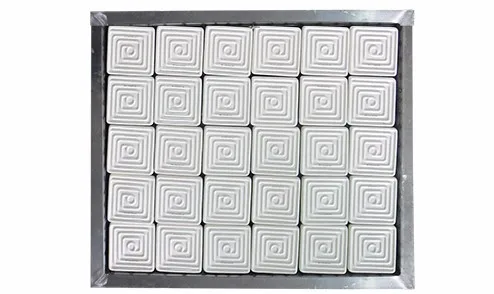

Ceramic panel oven heater

Name: Heater
Brand: Huaxiang
Original: China

Contained about 30 Ceramic Heaters,
Power:36kw (every 0.6kw)
Ceramic Heater size:12cm*12cm

PLC temperature controller

Name:PLC Touch Temperature Controller
Brand: HUAXIANG
Original: China
1.PLC Control with 7' Touch Screen,400 Programme Memory temperature setting is convenient, high precision of temperature control.
2.30 Independently Controllable Heating Zones

Water-Cooled chiller

Name: Water-Cooled chiller
Brand: Huaxiang
Original: china

The designs of chillerradiatorunique , so the heat exchange efficiency is very high.

Vacuum Pump

Name: Vacuum pump

PVC sample

Material: Pvc
Thickness: 0.3mm
speed time: 6s

Helmet and mask

Material PP,PS,PET,PVC

Different material sheet with print

speed time: 10S

Place

1) The machine overs an area of 5.04m²;
2)Requires 20m² of space to place ;
3)In the open air environment;
4) Weight 1500kg

About us

Shenzhen HuaXiang Factory Co. , Ltd is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Forming Machine. Our machine are used a lot in plastic forming,plastic packaging.

Contact
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material ?
Q2: The size of your sample; length Width and thickness?
