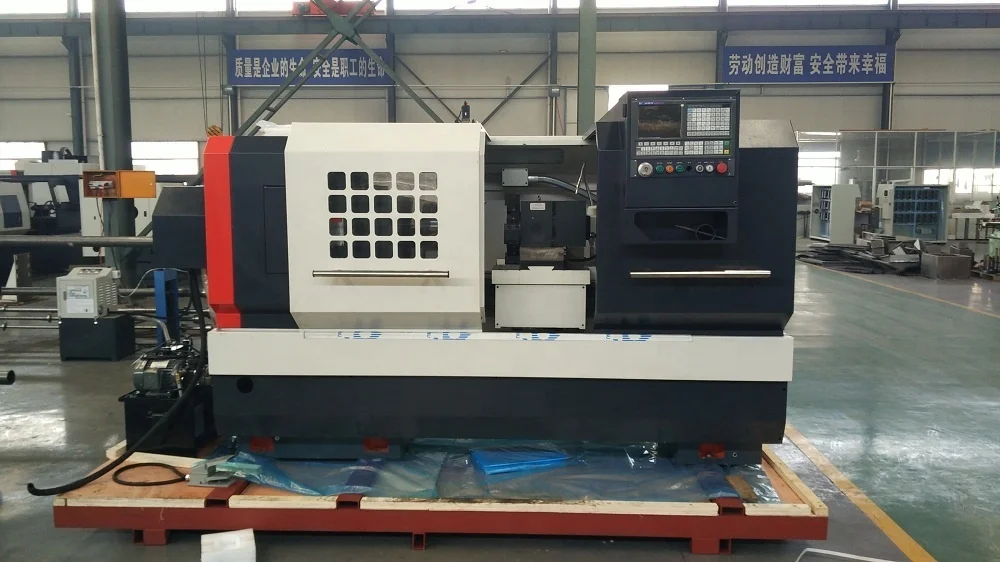

CK6166 electric turret CNC lathe machine

Product Overview

Description

CK6166



Product features:



1, The use of mechanical and electrical integration design, beautiful appearance, reasonable structure, low noise, high positioning precision, wide application, convenient operation, can automatically finish turning of the various parts of the internal and external circular, cutting groove, end, arbitrary taper, spherical and conical thread machining.

2, CNC programming using ISO international code, keyboard input manually, and is equipped with the RS232 communication interface, a power failure protection and all kinds of self diagnostic function.

3, The spindle system rigid, unilateral 5mm without vibration cutting. Frequency conversion stepless speed for spindle. Spindle hole is big, can choose accessories complete.

4, The bed has better stiffness, bed rail by super audio quenching after fine grinding, long service life, high precision, durable.

5, The machine longitudinal cutting with servo motor to drive, precision ball screw drive.

6, The structure of the machine tool stiffness and rigidity of transmission is higher than the general lathe, power utilization rate is high, suitable for high speed cutting power.

7, Holder for the electric four knifes can arbitrarily change the knife, can also choose a row of knife, cutting knife convenient, without the need for waiting.







Specification :







Specifications	CAK6166
Max .Swing over bed	660mm
max. swing over carriage	400mm
Max. Work piece Length	750/1000/1500/2000/3000mm
Spindle taper	MT6(Φ90 1:20)
Chuck size	C6 (D8)
Through-hole diameter	52mm/80mm/105mm
Spindle speeds (12steps)	21-1600rpm(I 162-1500 II 66-660 III 21-210)
Tailstock center sleeve travel	150mm
Tailstock center sleeve taper	MT5
Repeatability error	0.01mm
X/Z rapid traverse	3/6m/min
Spindle motor	7.5kw
Packing dimensions(L×W×H mm) for 1000mm	2750×1550×1900mm
Weight(kg)	G.W. / N.W.
	2450/3050

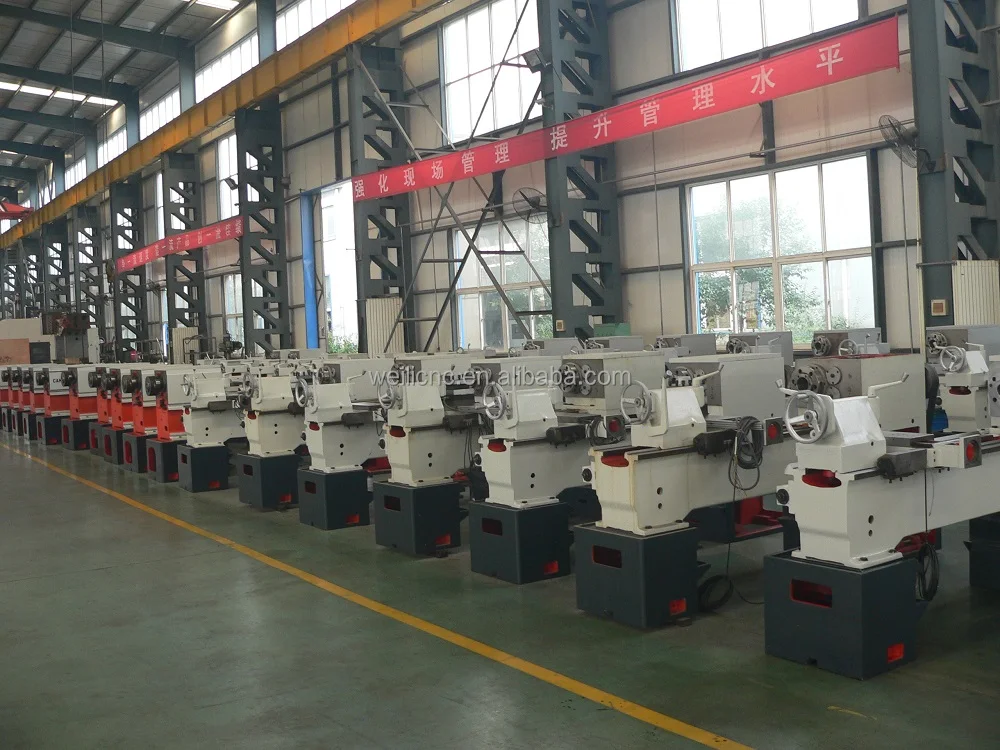

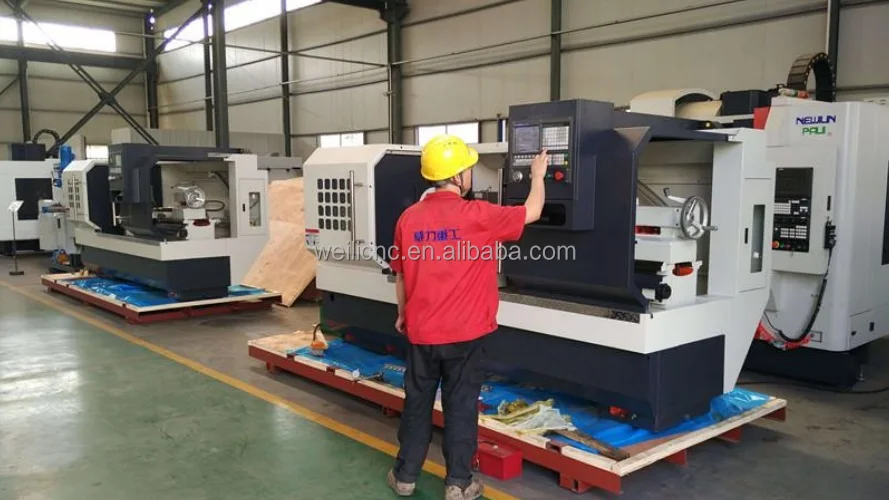

Pictures
