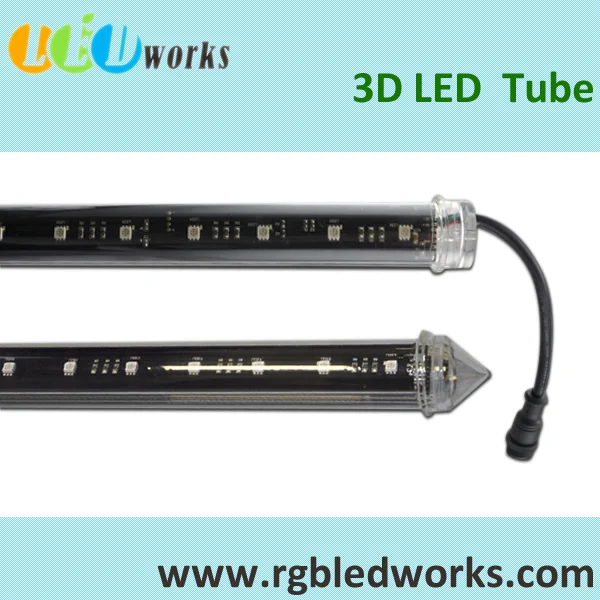

strobe light efect DMX 3D Vetical Tube DC24V,dual sides 360degree view angle

0.5m, 1m, 1.5m, 2m is available.

Feature:

1. DMX 3D Tube carries double size led light source, 4 LEDs as 1 pixel, 360°viewing angle, magical 3D effect.

2. The length of 3D tube can be customized, 0.5m,1m,1.5m,2m, to meet different design requirement.

3. DMX512 Protocol, sharing long-distance of transmission and high ability of anti-interference.

4. Madrix Software compatible, Madrix DMX led light control solution.

5. Light and audio controlled synchronously, music controllable and sound activated.

6. 3D RGB led tube is enviroment friendly. no harsh glare and buzzing noise, no flicker.

7. DMX 3D vertical tube can be used horizontally or vertically so as to meet differet demand.

Application:

DJ, night club, television studio, theater and so on.



Dimension:





Specifications:



 12v, 15v, 24v is available.



Parameters	Description
Model	LWS-RGB3T500-DMX-15V3208	LWS-RGB3T1000-DMX-15V6416	LWS-RGB3T1500-DMX-15V9624	LWS-RGB3T2000-DMX-15V12832
Diameter	30mm	30mm	30mm	30mm
Length	500mm	1000mm	1500mm	2000mm
LED	SMD RGB 5050
LED QTY	32pcs	64pcs	96pcs	128pcs
Pixel QTY	8 pixels	16pixels	24 pixels	32 pixels
Voltage	DC15V	DC15V	DC15V	DC15V
Power	8W	16W	24W	32W
Control Mode	DMX512	DMX512	DMX512	DMX512
Address Setting	Manually
LED Source Life	50,000hours,based on LED manufacturers’ test data
Housing	Clear cover, aluminum base
Temperature	-4℉ to 122℉(-20℃ to 50℃) operating temperature
Humidity Range	0 to 95% non-condensing
Protection	IP65











Packaging & Shipping



Carton box, packed with good protection

If we have stock, the goods will be shipped within 3 days

If we have no stock, the delivery time will be about 7-12 days .











 Connection guide for dmx 3D Tube :

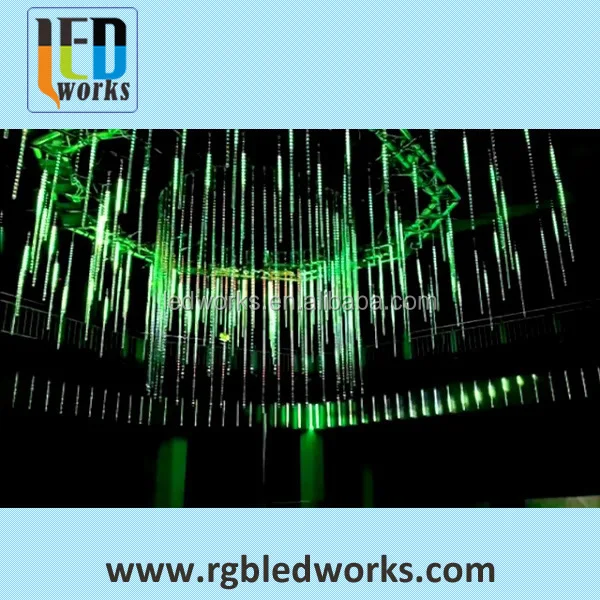

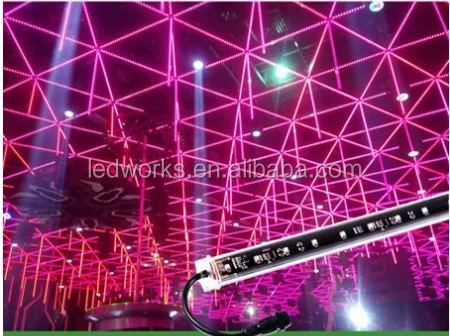

Project effects:





Recomend LED Controller (DMX ARTNET VENUS)







Our Services



1, OEM/ODM

2, Fast response

3, Professional support

4, Good after-sales serviece





Company Information



1, Factory with professional team

2, Mainly produce led light and led controller

3, OEM/ODM
