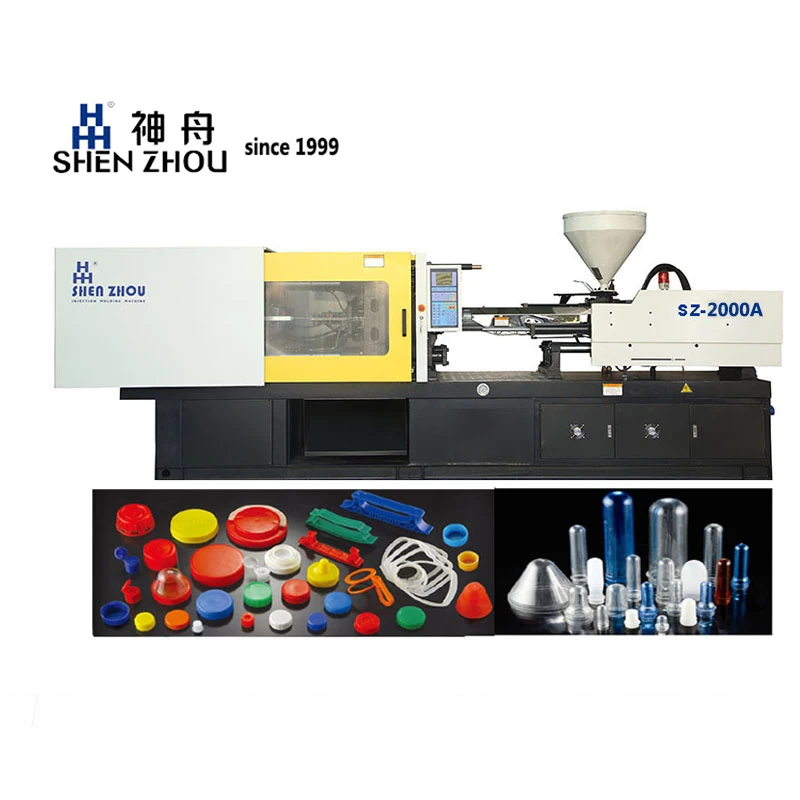

200 ton smaller automatic plastic PET preform injection molding machine
- Category: >>>
- Supplier: Zhangjiagang Shen Zhou Machinery Co. Ltd.
Share on (60405352467):
Product Overview
Description
Product Description

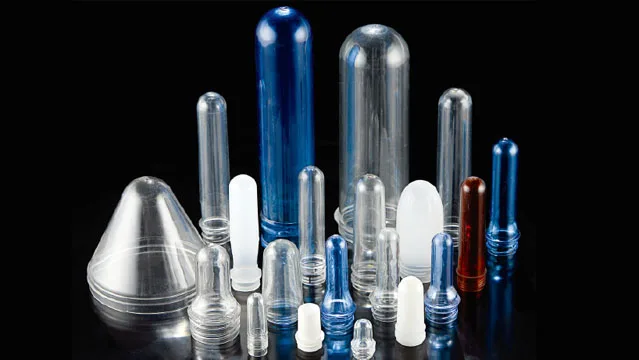

PET preform injection molding machine from 70tons to 550 tons , shot weight from 103 grams to 1600 grams injection molding machine for making different plastic products.
PET plastic injection molding machine technical specification
Screw diameter | mm | 50 | 55 | 60 |
Screw L/D ratio | L/D | 23.1 | 21 | 19.3 |
Shot weight | gram | 447 | 540 | 643 |
Injection capacity | cm3 | 491 | 594 | 707 |
Injection pressure | Mpa | 215 | 178 | 149 |
Theoretical injection rate | g/s | 145 | 175 | 208 |
Plastic capacity | g/s | 22.4 | 28.7 | 35.4 |
Injection stroke | mm | 250 | ||
Screw torque | N.m | 1510 | ||
Max screw rotate speed | r/min | 170 | ||
Clamping force | ton | 200 | ||
Opening stroke | mm | 500 | ||
Space between tie bars | mm | 505×505 | ||
Mould height | mm | 190~530 | ||
Max daylight | mm | 1030 | ||
Ejector force | ton | 5.31 | ||
Ejector stroke | mm | 125 | ||
Ejector quantity |
| 5 | ||
Oil pump motor | kw | 18.5 | ||
Pump pressure | Mpa | 16 | ||
Heating power | kw | 16.6 | ||
Machine size | M | 5.9*1.5*2.0 | ||
Machine weight | ton | 6.8 | ||
Oil tank capacity | L | 420 | ||
International designation |
| 2000-1060 | ||
our shipment
our exhibition
FAQ
![DR7NUYV]FAJ`QP%5DK}{2](http://sc01.alicdn.com/kf/HTB1B5BXhcfpK1RjSZFO7616nFXa2/39288/HTB1B5BXhcfpK1RjSZFO7616nFXa2.png)
