Foils aluminum automatic feeding machine also called decoiler

Product Overview

Description

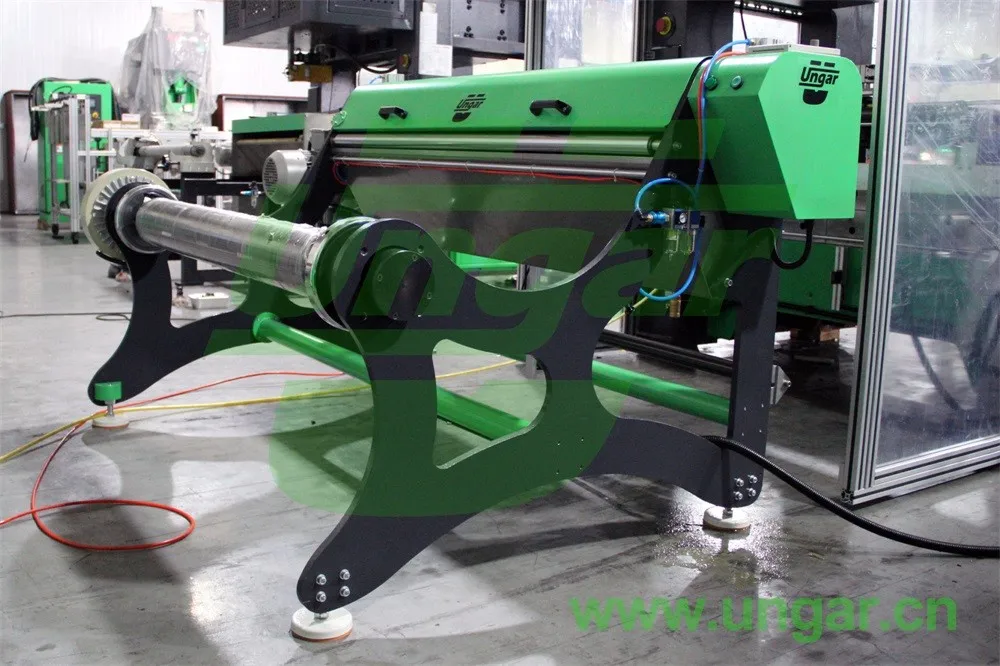

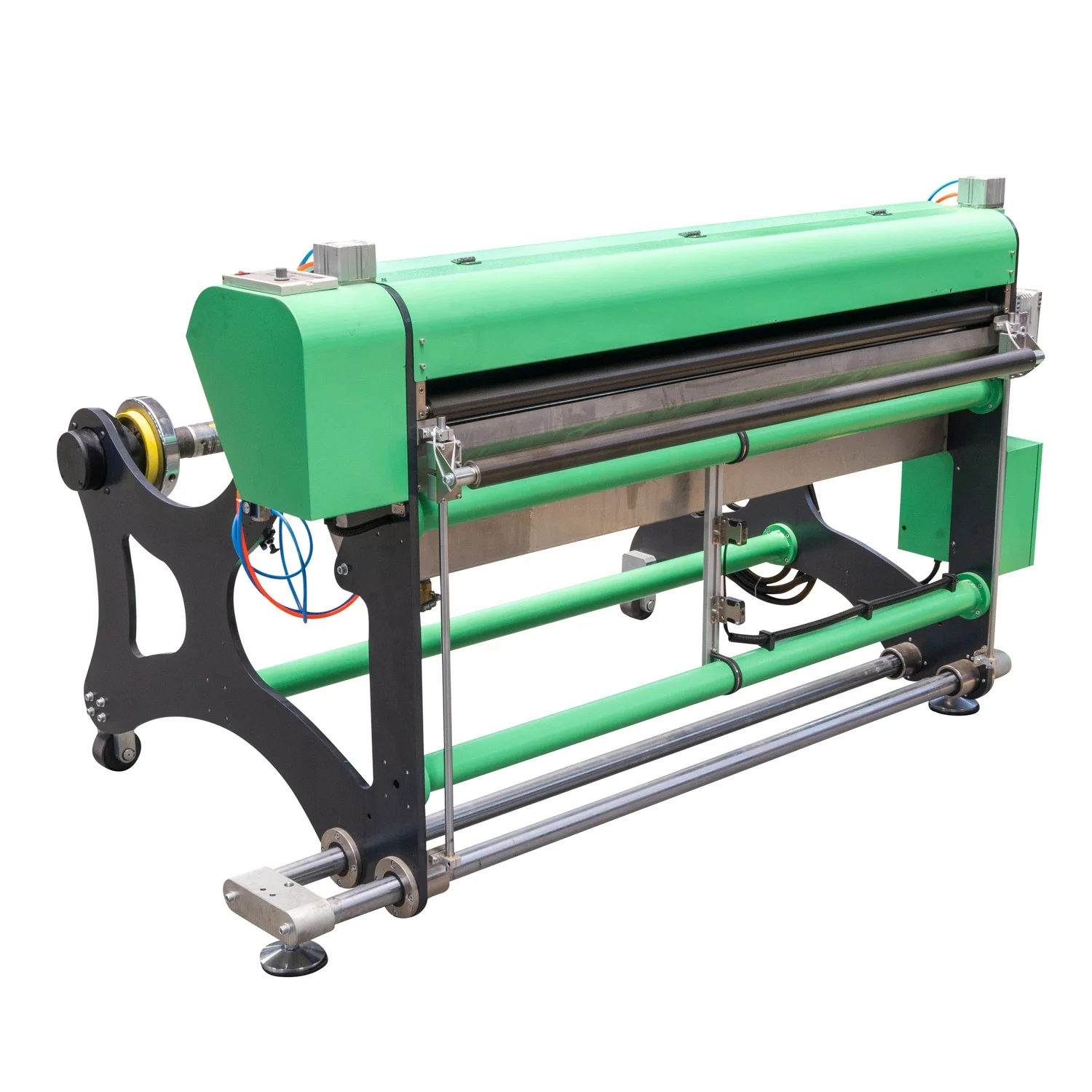

Foils Aluminum Automatic Feeding Machine

The decoiler unit uses a precise stepper motor to adjust the exact speed of aluminum foil entering the press. The height of the feeding system is manual adjustable to ensure the right entrance height of the aluminum foil tor the tool currently used on the press.
The reel shaft system allows you to quickly and easily exchange the rolls by maintaining the optimal axial alignment of the coil with the mould.
The decoiler also includes lubrication for the foil strip so you don't have to buy the pre lubricated raw material which is more economic and also more flexible (in case of special requirements ong the used lubricant).



Optional: Embossing Unit:

Advantages:
1. Precise foil supply.
2. Stainless steel lubricaion tank.
3. Reel shaft system for quick and easy exchange of coil.



Model UNDE-110 (without embossing) UNDE-080 (without embossing) UNDE-063 (without embossing)  Max.Diameter of material coil  1100mm 1100mm 1100mm  Max. Width of foil material 1250mm 1000mm 800mm  Feeding speed 0-60m/min 0-60m/min 0-60m/min  Feeding length  20-1000mm 20-1000mm 20-1000mm  Feeding precision +-0.5mm +-0.5mm +-0.5mm  Work Voltage(Optional) 380V, 50Hz/60Hz, 3phase 380V, 50Hz/60Hz, 3phase 380V, 50Hz/60Hz, 3phase  Installed power 3.0kW 3.0kW 2.0kW  Feeder Dimension(LxWxH) 1400x2200x1250mm 1400x1950x1250mm 1400x1700x1250mm  Net weight

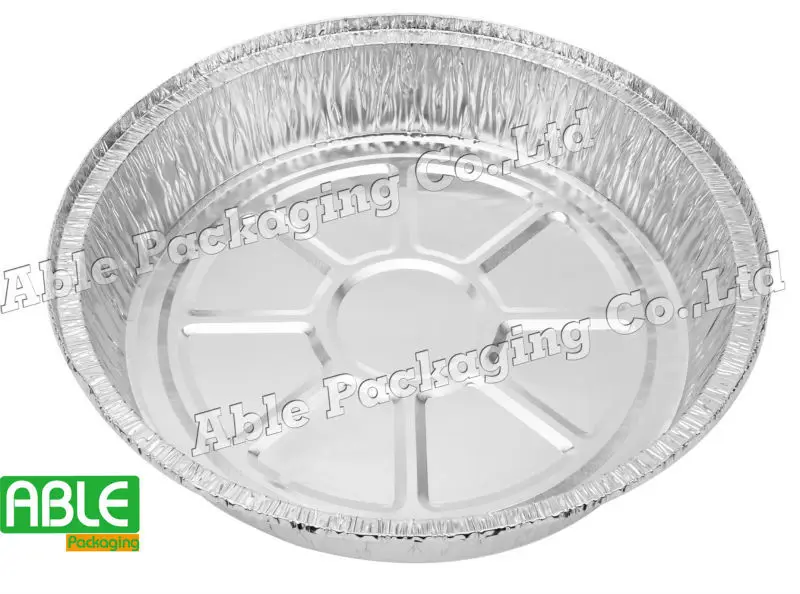

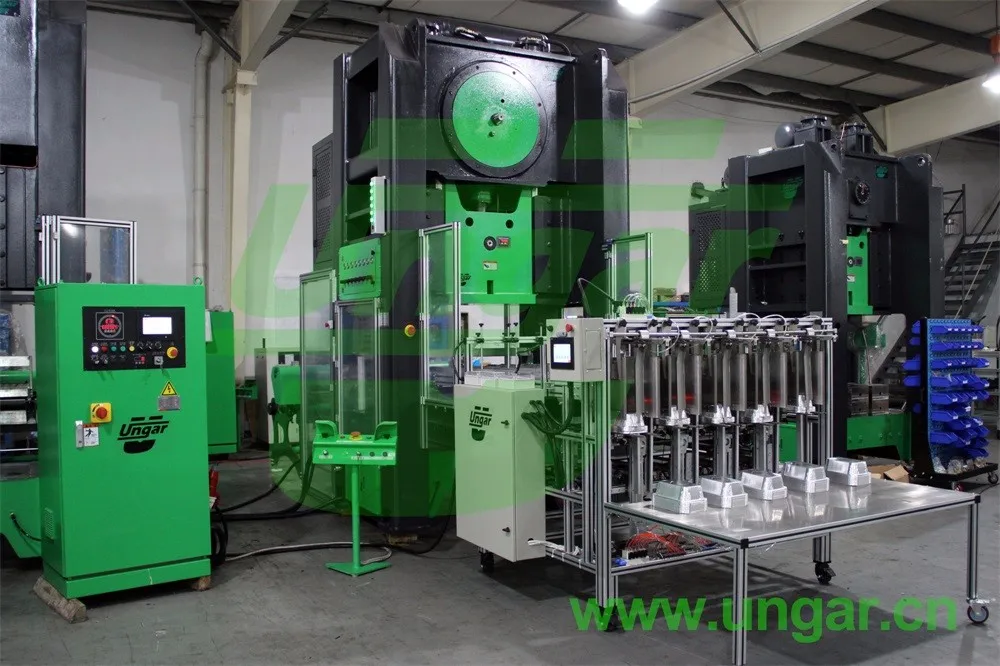

Complete Aluminum Foil Containers Production Line:



Company information:

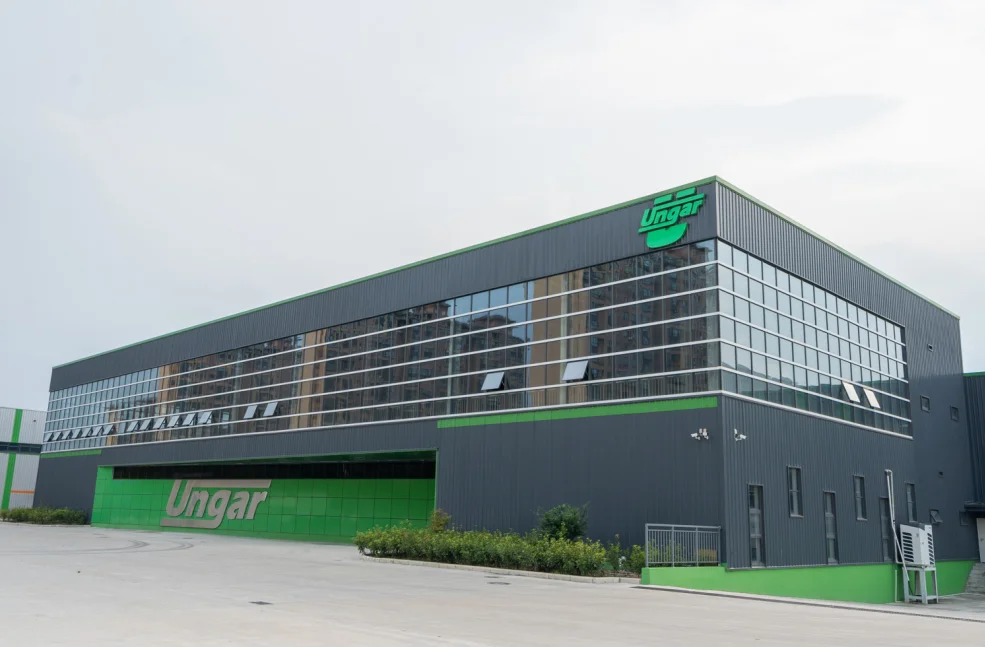

UNGAR Machinery (Shanghai) Co., Ltd is an Austrian enterprise established in 2009, supplying high productive multi-cavity moulds and machines, which includes press, stacker, package, re-winder, paper lid cutting, decoiler, scrap press and additional equipments.





UNGAR complete integrated production line has been specially designed and developed for the production of aluminum foil food container, plate and household foil rolls.



U NGAR Machinery (Shanghai) Co., Ltd also offer customized service for technical optimization, mould prove, machine installation, material test, training course, telephone assistance and so on.
