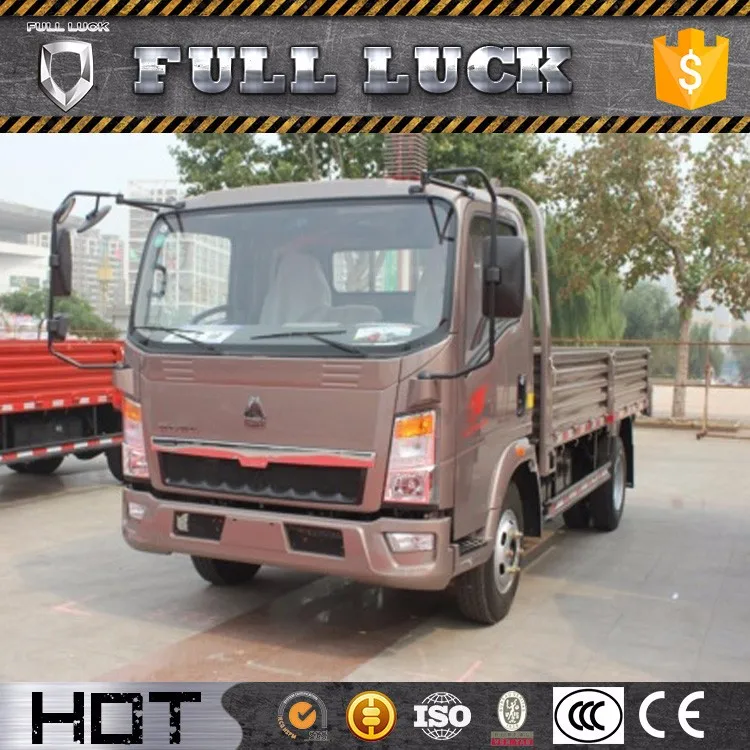

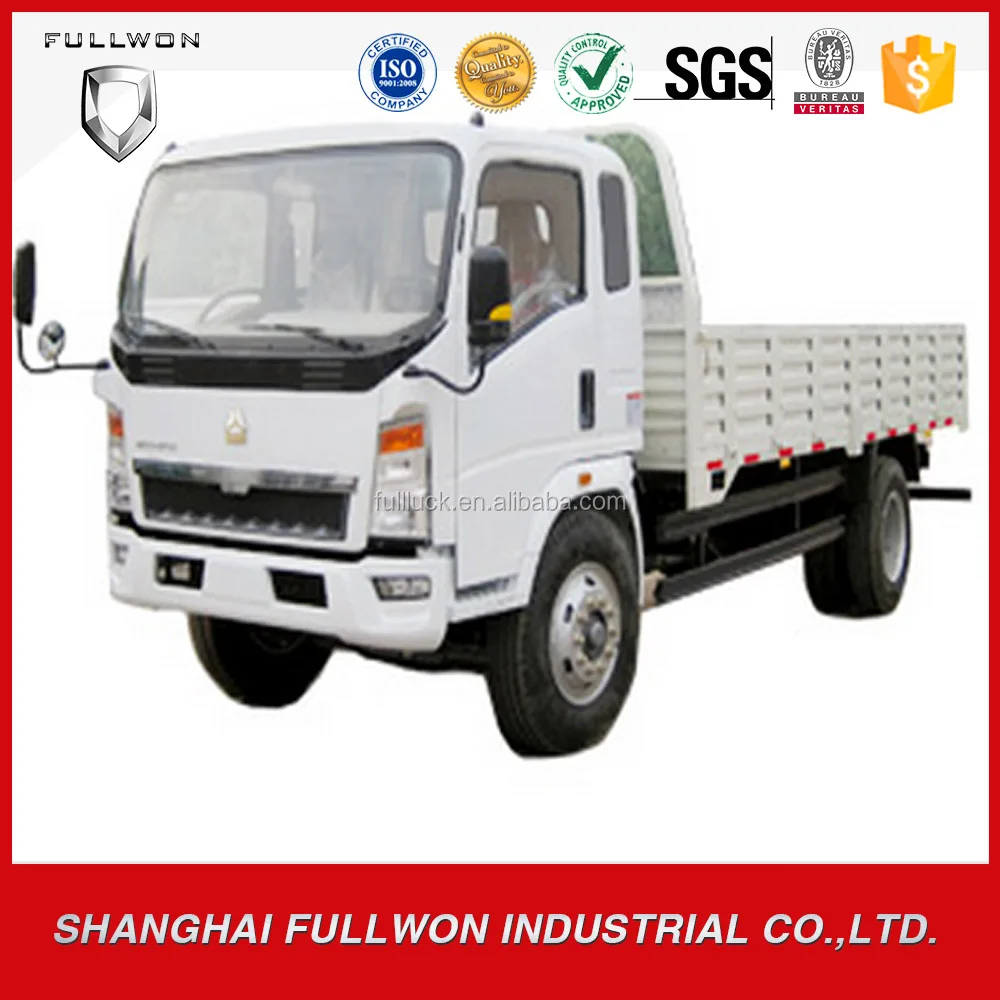

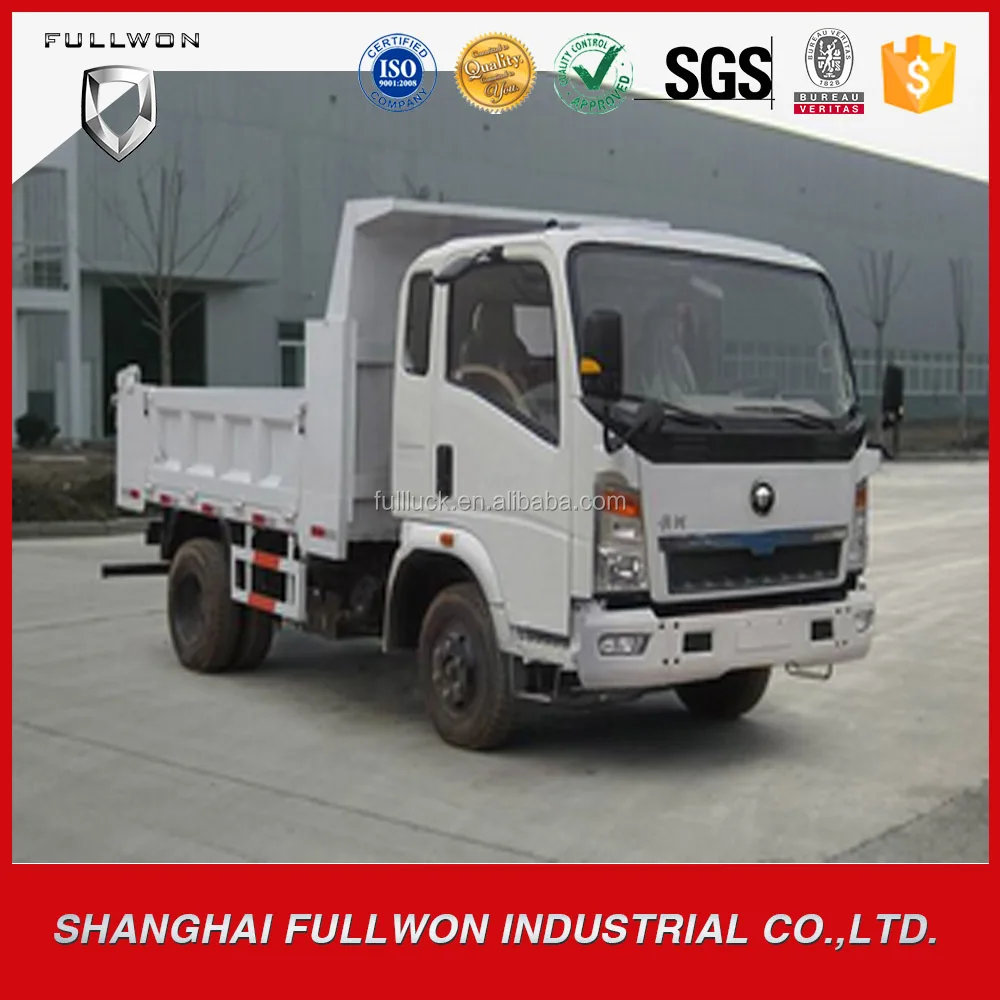

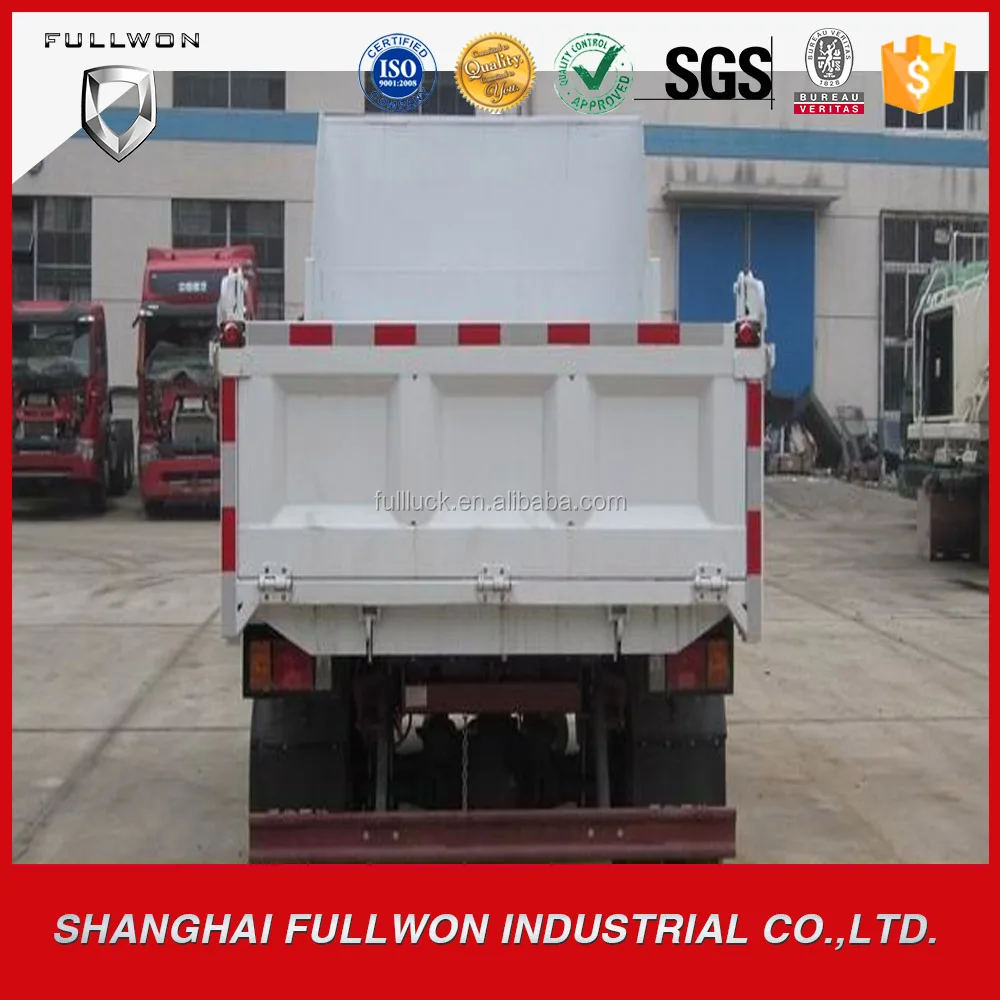

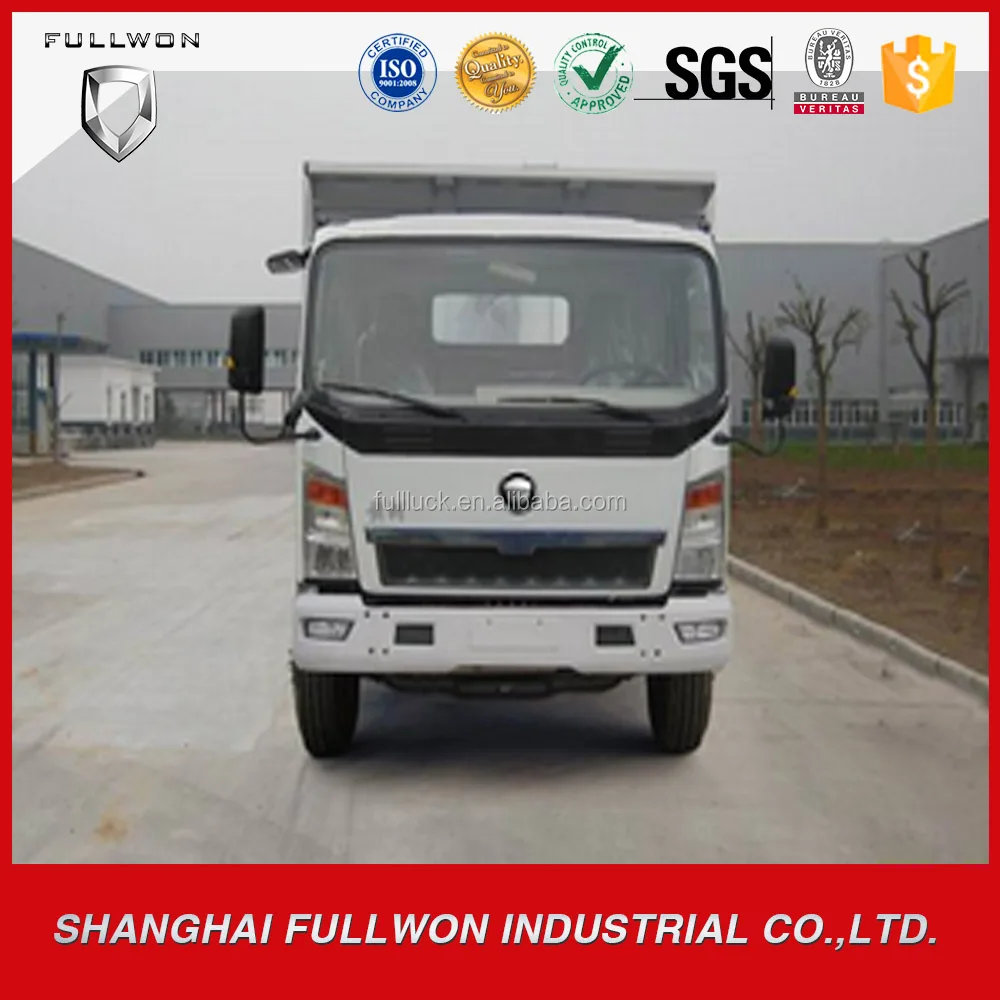

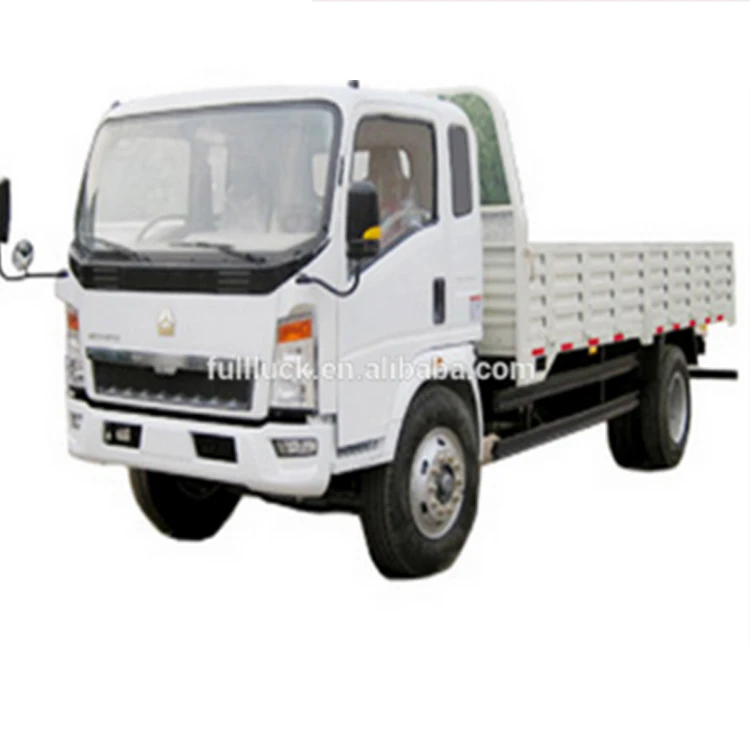

HOWO 5 ton Payload Capacity 4*2 Diesel Tipper Truck
- Category: Truck >>>
- Supplier: Shanghai Fullwon Industrial Co. Ltd.
Share on (60405422007):
Product Overview
Description
Products Description
eight Parameter | Complete Vehicle Kerb Mass(kg) | 3290 | ||
Maximum authorized total mass (kg) | 5480 | |||
Dimension Parameter | External Dimensions(mm) | Length | 5850 | |
Width | 2250 | |||
Height | 2970 | |||
wheelbase(mm) | 3250 | |||
Minimum Ground Clearance(mm) | 240 | |||
Performance Parameter | Maximum Speed(km/h) | 75 | ||
Economical Speed(km/h) | 60 | |||
Maximum Gradeability(%) | >30 | |||
Turning diameter(m) | 13 | |||
Recommended Configuration | Engine | Engine Type | YN38PE-2 | |
Rated power(kW)/Rev(r/min) | 87/3000 | |||
Maximum Torque(N*m)/Rev(r/min) | 340/1800~2200 | |||
Transmission | HW50508C | |||
Clutch(mm) | 325 | |||
Rear Axle | Type | HGZ072QB | ||
Speed Ratio | 6.33 | |||
Fuel Tank(L) | 160 | |||
Chassis Cross-section(mm) | 800×250×70×(7+4) | |||
Suspension(Front,Back) | 11/12+9 | |||
Tyre | 8.25R16 | |||
Title goes here.
Q: How can we trust your company?
A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and
VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.
Certificates including ISO9001 can also be provided.
Q: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary,our
experienced engineer can go abroad to your place for technical support.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q:Can I be your agent in my country ?
Q:Can I be your agent in my country ?
A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
A: We are the officially authorized 4S dealer and distributor of some famous brands such as SINOTRUK, LONKING and
VOLVO. And we are registered in the Commercial Department of China, with the whole qualification for exporting.
Certificates including ISO9001 can also be provided.
Q: How about your warranty item?
A: We can support you with original spare parts, and email or telephone assistance in the following days. If necessary,our
experienced engineer can go abroad to your place for technical support.
Q: How about your product quality?
A: All our products are from the original manufacturers and the quality is 100% guaranteed.
Q:Can I be your agent in my country ?
Q:Can I be your agent in my country ?
A: It's OK if the order quantity is appropriate. We looks forward to long-term cooperation.
