24V Single or Dual Channel Micro Flow Rate Mini Peristaltic Liquid Pumps Manufacturers with Speed Controller
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (60405524401):
Product Overview
Description
Hot Sale Products
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.China leading manufacturer of peristaltic pumps.
2.Focus on peristaltic pump solutions.
3.Peristaltic pump expert, 16+ years experience.
4.More than 10,000 cooperative customers.
Lilian He(Europe , North and South America) : | April Huang(Asia and Africa) : |
WhatsApp:+8618983834629 | WhatsApp:+8615703016080 |
Skype：+8618983834629 | Skype：jihpump |
Email：alan@jihpump.com | Email：april@jihpump.com |
Product Discription

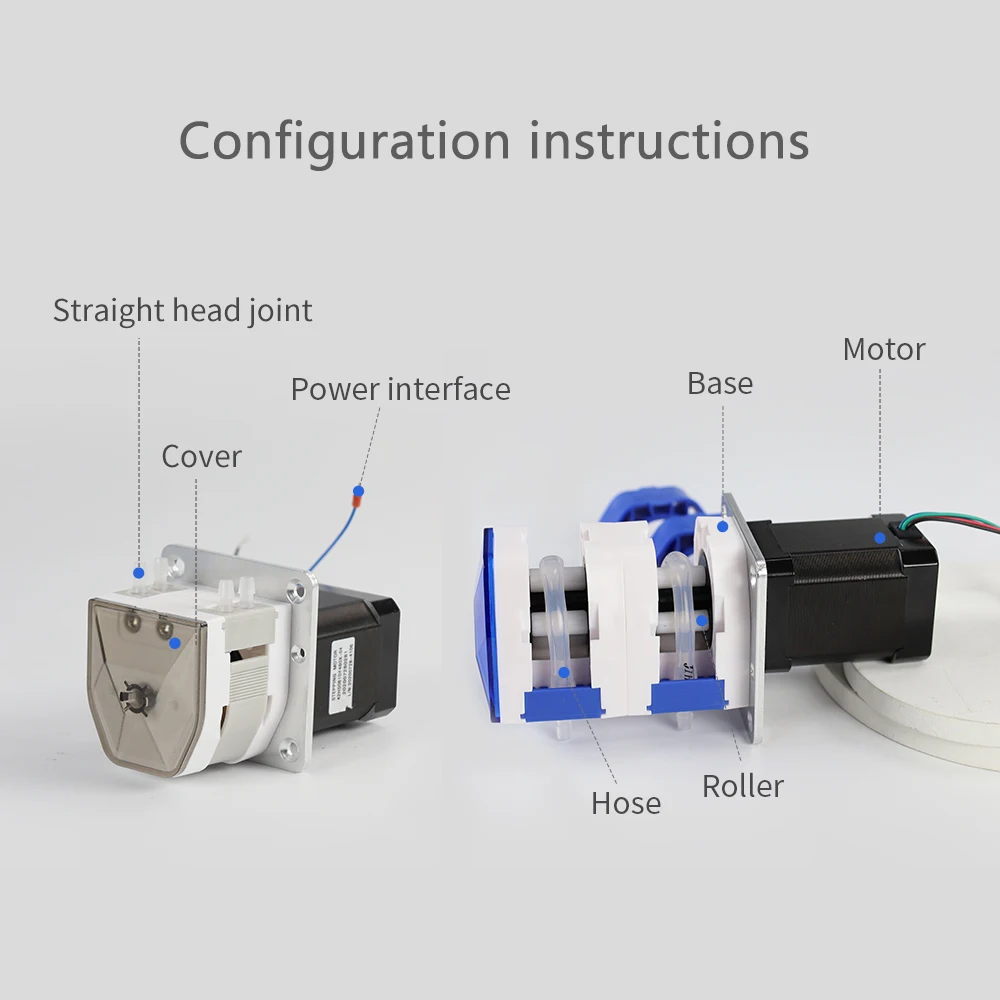

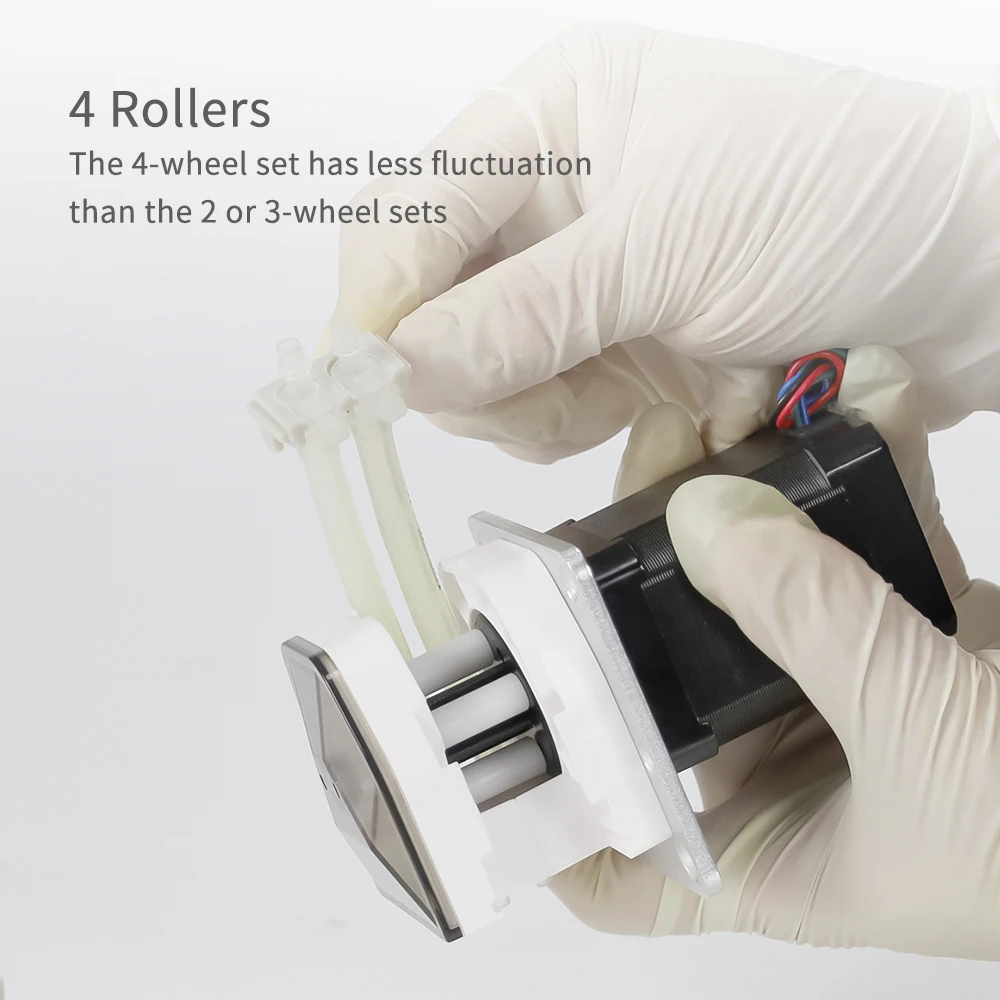

1.Cover: Transparent pumpcover available in brown and blue. 2.Upper support : POM material. 3.Roller: 4 roller design lower pulse. 4.The press block: available in blue and grey ,and can also be customized in bulk. 6.Mounting plate: Aluminum alloy material. 7.Tube: Available in 5 caliber options. 9.Motor: Stepper motor,AC synchronous motor. The 334K peristaltic pumps other main features: Single and dual channel options,Double pump heads can be connected in series,Low pulse and high precision. | ||||||||
Product Name | Quick mounted panel peristaltic pump | ||

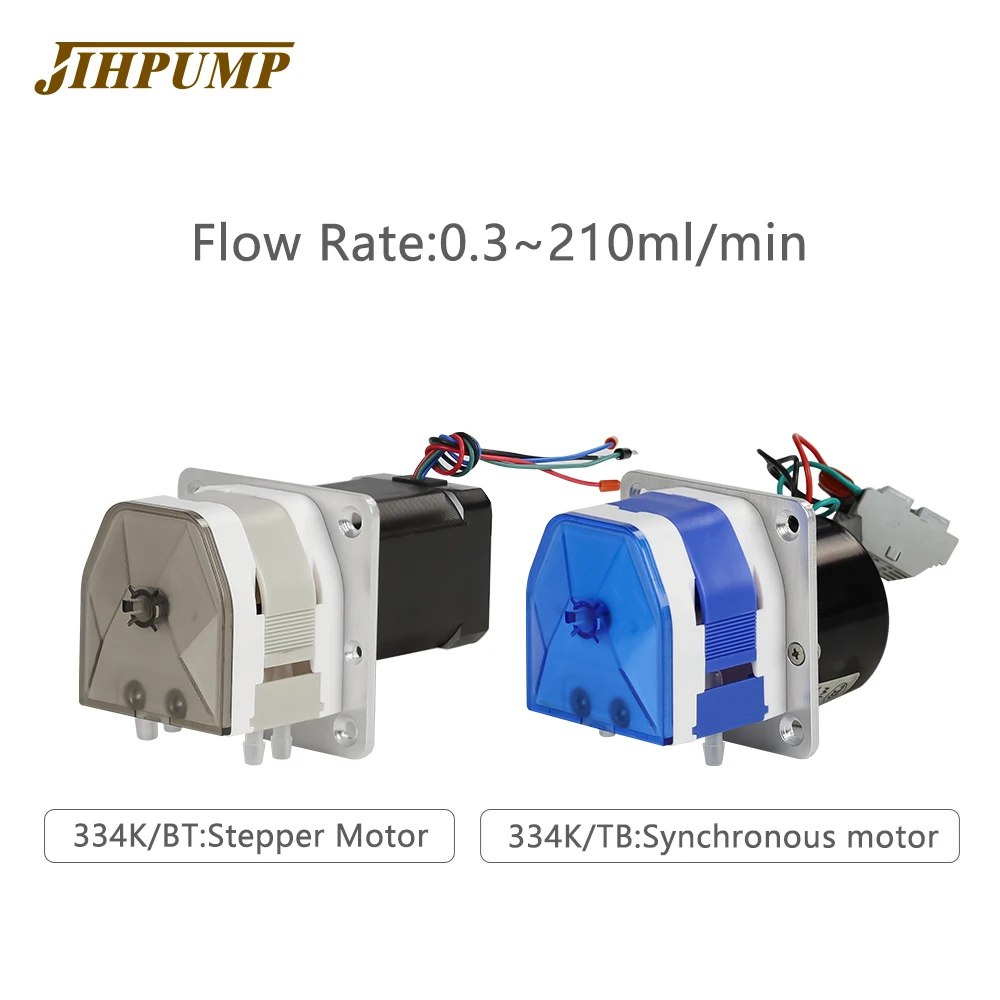

Product Model | 334K/BT | 334K/TB | |
Motor Type | Stepper Motor | AC synchronous motor | |
Motor Characteristics | 1.Meet the requirements of high precision; 2.Long time continuous operation. | 1.The accuracy requirement is not high; 2.Continuous or gap operation is allowed. | |
Voltage and Current | DC 24V，2A | AC 220V/50Hz | |
Power | ≤30W | ≤7W | |
Motor Life | 5000~20000 hours | 7000~10000 hours | |
Weight | 575g (single pump head)/660g (double pump head) | 330g (single pump head)/410g (double pump head) | |
Outlet Pressure | ≤0.17MPa | ||
Noise | ≤50dB | ||
Main Material | Pump cover:Polycarbonate;Roller:Polyamide;Base:POM;Mounting plate:Aluminum alloy | ||
Common Applications: food machinery , analytical instruments , printing equipment , detergent delivery ，Drip irrigation system，food and beverage etc.

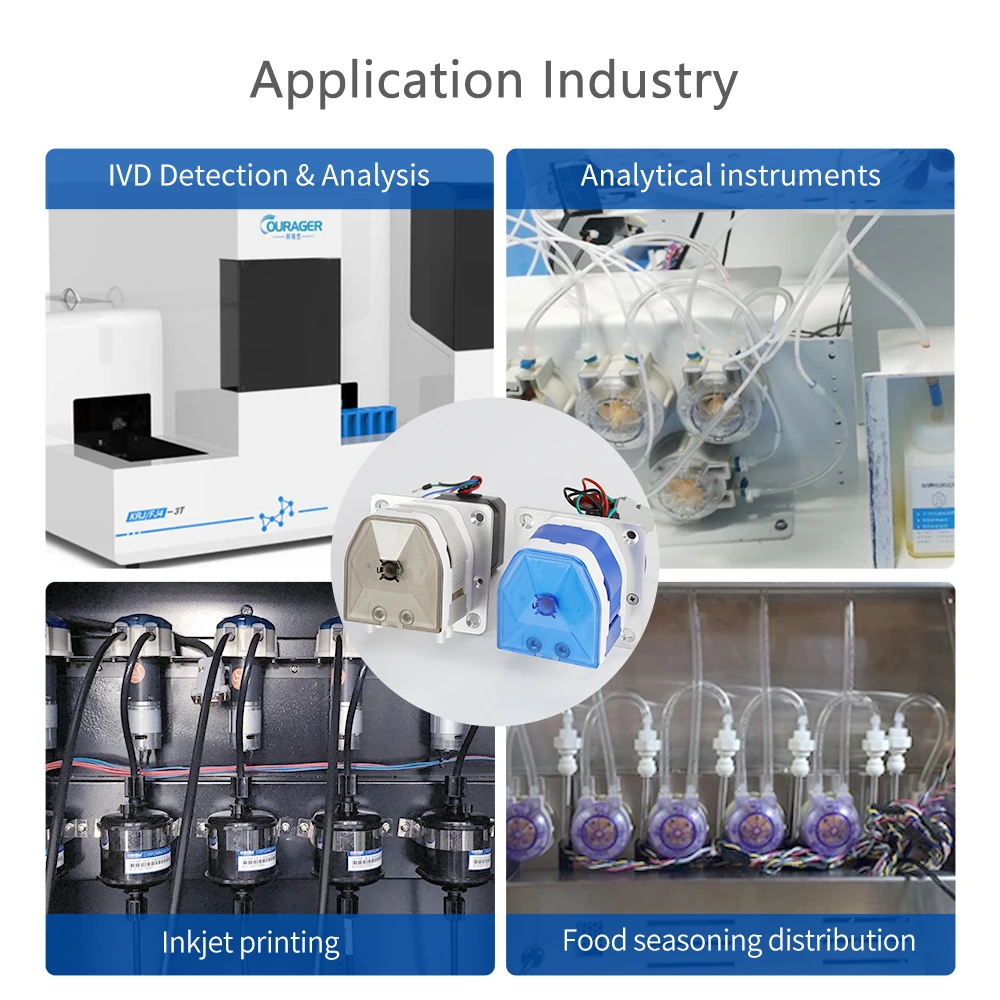

Applications Industry: medical diagnosis ，Environmental protection instrument , Analytical Instruments , inkjet ink , washing cleaning , food and drink ，Experimental research，Pharmaceutical machinery，Smart Appliances ，industrial machinery etc.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

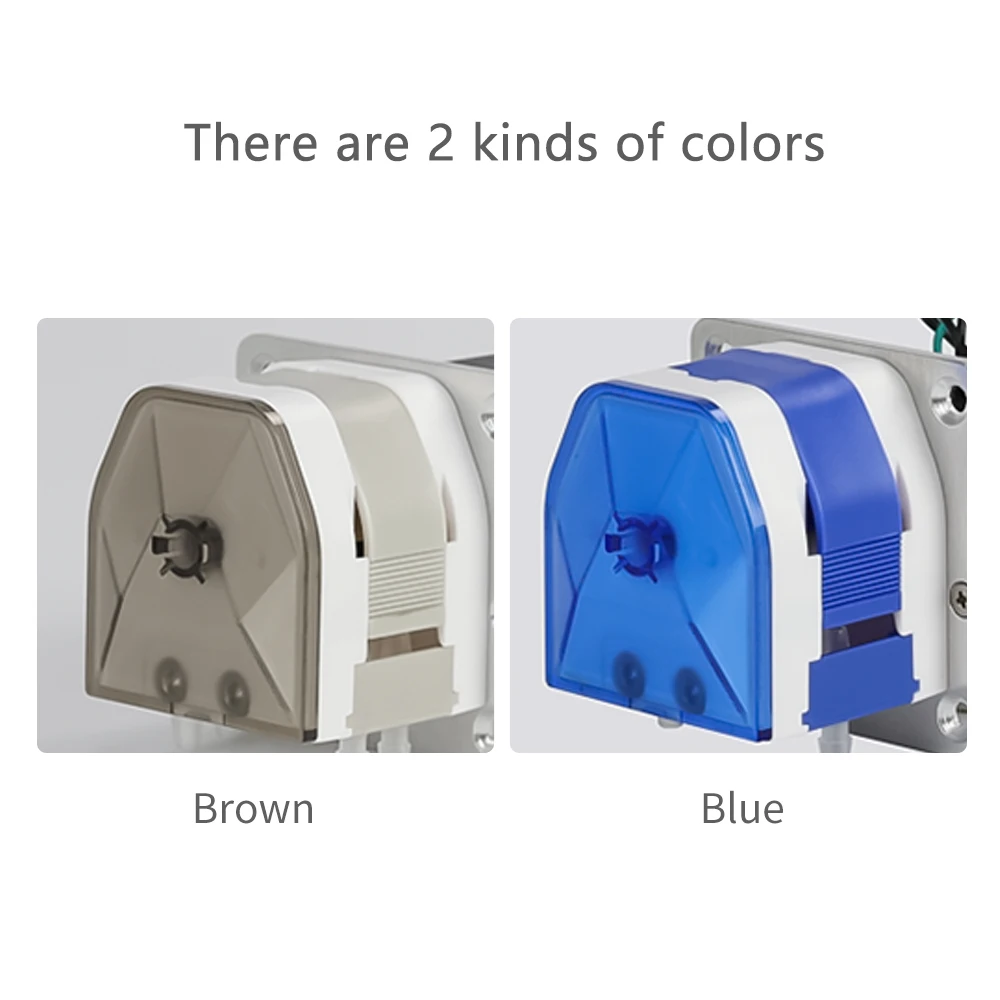

Pump head color selection: Transparent pumpcover available in brown and blue.
Pump head: Single pump head or double pump heads are available.
channel: Single channel and double channel can be selected for each pump head.
Stepper motor: Accurate flow, long working life, suitable for long-term operation, you can choose any speed control board of JIHPUMP, the price is higher.
AC synchronous motor: The synchronous motor runs at a constant speed, suitable for intermittent low-speed operation, no need to drive, and it can run with electricity and the price is cheap.
Joint Name | Inner tube size | Connect Size | Connection Description |
Direct joint | internal diameter: 1.6mm/3.2mm/4.8mm | internal diameter: 1.6mm/3.2mm/4.8mm | Connect the hose |
Extended direct joint | internal diameter: 3.2mm | internal diameter: 3.2mm | |
Thread joint | internal diameter: 3.2mm | internal diameter: 4mm wall thickness: 1mm | Connect the hose or hard tube |
Hard tube joint | internal diameter: 1.6mm/3.2mm | external diameter: 1.6mm/3.2mm | Hard tube |
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile
Chongqing Jieheng Peristaltic Pump Co., Ltd. is a leading peristaltic pump manufacturer in China and an expert in peristaltic pump fluid technology solutions. Specializing in the R&D, manufacturing and sales of peristaltic pumps, focusing on providing peristaltic pump solutions for OEM customers, with more than 16 years of application experience, more than 1 million pumps have been sold, jihpump has 60+ rich and mature product series, which can meet the needs of various Various industry application needs, and can provide customized development services, we are always ready to find a suitable solution for your needs, please contact us, thank you!
Packaging&Shipping
JIHPUMP Standard export packing for peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
FAQ
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
