3674 2Pole 4Pole Inrunner Brushless DC Motor With ESC For RC Car RC Boat Ducted Fan
- Category: >>>
- Supplier: Shenzhen Saite Motor Co. Ltd.
Share on (60405540668):
Product Overview
Description
Product Detail:
ST 3674 6T~20T 2Pole/4Pole Inrunner Brushless DC Motor With ESC For RC Car/RC Boat/Ducted Fan
2Pole 3674 motor detail:
| Model | Turns | KV | Shaft (mm) | Size(mm) | Weight (g) | Max Amps | Resistance | I0(A) | Max Power (W) | Battery (Li-Po) | ESC |
ST3674 /2P | 6 | 2770 | 5.0 | 36*74 | 370 | 110 | 0.0047 | 5.4 | 1700W | 2-3S | 120A |
| 7 | 2370 | 5.0 | 36*74 | 370 | 95 | 0.0064 | 4.6 | 1700W | 2-3S | 120A | |
| 8 | 2070 | 5.0 | 36*74 | 370 | 83 | 0.0084 | 3.7 | 1700W | 2-4S | 120A | |
| 9 | 1840 | 5.0 | 36*74 | 370 | 74 | 0.0105 | 2.8 | 1700W | 2-4S | 80A | |
| 10 | 1660 | 5.0 | 36*74 | 370 | 66 | 0.0131 | 2.5 | 1700W | 2-4S | 80A | |
| 11 | 1510 | 5.0 | 36*74 | 370 | 60 | 0.0158 | 2.3 | 1700W | 2-6S | 80A | |
| 12 | 1380 | 5.0 | 36*74 | 370 | 55 | 0.0188 | 1.9 | 1700W | 2-6S | 80A | |
| 13 | 1280 | 5.0 | 36*74 | 370 | 51 | 0.0221 | 1.7 | 1700W | 2-6S | 60A | |
| 14 | 1180 | 5.0 | 36*74 | 370 | 47 | 0.0257 | 1.6 | 1700W | 2-6S | 60A | |
| 15 | 1100 | 5.0 | 36*74 | 370 | 44 | 0.0294 | 1.2 | 1700W | 2-6S | 60A | |
| 16 | 1030 | 5.0 | 36*74 | 370 | 41 | 0.0335 | 1.1 | 1700W | 2-6S | 60A | |
| 17 | 970 | 5.0 | 36*74 | 370 | 39 | 0.0378 | 0.9 | 1700W | 2-6S | 60A | |
| 18 | 920 | 5.0 | 36*74 | 370 | 37 | 0.0424 | 0.8 | 1700W | 2-6S | 60A | |
| 19 | 870 | 5.0 | 36*74 | 370 | 35 | 0.0473 | 0.7 | 1700W | 2-6S | 40A | |
| 20 | 830 | 5.0 | 36*74 | 370 | 34 | 0.0525 | 0.7 | 1700W | 2-6S | 40A |
4Poles 3674 motor detail:
| Model | Max Amps | Max Power | KV | Resistance | No-load Curren (7.4V) | Diameter× Length (mm) | Shaft (mm) | Weight |
| ST3674/4P | 135A | 2400W | 3270KV | 0.0033 | 4.5A | Φ36.0×74 | Φ5.0 | 315g |
| 110A | 2400W | 2650KV | 0.006 | 3.1A | Φ36.0×74 | Φ5.0 | 315g | |
| 90A | 2400W | 2200KV | 0.0066 | 2.7A | Φ36.0×74 | Φ5.0 | 315g | |
| 78A | 2400W | 1900KV | 0.0104 | 2.2A | Φ36.0, ×74 | Φ5.0 | 315g | |
| 72A | 2400W | 1700KV | 0.009 | 2.3A | Φ36.0×74 | Φ5.0 | 315g | |
| 70A | 2400W | 1650KV | 0.0115 | 1.8A | Φ36.0×74 | Φ5.0 | 315g | |
| 60A | 2400W | 1470KV | 0.0164 | 1.4A | Φ36.0×74 | Φ5.0 | 315g | |
| 58A | 2400W | 1400KV | 0.0153 | 1.8A | Φ36.0×74 | Φ5.0 | 315g | |
| 56A | 2400W | 1300KV | 0.0175 | 1.6A | Φ36.0×74 | Φ5.0 | 315g | |
| 50A | 2400W | 1200KV | 0.0235 | 1.1A | Φ36.0×74 | Φ5.0 | 315g | |
| 50A | 2400W | 1180KV | 0.0181 | 1.4A | Φ36.0×74 | Φ5.0 | 315g | |
| 48A | 2400W | 1100KV | 0.0252 | 1.2A | Φ36.0×74 | Φ5.0 | 315g | |
| 42A | 2400W | 1000KV | 0.029 | 1.1A | Φ36.0×74 | Φ5.0 | 315g | |
| 36A | 2400W | 860KV | 0.0334 | 0.8A | Φ36.0×74 | Φ5.0 | 315g |

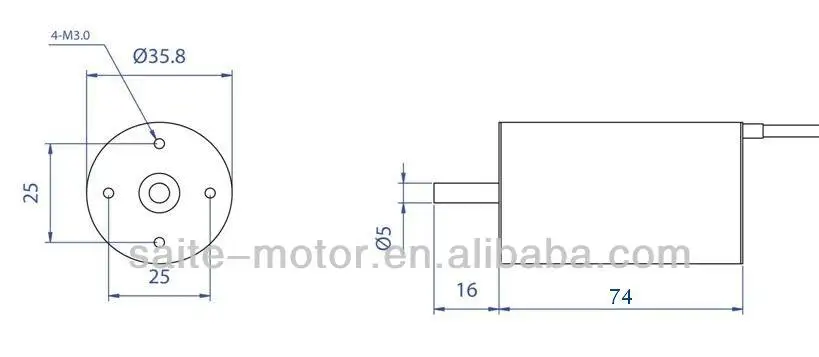

Structural diagram:

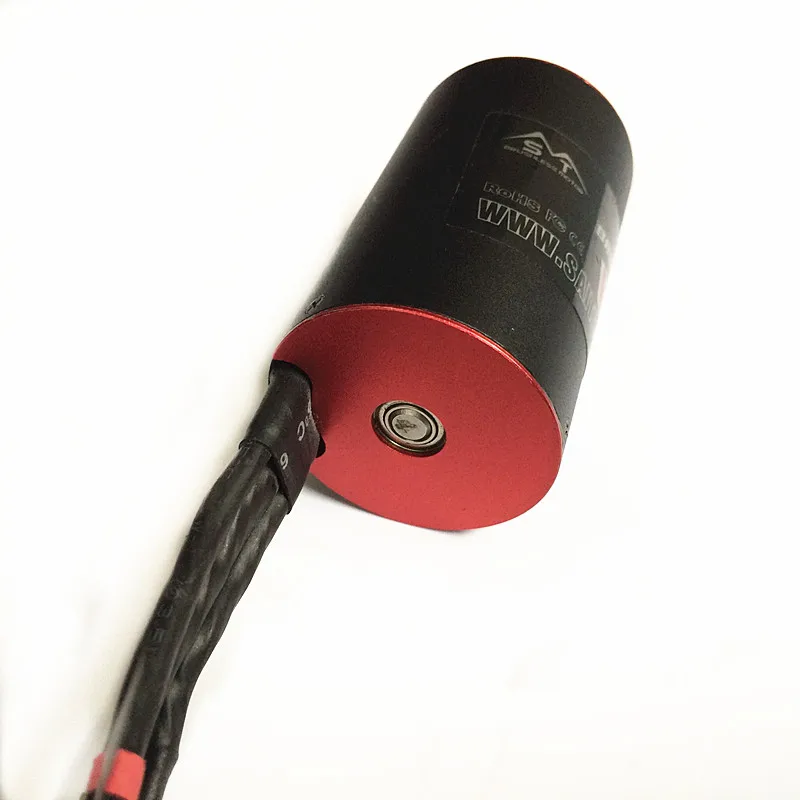

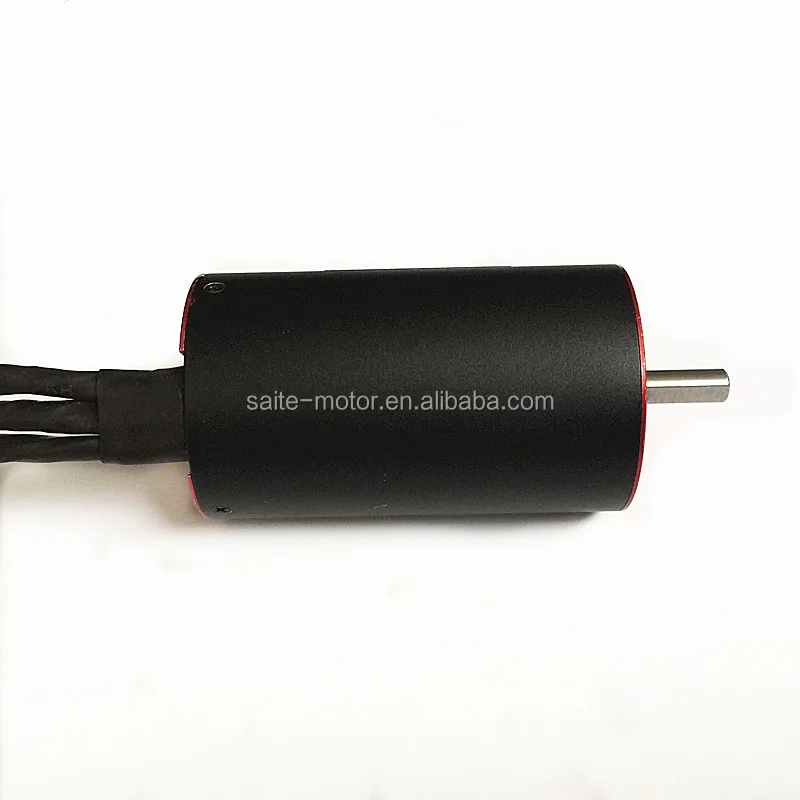

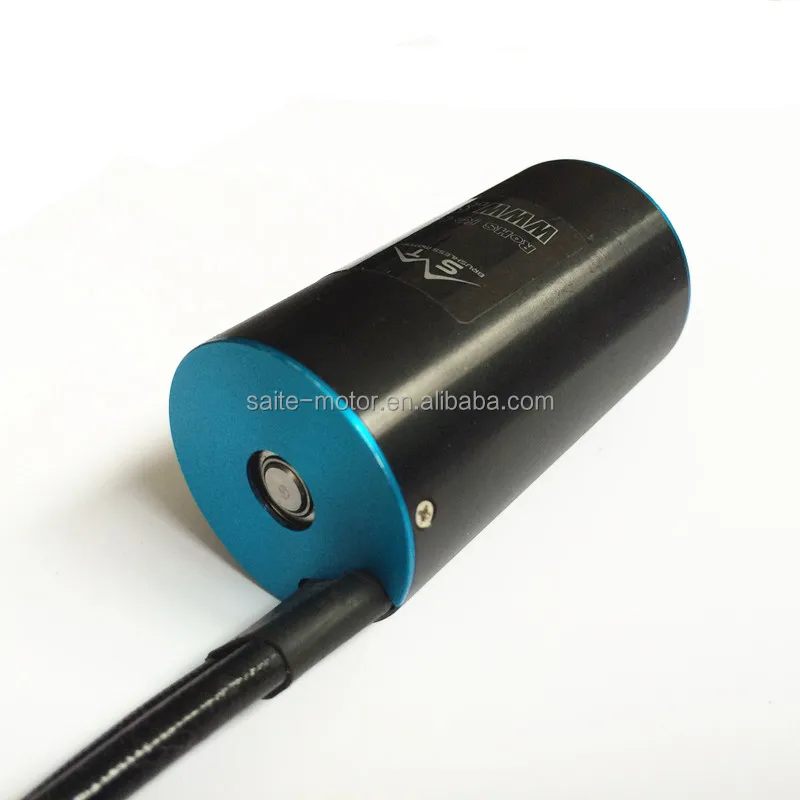

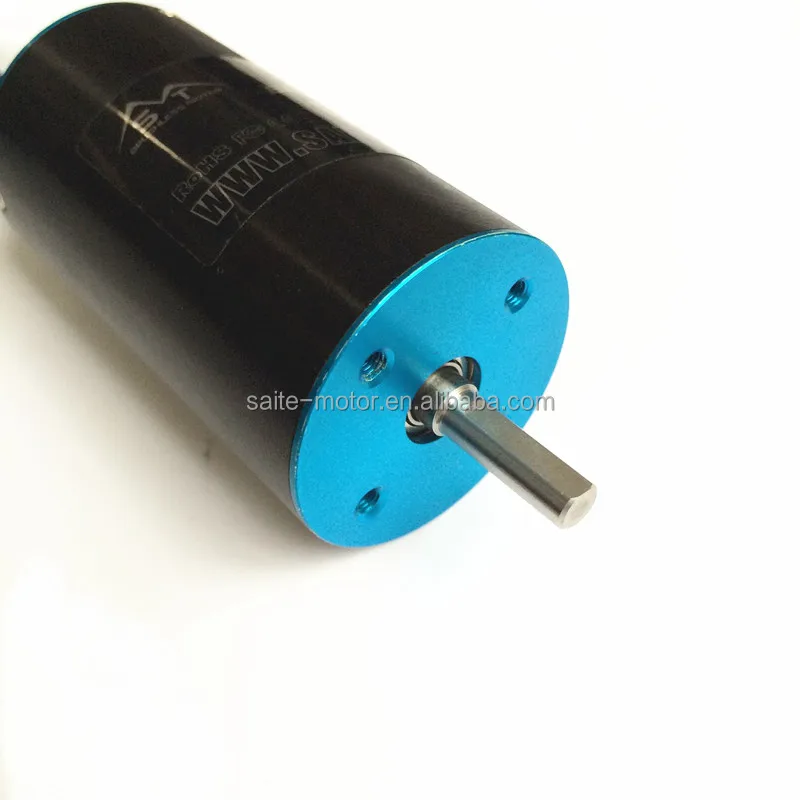

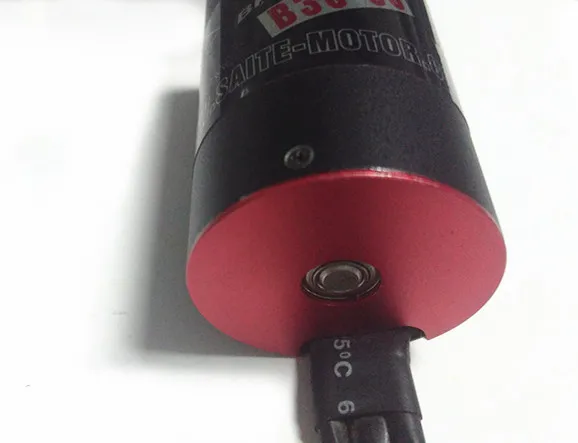

Picture Show:
Package:
Packaging Details: | Cardboard:380mm*28.5mm*28mm |
Delivery days Delivery Detail:
| 3~10 Working days China(mainland) to America via HK:3-7 working days on slow delivery China(mainland) to Europe via HK:4-8 working days on slow delivery |
Payment:
- Accept paypal ,escow,T/T
- Credit card through Paypal
- Winner should deposit payment within 3 days from closing date
- Please send payment to my paypal account
- Any special requests (e.g.mark low value on the parcel, change address, mark as gift or must be shipped with tracking number).
please must leave it on manssage or email before you going to pay the money.
You need a seething heart-Saitemotor
Quality Control:
We have a strict test system to control the products quality. The IQC, QA and QC department take great responsibility
on the incoming material examine, quality test during production and finished products test.
After-sales service:
Our motor products have been certificated by CE and ROHS:
we support product returns and free repair in the condition our motor products are defective and damaged.
we support Second free motor sample in thr condition our First sample motor are defective and damaged.
( According the evidence of your motor Picture and Shoot video)
