Clam shell Pipe Cold Cutting Equipment Poratble Beveller

Product Overview

Description

Clamshell Pipe Cold Cutting And Beveling  Machine

 Product Show

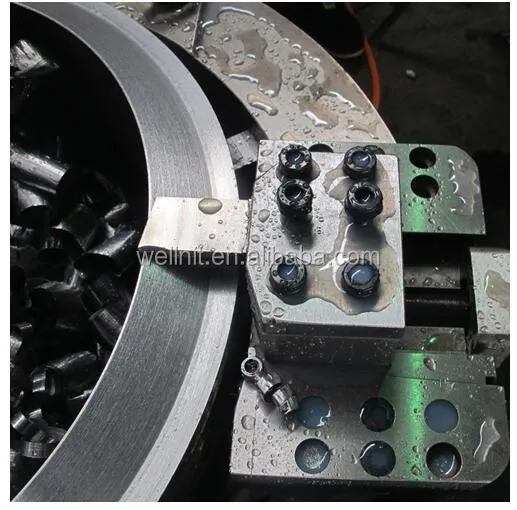

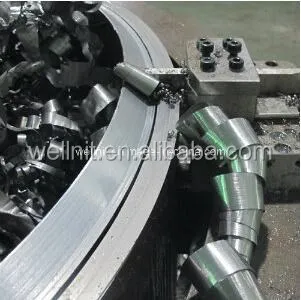

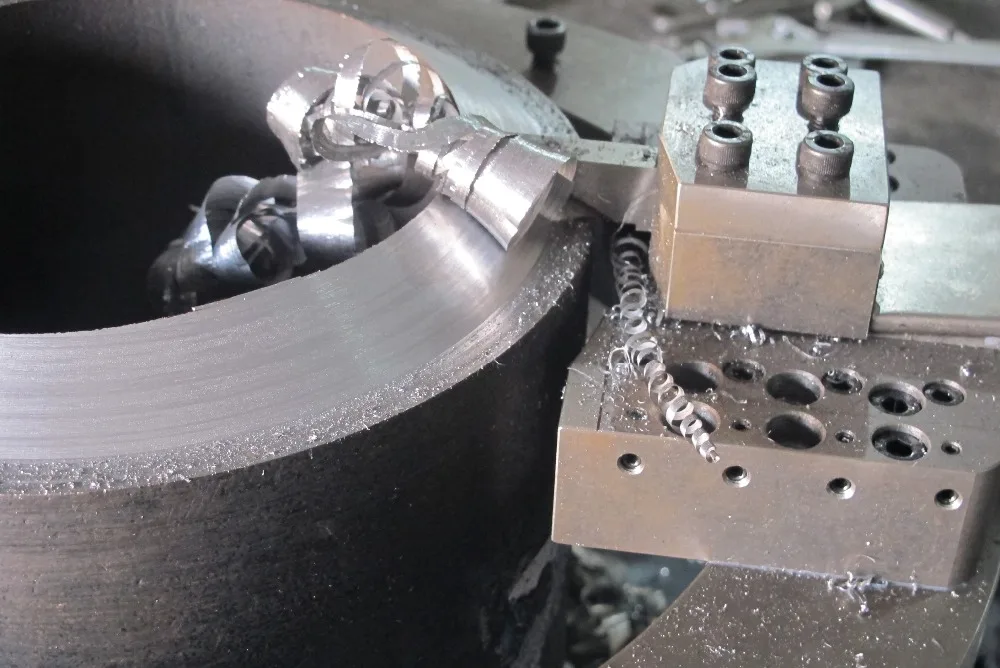

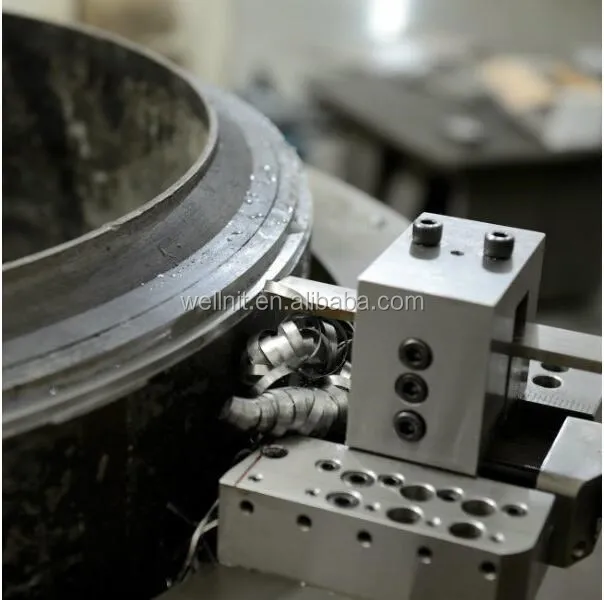

              Before Beveling                                    After Beveling(Compound Bevel)



 Production Description

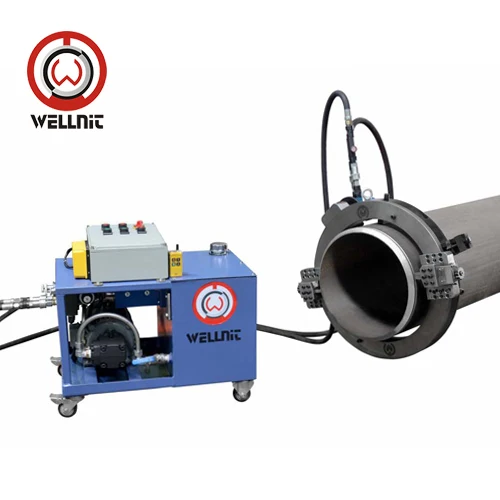

Clamshell Hydraulic Driven Pipe Cold Cutting Machine

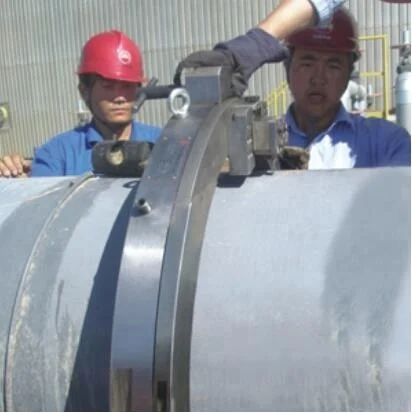

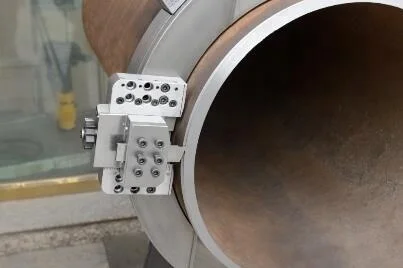

The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe.



Features:

• Cold Cutting and Beveling improves safety


• Cutting and Beveling simultaneous


• Split Frame: easy mounted on pipeline


• Tools feed automatically


• Fast, Precision, On-site Beveling


• Minimal Axial and Radial clearance


• Light weight and compact design


• Easy set-up & Operation


• Electric or Pneumatic or Hydraulic driven


• Machining heavy-wall pipe from 3/4” up to 56


•





















































































































































  Model	Working Range(ID-OD)		Wall Thickness	Rotation Speed
  OCH-89	Φ25-89	3/4”-3”	≤100mm	50r/min
  OCH-159	Φ50-159	2”-5”		21r/min
  OCH-168	Φ50-168	2”-6”		21r/min
  OCH-230	Φ80-230	3”-8’		20r/min
  OCH-275	Φ125-275	5”-10”		20r/min
  OCH-305	Φ150-305	6”-10”		18r/min
  OCH-325	Φ168-325	6”-12”		16r/min
  OCH-377	Φ219-377	8”-14”		13r/min
  OCH-426	Φ273-426	10”-16”		12r/min
  OCH-457	Φ300-457	12”-18”		12r/min
  OCH-508	Φ355-508	14”-20”		12r/min
  OCH-560	Φ400-560	16”-22”		12r/min
  OCH-610	Φ457-610	18”-24”		11r/min
  OCH-630	Φ480-630	20”-24”		11r/min
  OCH-660	Φ508-660	20”-26”		11r/min
  OCH-715	Φ560-715	22”-28”		11r/min
  OCH-762	Φ600-762	24”-30”		11r/min
  OCH-830	Φ660-813	26”-32”		10r/min
  OCH-914	Φ762-914	30”-36”		10r/min
  OCH-1066	Φ914-1066	36”-42”		9r/min
  OCH-1230	Φ1066-1230	42”-48”		8r/min
  OCH-1430	Φ1230-1430	50’’-56’’		8r/min
