High Speed Flat 1.4V 2.0V 60HZ HDMI Cable for HDTV LCD Support 4K hdmi cable 5m 15m 20m 25m 30m

Product Overview

Description

High Speed Flat 1.4V/2.0V 60HZ HDMI Cable for HDTV/LCD Support 4K

HDMI is the first and only digital interface to combine uncompressed high-definition video, multi-channel audio and intelligent format and command data in a single digital interface. HDMI offers significant advantages over analog A/V connections, including the ability to transmit uncompressed digital video and audio content. With these capabilities, HDMI is, and will be the evolving interconnection standard for the future of consumer electronics



Flat HDMI cable Features:



(1) A premium quality 1.4v&2.0 HDMI to HDMI cable that is suitable for use in HDTV, home theater, DVD player, projector, PS3, and other HDMI devices

(2) 24k gold-plated connector resists corrosion and ensures an optimum connection for maximum signal transfer

(3) Compatible with multiple audio formats from stereo to multi-channel sound

(4) Transfer digital audio and video signals at warp speed of 10.2 gigabytes per second



Specifications:



(1) 2×HDMI 19PIN, male connectors, version 1.4 & 2.0

(2) Gold plated connectors

(3) Nylon protection layer option, double layer shielding

(4) Digital transfers at rates up to 10.2Gbps

(5) 1.5M-5M: 30#OD3.8*16.5mm(0.23BC):           (1/0.23BC*1P+1/0.23BC+AL)*5P+1/0.23BC*1P+1/0.23BC*2C+AL/MY+1/0.23BC+16/4/0.12 Al-Mg Braid, PVC

    10M: 28+30#OD3.8*16.5mm:                                     (1/0.32BC*1P+1/0.23BC+AL)*5P+1/0.23BC*1P+1/0.23BC*2C+AL/MY+1/0.23BC+16/8/0.12 Al-Mg Braid, PVC

    15M: 26+28#OD3.8*16.5mm:

  (1/0.404BC*1P+0.32BC+A+MY)*5P+1/0.32BC*1P+1/0.32BC*2C+AL/MY+1/0.32BC+16/8/0.12 Al-Mg Braid, PVC



HDMI Cable Specification	HDMI Cable for 3D
Connector	24K Gold-plated
Length	from 1.5-20meter
Speed	Super high 10.2Gbps
Working Temperature	-20 to 80 degree
Cable Conductor	30-24AWG
Material	Tinned copper,bare copper or slied copper
Differential impedance	100+/-15ohm
Far-end Crosstalk	-26db@300k-5GHz
Attenuation	5dB@300KHZ-825MHz
Intra-pair skew	11ps(max)
Inter-pair skew	1780(max)
Differential Delay	5.05ns/m(max)
Shape	Flat Cable
Spec.	HDMI Male/Male 1.4 & 2.0 option
Applications	PDPTV,LCD,HDTV,RPTV,DVD .etc

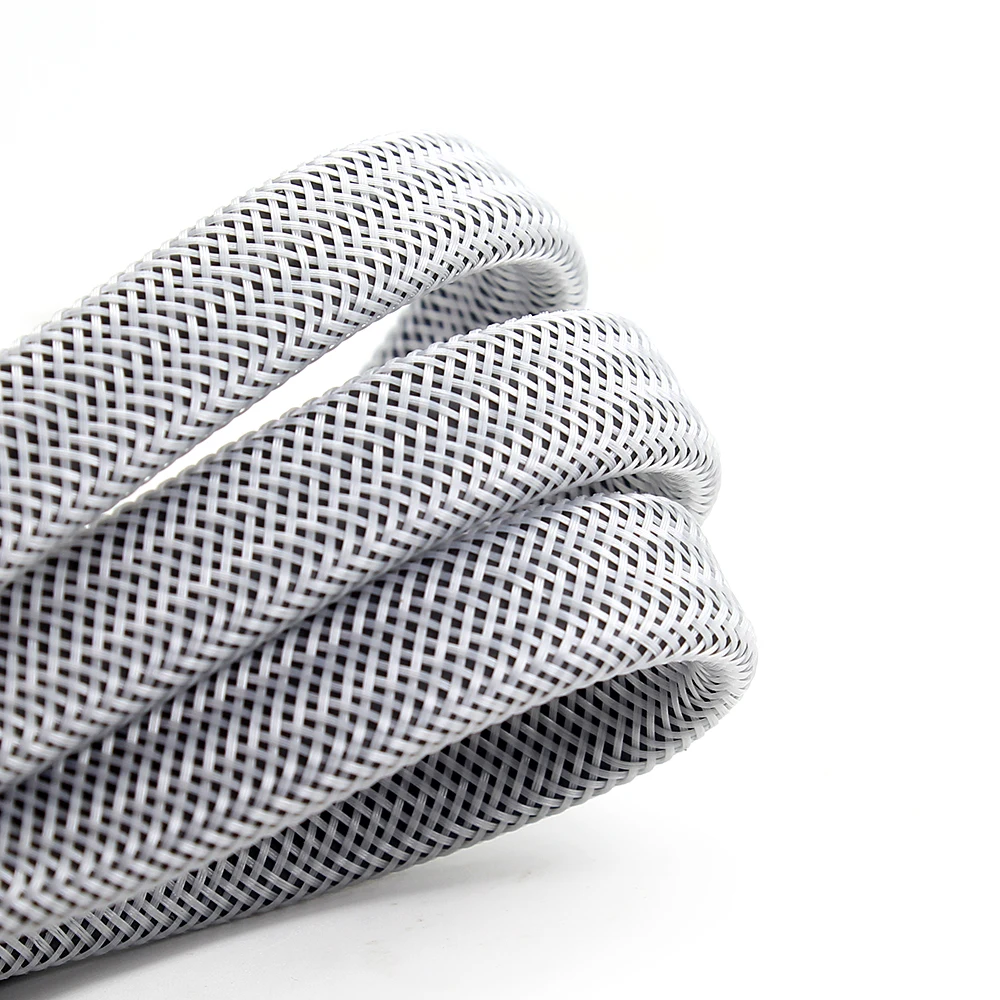

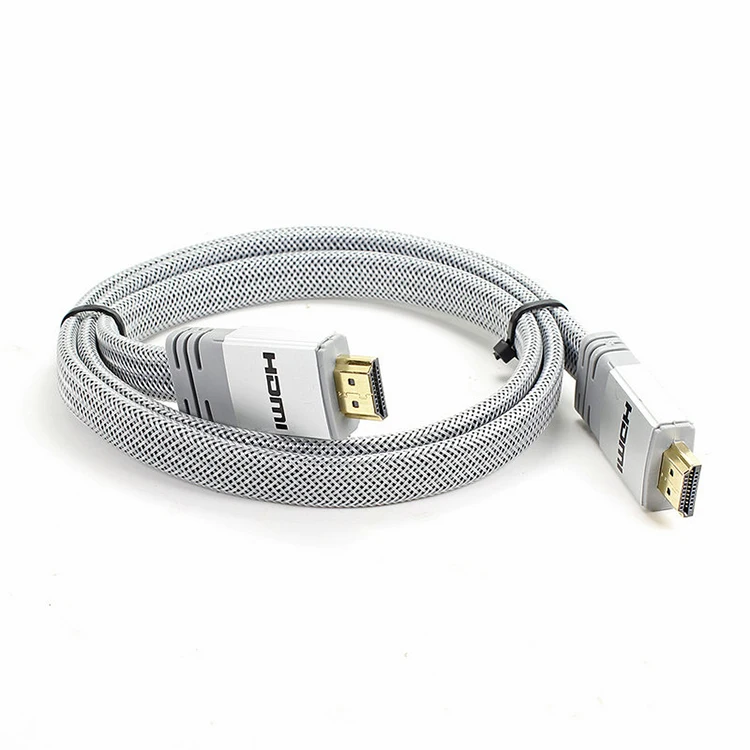

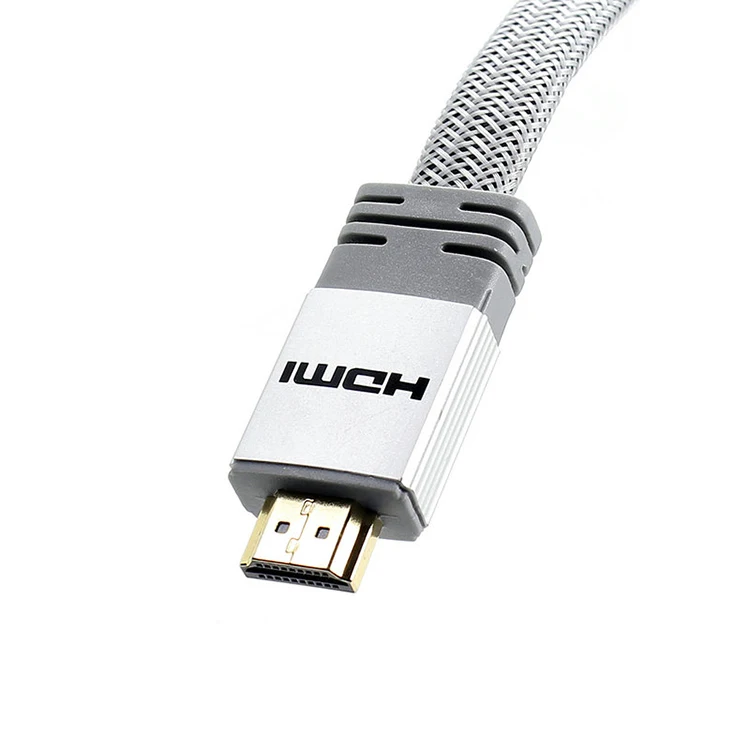

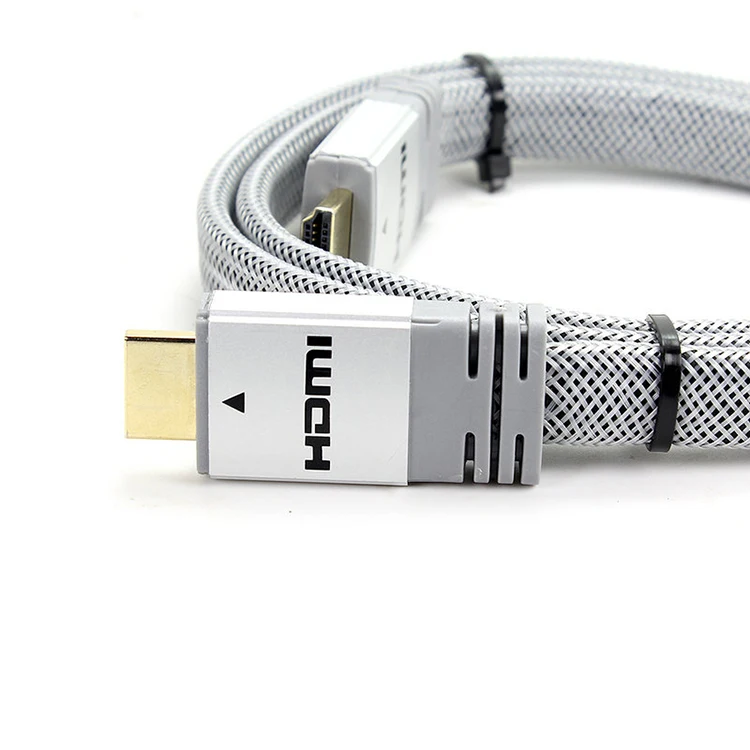

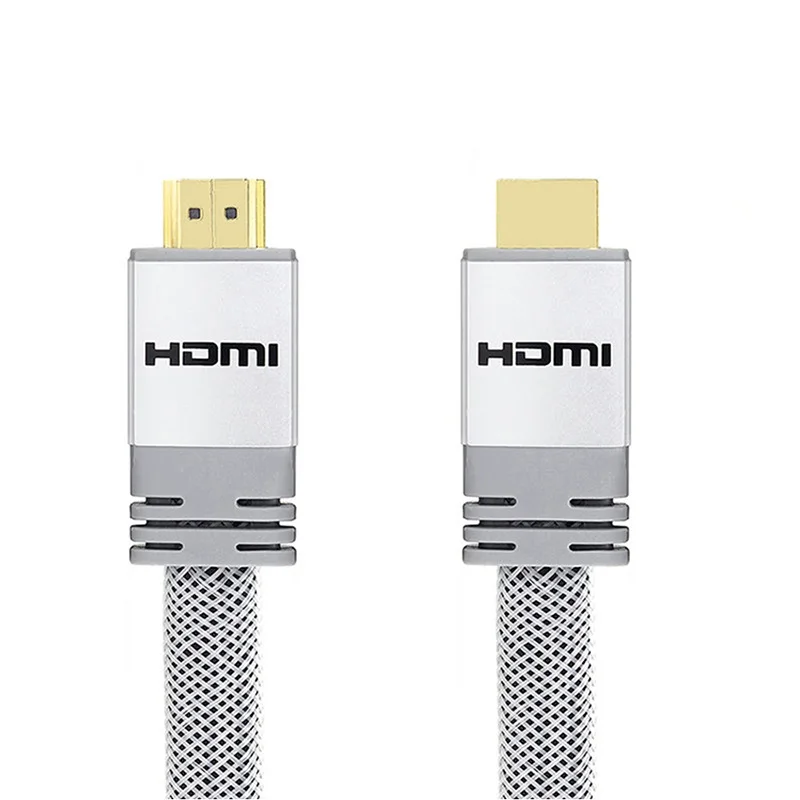

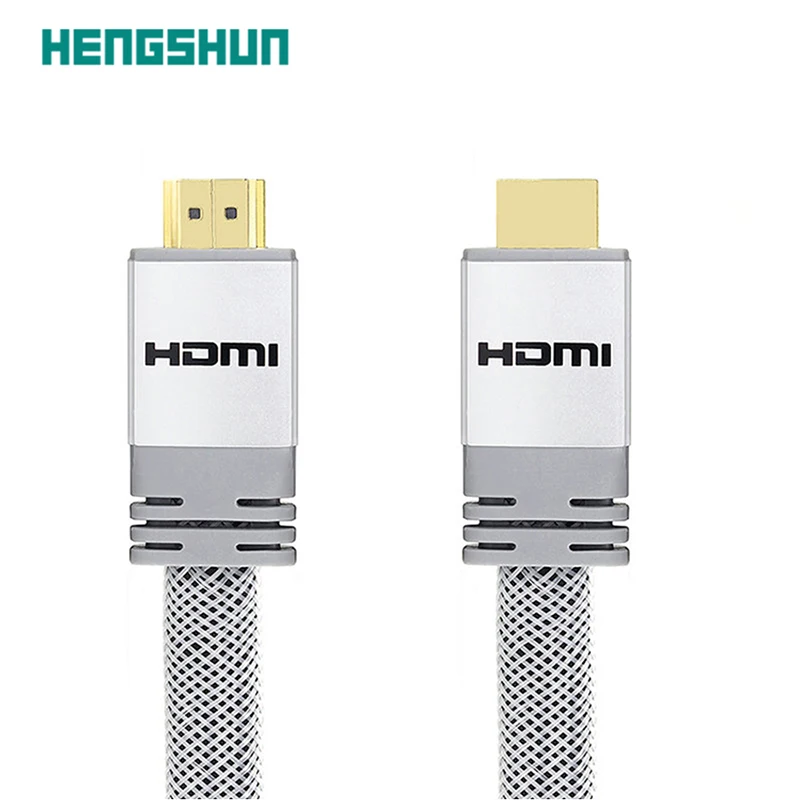

Detailed Pictures:
