HYML telescopic mast and Musco Lighting

Product Overview

Description

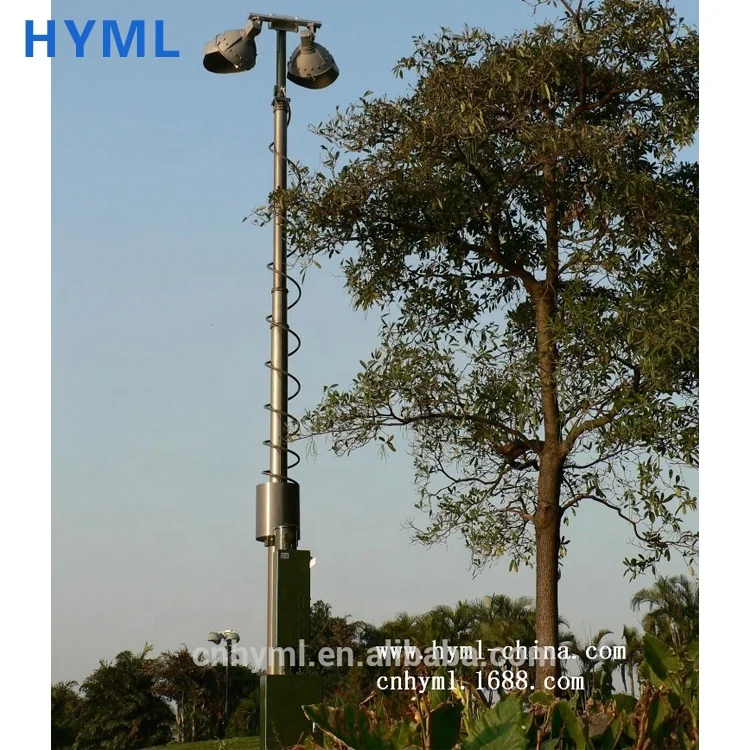

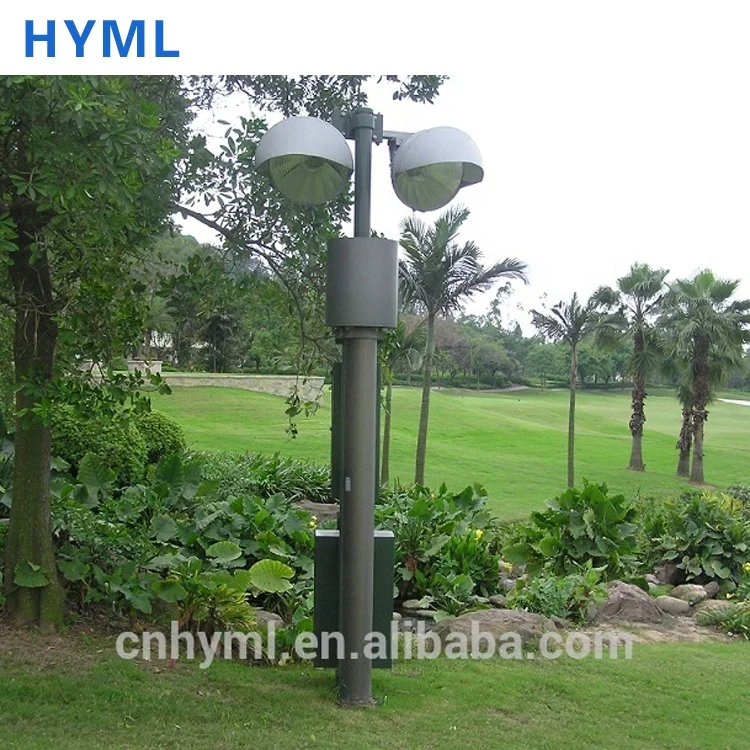

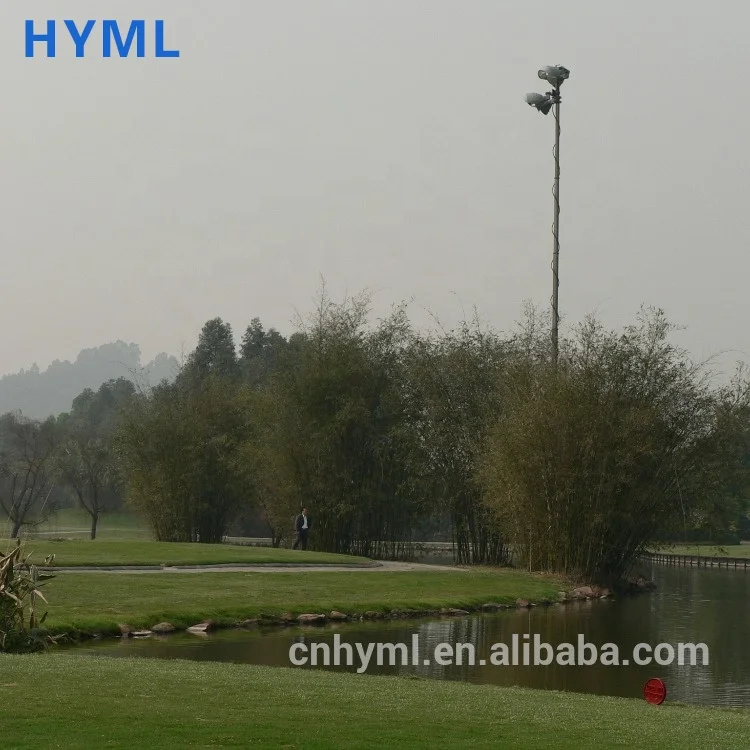

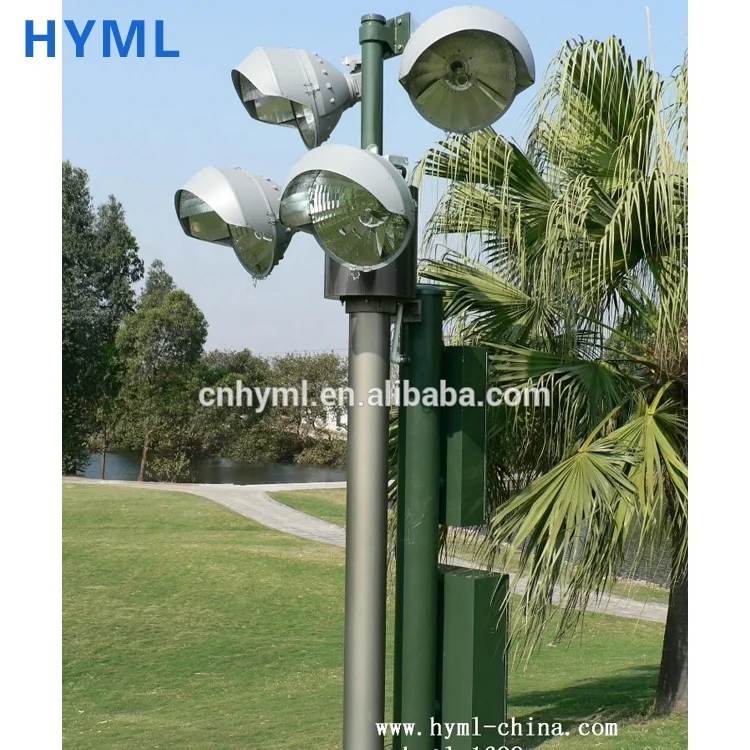

These pictures are the lighting telescopic masts installed in the golf course. It was built and used in 2006.  The Light sources and lamps are the American MUSCO lights

The mounting way is used the round steel pipe stakes and concrete foundation

This mast model is HYML A6-215, nested height is 3.3m, the extended height is 15m.



Currently HYML offers three models of golf course lighting telescopic masts:



Model	h	H	D	d	L	Price	h:nested height H:extended height D:outer diameter d:inner diameter L:top payload
	(m)	(m)	(mm)	(mm)	(Kg)	(US dollars)
A6-215	3.2	15	229	110	200-250	7500
A6-270	3.2	15	284	150	300-350	7900
A7-270	3.2	18	284	130	250-300	8200

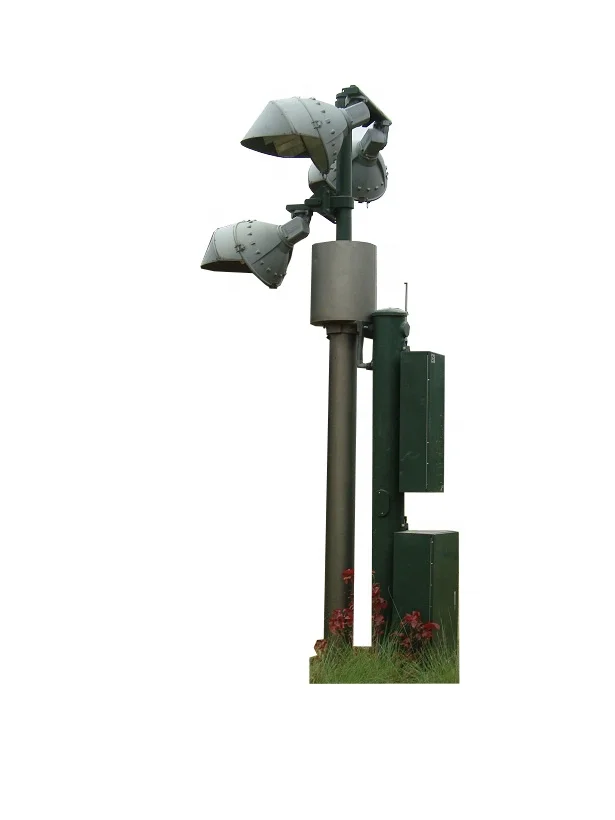

Accessories	including: upper and lower mounting flange, top mounting flange, spiral cable, the cable bucket . the mast base ground stake and control box. See the following pictures, the accessories price is include with the mast price.
