EPS fiber cement board production line /cement sandwich wall panel machine
- Category: >>>
- Supplier: Shandong Tianyi Machinery Co. Ltd.
Share on (60406117964):
Product Overview
Description
Product Description

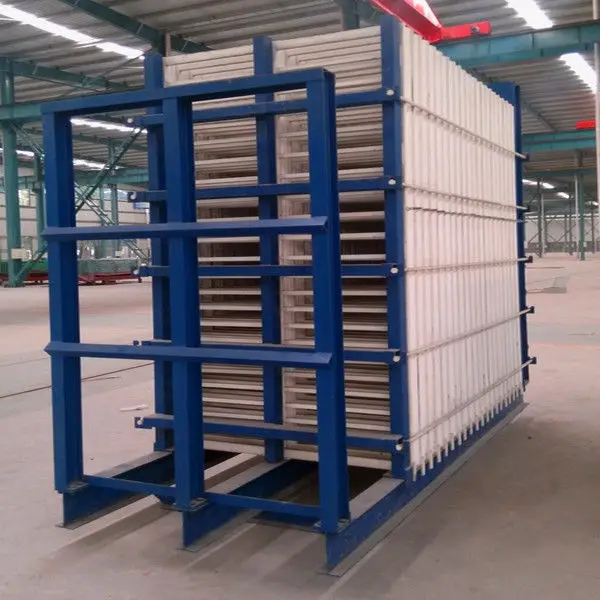

Lightweight composite EPS wall panel forming machine/concrete sandwich wall panel machine
This machine is mainly used to produce the composite wall panels (with silicate calcium board as surface panel and with EPS grain, cement and fly ash as the mixed material in the middle) and suitable for both small and large manufacturing on production. It can produce 10 boards at one time.
Main Technical Parameters:
No. | Test Item | China standard | Product test |
1 | Compressive strength | ≥3.5MP | ≥3.7MP |
2 | Drying shrinkage value | ≤0.6mm/m² | 0.37mm/ m² |
3 | Hanging force | ≥1000N 24hours No 0.55mm crack | ≥1000N 24hours No 0.55mm crack |
4 | shock resistance | No damaged that Impacting of 30kgs sandbag five times | No damaged that Impacting of 30kgs sandbag five times |
5 | The bending failure load | ≥1.5 times of wallboard | ≥2.5 times of wallboard |
6 | radioactivity | Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 | Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
7 | density | ≤90kgs/m² | ≤60kgs/m² |
8 | Air insulation of sound | ≥35dB | ≥43dB |
9 | heat transfer coefficient | No | ≤2.0W/ m² . k |
Raw material

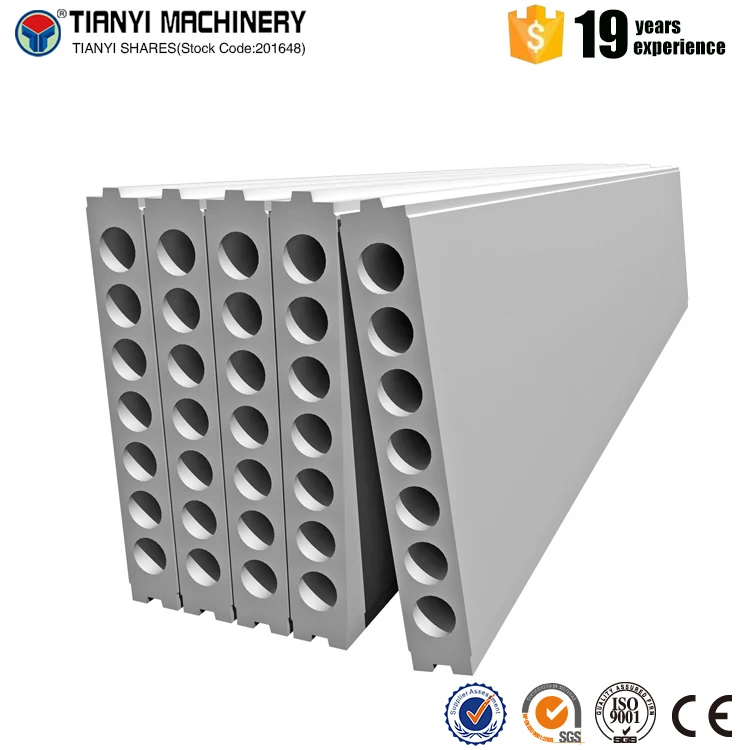

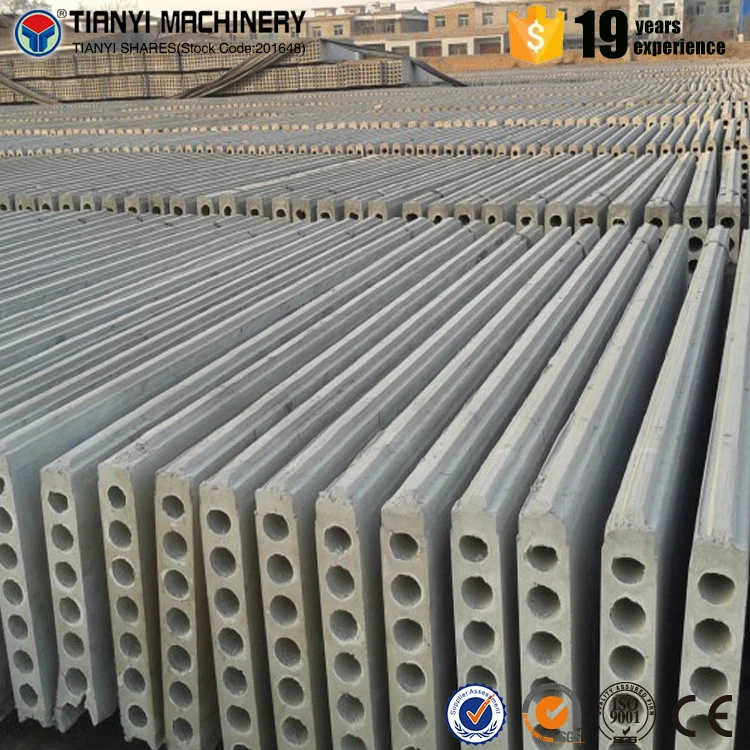

Wall panel samples
The cost for materials

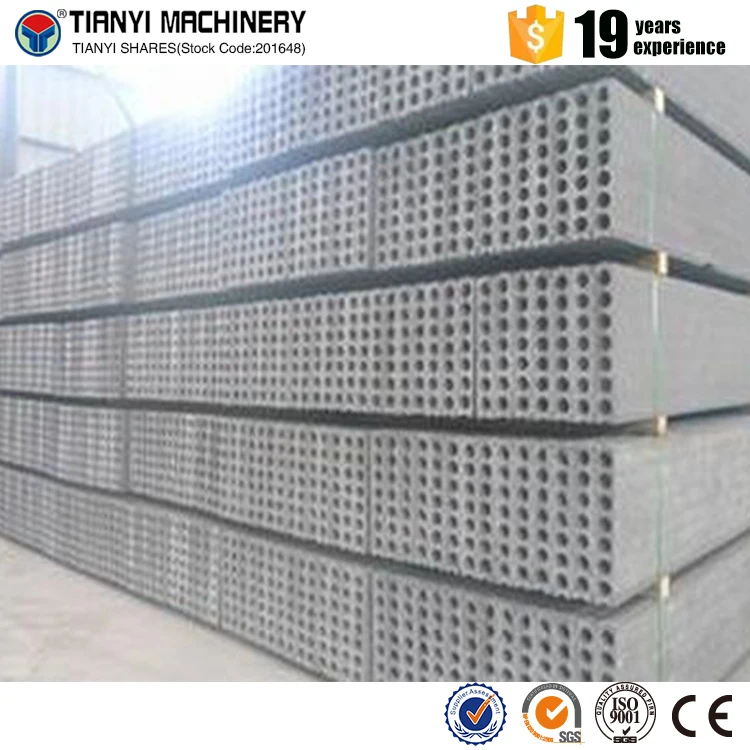

Aerated hollow core panels (The raw materials are cement, fly ash, foaming agent and additive) Cost:USD2-3/m2 Weight:40kg/m2 compressive strength:7MPA-15MPA |
|
Double line hole panels. (The raw materials are cement, fly ash, foaming agent and additive) Cost:USD2.5-3.5/m2 Weight:50kg/m2 compressive strength:7MPA-15MPA | |
Sandwich wall panels (The raw materials are cement, Polystyrene foam board and additive) Cost:USD3-4/m2 Weight:35kg/m2 compressive strength:5MPA-10MPA | |
EPS Sandwich Panel (The raw materials are fiber cement board, cement, polystyrene particles, and additive) Cost:USD3-4/m2 Weight:60kg/m2 compressive strength:10MPA-20MPA | |

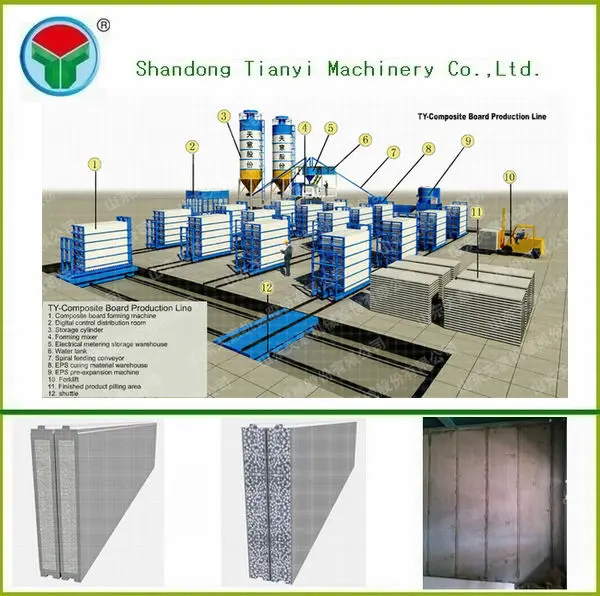

Lightweight composite EPS wall panel forming machine
thickness(mm) | width(mm) | length(mm) | quantity(block/set) | area(squ.m/set) |
60 | 610 | 2440 | 58 | 86.3 |
75 | 610 | 2440 | 50 | 74.4 |
90 | 610 | 2440 | 40 | 62.5 |
120 | 610 | 2440 | 34 | 50.6 |
150 | 610 | 2440 | 28 | 41.6 |
180 | 610 | 2440 | 24 | 35.7 |
Main features
reduce the occupation area of the wall
sound insulation wall and fire protection wall.
good sound insulation
good water proof
smooth products surface
environmental friendly

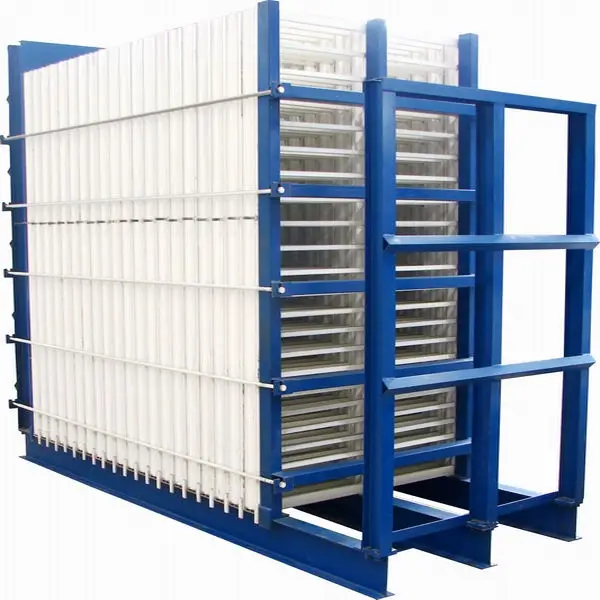

Lightweight composite EPS wall panel forming machine
Advantages | ||
Number | Item | Content |
1 | Low cost | Low labour and material costs |
2 | Long life | Up to 60 years |
3 | Recycling use | Reused for more than 10 times |
4 | Flexible layout | Layout adjusted according to your requirement |
5 | Environment protection | Environment-friendly materials used |
6 | Safe & Stable steel structure | Earthquake proof & Wind resistance |

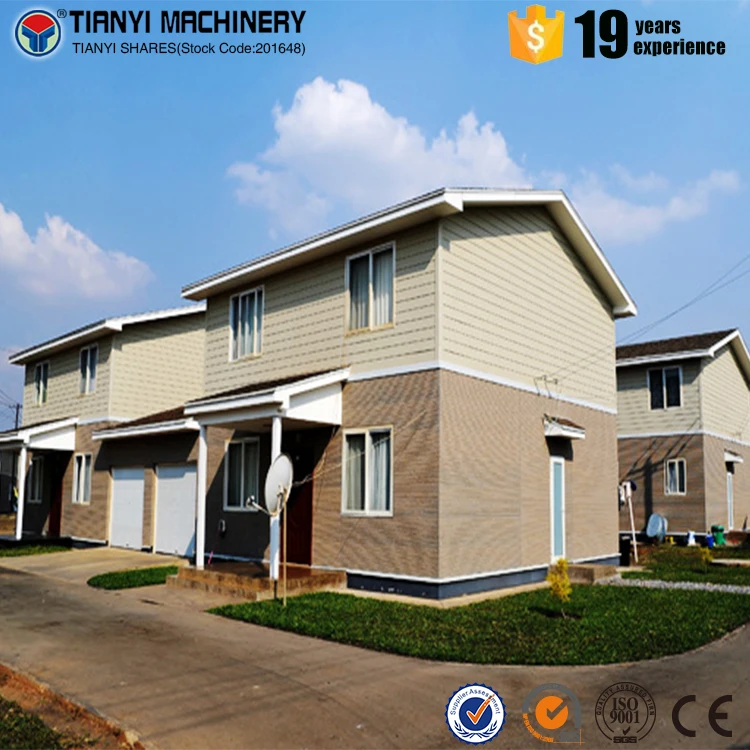

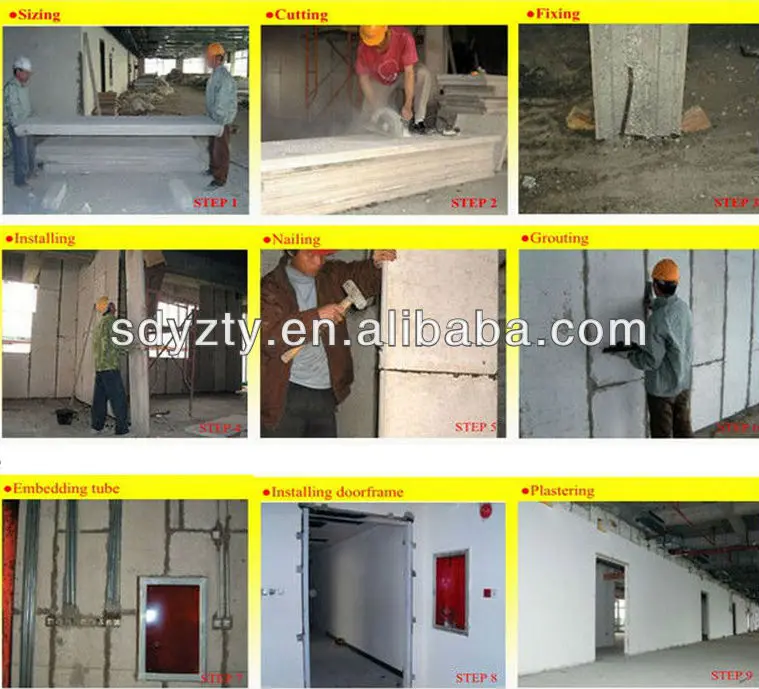

Construction Case
Concrete Sandwich Wall Panel Molding Machine/Cement wall panel machine
Customers
Concrete Sandwich Wall Panel Molding Machine/Cement wall panel machine
Concrete Wall Panel Machine Exhibition
Packaging & Shipping
Concrete Sandwich Wall Panel Molding Machine/Cement wall panel machine
Company Information
Shandong Tianyi Machinery Co.,Ltd .,it is the specialized manufacturer of wall panel making machinery ;
We have speciallaboratory for designing the formula ,we could free design the formula according to your local raw material ,and we also have the special R&D Department for designing the production line ,we could design for you the production line according to your request ,the production lines are as follows:
1.cement wall panel production line
2.mgo wall panel production line
3.gypsum wall panel production line
4.sandwich wall panel production line
5.composite wall panel production line and so on
We have exported our wall panel production lines to Iran Iraq,Israel,malaysia ,India and Singapore so on ;
