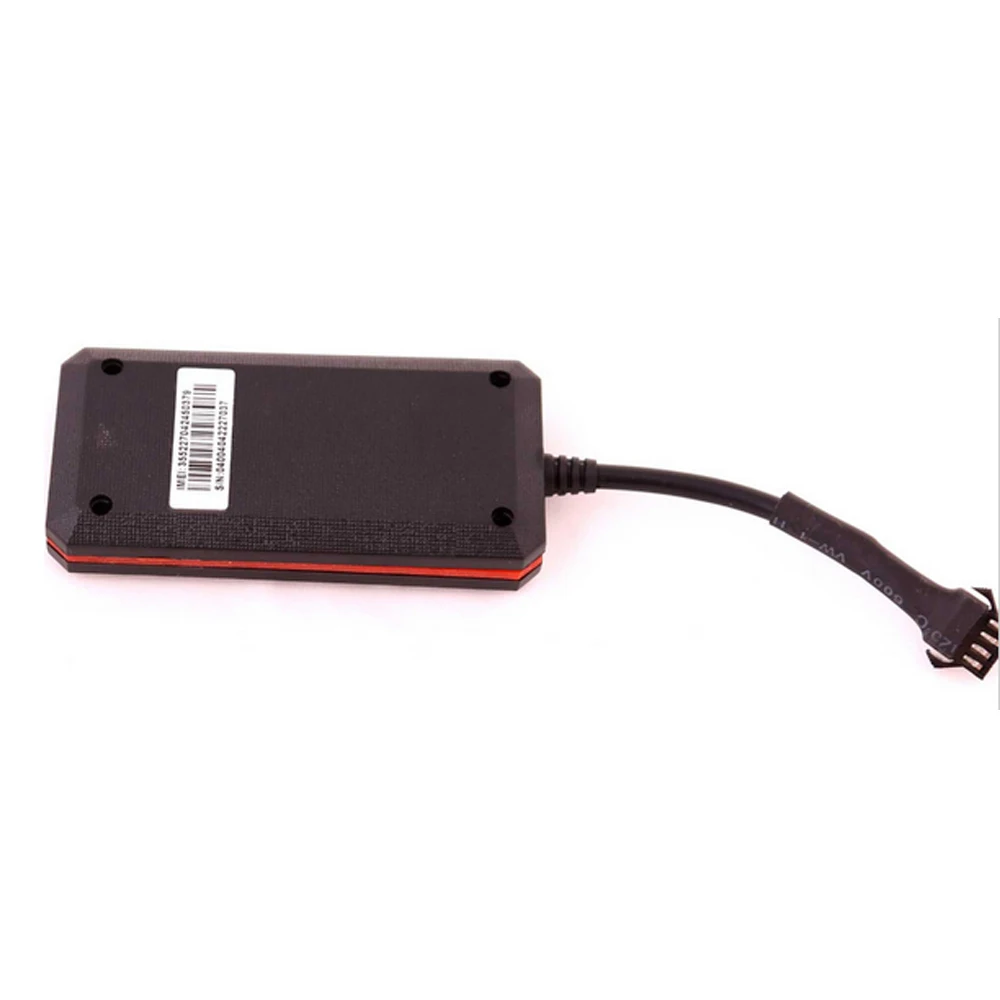

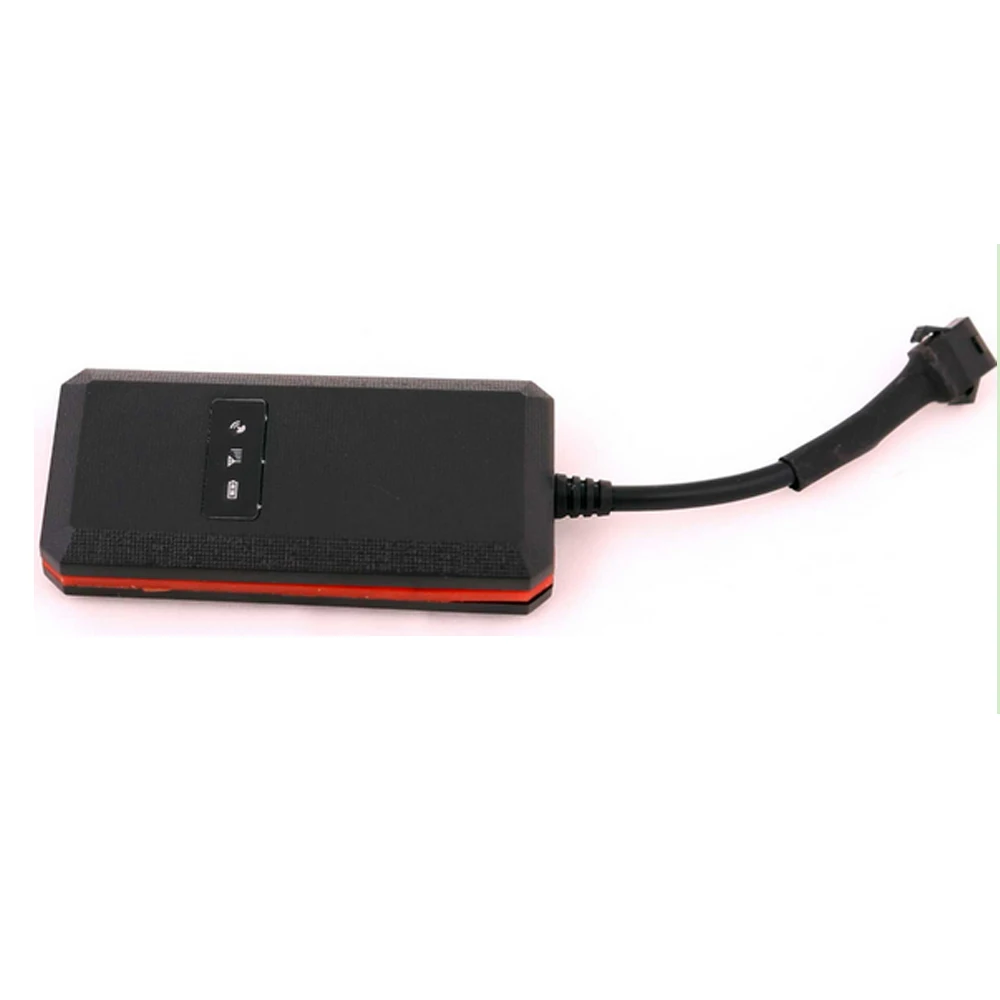

GT003 Vehicle GPS GPRS Tracker Multiple Real Time gps tracking device With Over Speed Vibration Alarm Remotely Shutdown In Stock
- Category: >>>
- Supplier: Shenzhen Deyun Technology Limited
Share on (60406121907):
Product Overview
Description
Product Description
GT003 Vehicle GPS GPRS Tracker Multiple Real Time Tracking Device With Over Speed+Vibration Alarm Remotely Shutdown In Stock
Specification
| GSM | 850/900/1800/1900MHz Quad band |
| GPRS | Class12,TCP/IP |
| Working Voltage | 9-50V DC |
| Working current | ≈22mA(12vDC)/12mA(24vDC) |
| GPS locating time | cold start≈38s(Open sky) |
| warm start≈32s | |
| hot start≈2s(Open sky) | |
| GPS Precision | 10m(2D RM) |
| Working Temperature | -30C - 70C |
| Working humidity | 20%~80%RH |
| Measurement | 87(L)×43(W)×14(H)mm |
| Weight | 50.5g |
Feature
1.For car mmotorcycle and vehicle rental / fleet management etc
2.Work voltage:9V-50V
3.Oil and circuit cut off function
4.300 MAH Lithium battery inside
5.ACC, SOS, Electronic fence, Move, Speed, Shake, etc Alarms
6.Save GPRS flow and energy By turning into sleep mode after 5 minutes non movement
7.Power wire cut Alarm
8.LED instructions
9.GPS Blind memory to 600points
10.Auto power on
11.platform free use for 1 year
12.APP for Android and Apple portable device
13.Only support 2G GSM SIM card
Package including:
1 * GT003 device
1 * Power connector
1 * Screw & Screw cover
1 * Relay
1 * Relay cable
1 * Manual

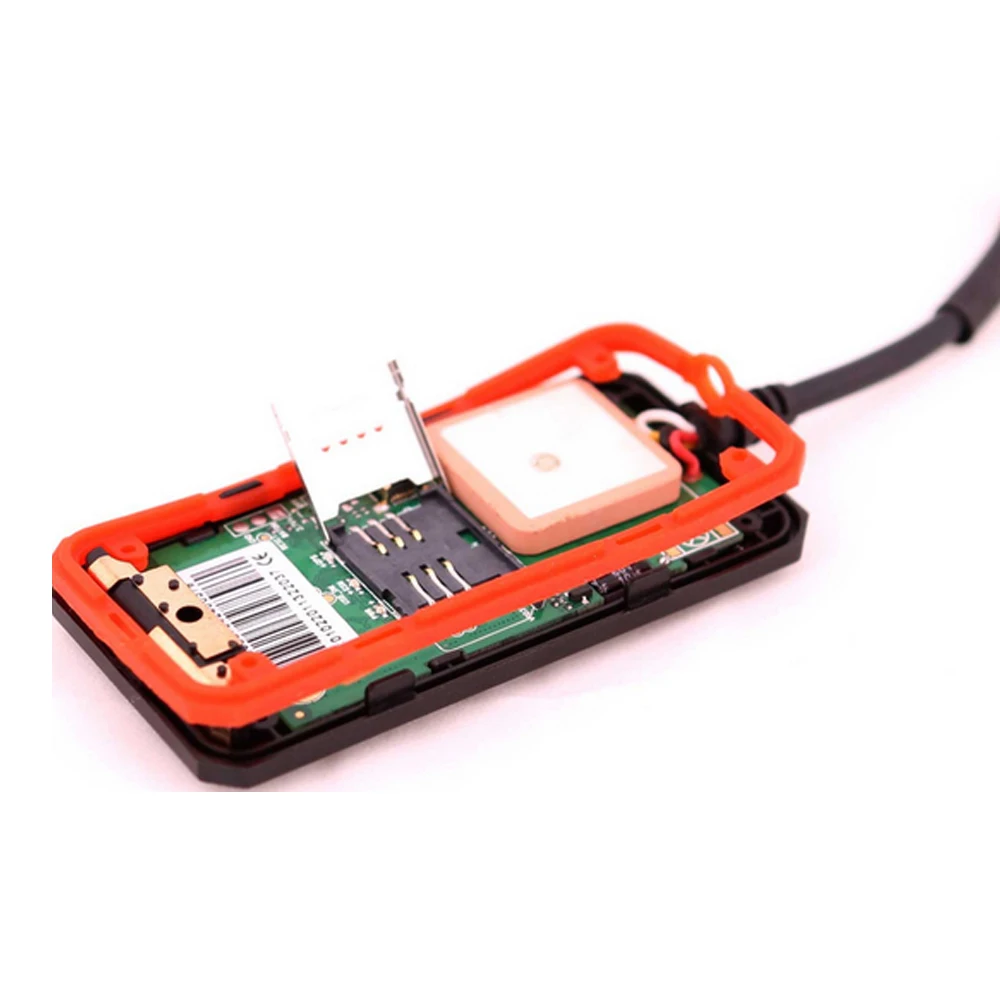

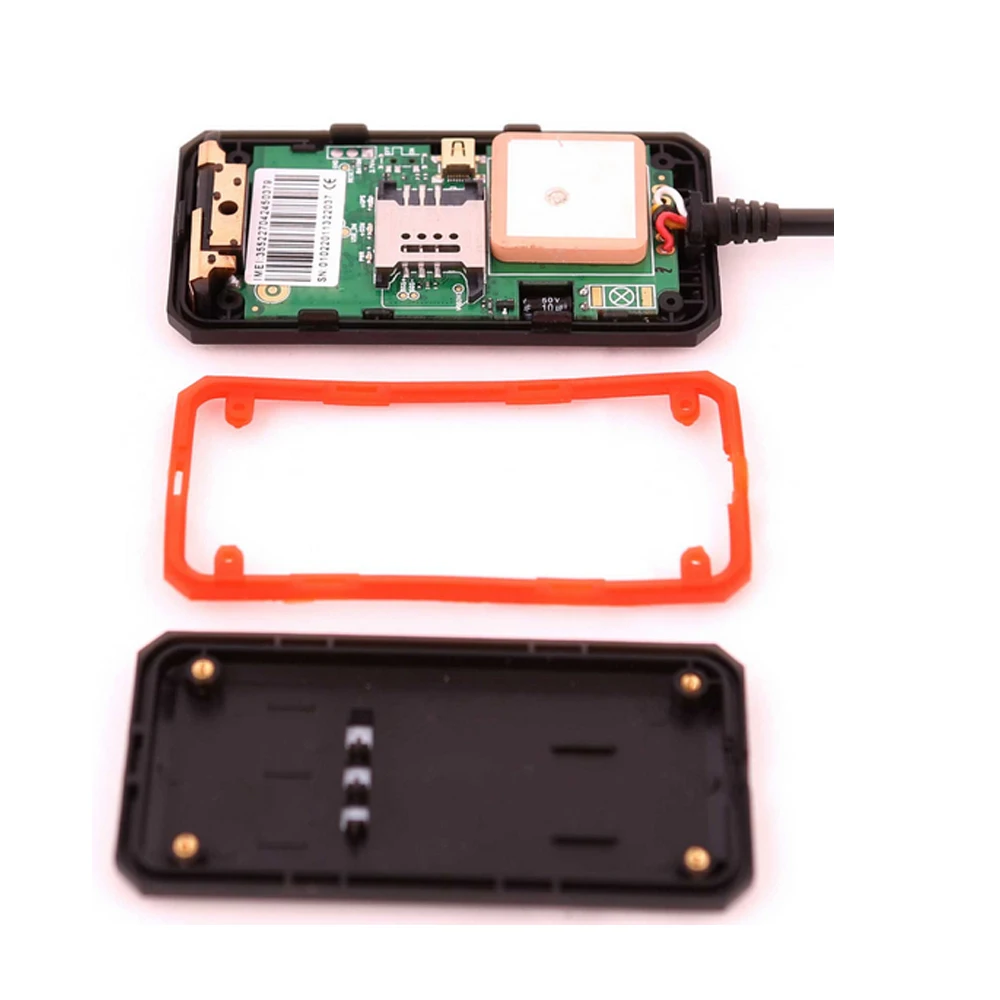

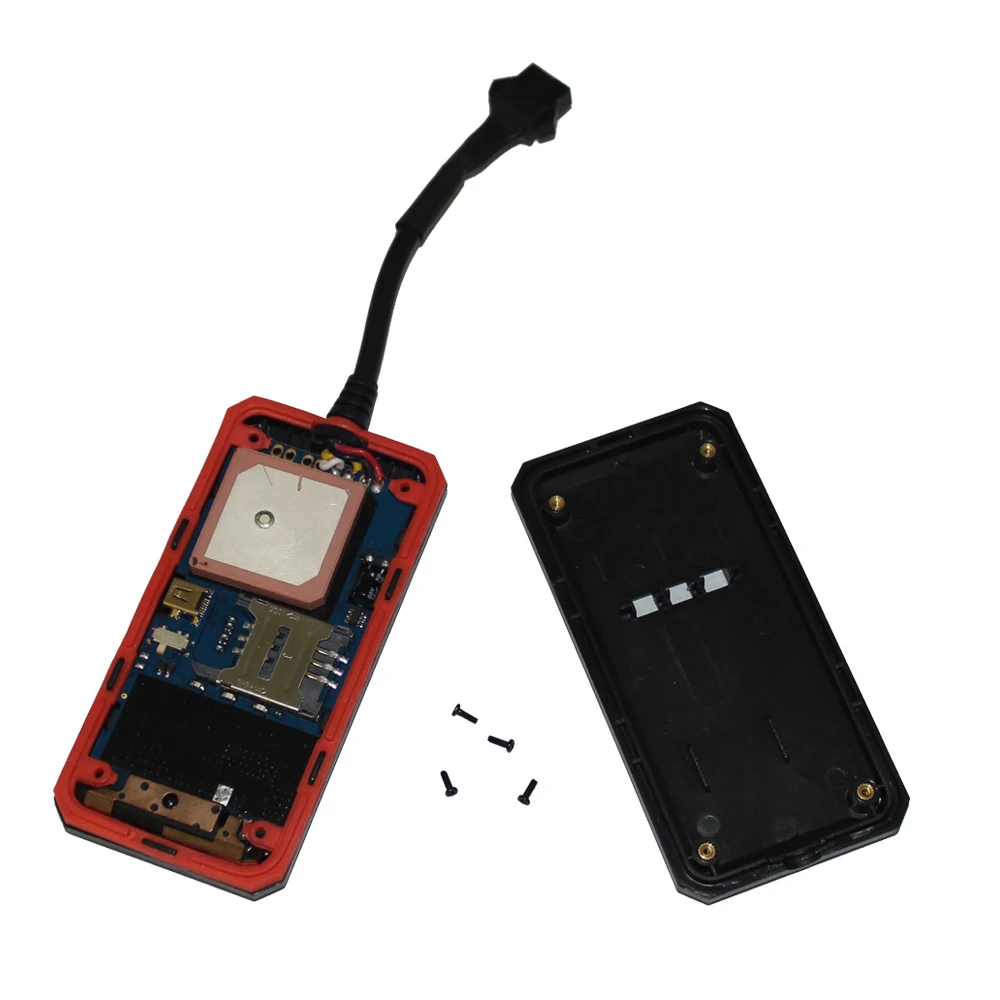

Details of GPS tracker GT003
Wiring program of GPS tracker GT003
Device wiring requirements
1.The device power supply is DC 9-50V. The red line is positive pole while the black line is negative pole.
2.The negative pole of power supply connectswith ground or the metals. Please do not connect with other ground lines.
3.When finishing the power supply wire connection,please make the plug of power supply to the device.
4.If need to add relay control oil circuit, please install the white line according to the diagram delow.
5.If need ACC detection,please connect the green line to car’s ACC, if need SOS detection, please connect the green line
to ACC button(ACC or SOS alternative,the default is ACC).
Places for installation
Platform for use
Portable device APP
Packaging & Shipping
Package including:
1 * GT003 device
1 * Power connector
1 * Screw & Screw cover
1 * Relay
1 * Relay cable
1 * Manual
Package: original giftbox OR blank neutral box, 50pcs/CTN, 17.5KG;
FAQ
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM network, and enable GPRS flow;
Q2: How about your platform cost?
Re: First year, free charge, from second year, 5USD/pcs/year, or 30USD for lifetime;
Q3: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our offering GPRS protocol, if you want our help to build a independent platform,
it will cost technical fee, details you can contact us directly;
Q4: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a distributor, please share all your IMEIs of devices, and then we can make a distributor account for you,
Available to manage your devices.
Q5: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here, www.dyegoo.net, and it support android and IOS, no Windows OS;
