Telescopic mast pole light tower mast
US $380.00-$480.00

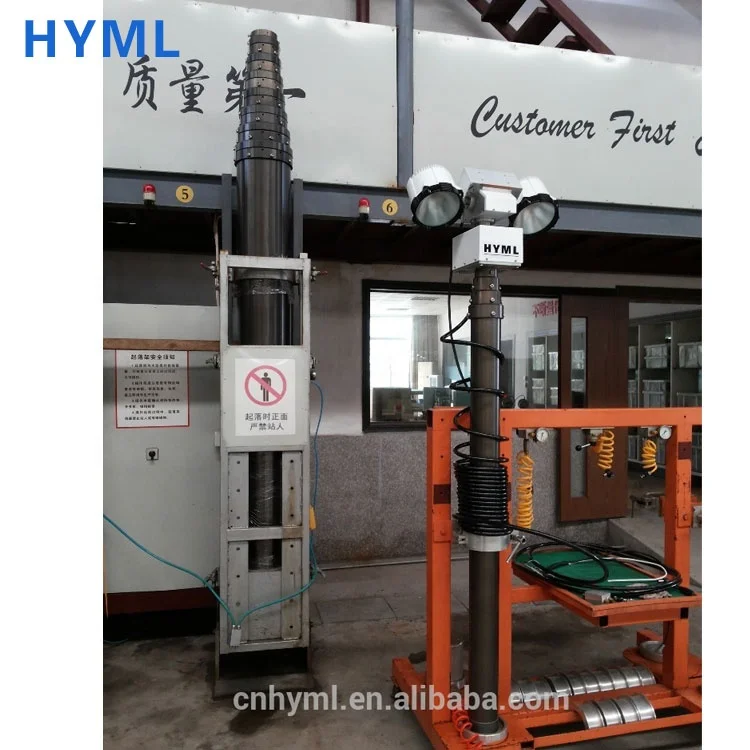

Telescopic Lighting camera mast mounted on The police anti riot vehicle
- Category: Telecommunication Tower & Accessories >>>
- Supplier: Wuxi Hi-Eagle Move-Light Co. Ltd. [Jiangsu China]Wuxi
Share on (60406140700):
Product Overview
Description

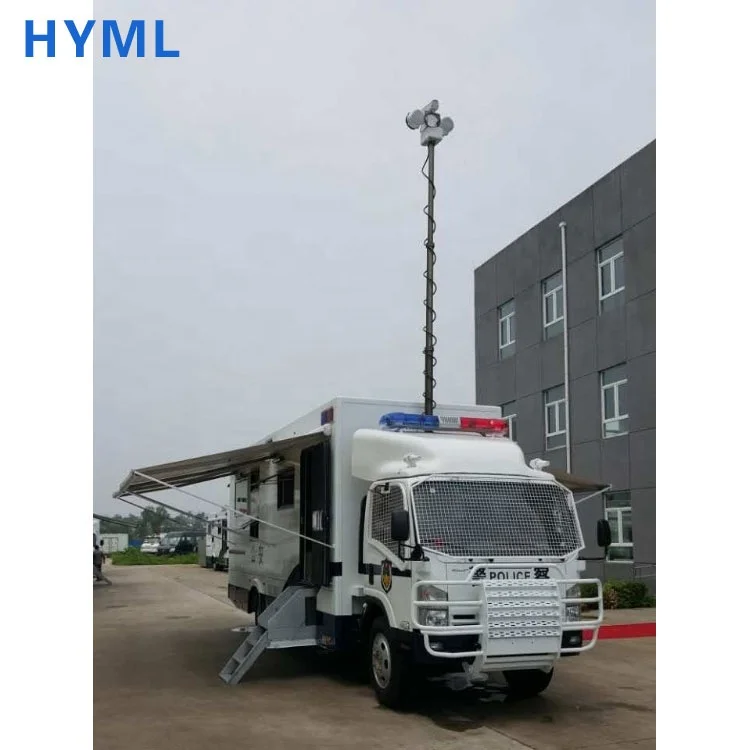

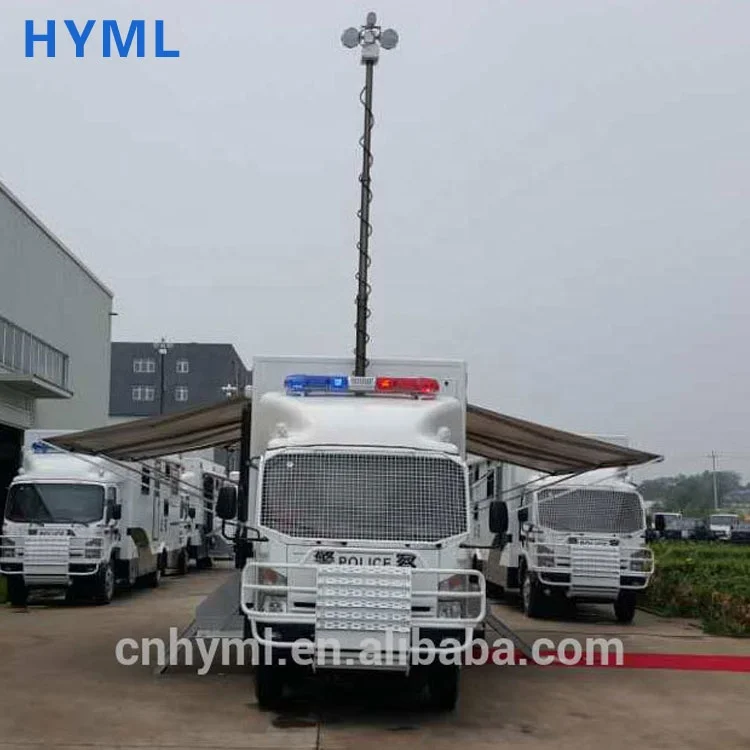

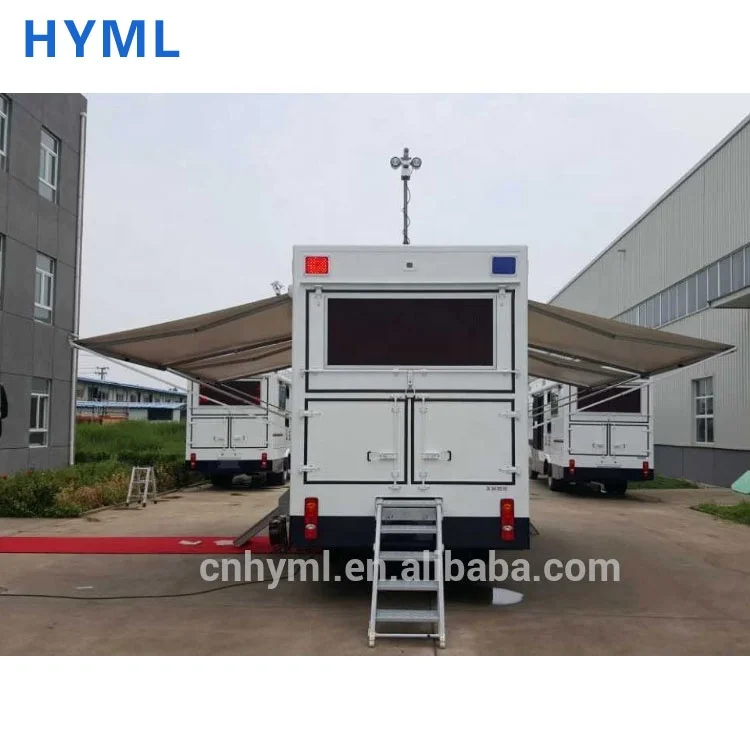

This is a large police anti-riot vehicles, the mast is mounted vertically on the vehicle wall side .There are two lights and a camera on the rotating head .
| Common Mast | |||||
| DATE:2016.1 | |||||
| Model | nested height (m) | extended height (m) | outer Dia. (mm) | inner Dia. (mm) | theoretical top load (Kg) |
| A4-110 | 1.7 | 5 | 118 | 60 | 30-60 |
| A4-110 | 1.8 | 6 | 118 | 60 | 30-60 |
| A4-110 | 2.2 | 7 | 118 | 60 | 30-60 |
| A4-110 | 2.4 | 8 | 118 | 60 | 30-60 |
| A6-110 | 1.6 | 7 | 118 | 30 | 20 |
| A6-110 | 1.7 | 7.5 | 118 | 30 | 20 |
| A6-110 | 1.8 | 8 | 118 | 30 | 20 |
| A6-110 | 2 | 9 | 118 | 30 | 20 |
| A6-150 | 1.5 | 6 | 160 | 60 | 30-60 |
| A6-150 | 1.6 | 7 | 160 | 60 | 30-60 |
| A6-150 | 1.8 | 8 | 160 | 60 | 30-60 |
| A6-150 | 2 | 9 | 160 | 60 | 30-60 |
| A6-150 | 2.2 | 10 | 160 | 60 | 30-60 |
| A6-150 | 2.5 | 12 | 160 | 60 | 30-60 |
| A8-150 | 1.6 | 8 | 160 | 30 | 20 |
| A8-150 | 1.8 | 9.5 | 160 | 30 | 20 |
| A8-150 | 2 | 11 | 160 | 30 | 20 |
| A8-150 | 2.2 | 12.5 | 160 | 30 | 20 |
| A8-150 | 2.5 | 15 | 160 | 30 | 20 |
| Built-in Cable Mast | |||||
| DATE:2016.1 | |||||
| Model | nested height (m) | extended height (m) | outer Dia. (mm) | inner Dia. (mm) | theoretical top load (Kg) |
| AN5-150 | 1.4 | 4.5 | 160 | 75 | 70 |
| AN5-150 | 1.5 | 5 | 160 | 75 | 70 |
| AN5-150 | 1.6 | 5.5 | 160 | 75 | 70 |
| AN5-150 | 1.7 | 6 | 160 | 75 | 70 |
| AN5-150 | 1.8 | 6.5 | 160 | 75 | 70 |
| AN5-150 | 1.9 | 7 | 160 | 75 | 70 |
| AN5-150 | 2 | 7.5 | 160 | 75 | 70 |
| AN4-130 | 1.4 | 4 | 140 | 75 | 70 |
| AN4-130 | 1.5 | 4.5 | 140 | 75 | 70 |
| AN4-130 | 1.6 | 5 | 140 | 75 | 70 |
| AN4-130 | 1.8 | 5.5 | 140 | 75 | 70 |
| AN4-130 | 1.9 | 6 | 140 | 75 | 70 |
| AN4-130 | 2 | 6.5 | 140 | 75 | 70 |
| AN3-110 | 1.4 | 3 | 118 | 75 | 70 |
| AN3-110 | 1.5 | 3.5 | 118 | 75 | 70 |
| AN3-110 | 1.6 | 4 | 118 | 75 | 70 |
| AN3-110 | 1.8 | 4.5 | 118 | 75 | 70 |
| AN3-110 | 2 | 5 | 118 | 75 | 70 |
Light specifications are as follows:
| Light source type | Lamp no. | Total power (W) | Supply voltage(V) |
| Xenon light | 2 | 150 | 12 |
| HID | 2 | 300 | 220 |
| HID | 2 | 500 | 220 |
| HID | 4 | 1000 | 220 |
| Halogen lamp | 2 | 2000 | 220 |
| Halogen lamp | 4 | 4000 | 220 |
Rotating head specifications are as follows:
Model | Horizontal angle | Vertical angle | voltage (V) |
BCP2 | 0-360° | 0-360° | 12 |
BWP2 | 0-360° | 0-360° | 12 |
The mast control box specifications are as follows:
| model | dimensions | installation dimensions | Air pump brand &model | voltage | power | weight |
| KZX-220 | 440*225*590 | —— | 2660 Tomas | 220V | <1000W | 35 |
Do you have Skype ID ? My Skype is erinyixing
Welcome to buy one sample and visit our factory
Erin
Mobile : 0086 -13706155652
