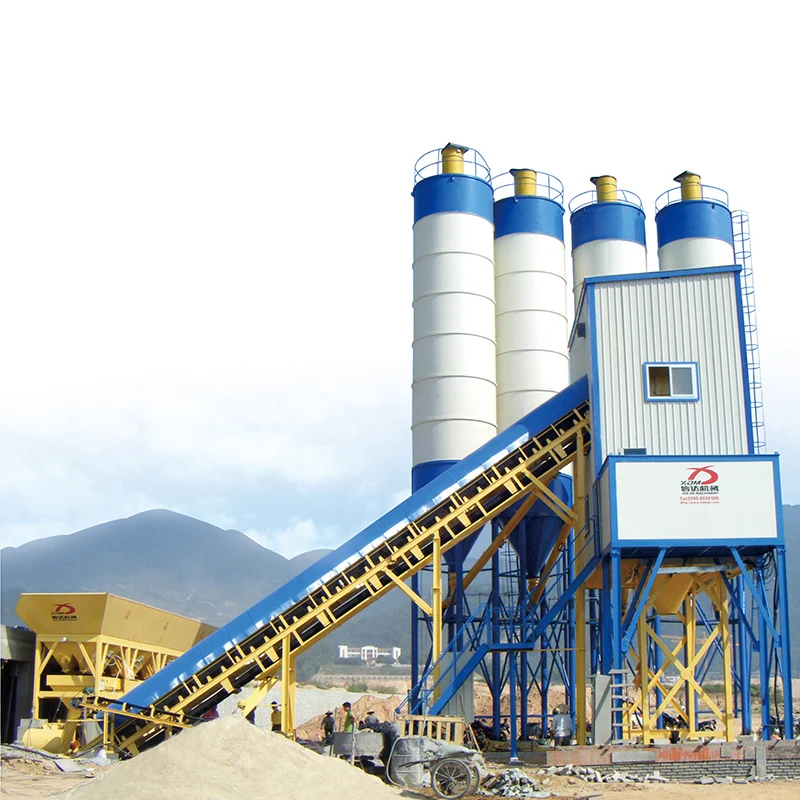

Concrete Mixer Machinery HZS 50 60 75 90 100 120 150 180 200 240m3/h wet mix stationary Ready Mix Concrete Batching Plant price
- Category: >>>
- Supplier: Fujian Xinda Machinery Co. Ltd.
Share on (60406181323):
Product Overview
Description
Welcome to XDM

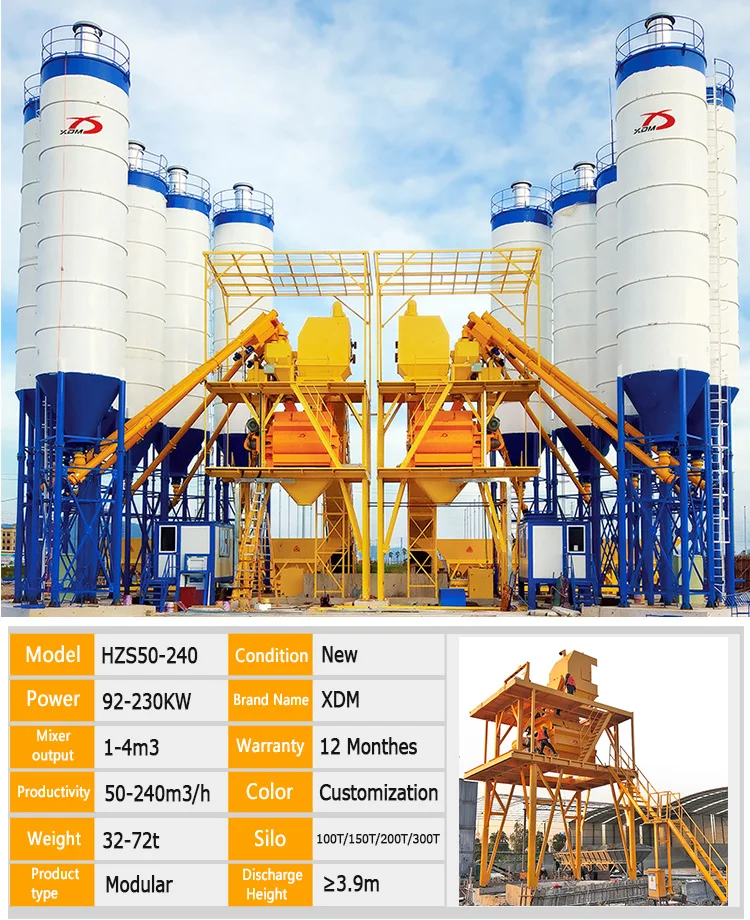

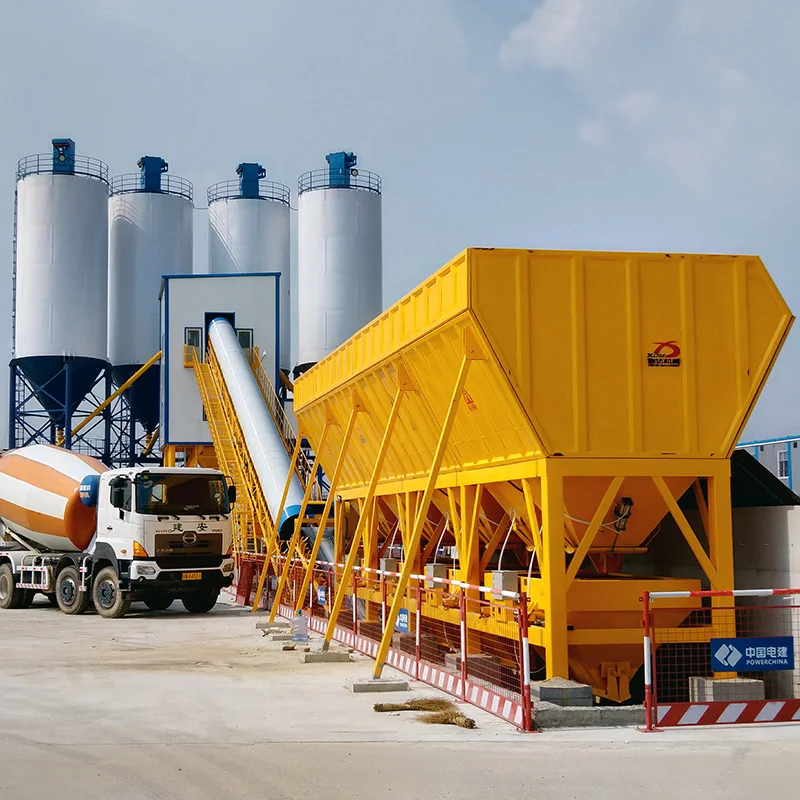

Concrete Mixer Machinery HZS 50 60 75 90 100 120 150 180 200 240m3/h wet mix stationary Ready Mix Concrete Batching Plant price
Specifications
Ready mix Concrete Batching Plant
1. Production Capacity: 50, 60, 75, 90, 100, 120, 150, 180, 200, 240m3/h
2. Mixer: XDM JS series Twin shaft Concrete Mixer or SICOMA
3. Fully automatic operation by computer (SIMENS PLC control)
4. High accuracy TOLEDO weighing sensor
XDM HZS 50 60 75 90 100 120 150 180 200 240m3/h wet mix stationary Ready Mix Concrete Batching Plant:
Combining our own experience with European technology, XINDA Machinery manufactures environmentally friendly 50-240m3/h concrete batching plant.
Our concrete batching plants come with automatic twin-computer synchronization controlling systems that are capable of controlling and managing production flow with one or two computers.
The HZS series modular concrete batching plant find wide application for railways, highways, airports, docks, dams, etc.
Concrete Mixer Machinery 50-240m3/h wet mix stationary ready mix concrete batching plant:
1. Concrete batching plant productivity: 50, 60, 75, 90, 100, 120, 150, 180, 200, 240m3/h
2. Automatic and semi-automatic for your choice.
3. Can be customized. Various forms of combination can be provided according to customers’ requirements.
4. JS series twin shaft concrete mixer is adopted, with the advantages of good mixing quality and high production efficiency.
5. Computer system can be controlled by manual, semi-automatic, or automatic, with the functions of storing ratio and automatically compensation gap.
Main technical parameter of HZS series 50-240m3/h stationary ready mix Concrete Batching Plant:
Models | HZS50(60) | HZS75(90) | HZS100(120) | HZS150(180) | HZS200(240) | ||
Production (m3/h) | 50(60) | 75(90) | 100(120) | 150(180) | 200(240) | ||
Twin shaft Concrete Mixer | Models | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | |
Mixing Power (kw) | 2×22 | 2×30 | 2×37 | 2×55 | 2×75 | ||
Output (m3) | 1 | 1.5 | 2 | 3 | 4 | ||
Aggregate Size (mm) | ≤60 | ≤80 | ≤120 | ≤150 | ≤150 | ||
Hopper | Hopper Capacity (m3) | 13 | 15 | 18 | 25 | 30 | |
Hopper Quantity | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 | ||
Mixing Cycle (s) | 72(60) | 72(60) | 72(60) | 72(60) | 72(60) | ||
Conveyor Capacity (t/h) | 200 | 300 | 400 | 600 | 800 | ||
Weighing Scope and Accuracy | Aggregate (kg) | 2500±2% | 3500±2% | 4500±2% | 7000±2% | 2×4500±2% | |
Cement (kg) | 600±1% | 900±1% | 1200±1% | 1800±1% | 2400±1% | ||
Fly ash (kg) | 200±1% | 300±1% | 400±1% | 600±1% | 800±1% | ||
Water (kg) | 300±1% | 500±1% | 600±1% | 800±1% | 1000±1% | ||
Additive (kg) | 20±1% | 20±1% | 30±1% | 30±1% | 100±1% | ||
Total Power (kw) (without screw conveyor) | ≈92 | ≈108 | ≈118 | ≈172 | ≈230 | ||
Discharge Height (m) | ≥3.9 | ≥3.9 | ≥3.9 | ≥3.9 | ≥3.9 | ||
Related Products
50m3/h concrete batching plant |  60m3/h concrete batching plant |
90m3/h concrete batching plant |
120m3/h concrete batching plant |
180m3/h concrete batching plant |
240m3/h concrete batching plant |
 Mobile concrete batching plant |
Mobile Stabilized soil mixing plant |
|
Product Description

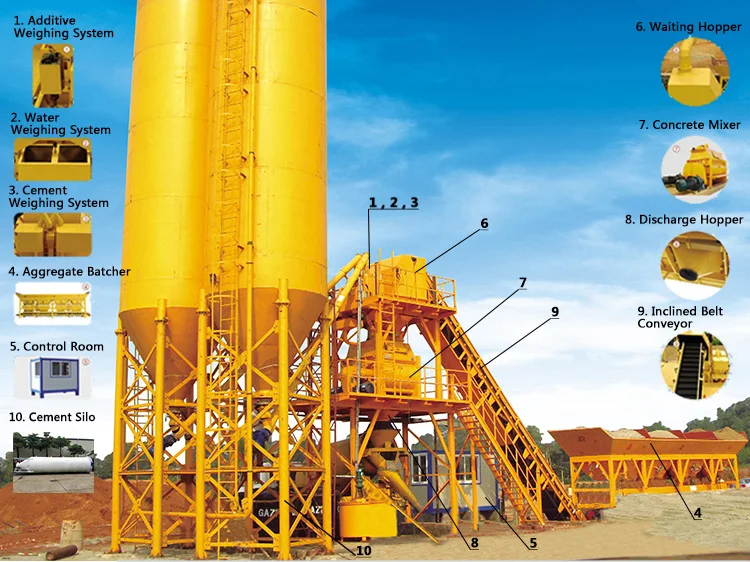

HZS 50-240m3/h stationary Ready mix Concrete Batching Plant is composed of individual aggregate weighing system, cement weighing system, water and addtive weighing system, mixing system, control system.

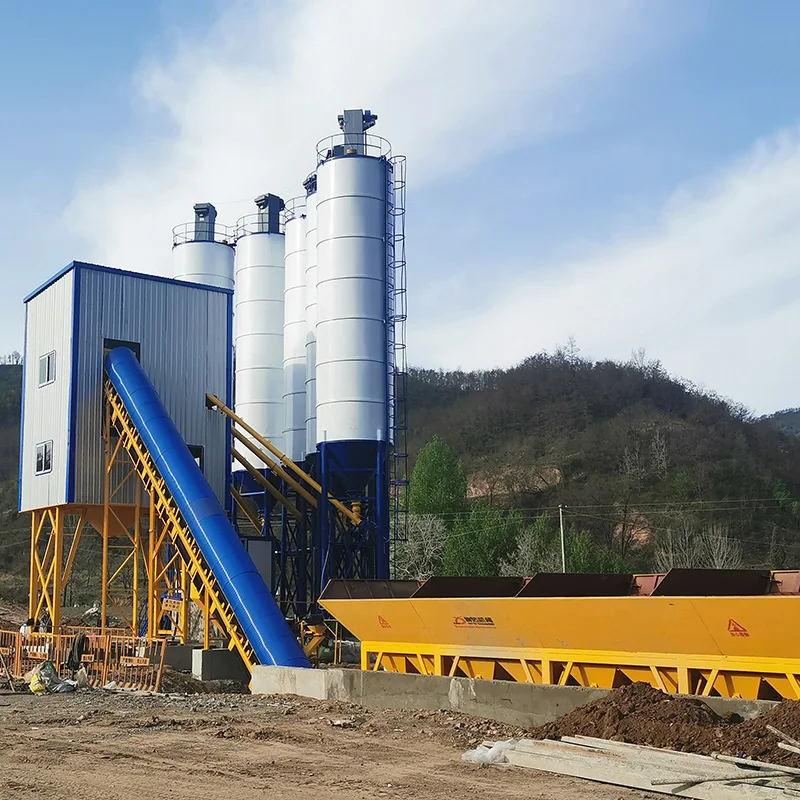

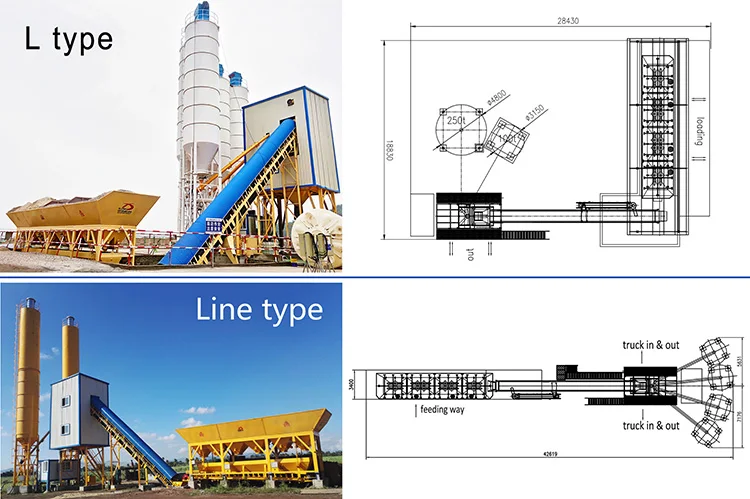

Layout of 50-240m3/h Wet Mix Stationary Ready Mix Concrete Batching Plant:
Company Information
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory, and we have our own oversea dept. We manufacture, sell and supply after-sale service of Stationary Concrete Batching Plants, Mobile Concrete Batching Plants and Subgrade materials continuous mixing plant.
Q2: What kind of service do you offer?
A2: Pre-sales service:
1.24/7/365 to reply your inquiry.
2.To know what you needs, and suggest the correct equipment to you.
3.Sort out the layout drawing and quotation.
After-sales service:
1.To inform our clients what they should prepare before our batching plants arrive the job site.
2.Dispatch an experienced engineer to guide the installation, commissioning and training (operation & maintenance) on-site.
3.The standard spare parts are in stock, and can be sent out by DHL, TNT in 48 hours.
4.Our service engineer will on-line support you when you experience the problem. Helpline is available 24/7/365
5.Regular onsite visit.
Q3: How about the installation and commissioning on new purchases?
A3: We will send our technicians to your place to guide the installation and commissioning of concrete batching plant, and also training your operator how to operate.
Q4: what’s the leading time for brand new Concrete Batching Plants?
A4: Within 30 days after receipt of the 30% TT down payment or 100% irrevocable L/C at sight without “soft clauses”
Q5: Why choose us?
A: 1. We are professional manufacturer of concrete batching plant for over 20 years. (Alibaba store 14 years).
We can supply you the high quality product with reasonable price.
2. As a factory, We have our own professionals and technicians to handle development, design, production, sales and service;
3. We have certification of CE and ISO9001: 2008.
4. Famous brand accessories: TOLEDO, AIRTAC, SICOMA, WAM, SIEMENS and SCHNEIDER...
5. Long time guarantee: 12 months;
6. Perfect pre-sales and after-sales service;
7. We combine our experience with European technology to improve our machinery quality.
8. Our customers are all over the world, especially the Africa, Middle East, South America, Southeast Asia, Australia, Russia, etc, and received very well feedback from them.

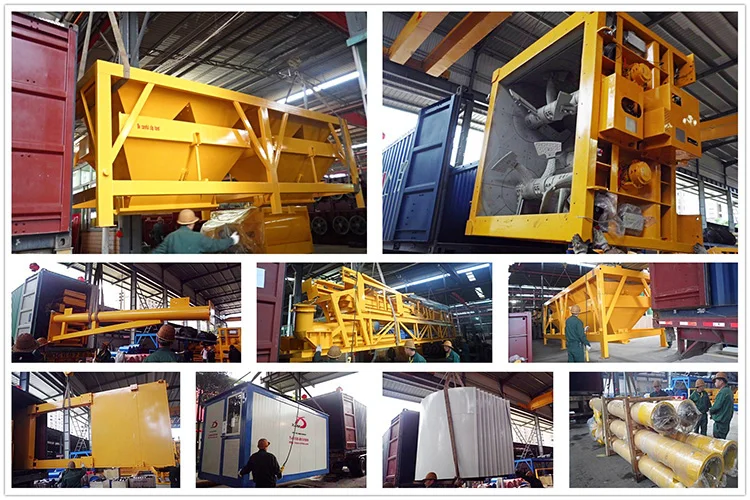

Packaging & Shipping
Contact XINDA
Contact person: Will
Mobile: +86-13960218216 (WhatsApp&Viber&Wechat)
Tel: +86-595-86578613
Skype: willchen125
Web: www.xindaplant.com ; en.xdmac.com
Add: MeiShan Houzhou Industrial Area, Quanzhou, Fujian, China
