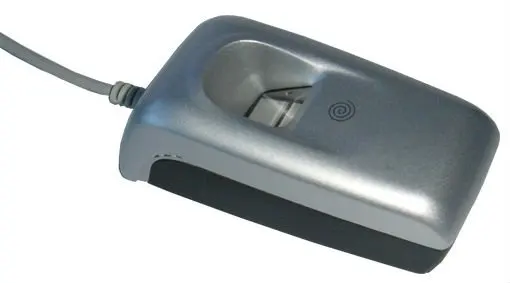

CAMA 2000 biometric usb portable fingerprint scanner with 100000 fingerprints

Fingerprint reader for secondary development application
USB port, compact, lightweight and portable

Supporting multi-development tools and internet development

Strong extended capacity(can be extended to 100000 fingerprints)
Easily develop with OCX

CAMA-BioPass 2200 fingerprint reader is specially designed for secondary development application projects with fingerprint  verification algorithm

Features:

• USB port, compact, lightweight and portable
• Developing generality: conveniently and easily develop with OCX , supporting multi-development tools, and internet development
• Identification mode:1:1, 1, 1:N
• High speed identification time: 1:10000(10000 fingerprints/second)
• Support Windows XP, Windows98, Windows 95 OSR2.1(USB)
• Strong extended capacity(3000/100000 fingerprints)

Parameters:

• Sensor: optical fingerprint sensor
• Scan area: 16mm x 14mm
• Acceptable fingerprint angle: ± 45 °
• FRR: ≤ 0.01%
• FAR: ≤ 0.0001%
• Identification speed: 100000fingerprints/second
• Identification mode:1:N, 1:1
• Resolution:500 dpi
• Port: USB 1.1
• Work temperature0-60
• Work humidity: 10% - 90%
• Storage temperature: 10% - 90%
• Storage humidity -10 - 80
• Static current: <10μA
• Life time:>1500000 times
• Systems: Windows98/98se/me/2000/xp
