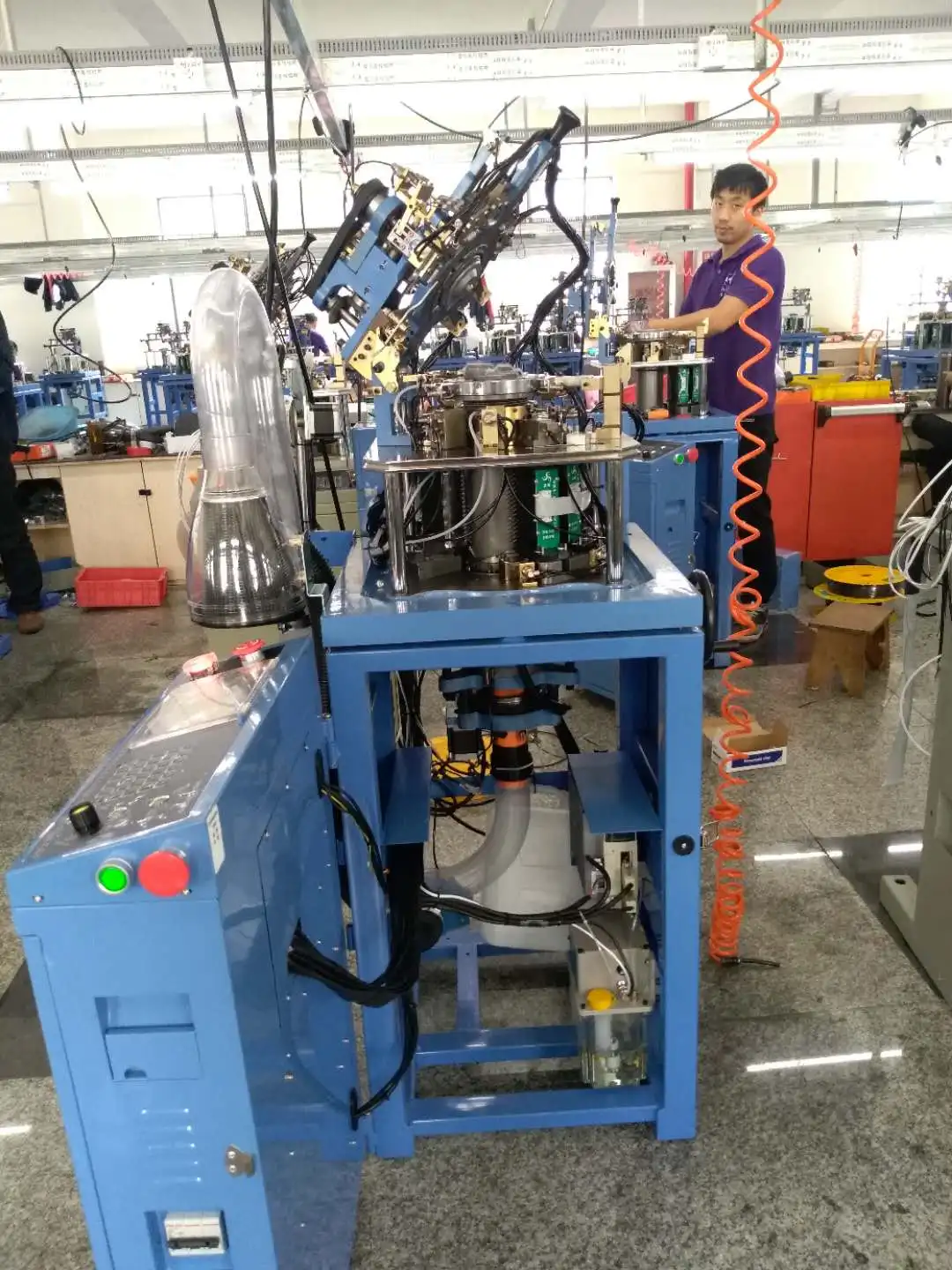

automatic silk stocking machine

1.Waist belt: The waist belt rise or fall control by pneumatic, have 2 work positions, knitting the waist belt at high position and knitted the fabric at low position.

2.Clippers device: the clippers rise and fall control by pneumatic, if yarn not cut off hall alarm automatically, also can blow the air to clean the slit up yarn and reduce the machine breakdown.

3.Stitch density: The stitch cam have enter and exit work position function, can knil multiple feeders pattern, also have work status test function and machine in abnormally starus shall auto-stop and alarm. Adopt cam and cylinder to achieve the stitch adjust without interval. Machine equip the high speed stepping motor will achieve the 3D function.

4.Actuaror: Adopt 16 leves electric ceramic actrator, strueture easily reliable low energy consumed and low generate heat.

5.Cylinder up/down: the cylinder rise and fall control by stepping motor, which can substantially adjust the stitch density. The cylinder height position shall decide the stitch density basis value.

6.Lubricate: Lubrication by mechanic control, which lubrication during macking revolution, because the pantyhose machinc is high speed running and must continuous lubrication when machine revolution, which control the temperature rises and reduce the machine abradc.

7.Air compressor: To have functions of drainage. Air pressure adjustment and alarm or lack air pressure.

8.Yam feede: 4 feeder, each feeder with 6-8yam fingers and each finger with 2 work position. Change yam finger by pneumatic control, each yam finger with high and low 2 work positions, the yam finger can move to left or right and knit the jacquard pattem. Whole yam finger device can bottom over, which easily for maintenance.

9.Drop hood: Control by 2 stepping motor though rough adjust the 2sets cam position with stitch press cam to achieve the fabric stitch density adjustment, mainly used to achieve the take down width for knitted rib pattem. Another stetting motor can adjust the position of dropt hood.

10.Dial jack: Control by electric magnetism vale, avoid pantyhose machine revolution by high speed and knitted waist belt pattem, shall bring needle miss and make fabric defective.

11.Take down: The take down device control by suction and structure simply, enable the knitting fabric pulling foree even and without spoil the fiber pf knitting fabric. The resist twist device prevent the twisting for wrinkle during knitted the fabric with hosicry tube bring the proportion rub and damage the fabric, which the fabric surface quality.

12.Manual operation: Adopt fold type, which easy to maintain, the limit position protect control by pneumatic.i ensure during the machine revolution will not use the manual operation, machine will not us the motor driven.

         1. One Year Guarantee, Spare Parts are always available
         2. Machines keep running for 24 hours
         3. Professional Sales Team and After Sales Service Team
         4. One Stop Shopping, the whole sock production line can be provided including spare parts, raw materials

  1. Q: What is your main products?

         A:(1) Sock Machine and related products like sock linking machine, sock boarding machine, ring cutter sharpener, air compressor, stabilizer etc.

            (2)Sock Knitting Yarn: Cotton yarn, T/C yarn, Spun Polyester, Virgin Polyester, Rubber Yarn, Covered Spandex Yarn, Spandex Covered Yarn, Nylon etc.

         2. Q: How to get a sample?

         A: Yarn samples are always available with courier service paid on buyers’ side

         3.Q: What is your advantage?

         A:(1) 8 years in exporting sock knitting machine and related products

            (2) Professional service: we have our own technical team to provide technical service to ourclients

            (3) Quick reply: Our sales are always on line with trade manager

            (4) Reasonable price with quality products

            (5) Extra service: we are also able to help search the products that buyer requires

         4. Q: What is your Minimum quantity?

         A:For machinery, our MOQ is one set, for yarn, 100 kgs on the base of T/T payment

         5. Q: How long to deliver the products?

         A: The exact delivery date need to according to the order quantity. Usually 15~20 days after receive the deposit, if meeting Chinese Public Holiday, delivery time will be adjusted accordingly.
