High Precision CNC Horizontal Deep Hole Tube Honing Machine
DHK-100 DHK-200 DHK-250

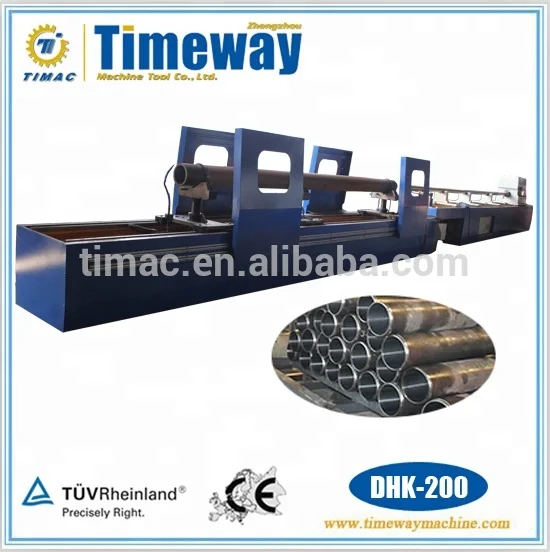

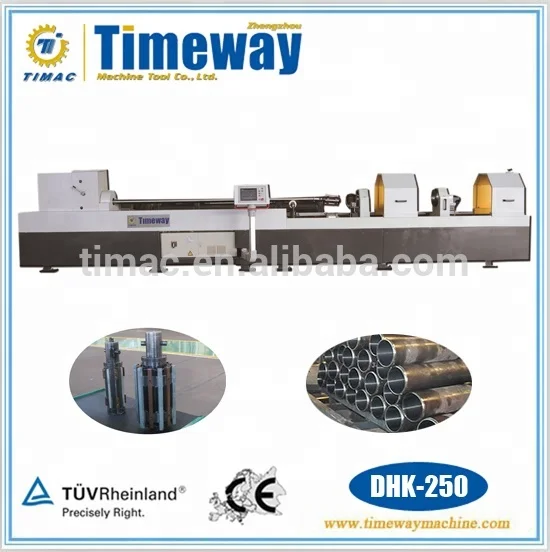

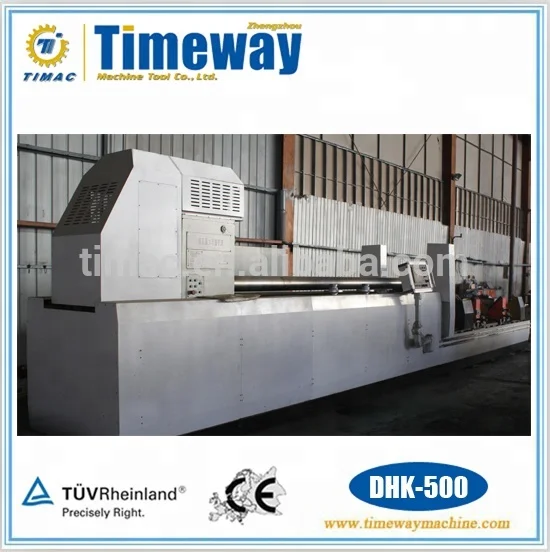

Main Outlook
Summary
Machine Summary
The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
Main Performances
Performance and Features
The machine adopts the mode of workpiece fixed, honing head rotating and reciprocating. It has a wide appliation, especially for processing of non-rotary workpiece, such as hydraulic cylinder, air cylinder, square body, the workpiece with rotary shaft and flange plate, etc.
The workpiece is fixed by V-type supporting and chain locking. The machine can be programmed to realize automatic operation, with setting up to honing time, reciprocation frequency and honing distance. It is suitable for mass production or single maintenance production. The machine selects Taiwan Delta control system with human-machine interface touch screen.
The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
Specifications List
Technical Parameters
Specifications
Units
DHK-100
DHK-200
DHK-250
Honing diameter range
mm
Φ25-Φ100
Φ28-Φ200
Φ32-Φ250
Max. honing depth
mm
1000-10000
1000-10000
1000-10000
Spindle center height
mm
220
350
350
Spindle speed range of honing bar box
r/min
50-375(Variable)
50-350(Variable)
50-350(Variable)
Workpiece clamping dia. range
mm
Φ40-Φ200
Φ35-Φ300
Φ50-Φ350
Carriage reciprocating speed range
m/min
1-25(Variable)
5-20(Variable)
5-20(Variable)
Cooling pump flow
L/min
100
100
50
Oil tank volume of cooling system
L
600
600
600
Honing head expansion pressure
MPa
0.3-4(Variable)
0.5-4(Variable)
0.5-4(Variable)
Spindle motor power of honing bar box
kw
11
11
11
Reciprocating motor power
kw
5.5(AC servo)
4.5(AC servo)
4.5(AC servo)
Clamping and expansion motor
power of honing head
kw
0.75(AC servo)
0.75(AC servo)
0.75(AC servo)
Cooling pump motor power
kw
2.2
2.2
2.2

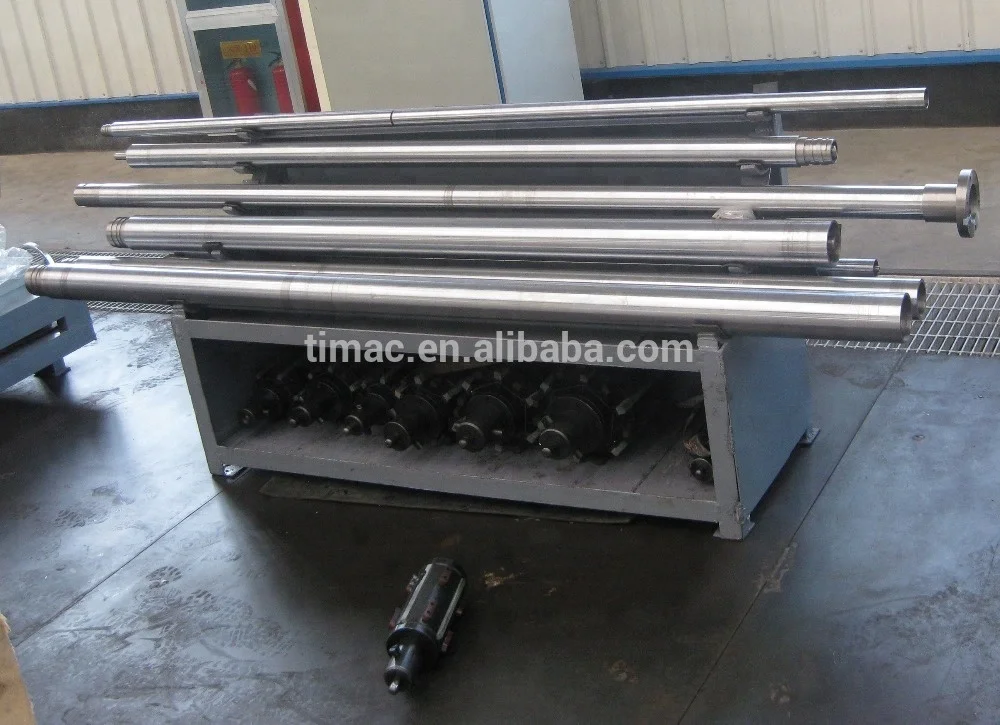

Main Images
Packaging & Shipping
Firstly packed by waterproof cloth and then in wooden case.
Few parts may need to be taken down and be packed in wooden case.
According to customer's different require, wo can adopt different packaging.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
