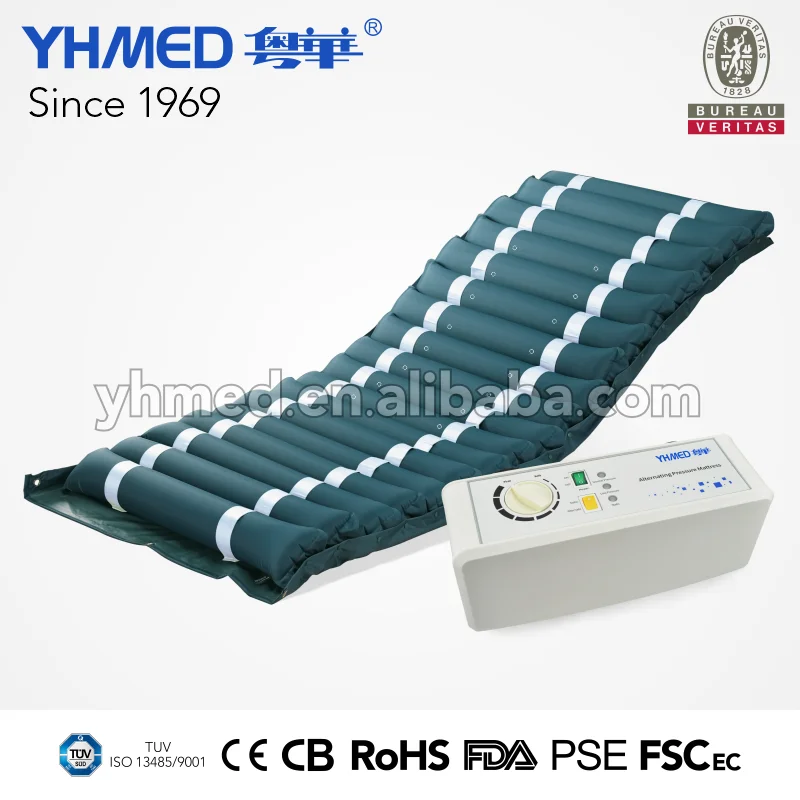

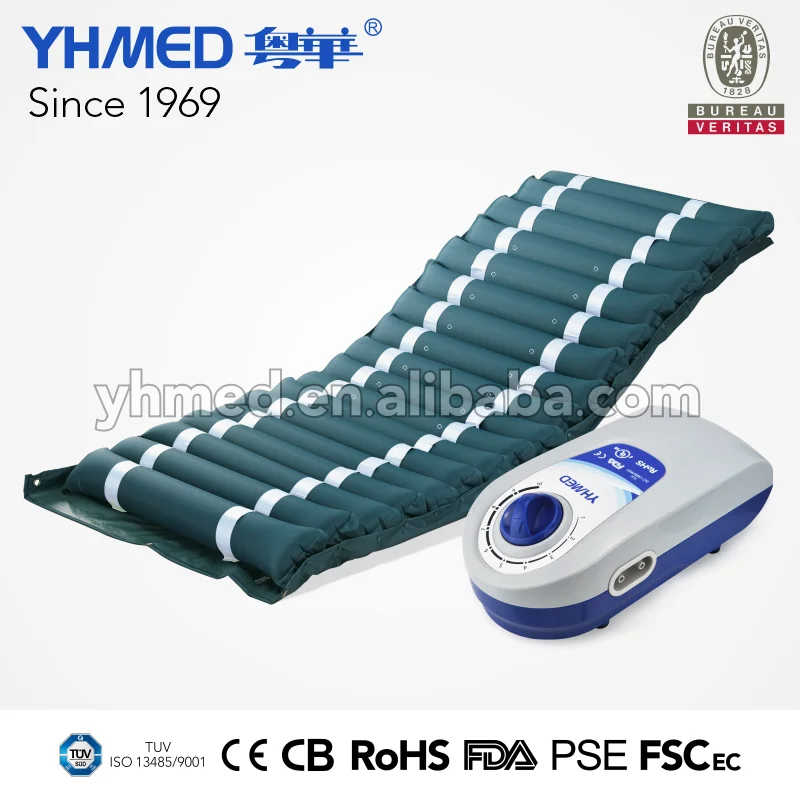

Health & medical air massage mattress for hospital bed

Product Overview

Description

QDC-501B

Cell

A/B/C Cycle Mode (1-in-3)

Alternating Pressure Mattress





















Innovative A/B/C Alternating Cycle Mode (1-in-3)



1. More Comfortable

2. More Quiet

3. Better Sleeping Quality













Technical Parameters Of The Mattress



Material:	Cover: Nylon+PU Cell: Nylon+PVC
Cell	11cm / 4.5'' Inflation Cell*18Pieces+1 Free Spare Cell
Inflation Size(L*W*H)	200*90*11cm
Max Weight Support	145kg
Material Thickness	0.34mm
Pressure Ulcer Stage	Ⅰ,Ⅱ
Mattress System	Overlay
Warranty	12 Months

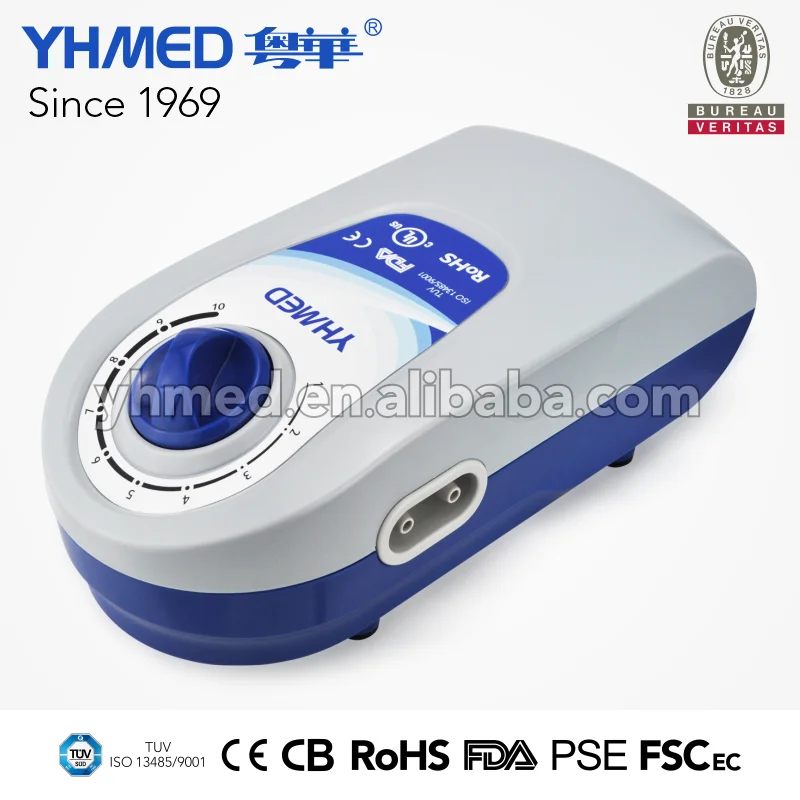

Technical Parameters Of The Pump(P2000Ⅲ)

(the most quiet pump in China)



Alternating Cycle Mode	A/B/C Alternating (1-in-3)
Size  (L*W*H)	27*13* 10.5cm
Input power	220v/110v; 50Hz/60Hz
Output Pressure Range	55-120mmHg
Air output	7-8L/min
Cycle time	12min
Synchronous Motor	TW Ann Yih Brand
Warranty	24 Months







More Comfortable

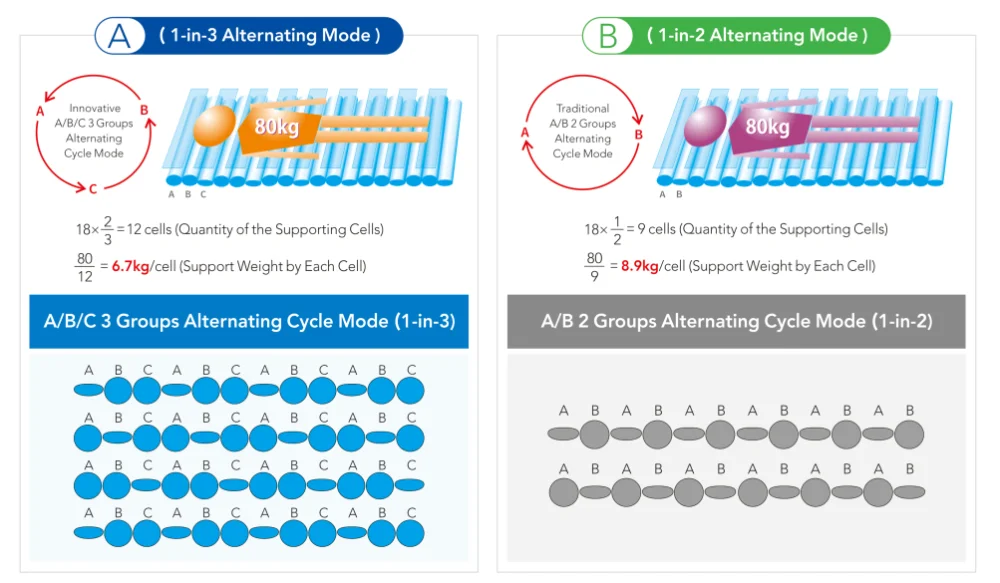

QDC-501B (A) Alternating Pressure Mattress is made up by 18 pcs of 11cm/4.3'' cells. The Alternating System includes A/B/C 3 groups of cells design (6 cells per group). During alternating, there always have 2 groups of cells keep inflating, it means that it will have 12 cells can share and support the patient's weight. Compared with the A/B 2 groups alternating model(B) (just have 9 cells keep inflating at the same time), the share weight of the A/B/C Cycle Mode alternating mattress will be more average. The patient can feel more comfortable and have better sleeping quality.
