pneumatic telescopic mast for camera mounted on Small monitoring car

Product Overview

Description

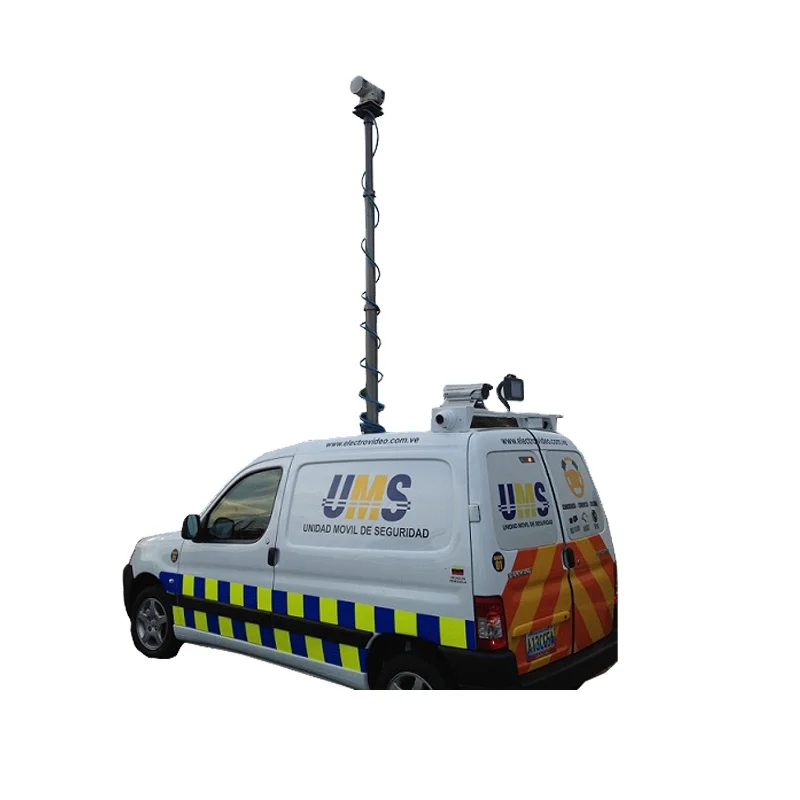

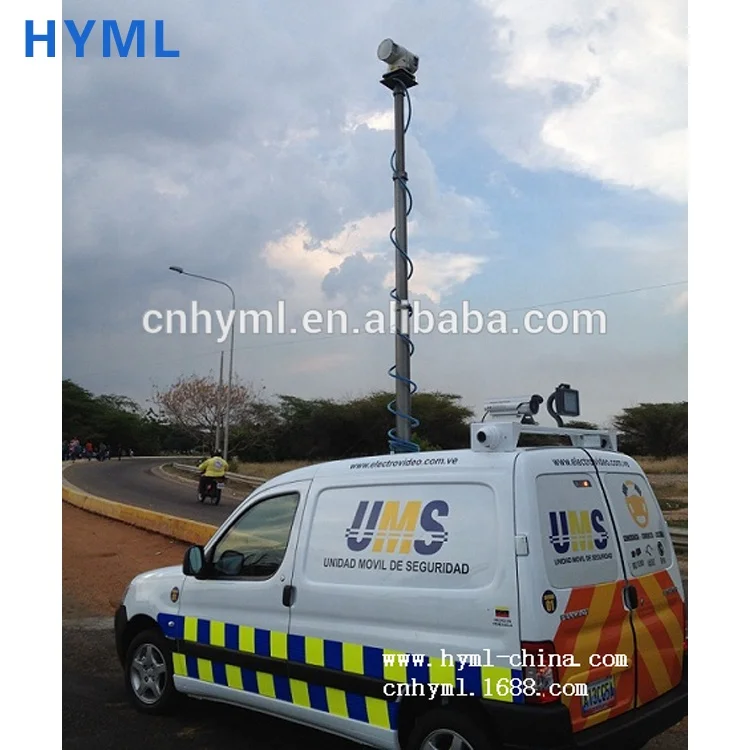

This is a small telescopic monitoring equipment which is installed in a minivan vehicle.

The roof cuts a hole to install the telescopic mast. The connection place between mast upper and roof is sealed by water proof flange. The mast base flange is fixed with the vehicle base.

The mast top is generally mounted a camera with its rotating head.





Common Mast
DATE:2016.1
Model	nested height (m)	extended height (m)	outer Dia. (mm)	inner Dia. (mm)	theoretical top load (Kg)
A4-110	1.2	3.5	118	60	50
A4-110	1.3	4	118	60	50
A4-110	1.5	4.5	118	60	50
A4-110	1.6	5	118	60	50
A4-110	1.7	5.5	118	60	50
A4-110	1.8	6	118	60	50
A6-110	1.2	4.5	118	30	20
A6-110	1.3	5	118	30	20
A6-110	1.4	5.5	118	30	20
A6-110	1.5	6	118	30	20
A6-110	1.6	7	118	30	20
A6-110	1.7	7.5	118	30	20
A6-110	1.8	8	118	30	20





Built-in Cable Mast
DATE:2016.1
Model	nested height (m)	extended height (m)	outer Dia. (mm)	inner Dia. (mm)	theoretical top load (Kg)
AN5-150	1.4	4.5	160	75	70
AN5-150	1.5	5	160	75	70
AN5-150	1.6	5.5	160	75	70
AN5-150	1.7	6	160	75	70
AN5-150	1.8	6.5	160	75	70
AN5-150	1.9	7	160	75	70
AN5-150	2	7.5	160	75	70
AN4-130	1.4	4	140	75	70
AN4-130	1.5	4.5	140	75	70
AN4-130	1.6	5	140	75	70
AN4-130	1.8	5.5	140	75	70
AN4-130	1.9	6	140	75	70
AN4-130	2	6.5	140	75	70
AN3-110	1.4	3	118	75	70
AN3-110	1.5	3.5	118	75	70
AN3-110	1.6	4	118	75	70
AN3-110	1.8	4.5	118	75	70
AN3-110	2	5	118	75	70
