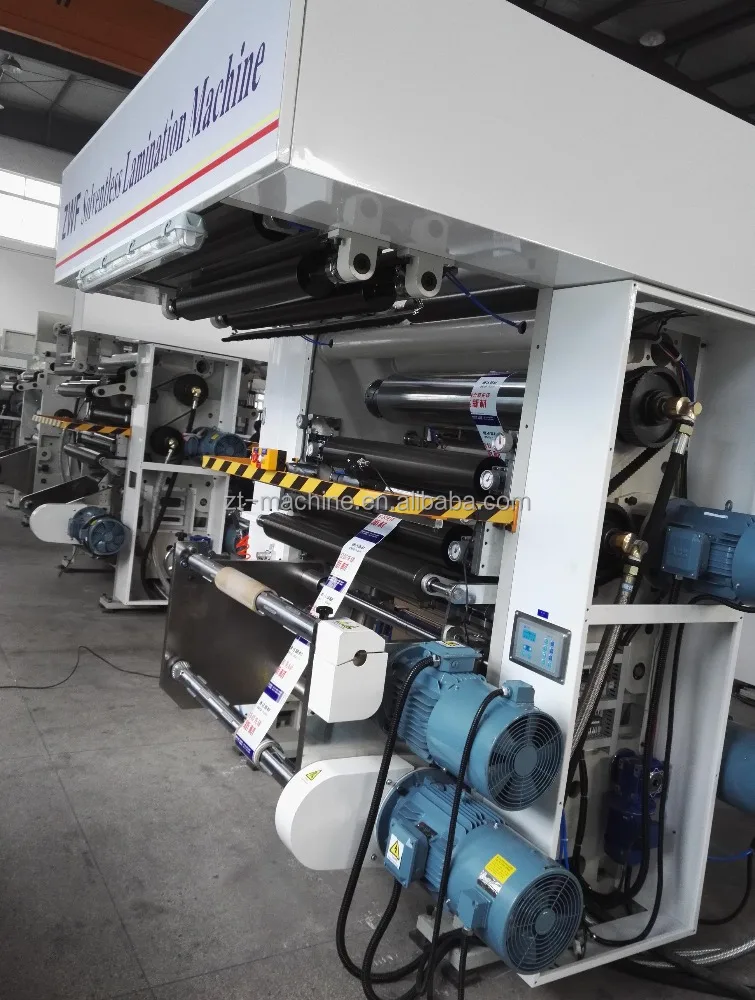

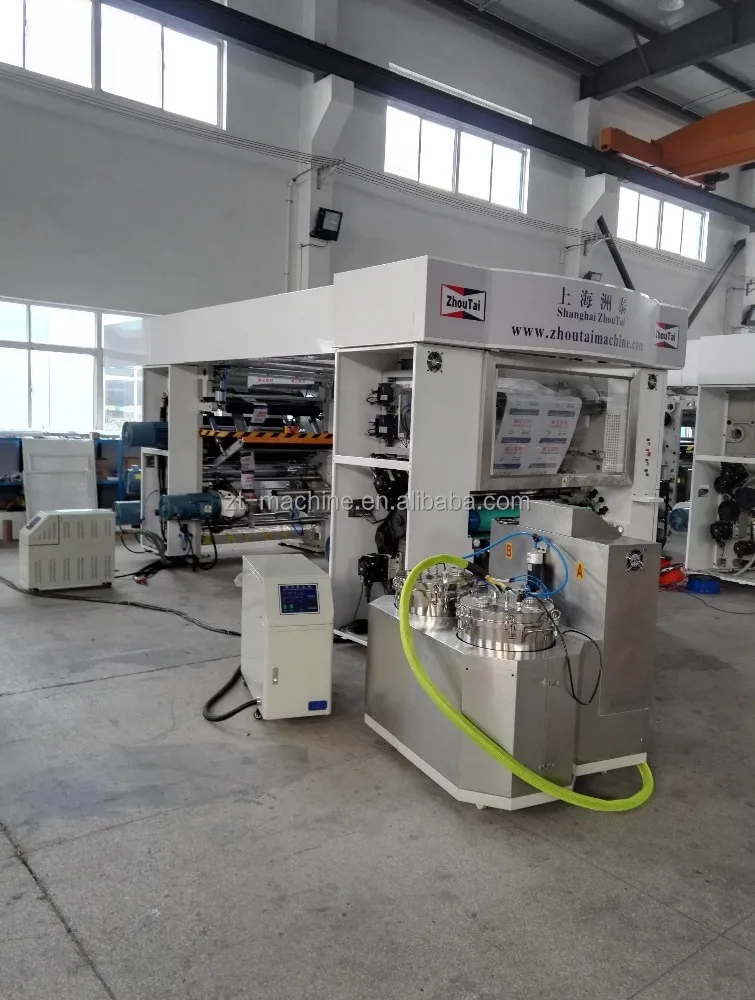

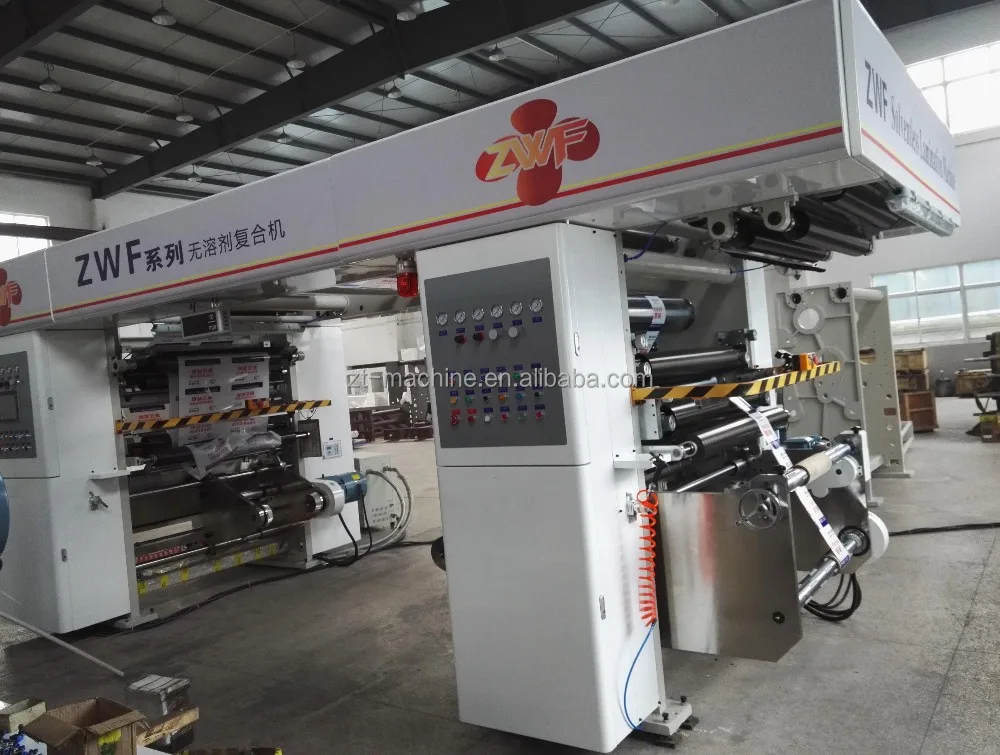

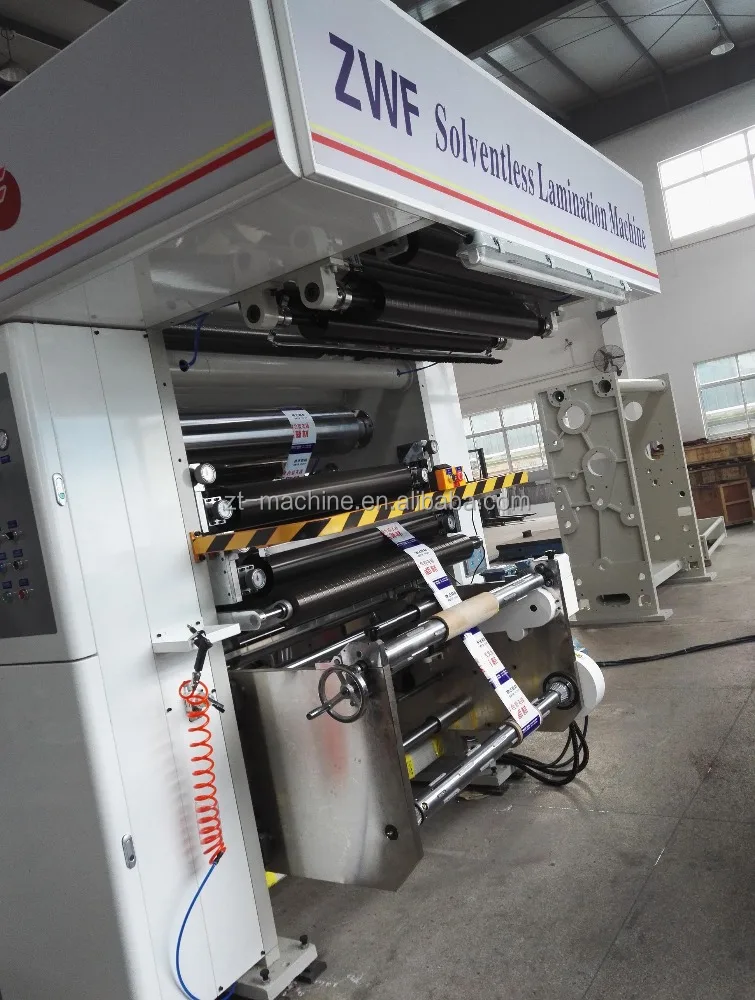

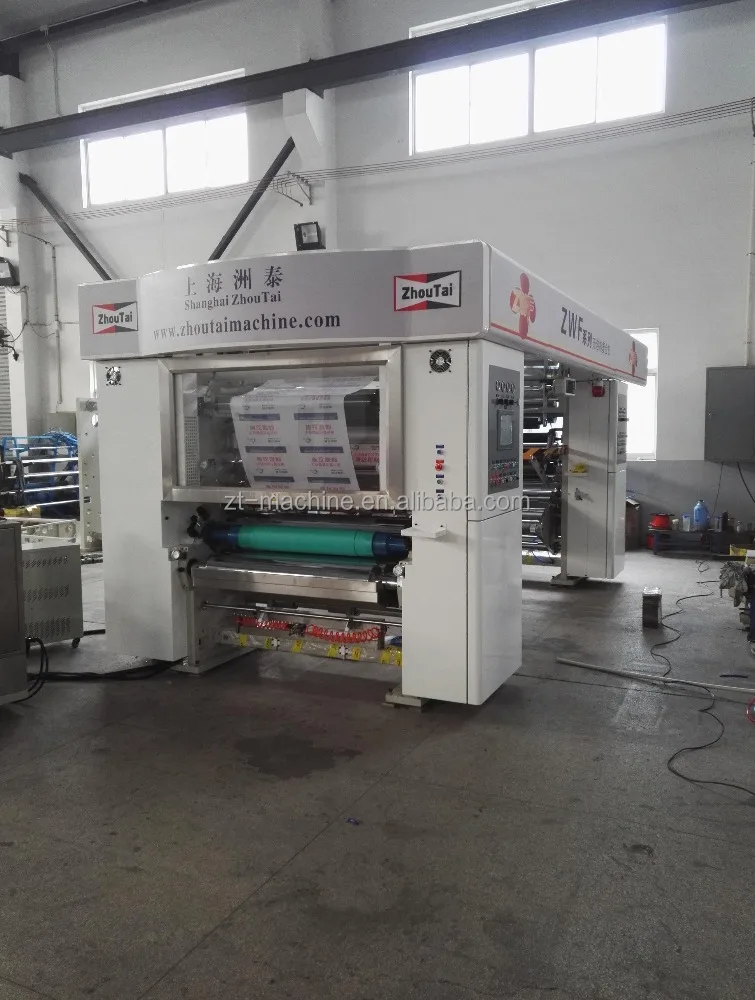

ZWF 400 Automatic solventless lamination machine( Double Unwiding)

ZWF 400 Automatic Solventless Lamination Machine( Double Unwiding)

Quick Details
Condition: New
Place of Origin: Shanghai, China (Mainland)
Brand Name: Shanghai Zhou Tai
Model Number: ZWF350 Solventless Lamination Machine
Voltage: 3P,380V
Power(W): 50KW
Dimension(L*W*H): 5700*2600*2300MM
Weight: 8000KG
Certification: CE
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
Material: Film, Paper
Type: Solventless laminating machine
Automation: Yes,computer control
Strongpoint: Environmental protection

Specifications
ZWF 300 Solventless Laminator Machine
1st unwind dia.:600mm
2nd unwind dia.:600mm
Rewind dia.:800mm
Lam.speed:300m/min

Main technical:

Feature

1.Take example of Spanish Comexi technique.

2.Unwind & Rewind is conic node type, for change material quick and convenient.

3.Metering roller, glue evenly roller and coating roller using imported servo motor (coating part)

4.Unwind & Rewind are AC motor

5.Glue evenly roller adopt automatic close structure when working, eliminate glue nonuniform (coating part)

6.Coating roll use high precise double layer propellers for glue and temperature uniformly (coating part)

7.Doctor dancer roller clean by motor driving, convenient cleaning and high efficiency

8.Taper tension and taper pressure for rewind, can increase yield

9.Pre-position for corona disposal, convenient add corona

10.Imported mixed glue device
12.Dance roller detection tension control for rewind and unwind
