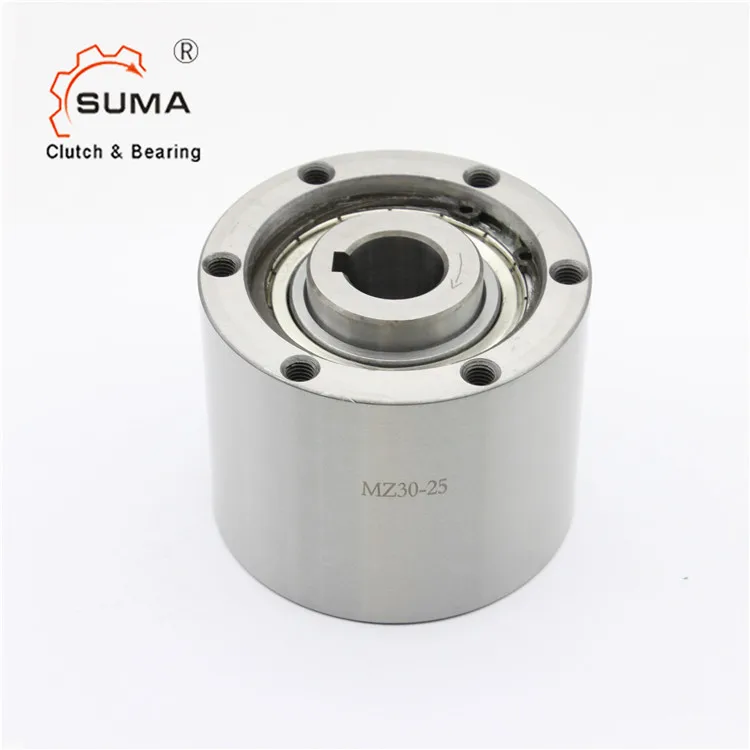

MZ45G 40 One Way Cam Clutch Backstop Bearing MZ 45G 40

MZ45G 40 One Way Cam Clutch Backstop Bearing MZ 45G 40

Category: Other Roller Bearings >>>
Supplier: Changzhou Suma Precision Machinery Co. Ltd.

Price:

Quantity:

Product Overview

Description

MZ45G-40 One Way Cam Clutch Backstop Bearing MZ 45G-40

Features of cam clutch mz

Type MZ...G is sealed, sprag type freewheel, bearing supported using two 60...zz series grease lubrication bearings .

Delivery detail: It is delivered grease lubricated ready for installation.

Advantage: Maintenance Free, Easy Installation

SPECIFICATIONS
Model	MZ45G-40
Inner diameter	40mm
Outer diameter	125mm
Thickness	87mm
Torque capacity	1620Nm
Drage Torque	0.69Nm
Max outer race overrunning speed	300r/min
Weight	6.2kg
Delivery time	5-7days
Payment Terms	TT,D/P,D/A,Western Union, Paypal

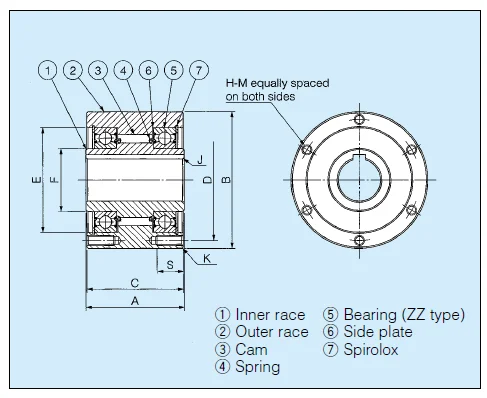

Technical Parameter of cam clutch mz

mz-g

Model	Torque capacity Nm	Drag Torque Ncm	Max Overrunning		Boresize			A	C	B(h7)	F	E	K	PCD D	S	Weight kg


			Inner race	Outer race	Dia.	Keyway	Chamfer
			Inner race	Outer race	(H7)	Keyway	J
MZ15G	186	0.2	2,200	900	15	5×2.3	0.8	55	53	68	25	47	1.3	58	10	1.3
MZ17G	215	0.2	2,000	800	17	5×2.3	0.8	63	61	75	28	52	1.3	64	10	1.7
MZ20G	323	0.29	1,900	700	20	5×2.3	0.8	64	62	80	30	55	1.3	68	12	1.9
MZ30G-22	735	0.39	1800	500	22	8×3.3	1	70	68	100	45	75	1.3	88	16	3.2
MZ30G-25	735	0.39	1800	500	25	8×3.3	1	70	68	100	45	75	1.3	88	16	3.2
MZ30G	735	0.39	1800	500	30	10×3.3	1	70	68	100	45	75	1.3	88	16	3.2
MZ35G	1080	0.49	1,700	300	35	10×3.3	1	78	76	110	50	80	1.3	95	16	4.4
MZ45G-40	1620	0.69	1,700	300	40	12×3.3	1.3	87	85	125	60	95	1.3	110	16	6.2
MZ45G	1620	0.69	1,700	300	45	12×3.3	1.3	87	85	125	60	95	1.3	110	16	6.2
MZ60G-50	2110	0.98	1600	250	50	14×3.8	1.5	90	88	155	80	125	1.3	140	16	9.5
MZ60G-55	2110	0.98	1600	250	55	16×4.3	1.5	90	88	155	80	125	1.3	140	16	9.5
MZ60G	2110	0.98	1600	250	60	18×4.4	1.5	90	88	155	80	125	1.3	140	16	9.5
MZ70G-65	3040	1.27	1300	250	65	18×4.4	1.8	105	103	175	95	145	1.3	162	16	13.1
MZ70G	3040	1.27	1300	250	70	20×4.9	1.8	105	103	175	95	145	1.3	162	16	13.1

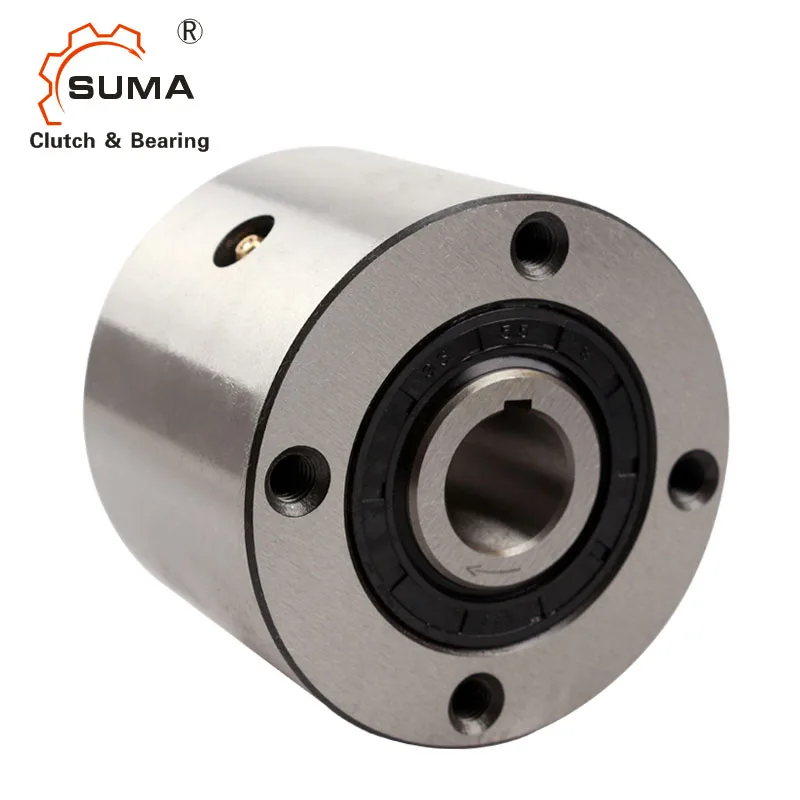

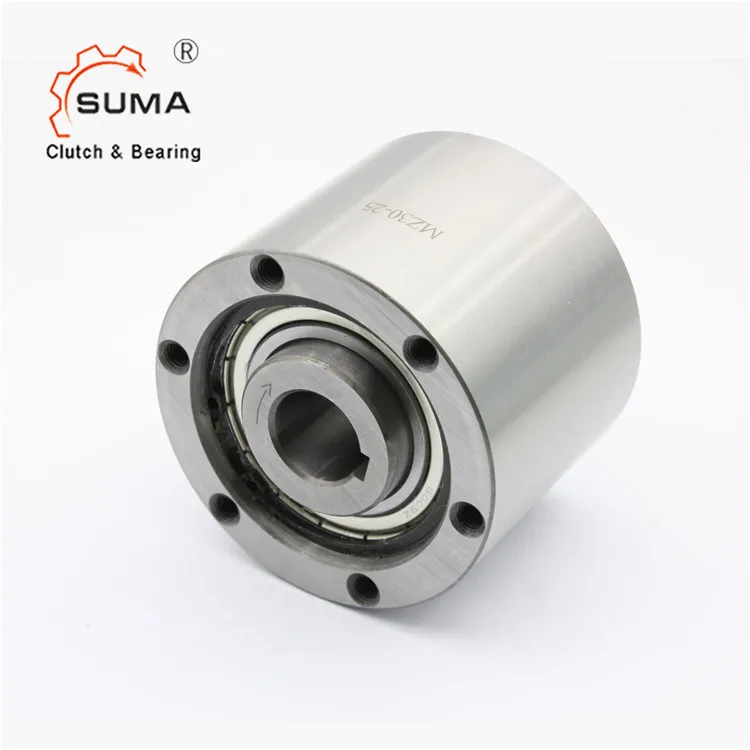

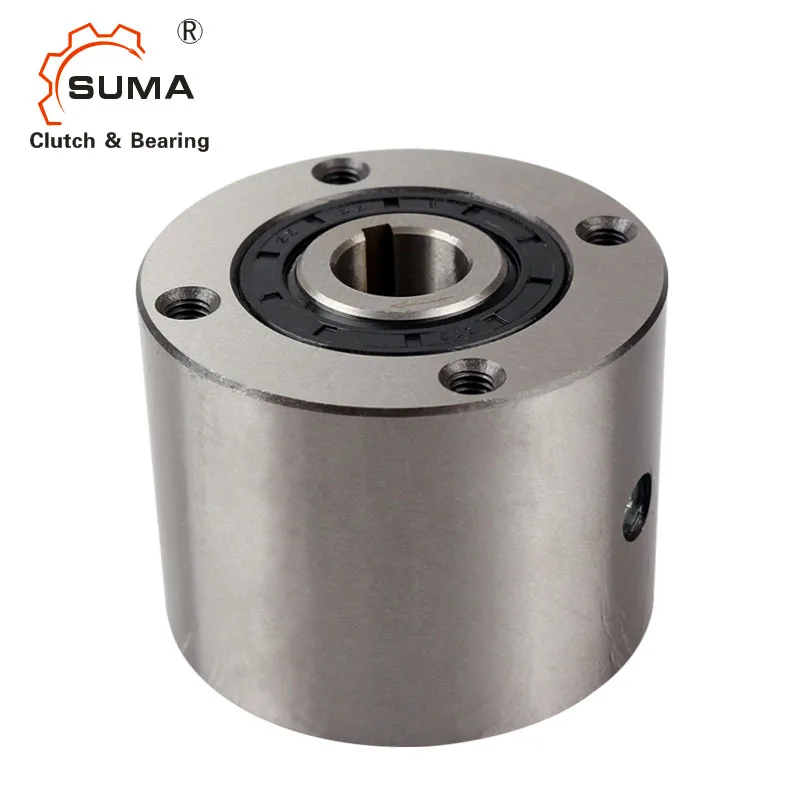

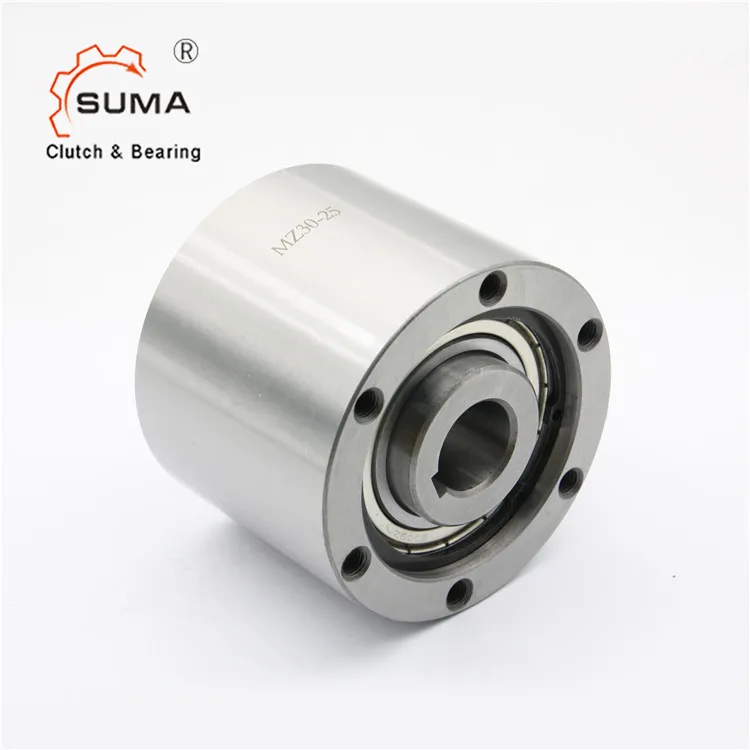

Detailed Images

MZ MI-5

MZ70-2

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

FXM

Production flow

production flow

Certifications

FAQ

Q: How do you pack the goods?

Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
