Miniature Screw Type EMI Filter M2.5 50V 102
- Category: >>>
- Supplier: Fuzhou Xinxiangwei Electronic Technology Co. Ltd.
Share on (60407176471):
Product Overview
Description
Miniature Screw Type EMI Filter M2.5 50V 102
Feature:
1). RoHS,REACH,CE approved!
2). Available in RF Components widely!
3).Custom design is available!
4).Certification: ISO9001:2008,ISO14001:2004, ISO18001:2007
Specification:
| 1 | Rated Voltage | 50VDC |
| 2 | Capacitance | 1000pF |
| 3 | Capacitance Tolerance | +80%-20% |
| 4 | Dissipate Factor | <3.5% |
| 5 | Material | X7R |
| 6 | Withstand Voltage | 150VDC |
| 7 | Current | 7A |
| 8 | Insulation Resistance | 3000MΩ |
| 9 | Operating Temperature | -55℃~+125℃ |

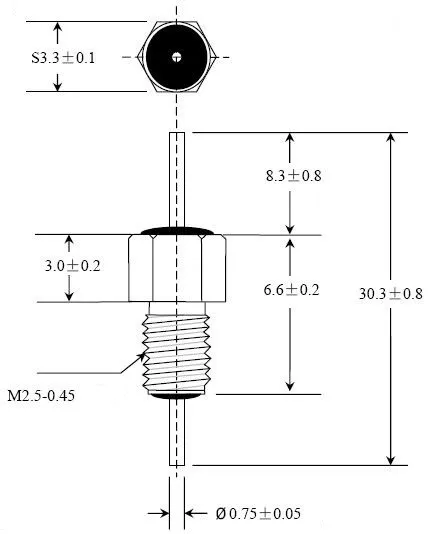

Drawing:

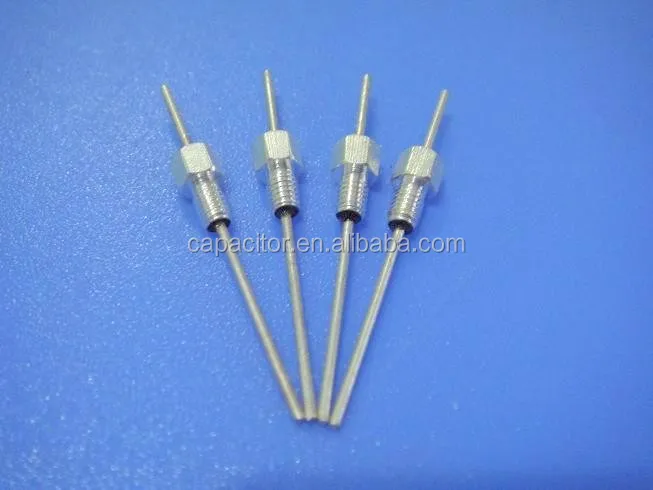

Product Show:
Our Certificate:
Our Company:
Our testers:
Packing and Delivery:
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to order quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=5000USD, 100% TT in advance. Payment>5000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us.
