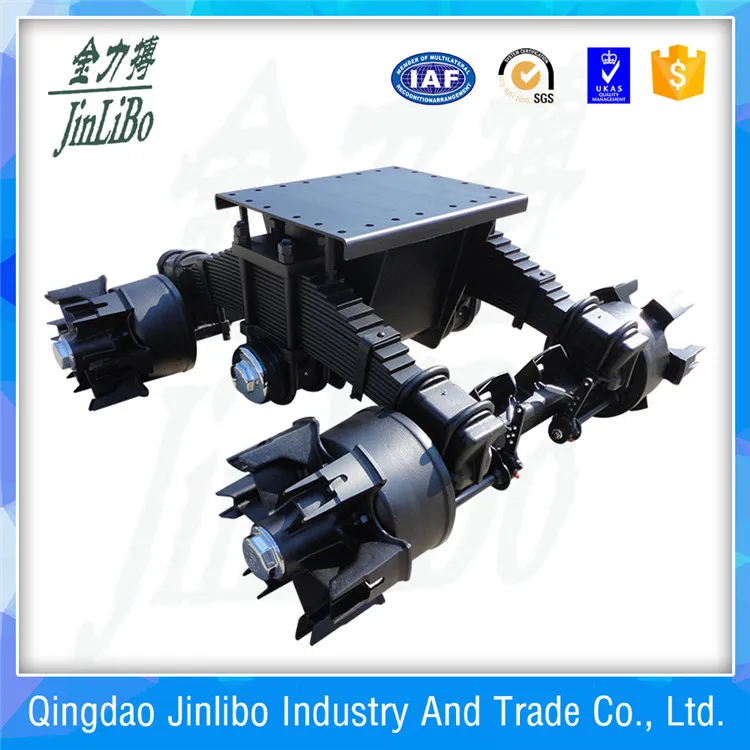

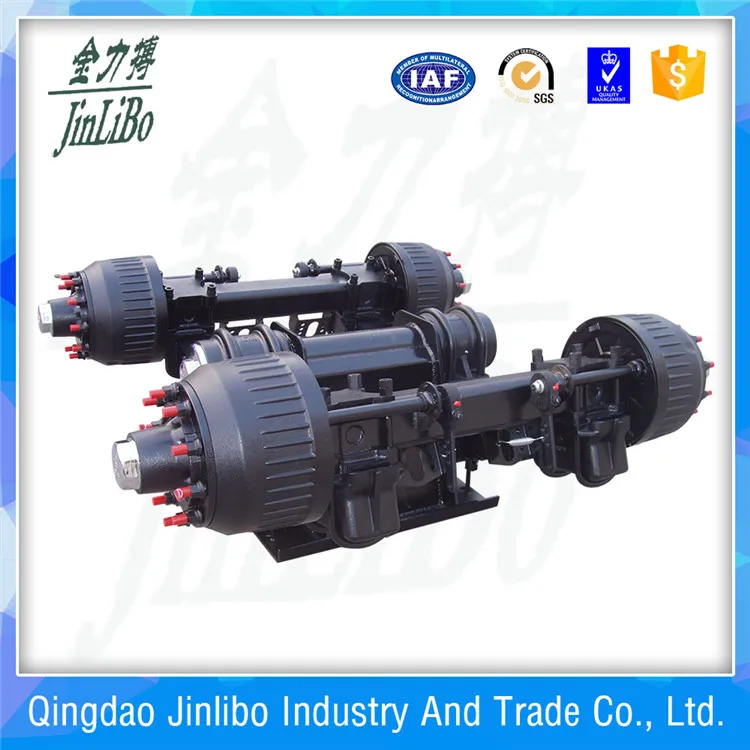

32T Bogie Suspension For Trailer/Semi Trailer With BPW Axle
- Category: >>>
- Supplier: Qingdao Jinlibo Industry And Trade Co. Ltd.
Share on (60407278513):
Product Overview
Description
Specifications
bogie-suspension
capacity:32T,
high quality&best price
Company Information
Our factory is in Qingdao City, near the sea port and air port. very very conviniently.
Welcome to visit our factory to inspect the production process.
ISO9001:2000 ,TS16949
Trailer suspension series produced by our company QINGDAO JIN LI BO TRADE CO., LTD., has reasonable structure,good braking quality,high-intensity,big rigidity,long life,as well as strong bearing capacity,and also passed the national authoritative department's monitor.
Customer can provide your own specification to us.
The suspension can be produced by customers request.
Our suspension are popular sold to many countries in USA, Middle East and Southeast Asia and Africa etc.
customized is available.
Customer also can send us your specifications or drawings you need.
Certification:ISO9001:2000 / TS16949
High quality and best price
We are factory not trading company.
| JLB 24ton bogie suspension specifications | |||||||||
| Rated load(kg) | Weight | Axle size(mm) | Track(mm) | P.C.D(mm) | Tyre screw | Wheel iron postting(mm) | Bearing size | Brake size | Axle space(mm) |
| 32000 | 2520kg | 150*150*16 | 1850 | 335 | 10-M22*1.5 | 280 | 32314/32222 | 420*200 | 1550 |
Germany Type Bogie Suspension | |||||||||||||
Rated Load (kg) | Weight (kg) | Bearing Type | Axle Beam | Brake Size | Track Length A | P.C.D. | Tyre Bolt | Steel Turn Position | Wheel Base B | C mm | D mm | E mm | F mm |
24000 | 2020 | 33118 33213 | SQUARE 150*14 | 420*180 | 1870mm | 335 | 10-M22*1.5 | 280 | 1385 | 900 | 600 | 700 | 55 |
24000 | 2080 | 33118 33213 | SQUARE 150*14 | 420*200 | 1870mm | 335 | 10-M22*1.5 | 280 | 1385 | 900 | 600 | 700 | 55 |
28000 | 2455 | 33215 32219 | SQUARE 150*14 | 420*200 | 1870mm | 335 | 10-M22*1.5 | 280 | 1550 | 900 | 600 | 800 | 55 |
32000 | 2520 | 32314 32222 | SQUARE 150*16 | 420*200 | 1870mm | 335 | 10-M22*1.5 | 280 | 1550 | 900 | 600 | 800 | 55 |
36000 | 2600 | 32314 32222 | SQUARE 150*18 | 420*220 | 1870mm | 335 | 10-M22*1.5 | 280 | 1550 | 900 | 600 | 800 | 55 |
