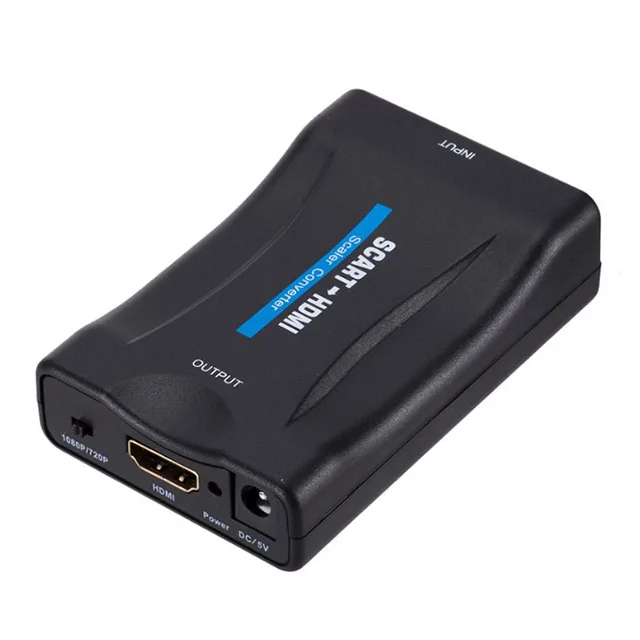

SCART to hdmi converter Scaler with 1080P 720P Switch

Product Overview

Description

SCART to HDMI Converter Scaler with 1080p 720p Switch

Model:SCART-HDM
Input:SCART
Output:HDMI







Scart  to  HDMI converter can convert 480I(NTSC)/576I(PAL) format signal to 720P/1080P HDMI signal output, also it can connect the high definition HDMI input interface, Easy connect the DVD, set-top box, HD player, Game Console (PS2,PS3,PSP,WII,XBOX360 etc).







1. HDMI output interface: connect with high definition TV or high definition projector     HDMI output format:720P@50/60Hz, 1080P@50/60HZ

2. SCART input interface: DVD, set top box, other players.     SCART input format: PAL/NTSC_M/NTSC4.43/SECAM/PLA-M/PAL-N

3. HDMI input format: 480I/576I/480P/576P/720P@50_60Hz/1080I@50_60Hz/1080P@50_60Hz    Compatible with several DVI format: 800X600,1024X768,1280X1024,1360X768, 1680X1050,1920X1080 etc.

4. Scales SCART Signal (RGB or Composite Video) to HDMI 720p or 1080P;







Signal Inputs/Output
Input DDC Signal	5 volts p-p (TTL)
Input Video signal	0.5-1.0 volts p-p
input Video	RGB, CVBS
Output Video	HDMI
Connector
HDMI Connector	type A (19 pin) female
SCART Connector	SCART (21 pin) female
Environmental
Operating Temperature	0 °C to +70°C
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10°C to +80°C
Storage Humidity	5% to 90 % RH (no condensation)
Power Requirement
External Power Supply	5V DC
Accessories Adapter
USB Power wire	Default
AC Power Adapter	Optional
User Manual	English Version
