The telescopic antenna mast with the protective steel frame

Product Overview

Description

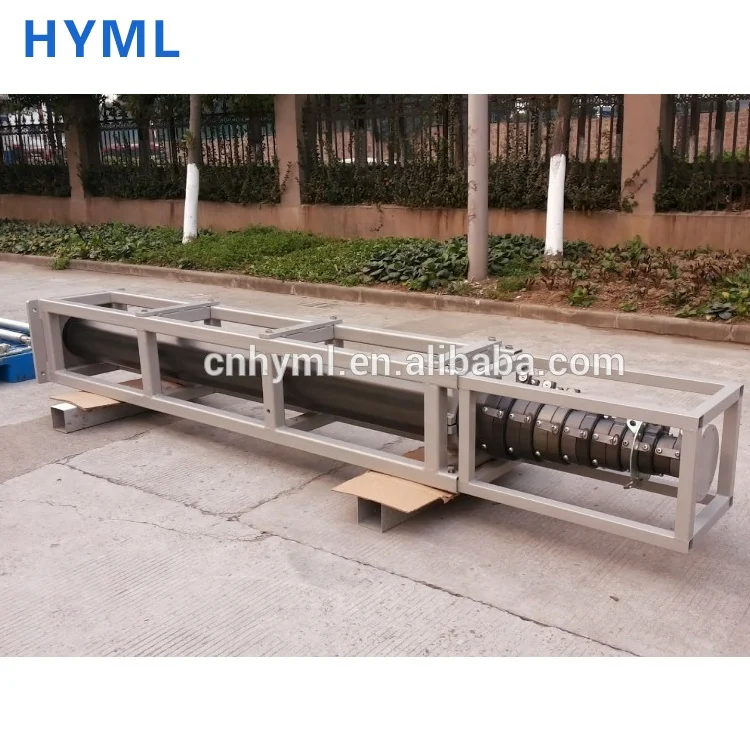

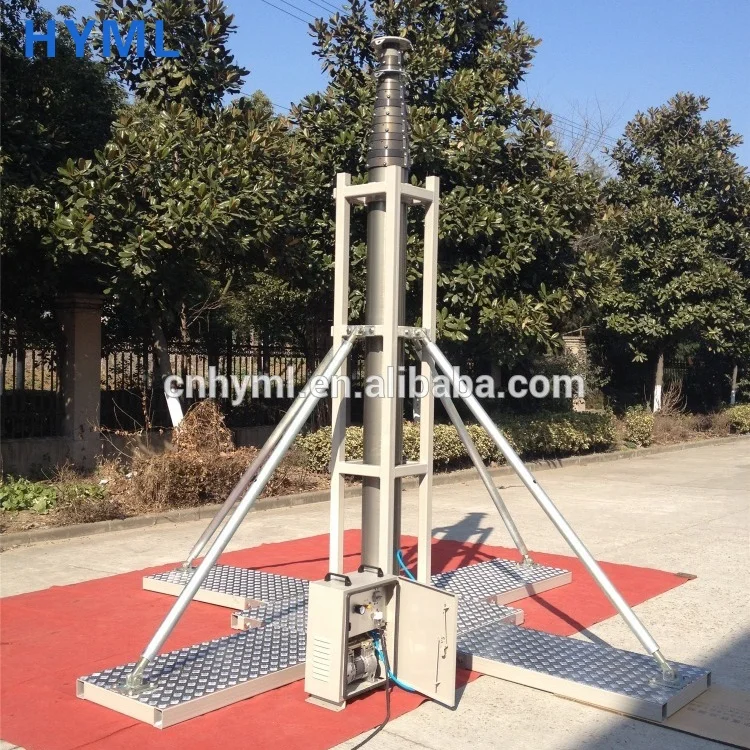

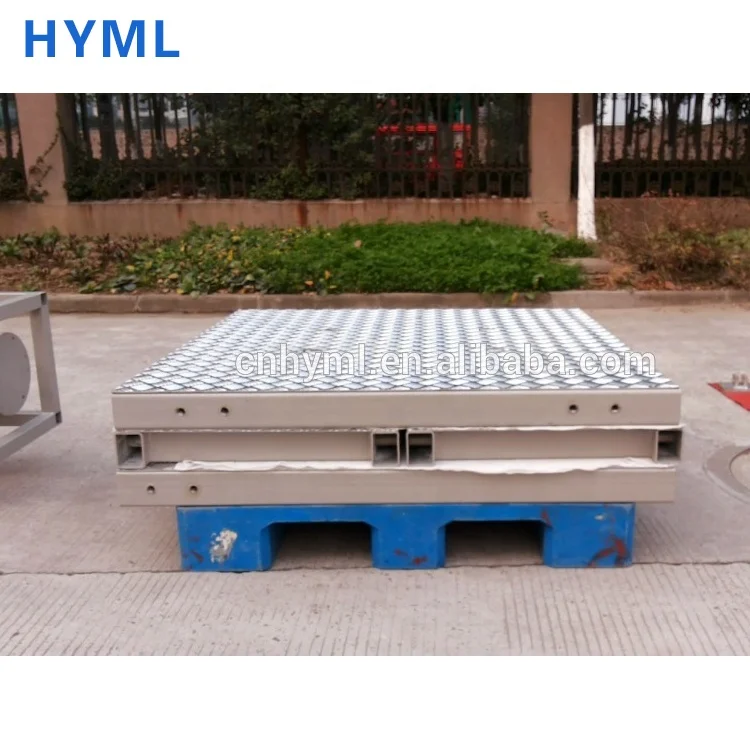

 The outside metal frame of the mast, there are two functions: One is to protect the mast to avoid hitting during transport. Another is to set up quickly using metal protective frame and metal chassis & supporting poles.

This product is especially suitable for field workers . For example, oil exploration, geological survey,

archaeology, road & railway, port construction, and military activities and so on

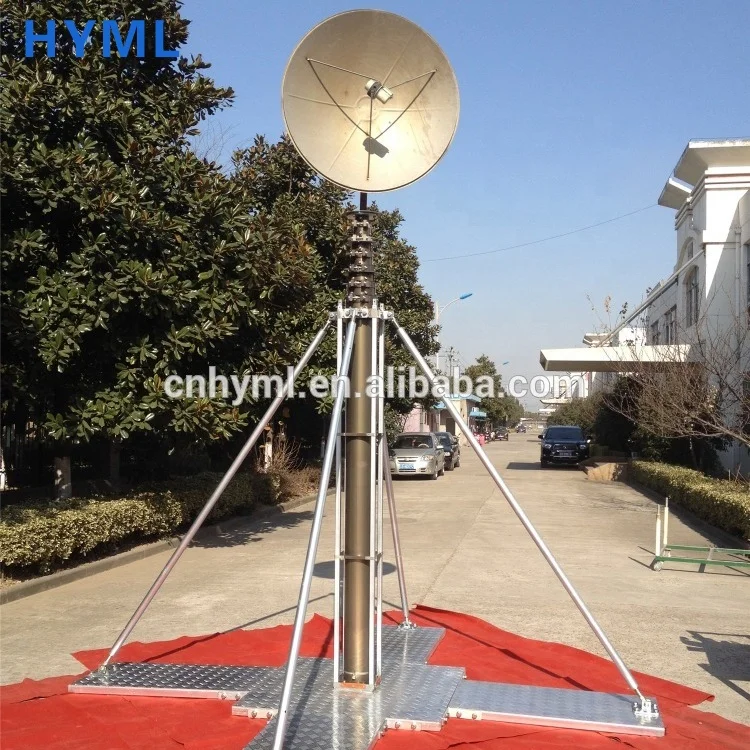

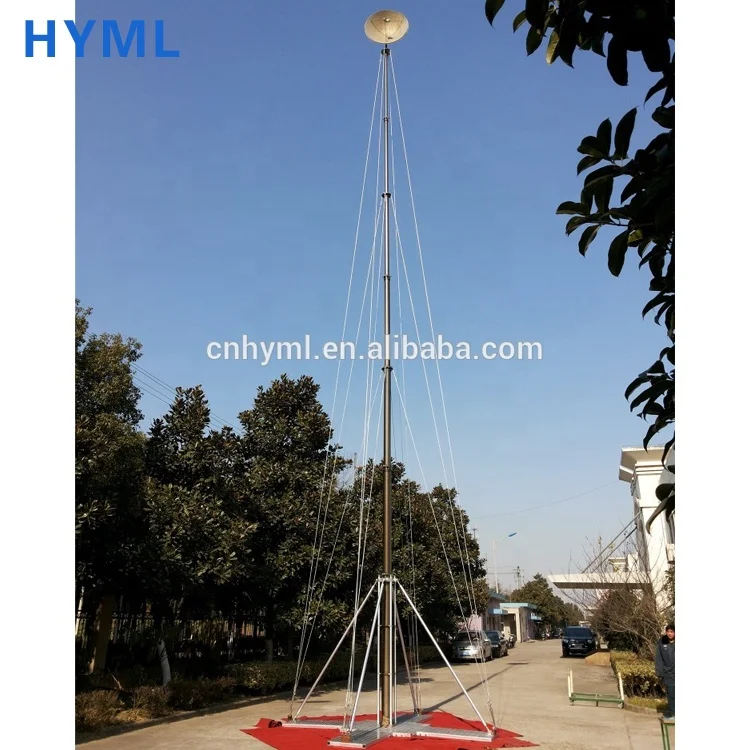

On the mast top , we often install the radar, microwave antennas and other communication equipment. It also can be installed the lighting and surveillance Monitoring equipment. Please see this type mast and application pictures

If you want to know more information about this equipment, please contact us.



Do you have Skype ID ? My Skype is erinyixing

Welcome to buy one sample and visit our factory

Erin

Mobile : 0086 -13706155652



 some part telescopic mast specifications table



Common telescopic Mast
DATE:2016.1						h:nested height H:extended height D:outer diameter d:inner diameter L:top payload     If you do not find the suitable  specifications in the table,  please contact with us, we can design for you.
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
A6-170	2	8	180	75	100
A6-170	2.3	10	180	75	100
A6-190	2	8	202	90	150
A6-190	2.3	10	202	90	150
A6-215	2.3	10	229	110	200
A6-215	2.6	12	229	110	200
A8-215	2.6	15	229	75	100
A7-270	2.6	13	284	130	250
A7-270	2.8	14	284	130	250
A7-270	3	16	284	130	250
A8-270	2.8	16	284	110	200
A8-270	3	18	284	110	200
A9-270	2	10	284	90	150
A9-270	2.2	12	284	90	150
A9-270	2.5	15	284	90	150
A9-270	3	20	284	90	150
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)



Hand Brake Telescopic Mast
DATE:2016.1						h:nested height H:extended height D:outer diameter d:inner diameter L:top payload   If you do not find the suitable  specifications in the table,  please contact with us, we can design for you.
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
AZ6-170	2	8	180	75	100
AZ6-170	2.2	9	180	75	100
AZ6-190	2.4	10	202	90	150
AZ6-190	2.5	11	202	90	150
AZ6-215	2.4	10	229	110	200
AZ6-215	3	14	229	110	200
AZ7-215	2.6	12	229	90	150
AZ7-215	2.9	15	229	90	150
AZ8-215	2	9	229	75	100
AZ8-215	2.4	12	229	75	100
AZ9-215	2.6	15	229	60	80
AZ7-270	2.6	12	284	130	250
AZ7-270	2.8	14	284	130	250
AZ7-270	3	15	284	130	250
AZ8-270	2.6	13	284	110	200
AZ8-270	2.8	15	284	110	200
AZ9-270	2.8	16	284	90	150
AZ9-270	3	18	284	90	150
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
