CNC Horizontal Small Hole Drilling Machine / Deep Hole Gun Drill

Product Overview

Description



Single Spindle CNC Gun Drill For Deep Hole

DDK-60/1



Performance and Features

• The series CNC deep hole drill machine is the dedicated drilling machine with high efficiency, high precision and high automation.


• When drilling the hole with the diameter of Φ8-30mm, It adopts the type of external chip removal (gun-drill method), through one-off drilling process;  When drilling the hole with the diameter of Φ30-60mm, it adopts the type of BTA internal chip removal.


• It can finish several procedures including drilling, expanding and reaming, which is generally conducted by different machines in the conventional process. This machine achieves the excellent machining accuracy and surface finish.


• The machine adopts all rotation of workpiece and tool while the tool is feeding. It can also fix the workpiece and make the tool rotating and feeding.


• The machine adopts CNC system and has automatic cycle function. and it can achieve single action and automatic cycle action.


• The machine can process center hole and eccentric hole. So it is specially suitable for mass production. The different holes are available to be processed by this machine including through hole, blind hole and step hole.

Technical Parameters



Specifications	Unit	DDK-50/1	DDK-60/1
Drilling dia. range	mm	8-50	8-60
Max. drilling depth of workpiece	mm	500, 1000, 1500, 2000	500, 1000, 1500, 2000
Max. length of the workpiece	mm	500, 1000, 1500, 2000	500, 1000, 1500, 2000
Headstock spindle speed range	r/min	60-1000	60-1000
Drill box spindle speed range (stepless)	r/min	100-2000	100-2000
Feed speed range (stepless)	mm/min	10-500	10-500
Workpiece clamping diameter range	mm	300	300
Feed rapid speed	m/min	2	2
Feed motor torque	N.m	18	18
Headstock motor power	kw	15	15
Drill bar box feeding motor power (stepless)	kw	15	15
Work pressure of cooling system (adjustable)	MPa	1-5	1-5
Cooling system flow (adjustable)	L/min	6-100 (1 group) 100 (1 group)	6-100 (1 group) 100 (1 group)
Drilling diameter-length ratio		1:100	1:100
Machine total power	kw	50	50
Coolant fitering precision	µm	20	20
CNC system		SIEMENS or other CNC system





 Notes: The headstock is optional. If without headstock, you can save costs; If with headstock, you can higher processing efficiency.



DDK-60/1 machine tool is equipped with single drilling bars.

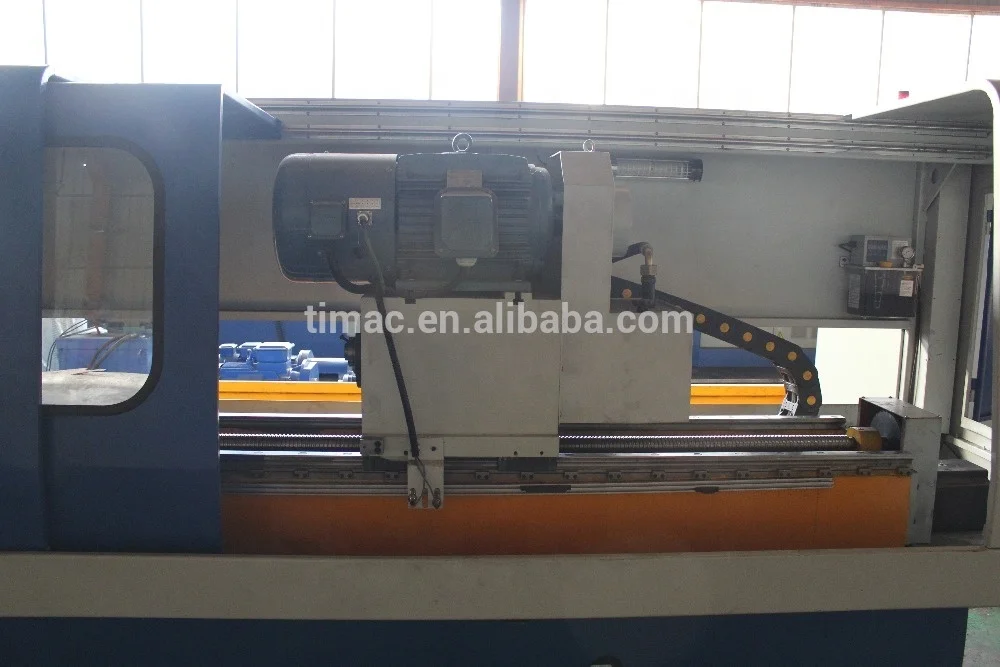

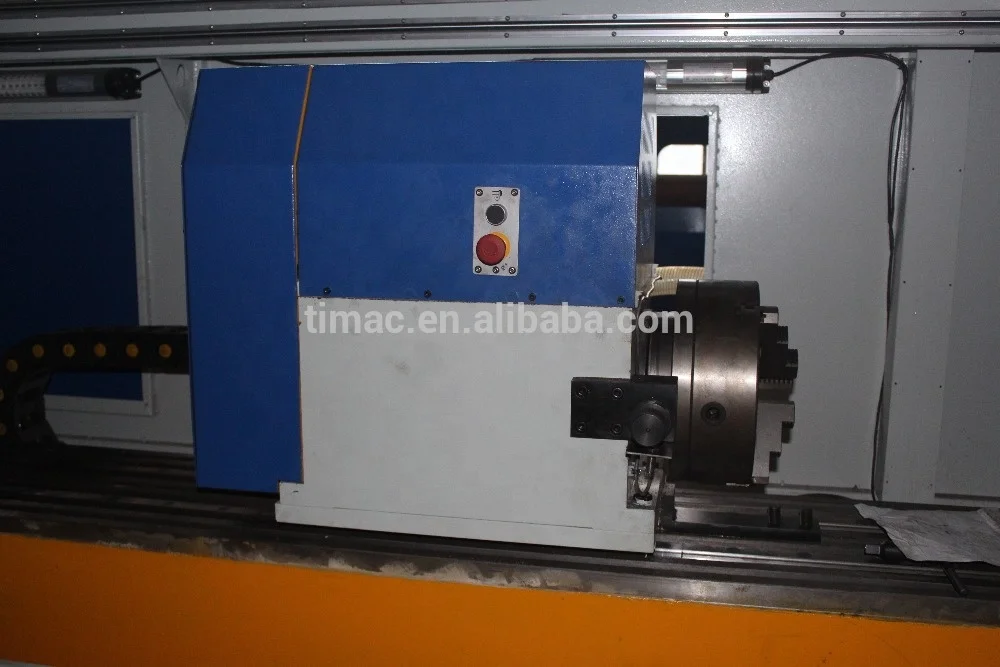

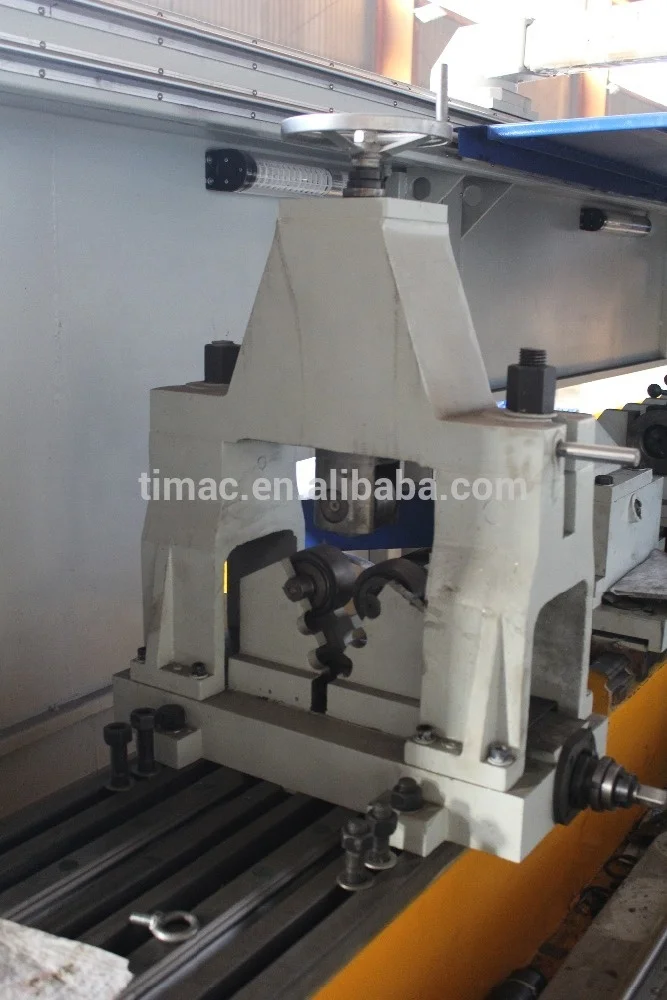

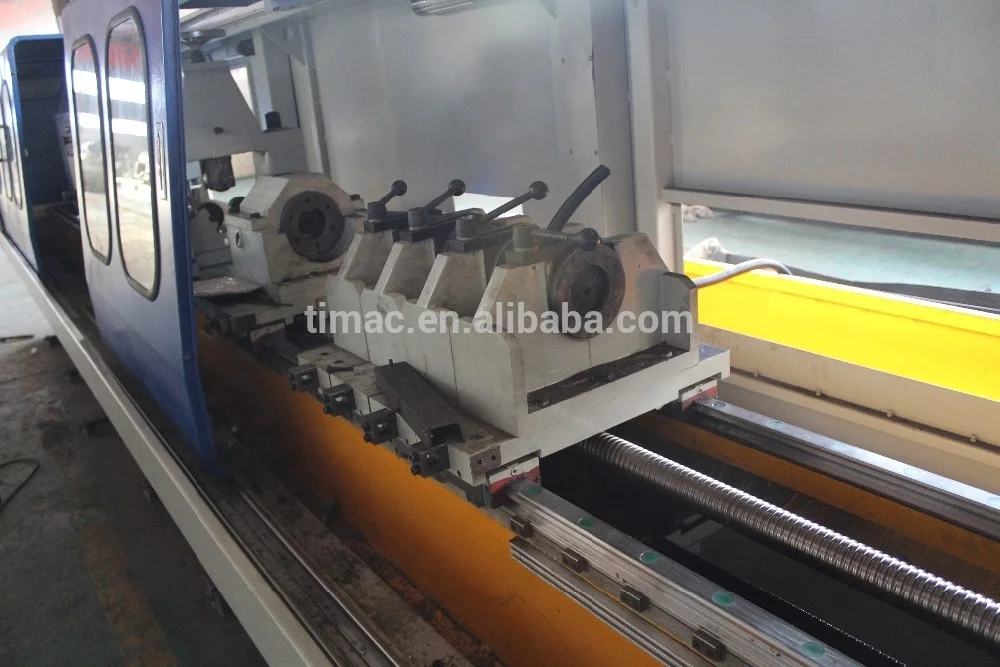

Actual Figure of Single Spindle CNC Deep Hole Gun Drill

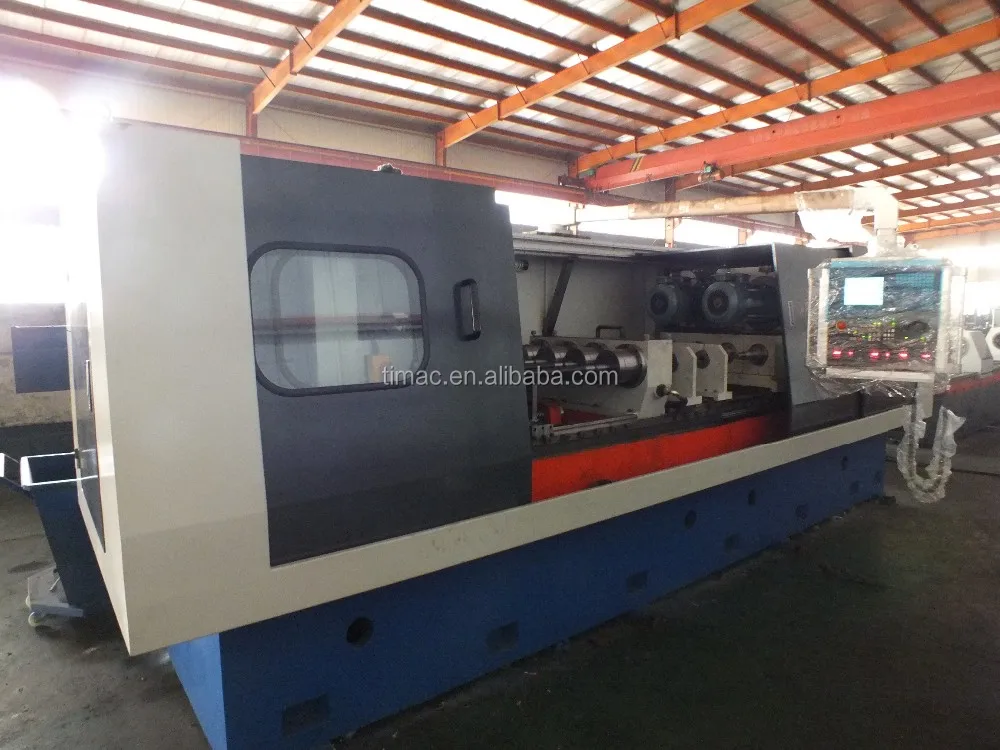

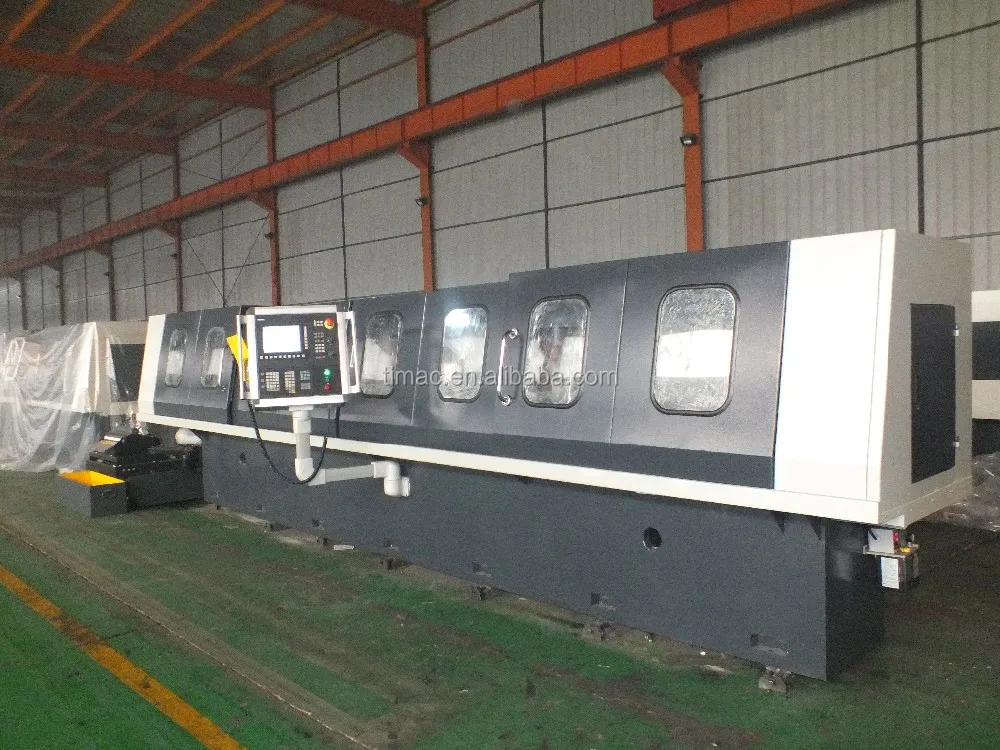

The Real Figure

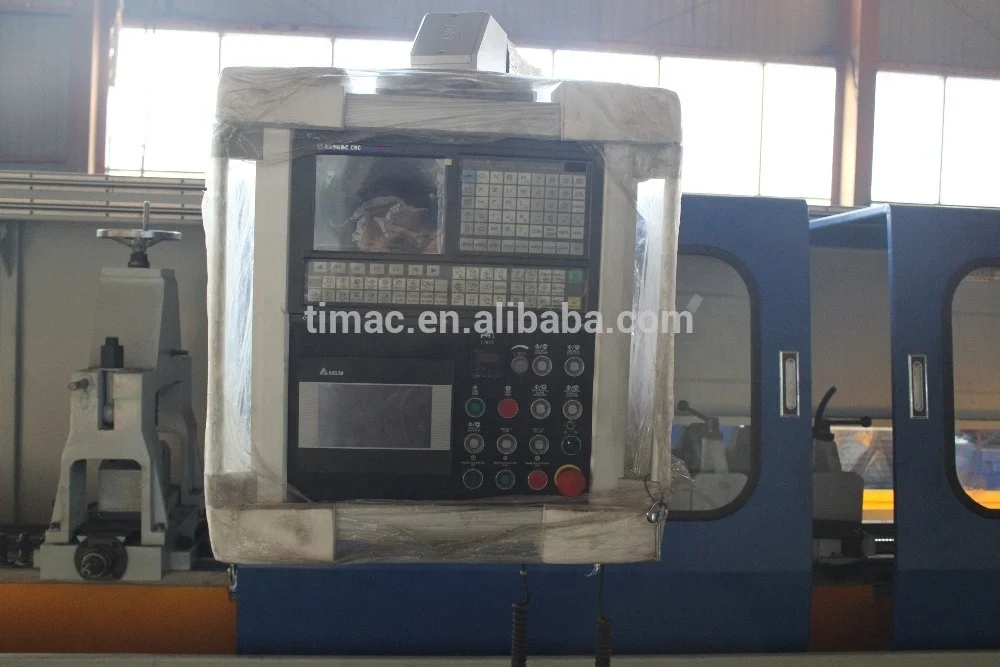

• Firstly packed by waterproof cloth and then in wooden case.


• Few parts may need to be taken down and be packed in wooden case.


• According to customer's different require, wo can adopt different packaging.

Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
