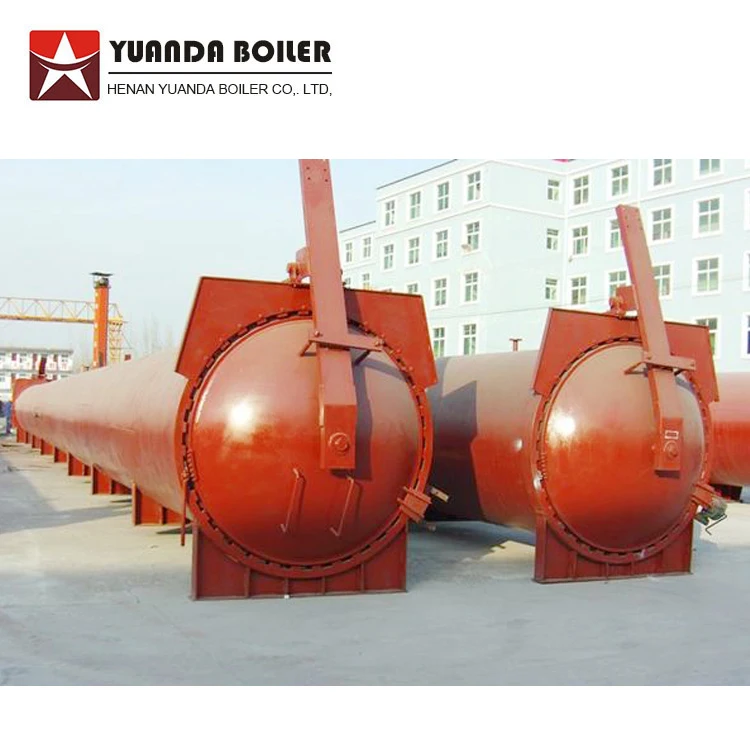

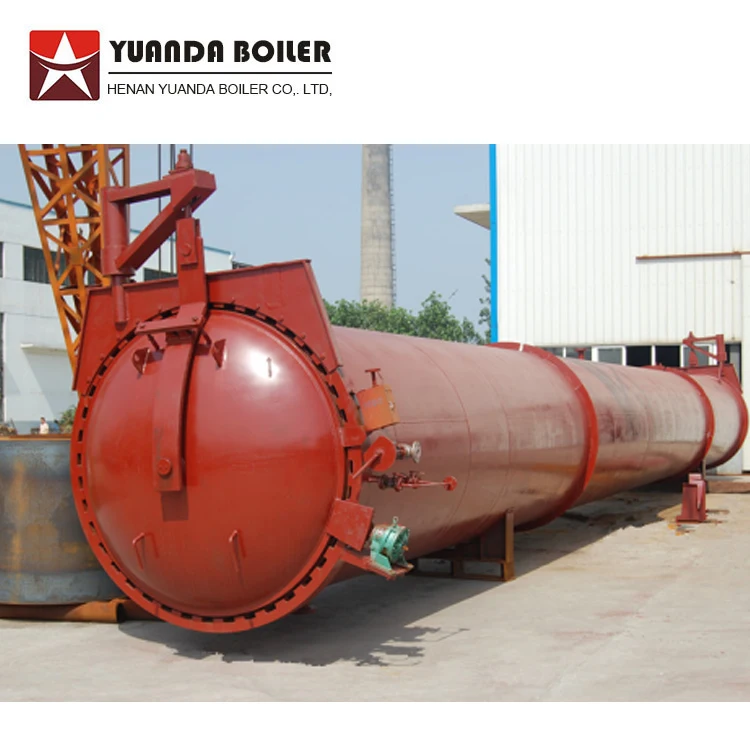

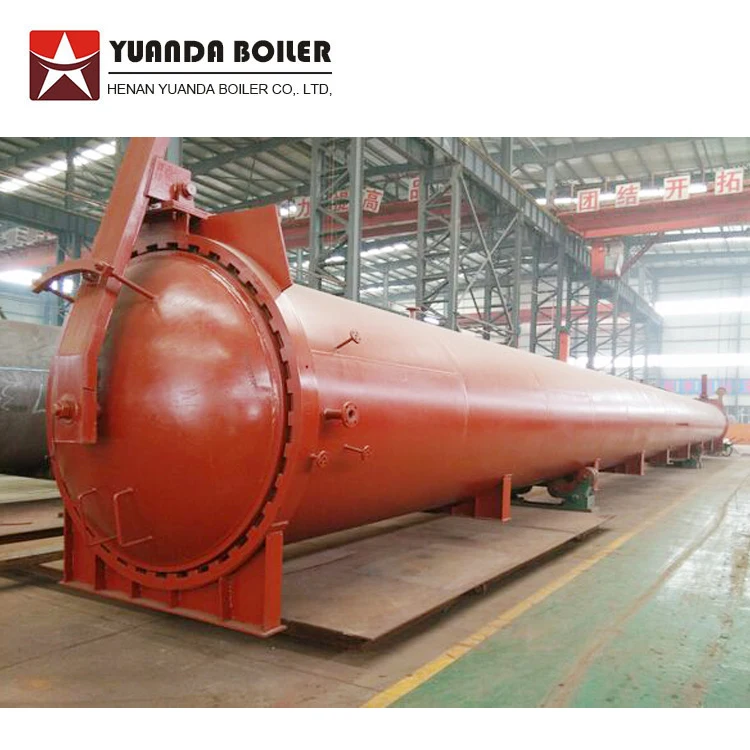

Horizontal Industrial AAC Autoclave for Brick block making
- Category: >>>
- Supplier: Henan Yuanda Boiler Corporation Ltd
Share on (60408212709):
Product Overview
Description

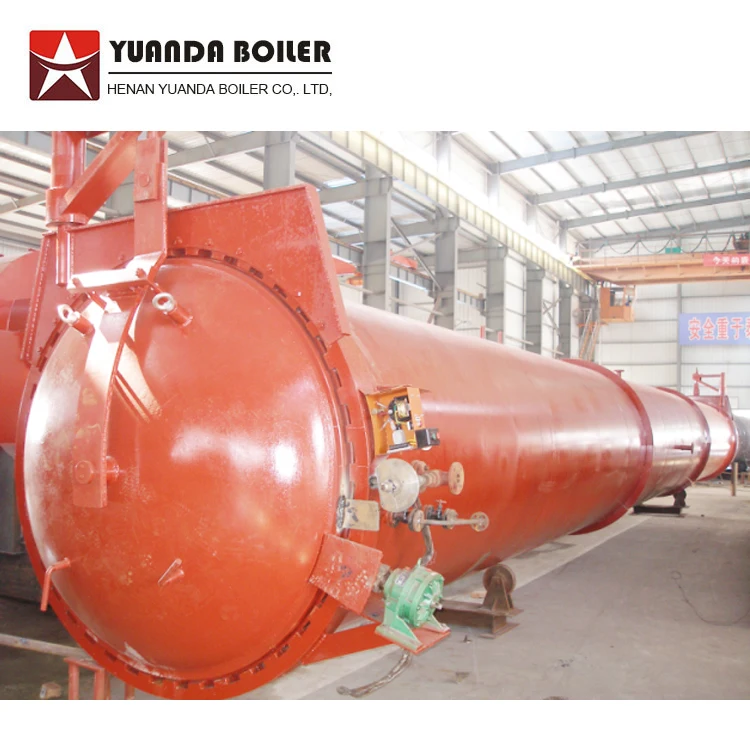

Horizontal Industrial AAC Autoclave for Brick block making
Product Description

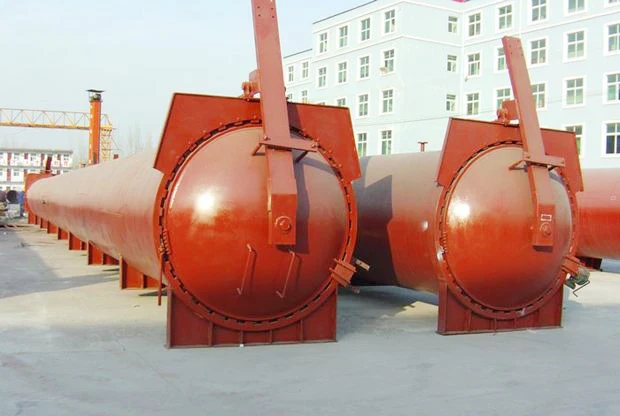

The autoclave is a large pressure vessel with a large volume and a heavy weight. Autoclave is widely used in aerated concrete blocks, concrete pipe piles, lime sand bricks, coal ash bricks, microporous calcium silicate boards, new lightweight wall materials, thermal insulation asbestos sheets, high strength gypsum, etc. Autoclaved curing of building materials, the hydrothermal reaction of Cao-Si02-H2O was completed in the kettle. At the same time, it is also widely used in rubber products, wood drying and anti-corrosion treatment, heavy metal smelting, refractory brick oil infiltration, in line with glass steaming, high-pressure treatment of chemical fiber products, high temperature and high pressure treatment of food cans, pulp cooking, cable vulcanization, fishing net shaping and chemical industry. , pharmaceutical, aerospace industry, insulation materials, textiles, military and other production projects that require pressure steaming production process.
Technical Parameters
| Specification(m) | Φ1.65×21 | Φ2×21 | Φ2.5×24 | Φ2.85×26 | Φ3×23 | |
| Rated Pressure(MPa) | 1.1/1.4 | 1.4 | 1.4/1.6 | 1.6 | 1.6 | |
| Design Temp(℃) | 187/195 | 195 | 195/204 | 204 | 204 | |
| Maximum Operating Pressure(MPa) | 1.0/1.3 | 1.3 | 1.3/1.5 | 1.5 | 1.5 | |
| Autoclave Inside track gauge (mm) | 600 | 600 | 800 | 600 | 915 | |
| Volume(m³) | 46 | 68 | 121 | 172 | 172 | |
| Weight(t) | 18.7/21.5 | 25 | 51/58 | 62 | 70 | |
| Dimension (m) | Length | 21.7 | 22.4 | 25.56 | 27.63 | 24.95 |
| Width | 2.62 | 3.05 | 3.25 | 3.58 | 3.65 | |
| Height | 2.6 | 3.3 | 4 | 4.49 | 4.85 | |
Provide the autoclave specifics, we can customize made for you.

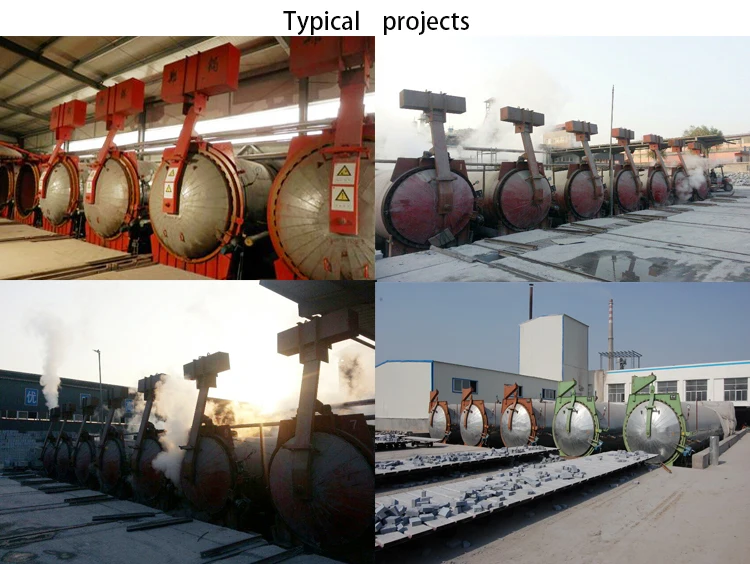

Typical projects

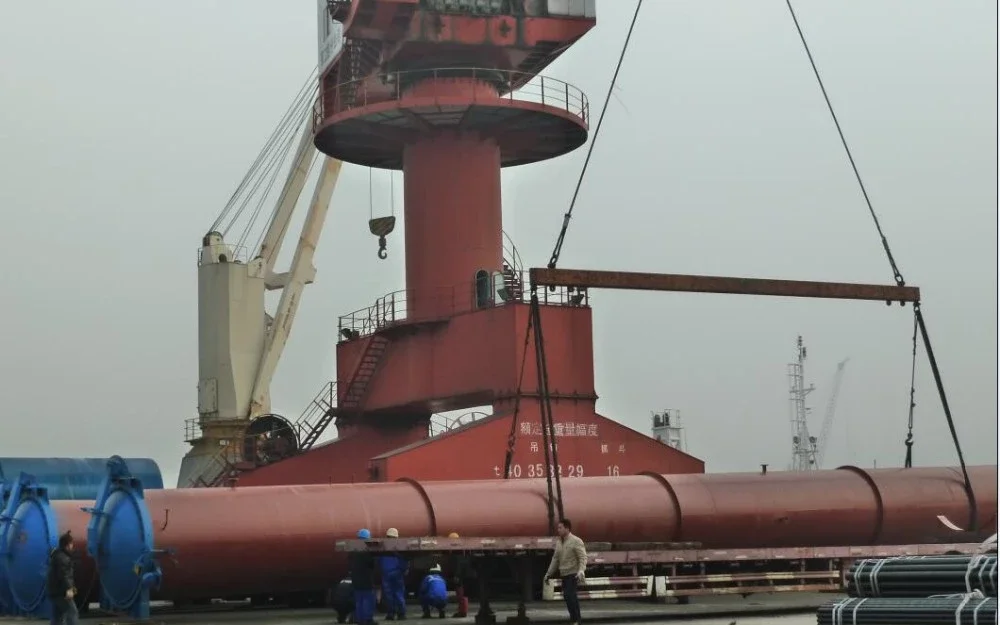

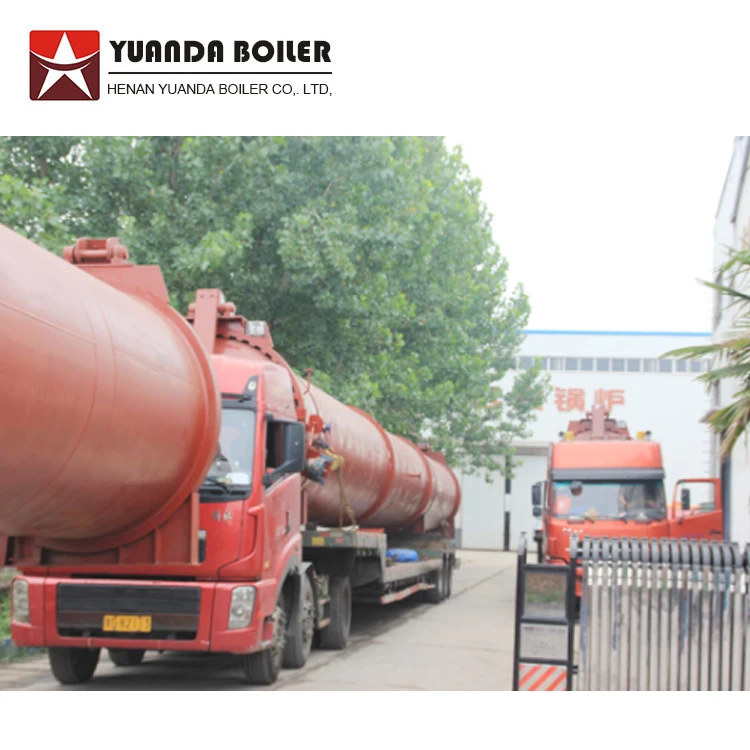

Packaging & Shipping
Company Information
Henan Yuanda Boiler Co., Ltd,Class A boiler manufacturer. Established in 1956,locates in Xihua County, Henan province, the central part of China.
We are professional manufacturer and supplier for industrial boilers, with 12 years' experience in boiler design, production, installation and commissioning. Our company is one of the enterprises which obtained boiler manufacturing license in China.
We have our own R & D team and cooperate with famous high-tech research institutes at the same time, which ensures our products in the forefront of technology and science.
By the end of 2018, we have exports to 86 countries worldwide and have successfully supplied tailor made solutions for over 100,000 customers.
Our main products are:
(1)WNS Gas oil fired steam boiler and hot water boiler
(2) DZL / DZH Coal / wood fired steam boiler and hot water boiler
(3) SZL Biomass fired steam boiler and hot water boiler
(4) YY(Q)W Gas oil fired thermal oil boiler
(5) YLW Coal biomass fired thermal oil boiler
(6) Autoclave and other pressure vessels
Yuanda Boiler has been committed to improving efficiency and safety of boilers to provide safe, energy saving and environmental friendly products. We look forward to making a brilliant future with you.
