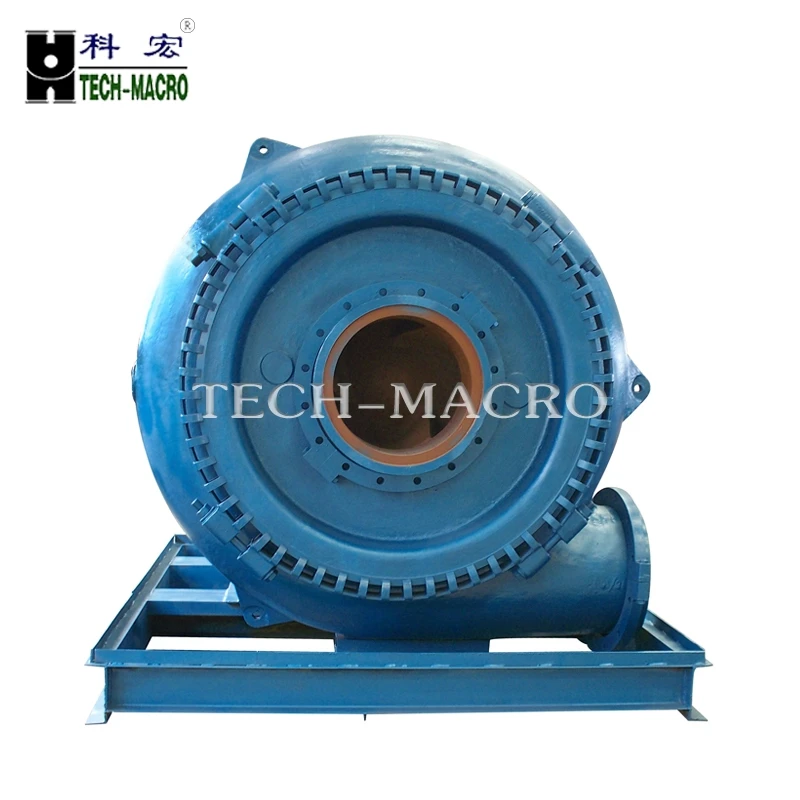

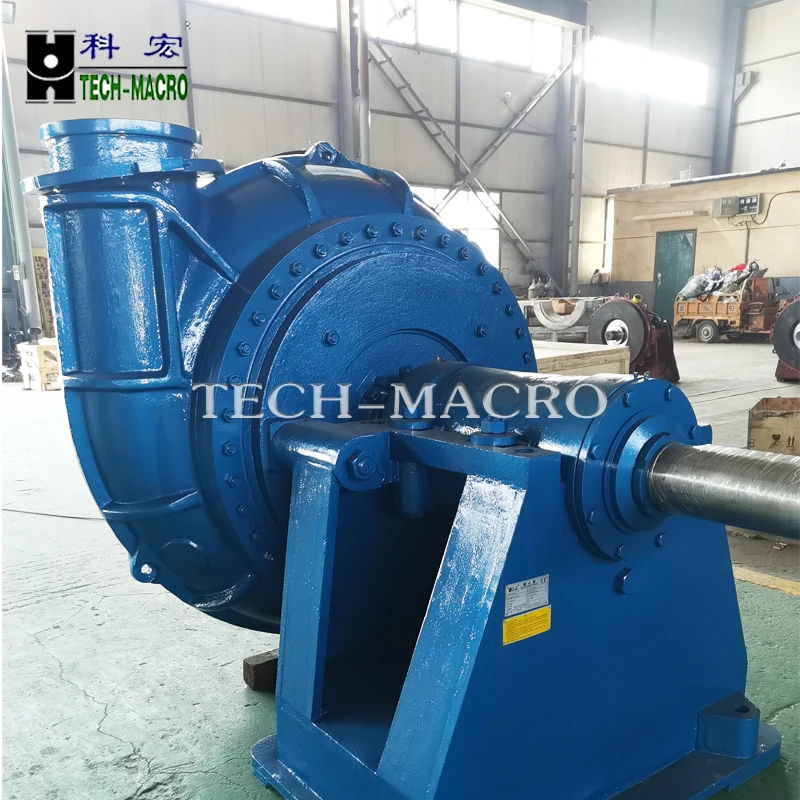

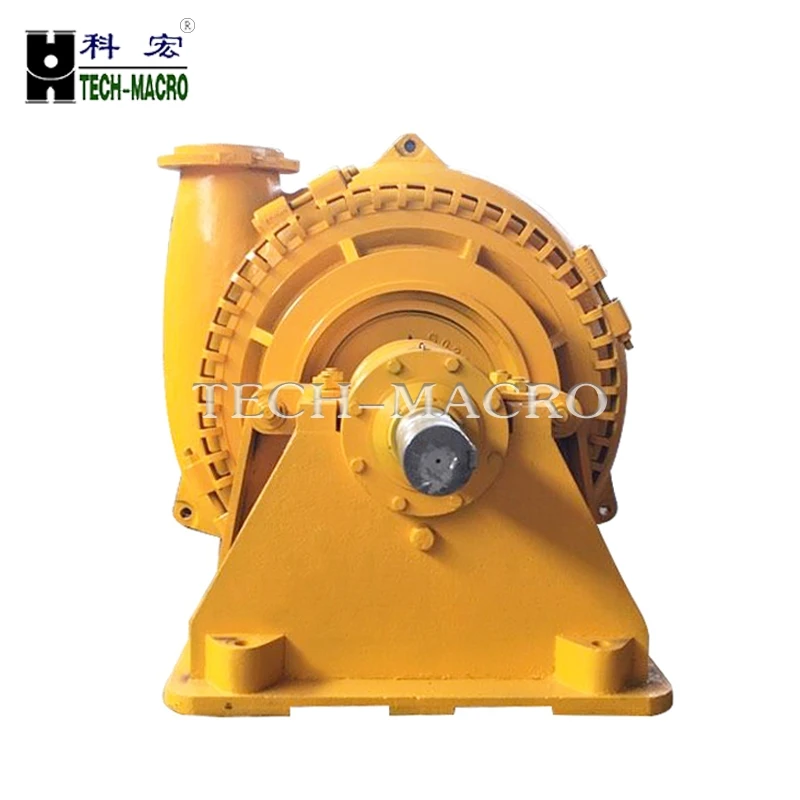

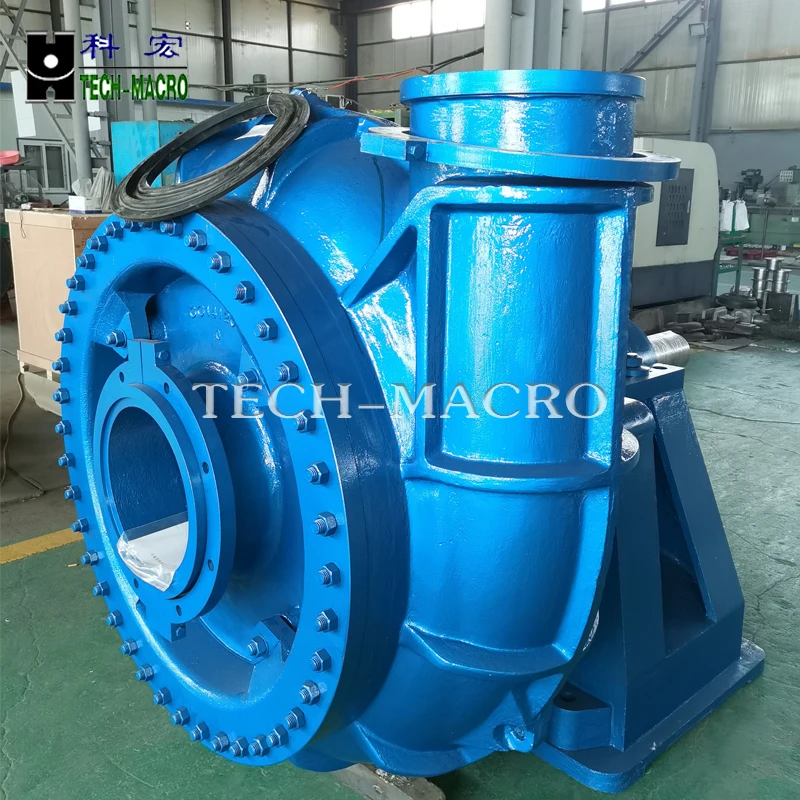

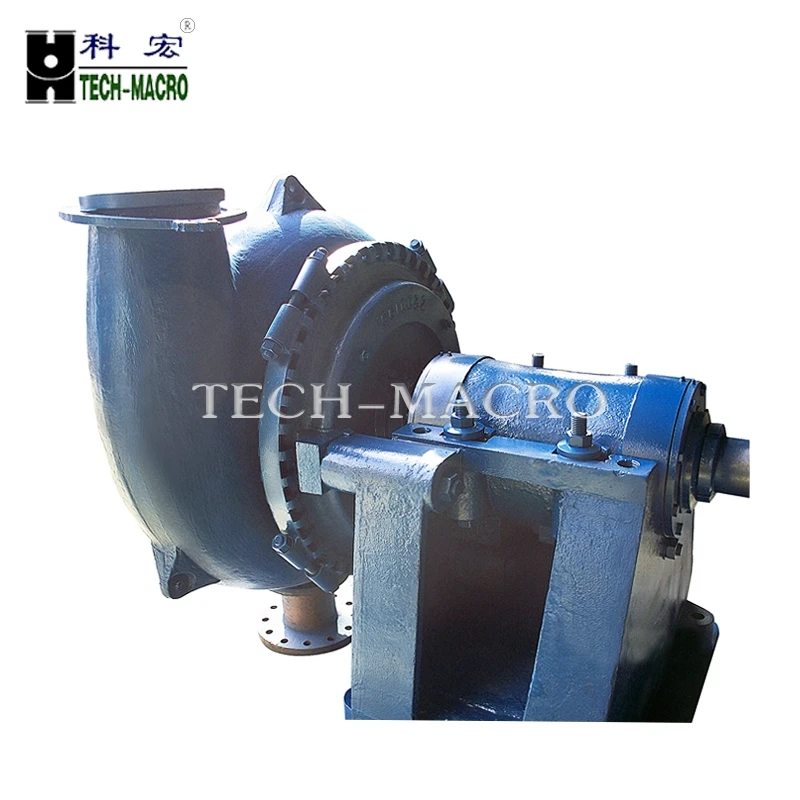

The KS(KSH) sand& gravel dredge pump is single-stage,single-suction,single-casing horizontal slurry pump,and the KSH pumps are high head ones.The pumps are designed for continuously transferring strong corrosive big-solid-contained slurry which the common slurry pump cannot transfer.They are widely used in mining,explosive-sludge in metal melting,dredging in dredger,etc.
Direction for use
Dredging in dredger
River channel dredging
Stone material processing factory
Transferring power plant ash
Delivering furnace clinker in iron works

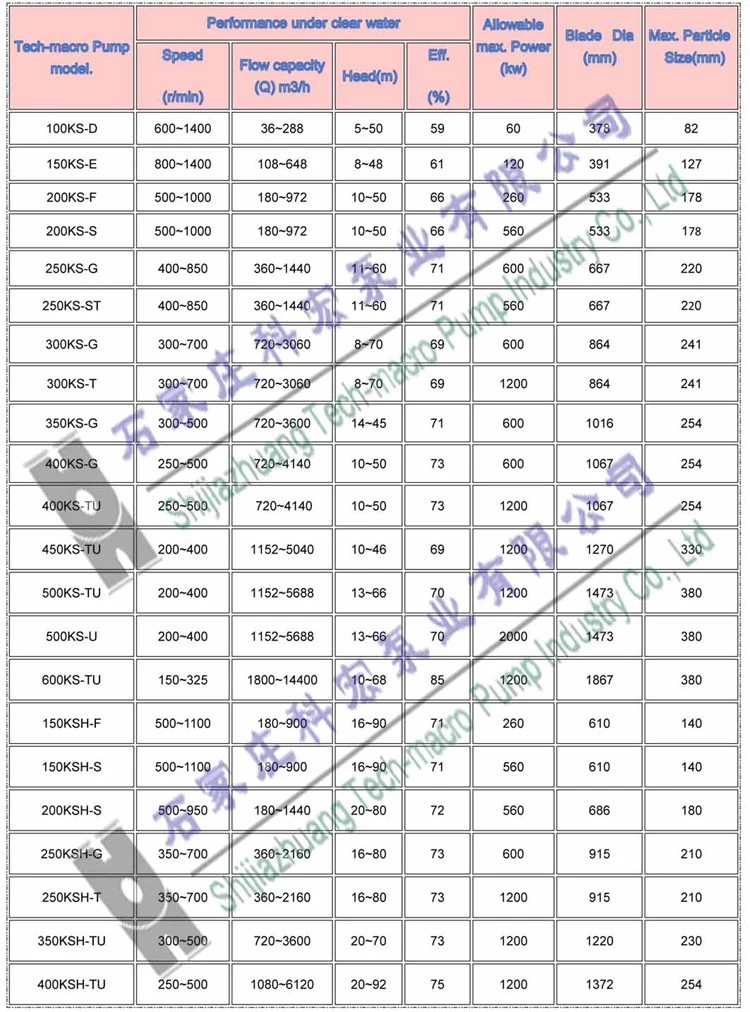

Operating limits:
Inlet diameter:150-812 mm
Discharge diameter:100-711 mm
Flow capacity:36-14400 m 3/h
Head:5-90m
Type notation:
100 KS(KSH)-D
100:Discharge diameter(mm)
KS:Sand and gravel pump
KSH: High head sand and gravel pump
D:Frame type
Detailed Images
Abrasion-resistance,corrosion-resistance;large capacity;wide flow channel;light weight;good performance of NPSH;easy maintenance;anti-clogging.
Special clamping device of the jointing for pump body and pump cover enables the pump discharge point to any direction.
The wet parts,including impeller,frame plate,throatbush,frame plate liner insert,all adopt anti-corrosive alloy cast iron or steel.
The pump consists of pump head,seal assembly,bearing assembly and frame.The bearing assembly is lubricated by grease.
The pump can be driven by V-belt,coupling directly or by reducer.
Packing seal,expeller seal and mechanical seal are all available for the pump.
