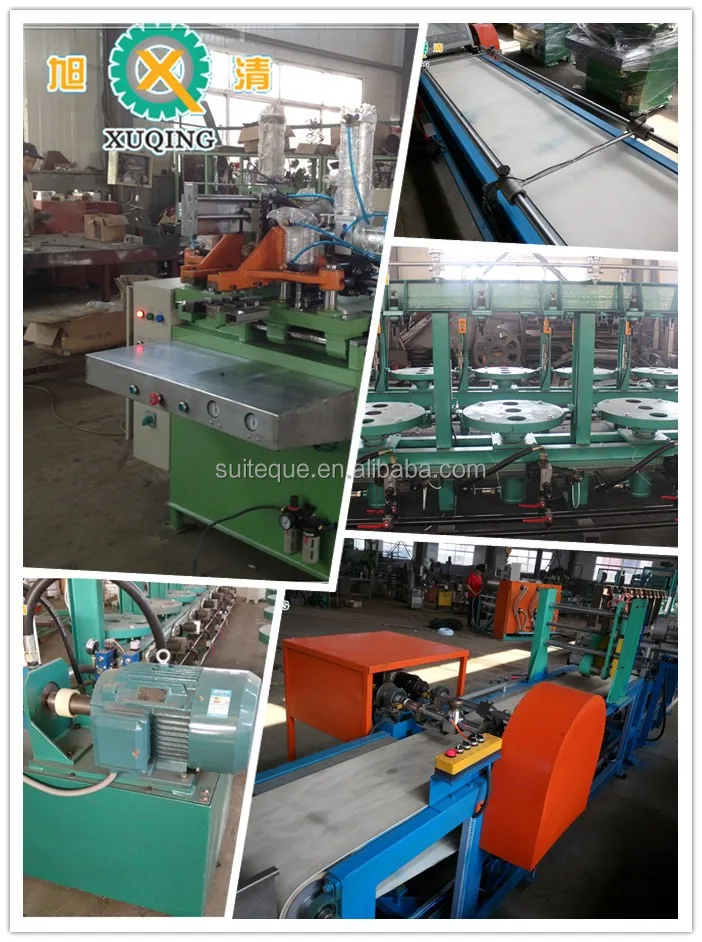

Tyre Inner Tube Making Machine / Motorcycle Tyre Vulcanizing Machine / Bicycle Tyre Making Machine

Product Overview

Description

                                                          Tyre Inner Tube Making Machine

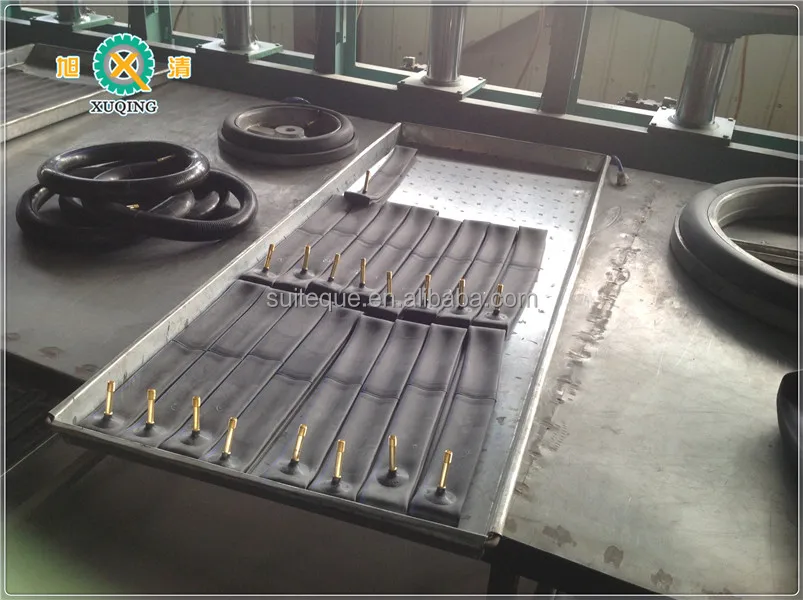

Inner tube production process



mix rubber material -- extruding tube---cooling tube and cutting--splicing tube--inner tube vulcanizing





1.inner tube cooling and cutting line







Type	NSX-ML	NSX-L
Specification of inner tube	Motorcycle/Bicycle Inner Tube	Tyre Inner Tube
Width of double layer tube (mm)	<200	<420
Linear speed (m/min)	10-40	8-35
Punching Diameter (mm)	6-8	8-10
Air pressure (Mpa)	0.6	0.7
Total Capacity (KW/h)	14	22
Overall size (LxWxH) mm	23500x1000x850	35000x1300x850
Weight (kg)	5000	7000















2.         Hydraulic Tyre Inner Tube Splicer
      Inner Tube Jointing Machine bber tube splicing ,with high efficiency and low work intensity.

    Hydraulic Tyre Inner Tube Splicer  Structure features:

1.It is equipped with advanced hydraulic control system and PLC controller, the transmission part is adopted of linear action bearing that ensures accuracy in movement.



2.The horizontal cutting method is applied and the heating temp control of the cutter is in a wide range.



3.The joint board uses rubber surface joint mould and is fit for a wide variety of rubber splicing. The joint features high strength and stable quality.







      Hydraulic Tyre Inner Tube Splicer Technical parameters



Model	NJQ120	NJY-160	NJY-200H
Width of abutting joint (mm)	50-120	100-160 adjustable	65-200
Flat thickness of double layers (mm)	1.6-6	1.8-8	2-8
Max. clamping force(KN)	2.2	7.8	7.8
Max. abutting joint force (KN)	12	40	55
Input voltage (V)	220	380	380
Working pressure of air (liquid) (Mpa)	0.6-0.8	4-6	4-6
Min. tube perimeter (mm)	480	600	800
Total weight(KG)	780	2000	2300
Overall dimensions (LxWxH) (mm)	900x730x1700	1235x950x1900	1270x1100x1900

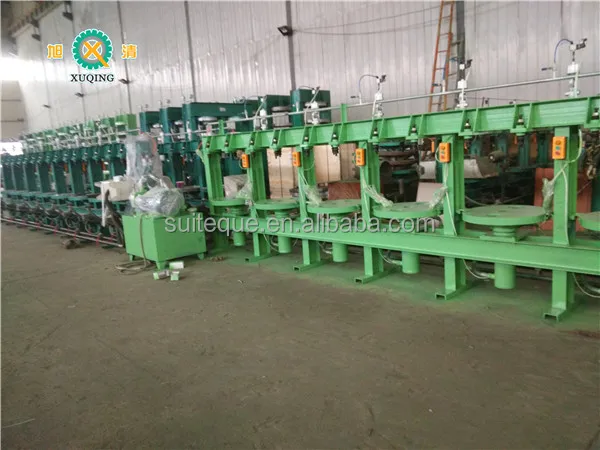

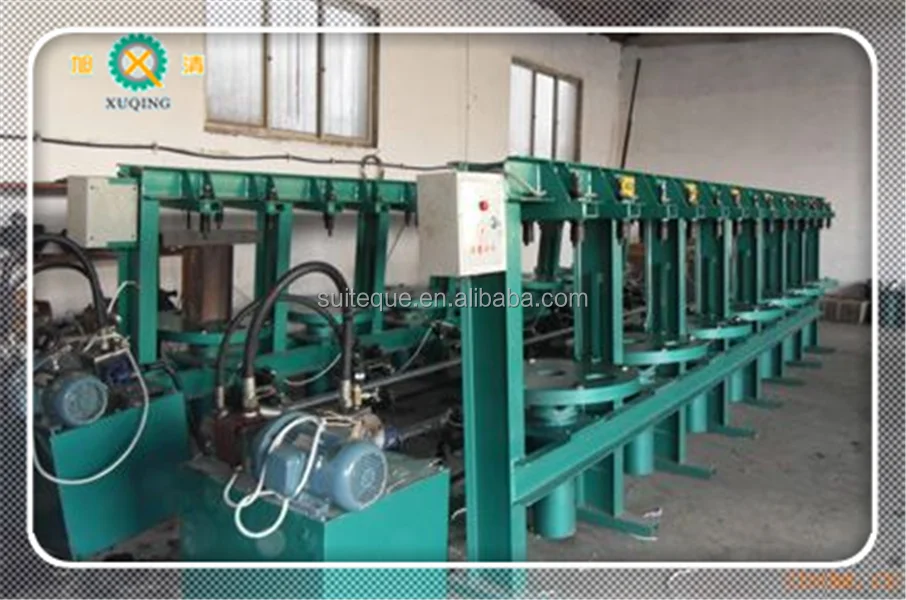

3. Tyre Inner Tube Making Machine





Type	LLN-800
Total pressure(KN)	120
Plunger diameter(mm)	140
High pressure(Mpa)	10
Low pressure(Mpa)	1.8
Steam working pressure(Mpa)	0.7-1.0
Motor power(kw)	3
Electric control system	PLC
Overal dimension:L×W×H(mm)	6500×1100×1800







Service after sales

1. One year quality guarantee and long-term technical support.



2. We can train your workers for free. If you need, we can install and assemble the machine in your workshop. And you should pay for the necessary costs, according to the international trade.



Welcome to visit our factory and we'll show you the best machine and service!

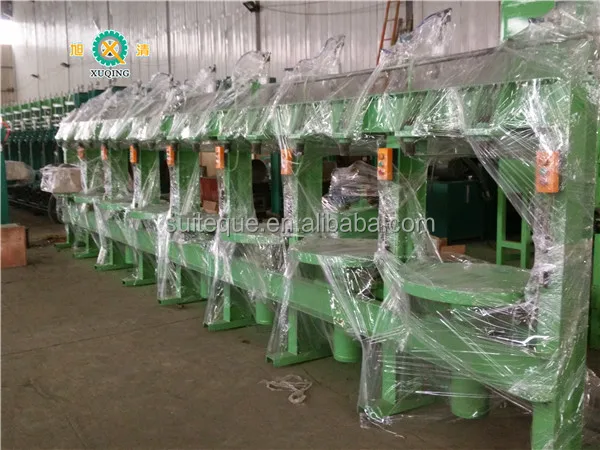

  Inner Tire Automatic Production Line Packing and Transport







About our company



 Qingdao Suiteque Machinery Co.,Ltd is located in the west coast of Qingdao city. It is a professional enterprise that committed to the production and development of full-automatic complete sets of inner tube and tire equipment of motorcycles,bicycles,electric cars series.



Our products have been sold to  Southeast and Middle Asia, the Middle East, South Africa and North America.
