Product Overview
Description
Continental crude oil kerosene oil burn thermal oil boilers heaters for sale
Product Description

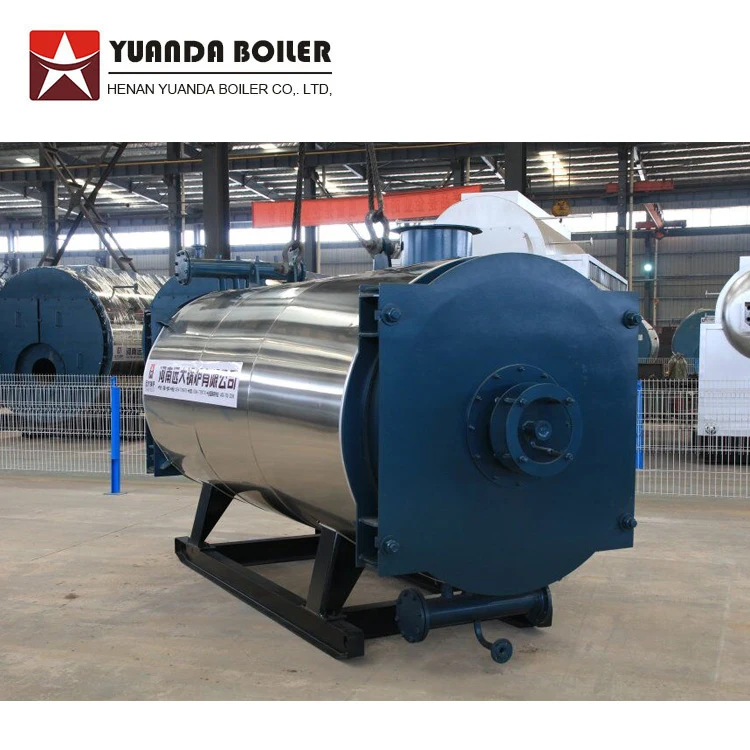

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
This series boiler has compact structure. The heating area is constituted by close-knit coil pipes from inside to outside.Inside coil pipes are the radiation heating surface, and the outer surface of inside coil pipes and outside coil pipes form a convection heating surface.Fuel burn fully in the combustion chamber, the radiation heating surface absorb most heat, and then high temperature flue gas goes into convection heating surface to exchange heat, then go into the air preheater (or waste heat boiler) to heat the required (or water).at last, the low temperature flue gas discharges to the aerosphere through the chimney.
Our boielr advantage
For buying a boiler, customers cares most is boiler's quality,energy consumption and boiler maintanance, our boiler sloves these easily.
Technical datasheet
| Model | YY(Q)W- 350Y(Q) | YY(Q)W- 700Y(Q) | YY(Q)W- 1400Y(Q) | YY(Q)W- 2100Y(Q) | YY(Q)W-3000Y(Q) | YY(Q)W- 3500Y(Q) | YY(Q)W- 4200Y(Q) | YY(Q)W-5600Y(Q) | YY(Q)W-7000Y(Q) | ||
| Capacity | KW | 350 | 700 | 1400 | 2100 | 3000 | 3500 | 4200 | 5600 | 7000 | |
| Rated working pressure | Mpa | 0.8 | |||||||||
| Heat carrier output/inlet temperature | ℃ | 280/250; 320/290 | |||||||||
Design thermal effiency | % | >96 | |||||||||
Fuel con sump. | Natural gas | Nm3/h | 42.13 | 84.26 | 169.11 | 259.6 | 369.57 | 431.92 | 516.38 | 676.5 | 830.73 |
| Diesel | kg/h | 34.5 | 69.1 | 138.78 | 212.52 | 302.39 | 353.31 | 422.57 | 560.24 | 673.82 | |
| Size | Meter | 3000 *1000 *2000 | 3200 *1300 *2050 | 3710 *1524 *2150 | 5600 *2400 *3170 | 5600 *2400 *3170 | 5900 *2382 *3560 | 6630 *3200 *3050 | 7200 *3550 *3920 | 8090 *3675 *4000 | |
| Weight | Ton | 2.0 | 3.0 | 4.0 | 6 | 10 | 10.2 | 16.5 | 23.6 | 28 | |

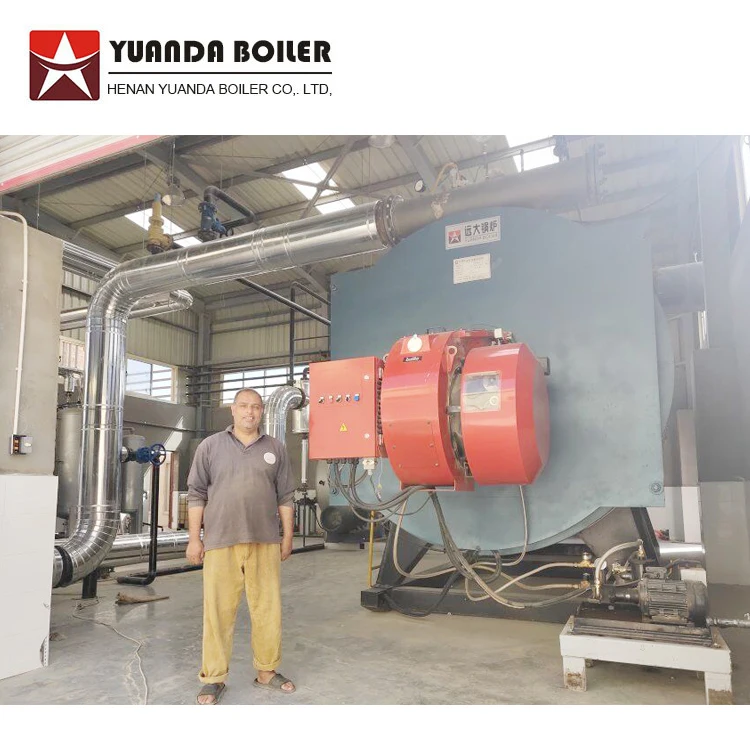

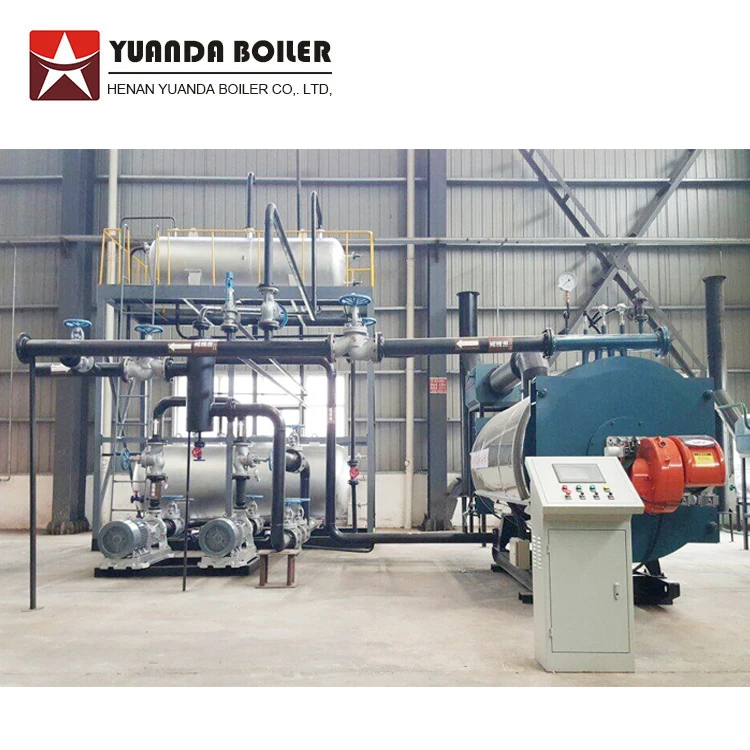

Our cases
For our thermal oil boiler's good quality and our company's good after sales service, we have hundreds of projects all around the world. They are mainly used in plywood factory,bitumen(asphalt) factory, textile factory, refinery factory,food factory,etc.

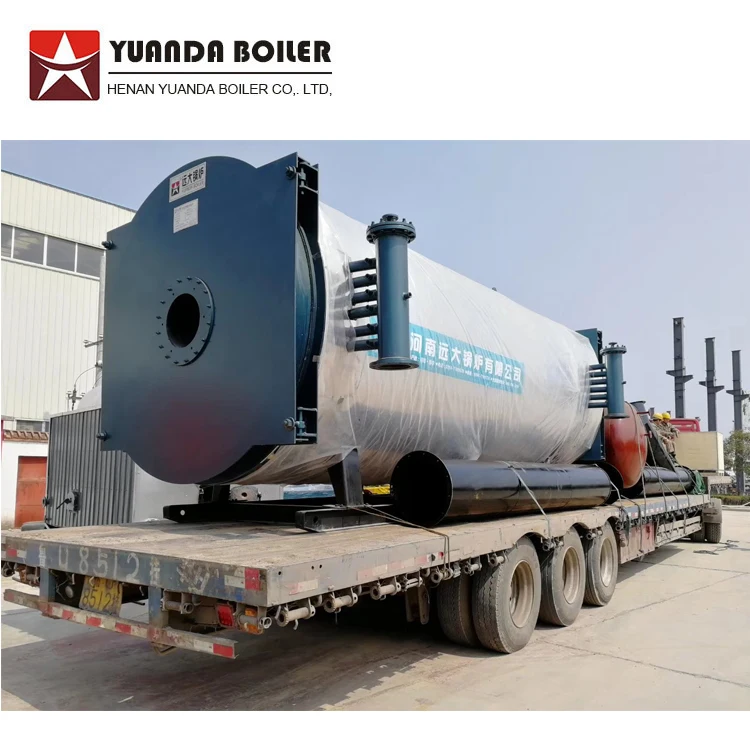

Packaging & Shipping
1. Way of delivery: by Sea or Railway or truck based on needs
2. Shipping model: by normal container and flat rack or bulk cargo based on differnent capacity. We have stable and experienced cooperate shipping company, and we will suggest suitable container.
3. Customers specifying freight forwarders or we send bottom shipping price from our forwarder partner for your reference, negotiable shipping methods.
4. Packing: nude for boiler main part in nude, accessories in export-use wooden box.
5. Payment Terms: T/T, LC; 30% deposits; 70% balance before delivery.
Related products

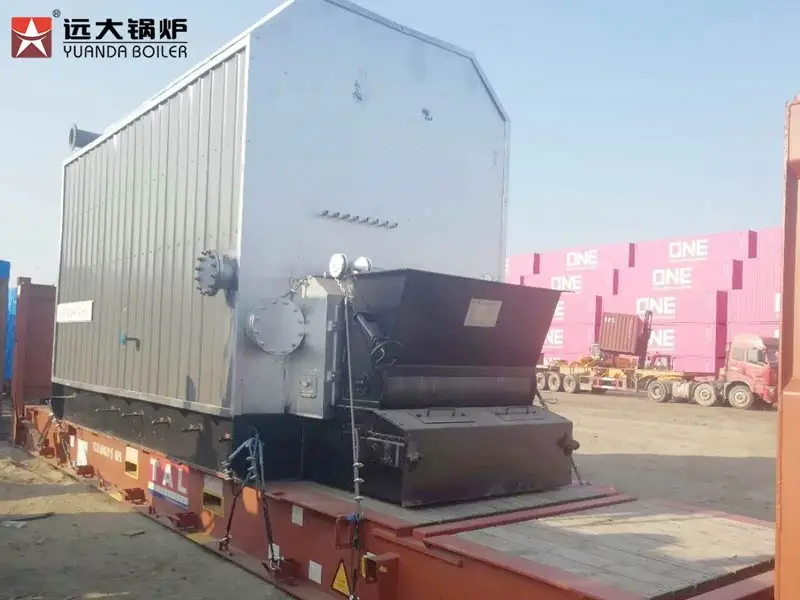

Dear friend, if what you need is coal/biomass fired thermal oil boiler/heater, pls click the following picture to check more specifics.
Company Information
Henan Yuanda Boiler Co., Ltd,Class A boiler manufacturer. Established in 1956,locates in Xihua County, Henan province, the central part of China.
We are professional manufacturer and supplier for industrial boilers, with more than 60 years' experience in boiler design, production, installation and commissioning. Our company is one of the enterprises which obtained boiler manufacturing license in China.We have our own R & D team and cooperate with famous high-tech research institutes at the same time, which ensures our products in the forefront of technology and science.
By the end of 2018, we have exports to 86 countries worldwide and have successfully supplied tailor made solutions for over 100,000 customers.
Our main products are:
(1)WNS Gas oil fired steam boiler and hot water boiler
(2) DZL / DZH Coal / wood fired steam boiler and hot water boiler
(3) SZL Biomass fired steam boiler and hot water boiler
(4) YY(Q)W Gas oil fired thermal oil boiler
(5) YLW Coal biomass fired thermal oil boiler
(6) All kinds of pressure vessels
Yuanda Boiler has been committed to improving efficiency and safety of boilers to provide safe, energy saving and environmental friendly products. We look forward to making a brilliant future with you.
