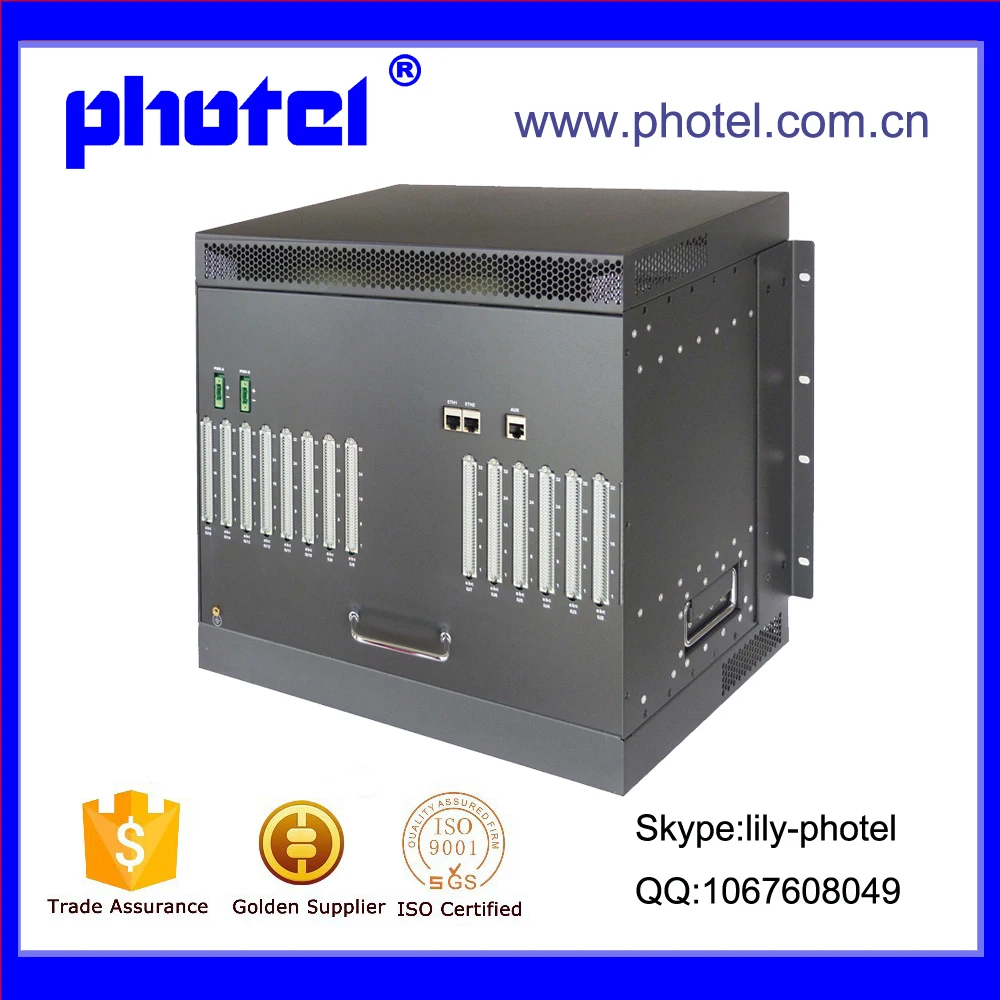

P98000 is a new generation of IPPBX multimedia exchange platform. With the state-of-the-art technology, it integrated the modernized IP SIP phone network with all the traditional PBX functionality in one single platform. A composite of network controller, soft switch, media gateway and signaling gateway all together with ISDN/PRI, E&M trunking and tandem exchange. It adopts embedded technology and modular design, complied with ITU-T recommendation and large scale, low powered FPGA. It supports different kind of analogue and digital voice signaling conversion inherently.
P98000 IPPBX designed in extremely high flexibility and reliability with hot standby controller, large capacity FLASH memory billing system, fully decentralized control, modular structure, online upgrade, common slot for trunk card and the user card. It can provide users with flexible networking application, it supports multiple trunk and signaling interfaces, easy to install, expansion, management and maintenance. P98000 can be widely applied to telephone service provider, government, military, electric power, hotel, public security, railways and all kinds of company with voice service. According to the actual application, the system can be configured as call center, dispatching system, telephone conference system. One P98000 chassis can be worked as a single PABX, and with cascaded connection, it can support up to maximum capacity of 40,000 lines switching. It is the ideal equipment for user to enhance communication conditions, improve work efficiency, control the telephone expenses, implement the office intelligent, and reduce the project construction cost.
Main feature
1.State-of-the-art seamless merging system for IP phone network and traditional telephone network
2.High reliable with hot standby controller, dual power supply and K20 protection for analogue voice circuits
3.Hot swappable for controller and all types of trunk card and extension card
4. Most flexibility with modular design, common slot for trunk cards and extension cards

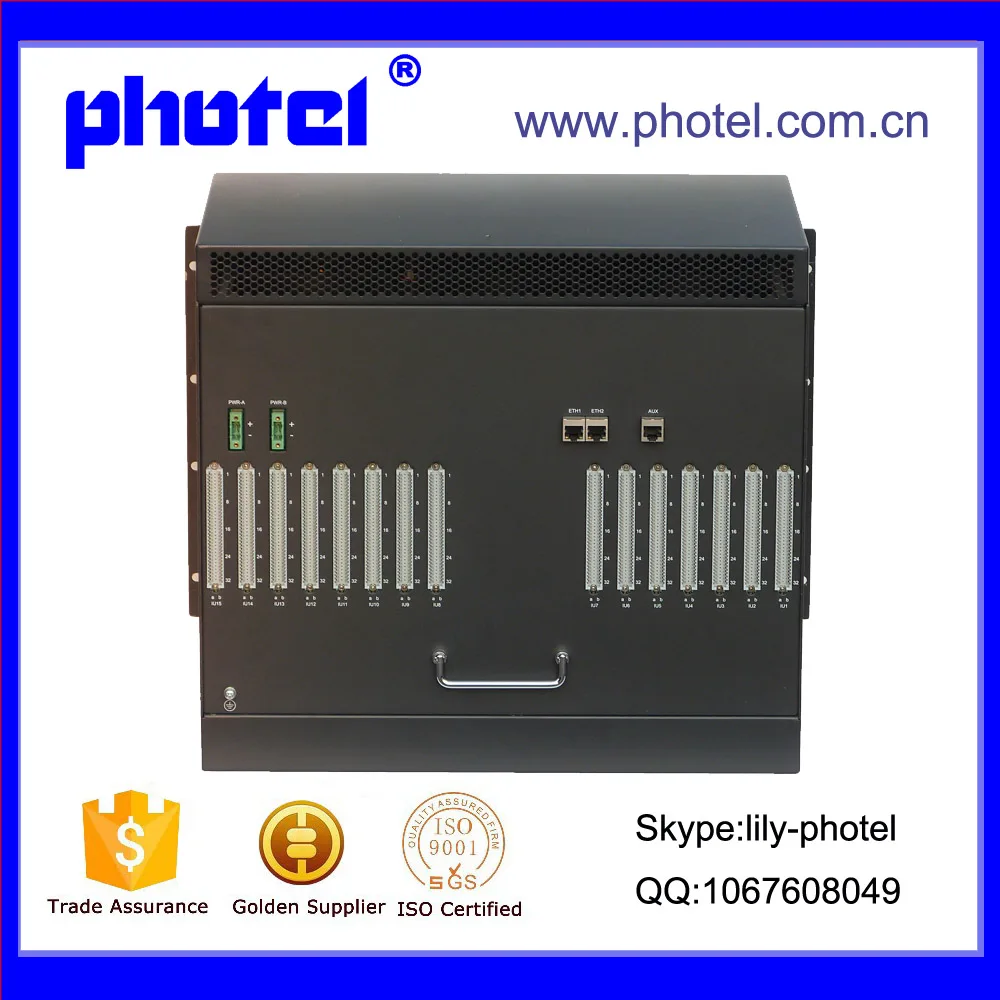

5. Standard 19” rack mounting 9U height chassis with fan, dust filter and air inlet tray
6. Each single chassis with 15 common slots for trunk card / user extension card and supports 8192 x 8192 non-blocking switching
7. Maximum 40,000 lines for analogue or IP extension by cascading multiple chassis
8.Sophisticated signaling gateway feature supports analogue and digital voice signaling conversion, includes SIP, ISDN/PRI, SS7, Chinese No.1, V5, R2, DTMF, 2/4Wires E&M, FXS/FXO etc.
9.Various interface for digital trunk, such as ETH, TRK, SDH, PDH, PRI/E1
10.Analogue interface supports FXS, FXO, 2/4 wires E&M, HOT, magnet and electric carrier voice
11.The MST controller card supports 8192 x 8192 digital switching, 32 x DTMF receiver, 32 x DTMF transmitter, 32 x MFC send/receive, 32 x recorder, 32 x player, 2 x 32-parties or 1 x 64-parties conference calls with echo cancelation, a set of Shared standard signal generator, a set of exchange control software
12.Digital trunk card includes 16 x E1 interfaces, 16 x HDLC transceiver, MTP2/Q.921/V5.2 software
13.IPS card can register 1000 x SIP phones, support 30 x IP over TDM or 30 x TDM over IP calling
14.Analog user card includes 16 x FXS/FXO, 16 x Caller ID transmitter, 16 x DTMF transceiver ,16 x pulse transceiver
15.Media conversion card supports 16 x recorder, 16 x players, 16 x voice encoder/decoder, supports G.711 (A law), G.723, G.729
16.FLASH memory for billing system storage, may save 2 million bills and never loss, extra port connection for external recording device also provided
17.Provides general PABX all kinds of call features, such as caller display, call forward, call transfer, call waiting, call pickup, call back, call hunting, DND (Do Not Disturb), DID (Direct Inward Dial), DOD (Direct Outgoing Dial), CDR (Call Detail Record), IDD & DDD lock, wake-up call, voice mailbox, background music … etc.
Typical applications
1. Single module (single shelf)application
Mainly used in no cross regional networking requirement and the user telephone extension’s number is less, for example of small and medium enterprises, communities, hotel, schools and so on, forms the local telephone network and access to PSTN.
2. Multi branch, multi module network application
Mainly used in electric power, government, military, railway, cross region telephone service provider … etc., user may have their own optic or copper transmission network between headquarters and branch offices.
