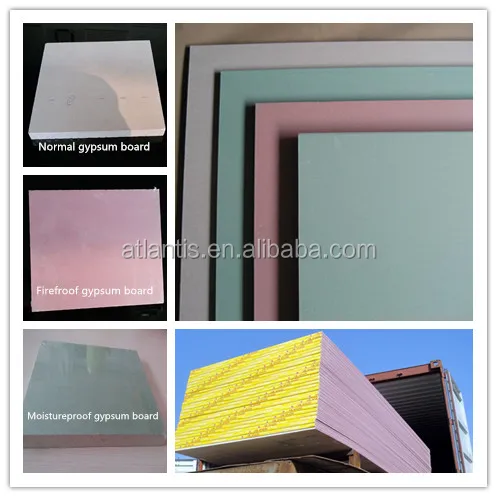

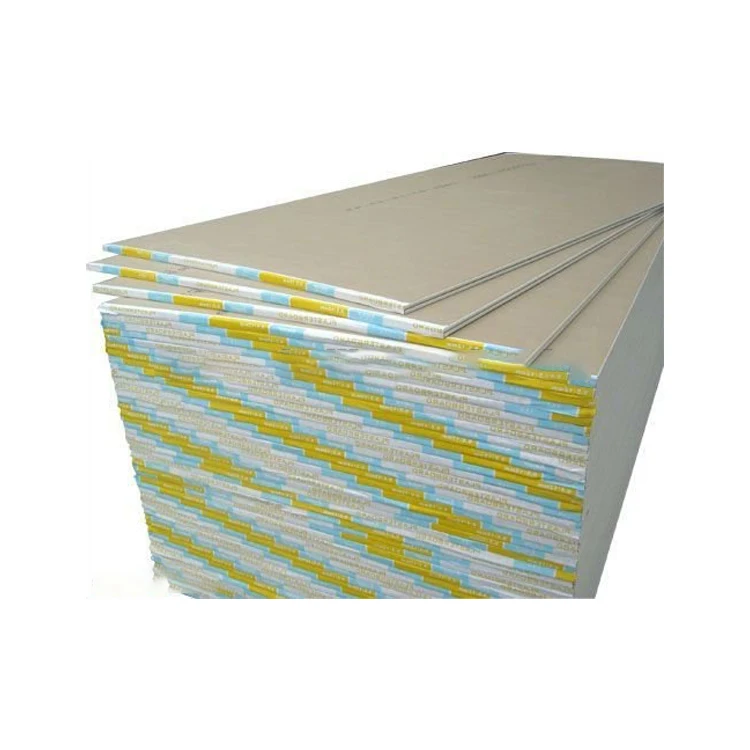

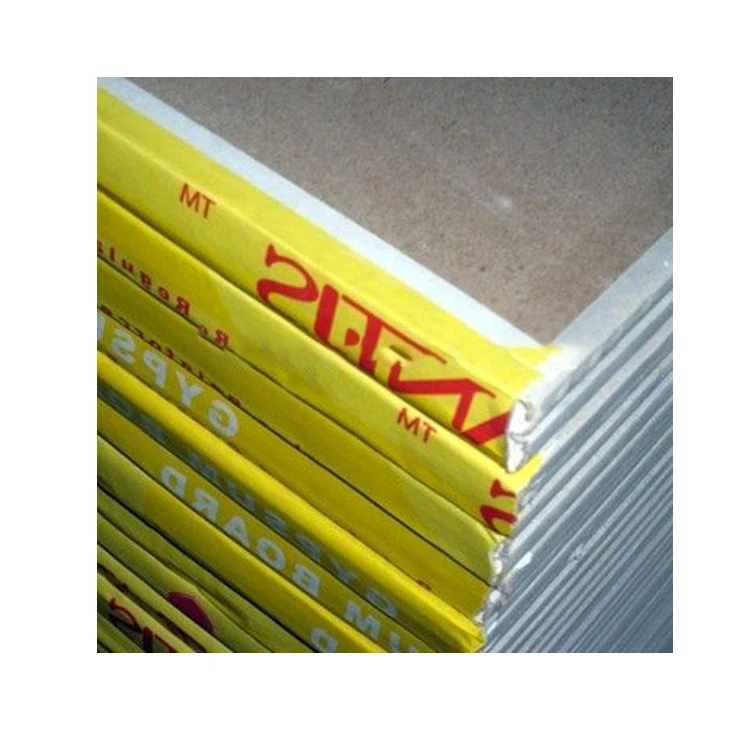

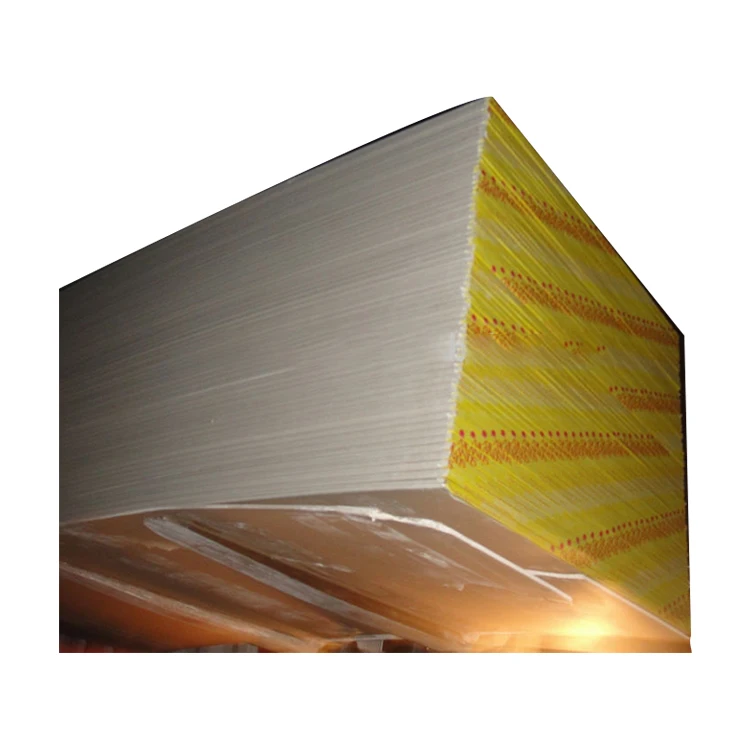

Environmental Protection Fireproof Gypsum Board Ceiling Dry Wall

By using natural gypsum, we manufacture high quality gypsum board, healthy and environmental friendly.

1)Advantages:light weight, fireproof, sound isolation, heat isolation,energy consumption reduction, easy installation and use.

2) Thickness:7.0mm, 7.5mm, 8.0mm, 9.0mm, 9.5mm,12.0mm,

3) Sizes:595 x 595mm, 603 x 603mm, 595*1195mm, 603mm x 1212mm,1200*2400mm

4) Size tolerance: Length <+/-1.0mm, width < +/-1.0mm, thickness <+/-0.5mm

5) Weight: 7.5mm=5.7kg/sqm, 8.0mm=5.9kg/sqm, 8.5mm=6.2kg/sqm, 9mm=6.8kg/sqm, 9.5mm=7.1kg/sqm, 12mm=9.2kg/sqm, 12.5mm=9.5kg/sqm

6) Strength: >100N

7) Characters: Non-flammable B1, in accordance with Chinese standard GB8624-1997

8) Installation: Match with Ceiling T-Grids as suspension system

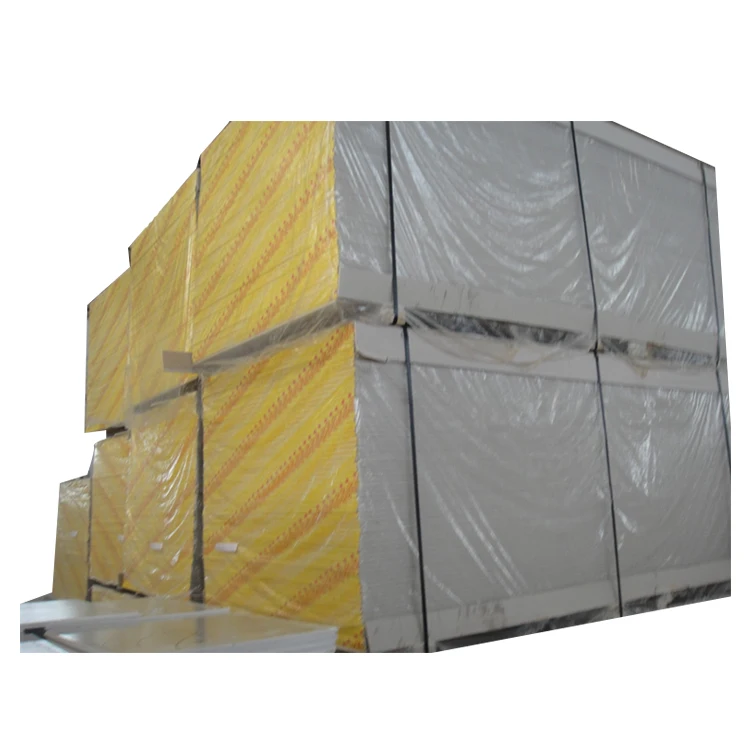

Loading details:
