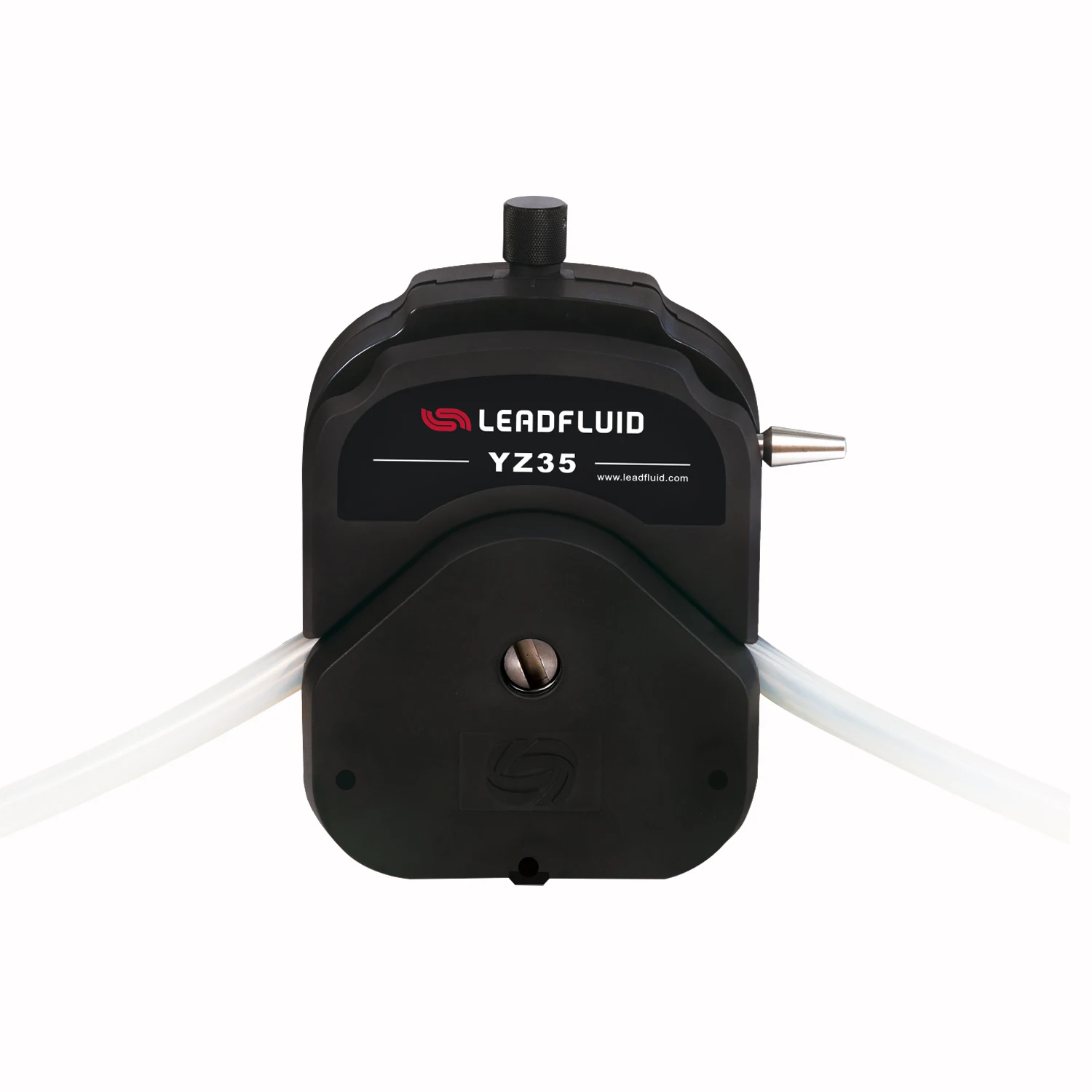

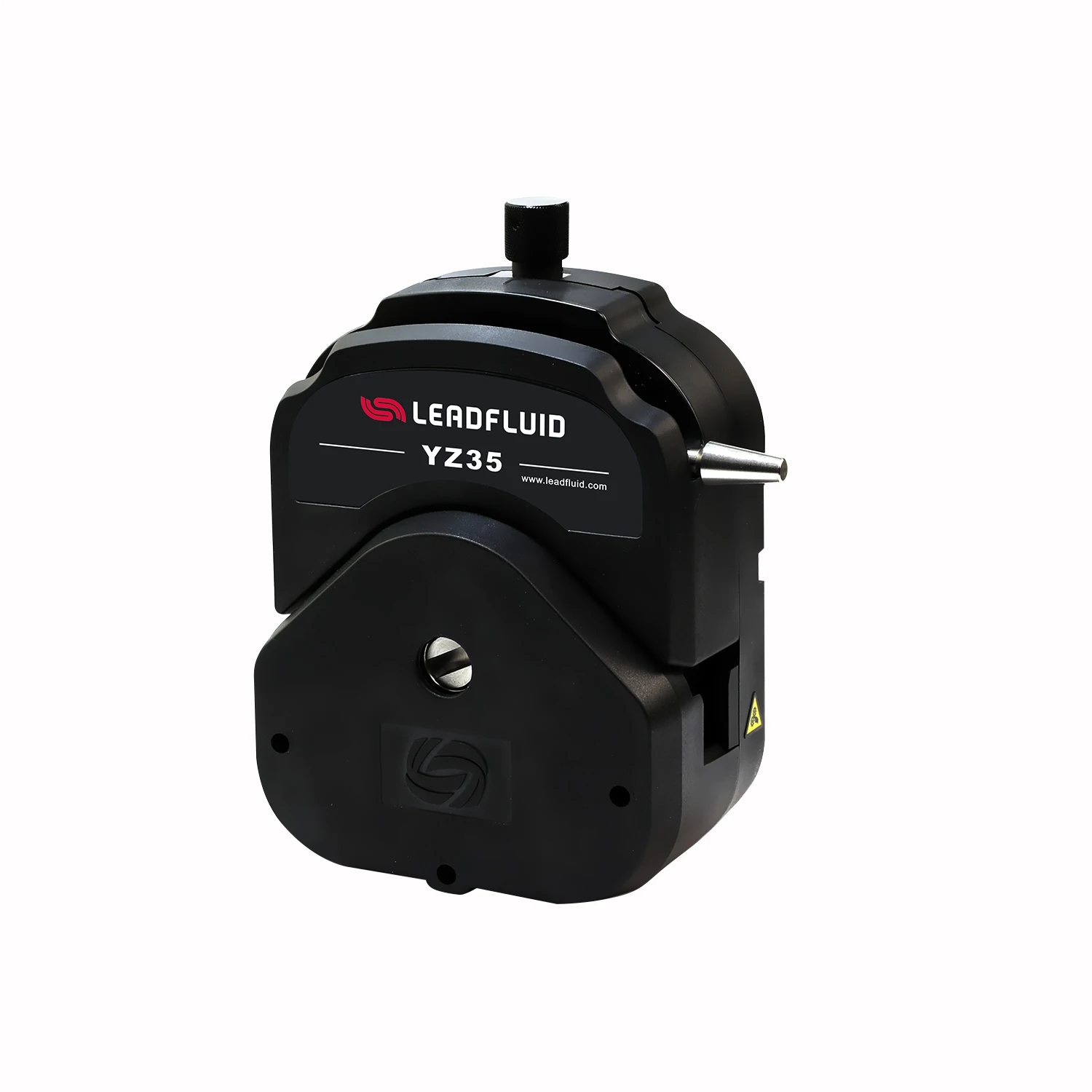

Easy Load peristaltic pump head with PPS material YZ35 pump head with big flow 13L/MIN
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (60408558758):
Product Overview
Description
■ Lead Fluid YZ35 pump head flow range 0.0013～13L/min, suitable for 73#, 82# tube, can be cascade multiple pump heads.

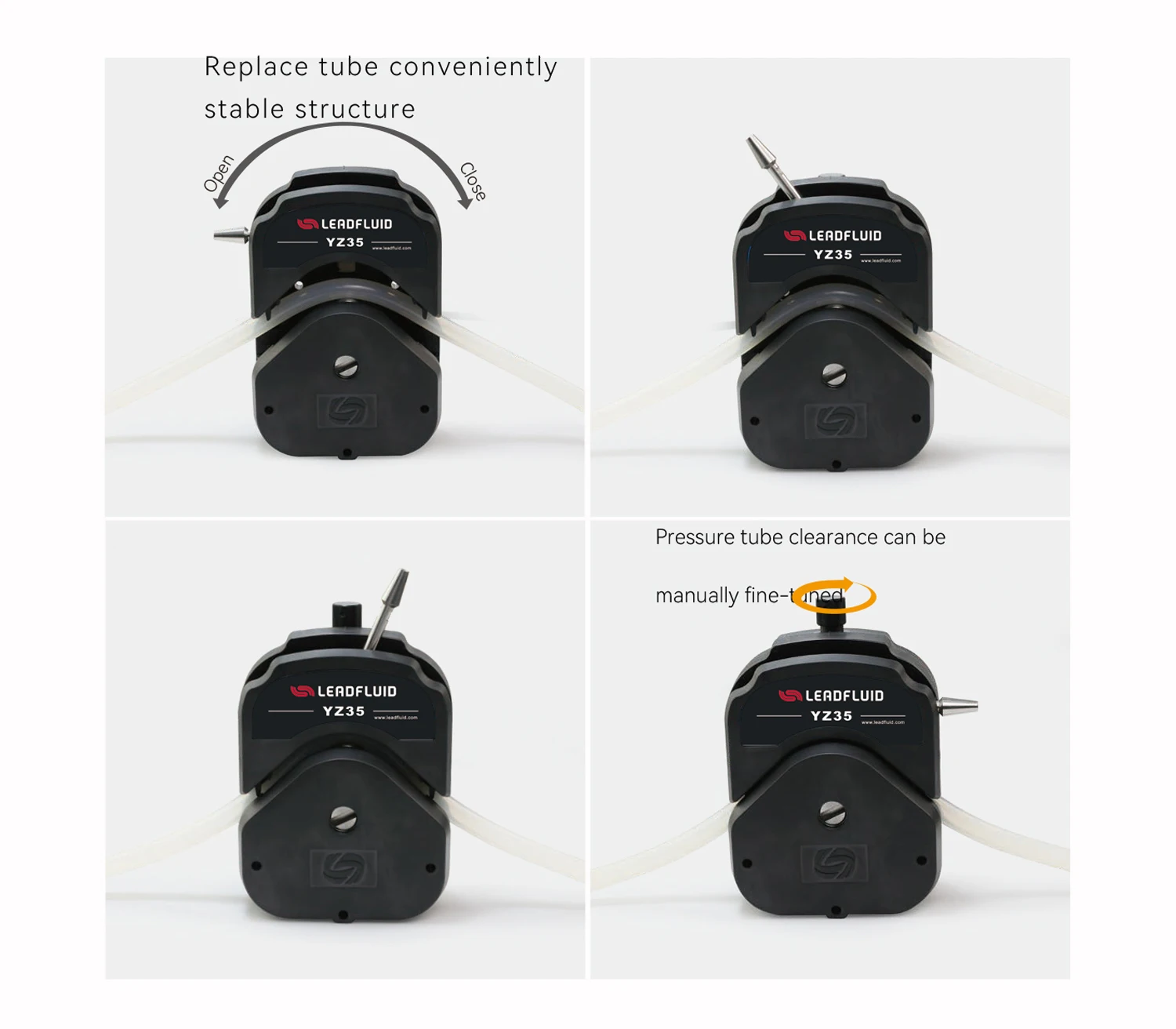

■ New loading structure of tube, easy and fast to replace tube and the tube will not deviation in the process of operation.
■ Pressure tube clearance can fine adjustment according to the tube size.Can adapt to small deviations of pump tube size.
■ PPS shell material, 304SS roller material, resistant to organic solvents and other corrosive liquids and other corrosive liquids.
■ Compact structure, durable,can meet the demand of high speed and long time running.

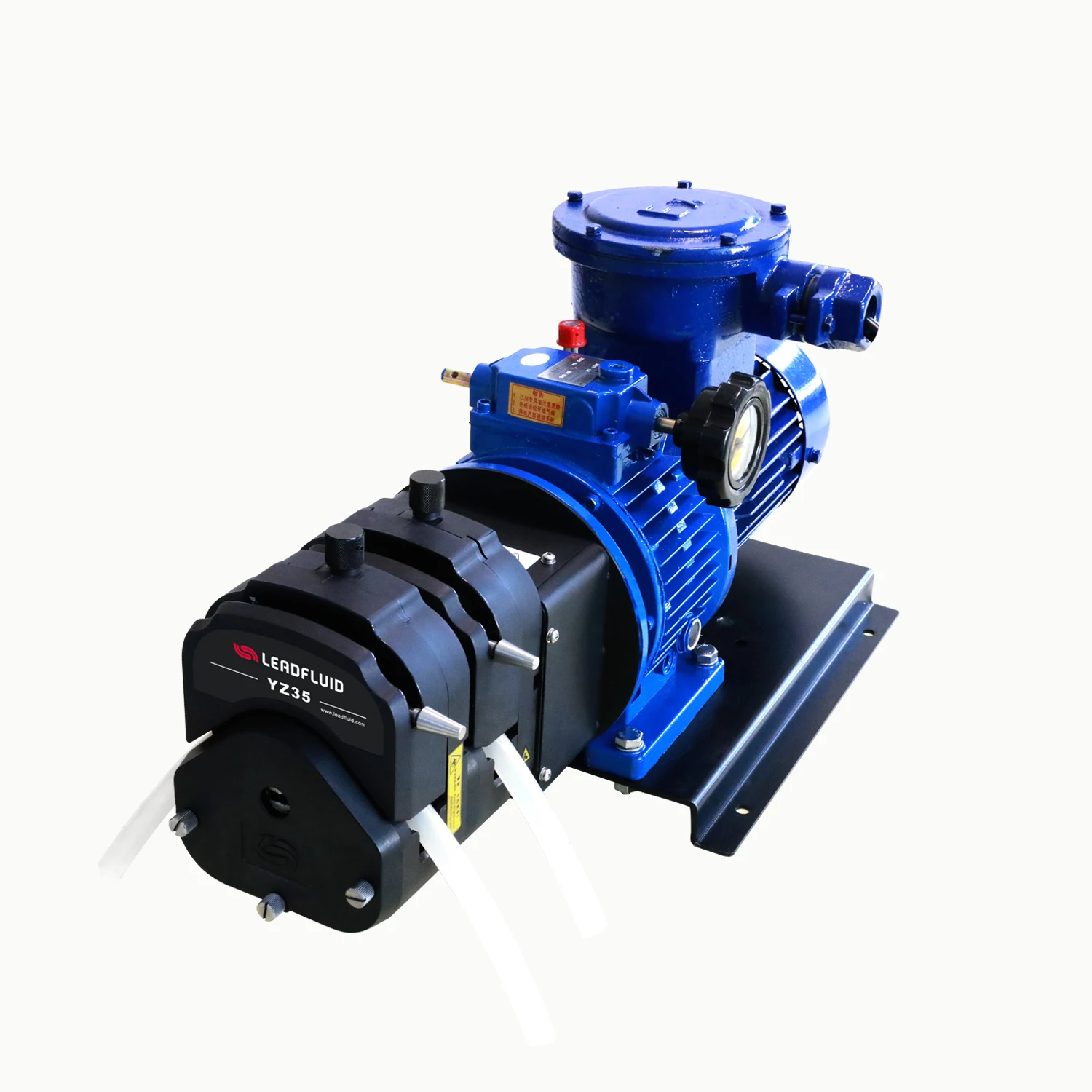

■Cascade two pump heads,install 60 ° dislocation between the rollers,can obviously reduce the pulse, and improve the transmission speed.
■ New loading structure of tube, easy and fast to replace tube and the tube will not deviation in the process of operation.
■ Pressure tube clearance can fine adjustment according to the tube size.Can adapt to small deviations of pump tube size.
■ PPS shell material, 304SS roller material, resistant to organic solvents and other corrosive liquids and other corrosive liquids.
■ Compact structure, durable,can meet the demand of high speed and long time running.
■Cascade two pump heads,install 60 ° dislocation between the rollers,can obviously reduce the pulse, and improve the transmission speed.
Pump Head Material
Shell | PPS |
Roller | SS304 |
Roller shaft | SS304 |
Specification
Channel | 1 channel (Multiple pump heads can be used in series) |
Roller | 3 |
Tubing Method | Whole tube |
Tube Clearance | Can be fine-tuned |
Weight | 1725g |
Bear Liquid Temperature | Less than 200℃ |
Corrosion Resistance | Resistance to acid,alkali and organic solvents |
Flow Parameters
ID(mm) | 9.6 | 12.7 |
73# | 82# | |
mL/rpm | 13 | 22 |
mL/min( (Continuous working max 600rpm) | 8000 | 13200 |
Tube material: Silicone,Pharmed,Norprene Chemical,Viton,A-60-G/F,Tygon E-3603 ,etc, wall thickness 3.3mm.
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure,in actually using it is effected by specific factors such as pressure, medium etc. Above for reference only.

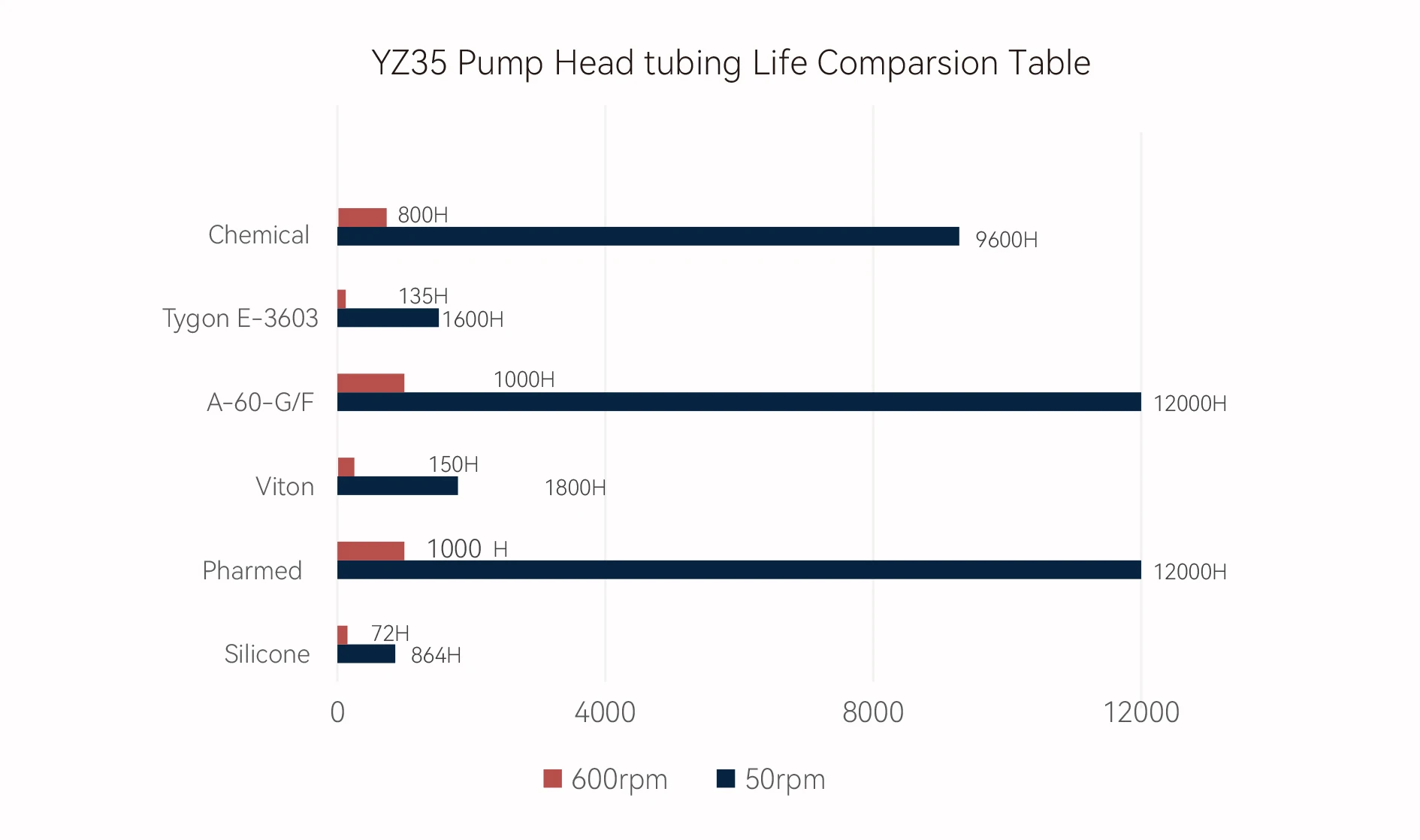

The above data are all test results obtained by Lead Fluid laboratory under normal temperature and pressure for the transmission of pure water, which are for reference only; the actual service life may be affected by specific factors such as pressure, temperature, medium characteristics, tube batch and wall thickness; for specific problems, please contact Lead Fluid engineers to get better technical support.
Installation Tube Method

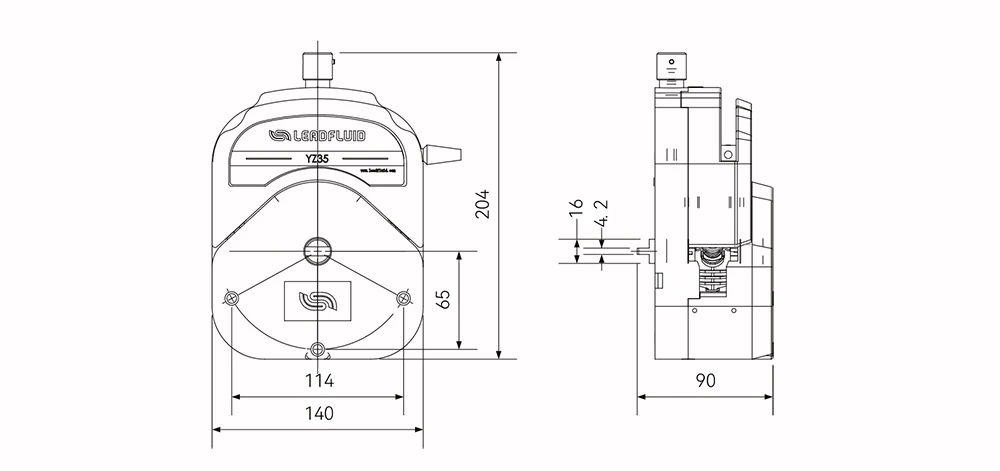

Dimension (mm)
