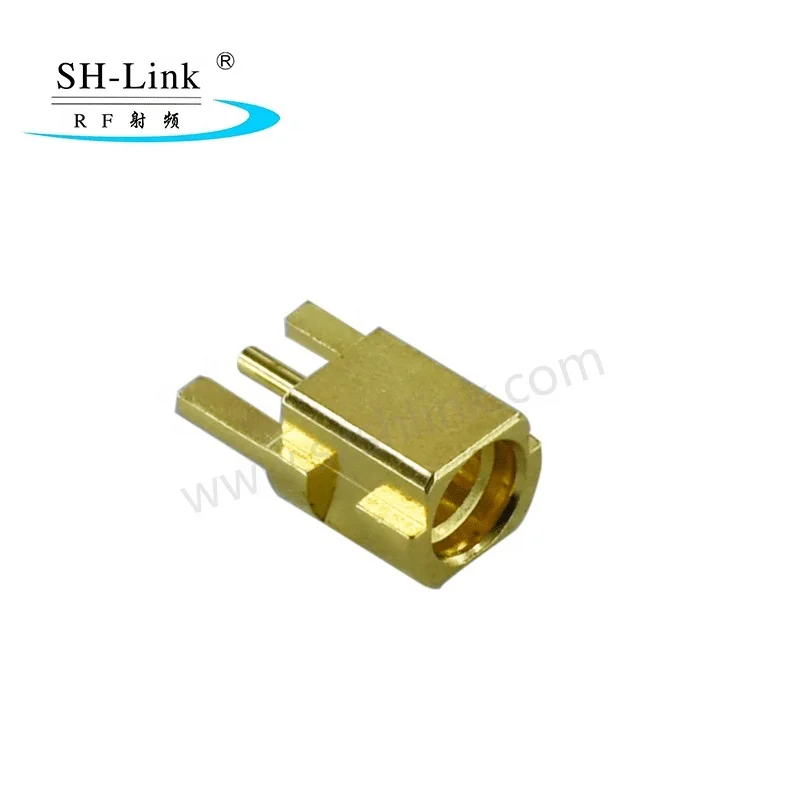

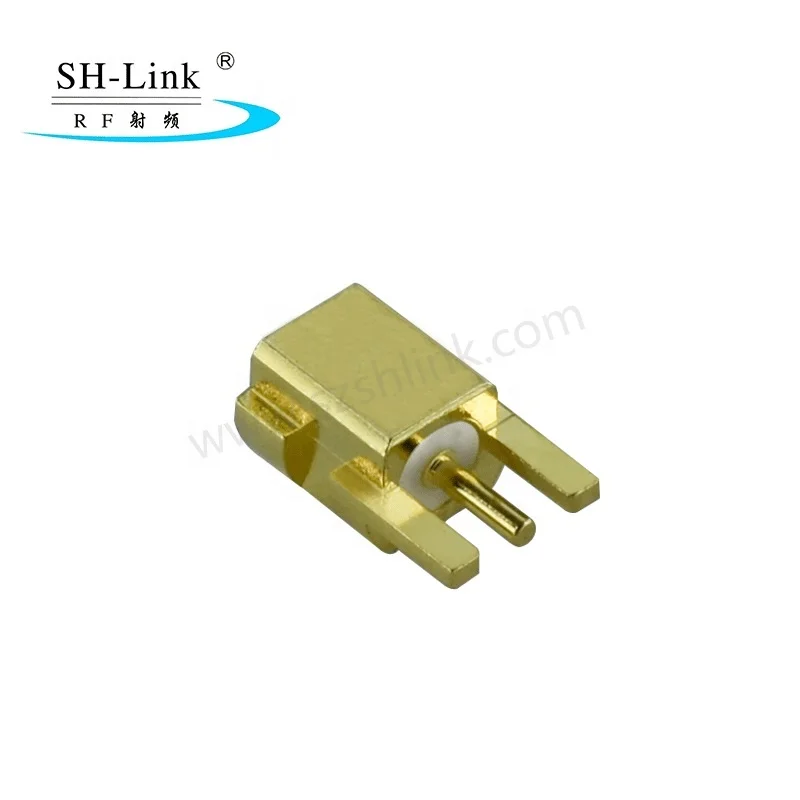

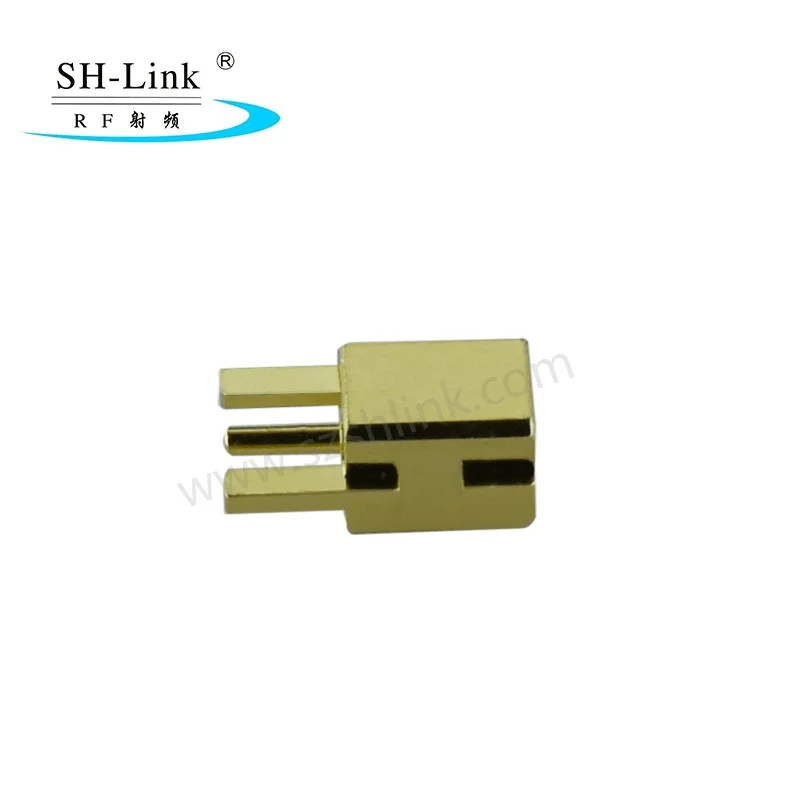

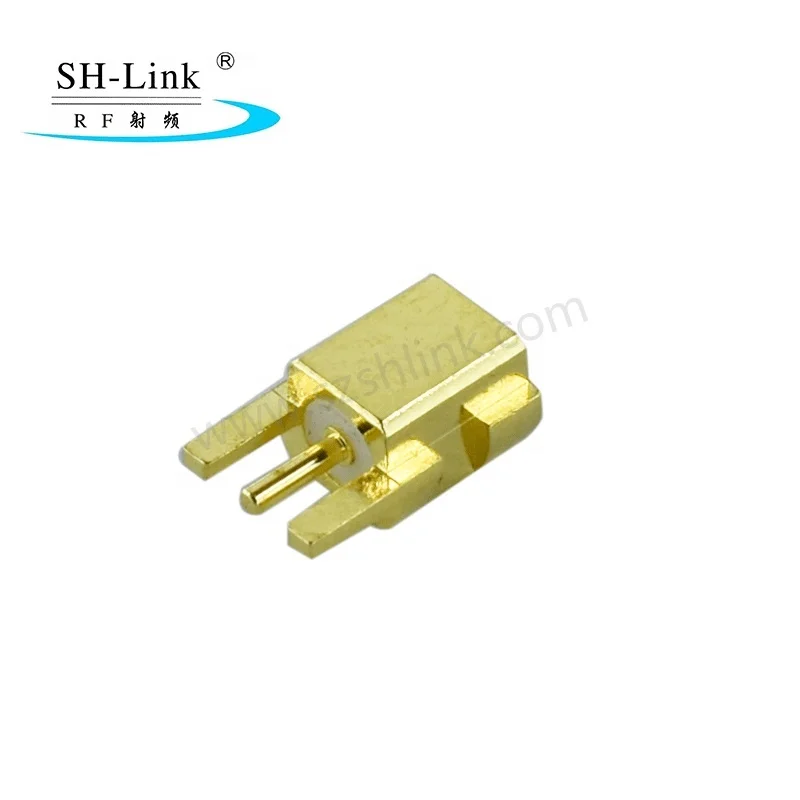

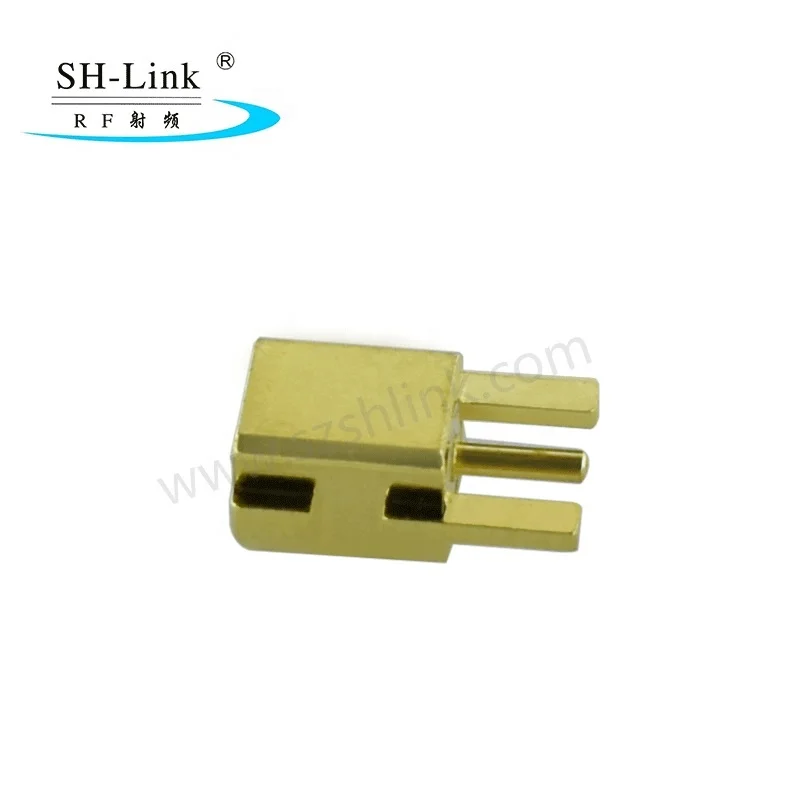

MMCX Jack female PCB RF Connector Gold for DIY Shure SE215 SE315 SE425 earphone
- Category: >>>
- Supplier: Shenzhen Sihanming Technology Co. Ltd.
Share on (60408562540):
Product Overview
Description
Specifications
MMCX Connector for 50ohm PCB
RF straight socket
For PCB
with switch
Female, Clamp
MMCX RF coaxial connectors introduction:
Type MCX RF coaxial Connector is a Kind of miniature Connectors smaller than type MCX.
Characteristic impedance is 50Ω. The characteristic of connectors is in small volume, light weight, Convenient
Connection and reliable. They are widely used in connect with the RF coaxial cables, transmission of RF signal,
equipments or small-sized communications network that are demanding on systematic volume and weight. By
using surface mounting technology,It is suitable for mass instrument equipment production and producing on the assemly line.
MAJOR TECHNICAL CHARACTERISTICS
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Impedance | 50Ω | |
| Frequency range | DC-6GHz | |
| Working voltage | 170V r.m.s at sea level | |
| Withstanding voltage | 500V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤5mΩ | |
| Outer contact | ≤2.5mΩ | |
| Insulation resistance | ≥1000MΩ | |
| Center conductor retention force | ≥0.28N | |
| Insertion loss | 0.18dB/1GHz | |
| Engagement force | ≤15N | |
| Disengagement force | ≥6N | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.25/3GHz | |
| Right angle | ≤1.43/3GHz | |
| Durability(mating) | ≥500(Cycles) | |
