620nm 625nm10W Led cob chip device With reflector 60 degree

Share on (60408722422):


Price:$0.60 - $0.90

Quantity:


Product Overview

Description



Product Description



  •  Notice: All 10W Led is with the Epistar and Bridgelux Chip. We have 100lm/w and 150lm/w For your                      selection.

  • Remarks:  The 10W LED can be Square (Standard) Size and Oval 5W shape with lens.(Reference)

  • Warranty:  All Led with 5 years warranty. If any led is out of work in 5 years, we will replace                                       them by new led through our International DHL Account

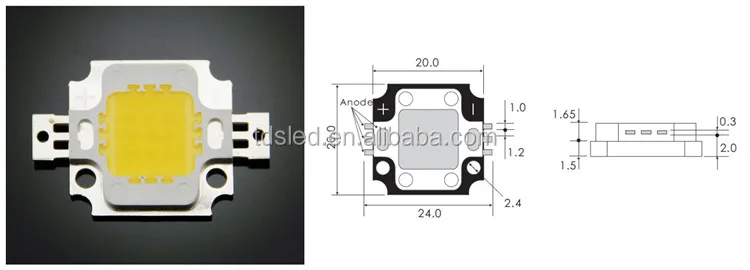

  •  Square 10W (Standard)750-2.jpg































































































































































NameModelColorAngle(°)wave length/Color   (IF=1.05A)Luminous flux  (IF=1.05A)Forward voltage (IF=1.050A)    Attention
MINMAXLM-1LM-2MINMAXLM-1=100lm/w                           LM-2=150lm/w
10W LEDTDS-P010LRC11RED160620nm630nm300400910
TDS-P010LAD11BLUE160460nm465nm150200910
TDS-P010LAF17GREEN160520nm525nm350600910
TDS-P010LAG17GREEN160525nm530nm350600910
TDS-P010LAO17WHITE1602000K3000K10001500912
TDS-P010LAQ17WHITE1603000K4000K10001500912
TDS-P010LAS18WHITE1604000K5000K10001500912
TDS-P010LAU18WHITE1605000K6000K10001500912
TDS-P010LAW18WHITE1606000K7000K10001500912
TDS-P010LAY18WHITE1607000K8000K10001500912
TDS-P010L4Z18WHITE1608000K9000K10001500912
TDS-P010L4RGBRGB160R=40LMG=80LMB=25LMAs per Data sheet




Applications:


 All general Indoor lighting and outdoor lighting

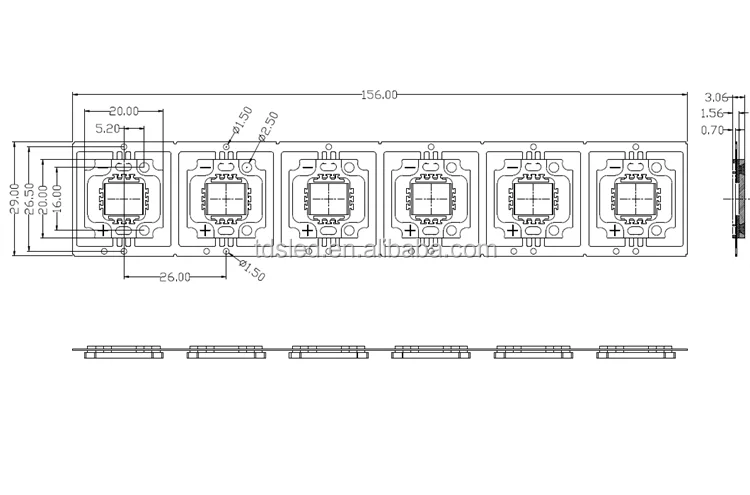

LED Dimension







Quick Detail







Application







FAQ





1. Prices conditions


Price can be FOB, CIF ,EXW, or With taxes.





2. What will be the delivery time ?


We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes





3. Shipment will be over sea or by air ?


Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.





4. Could you please send me the sample ? Then i could see and analyze its quality?


Yes. We can send samples first, samples need to be charged if the value is higher.





5. Will there be any contract for this business or trade ?


Yes, there is a normal contract before the order is placed.





6. How will invoice be generated ?


Invoice can be generated with formal contract with company seals





7.payment:





T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque





If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
