Ex proof Speed PTZ Camera for Oil and Gas security Stainless steel for work in all gasproof environments
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60408775075):
Product Overview
Description
Product Description

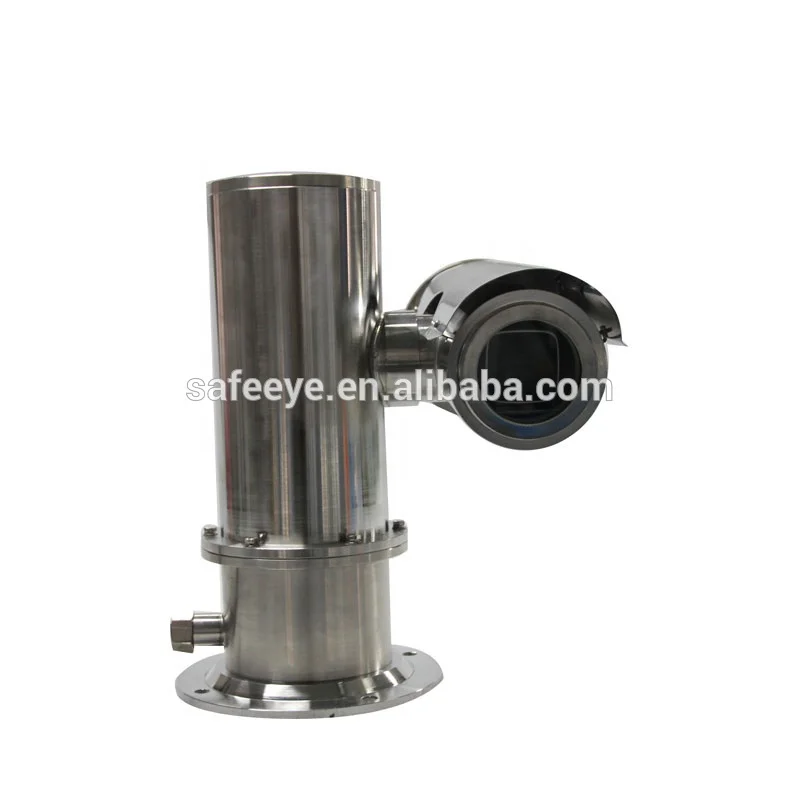

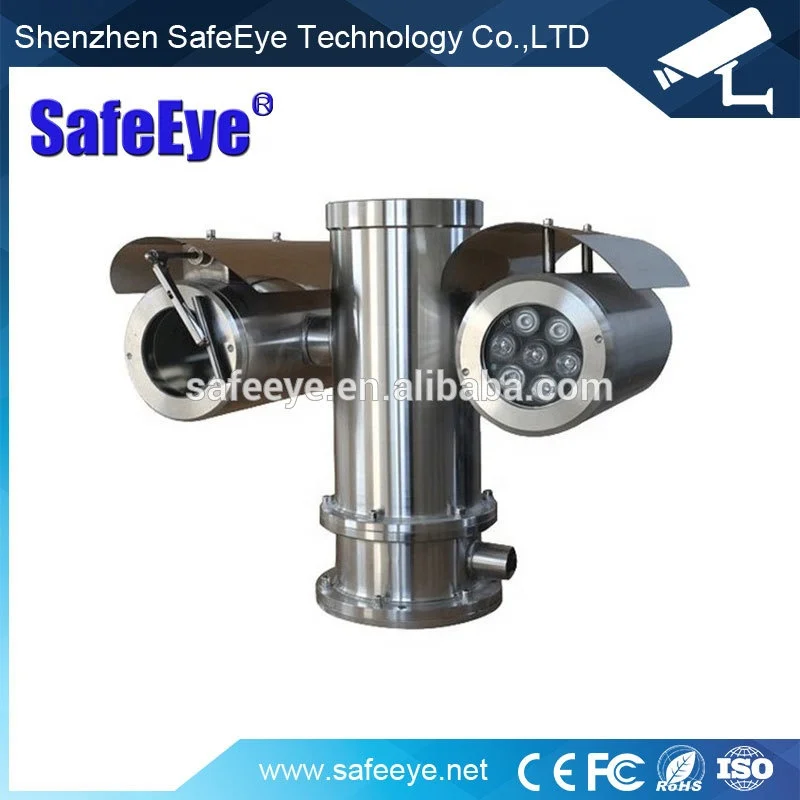

Ex-proof Speed PTZ Camera for Oil and Gas security Stainless steel for work in all gasproof environments
Technology specifications:
If your security and surveillance needs include monitoring extreme, flammable, and explosive environments,armed conflict, S-Ex808PTZ is built for your environment.
it adopts strong stainless steel 304, 316L station, tempered window glass.
S-Ex808PTZ bullet proof ptz camera, 360 degree with pan and tilt, regards as a small explosion proof video supervising system, which consists of explosion proof camera, pan/tilt and decoder.
The 304, or optional 316L, stainless steel housing is IP67rated for all weather use and is corrosion/explosion resistant.
its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.
Base and bracket installation options allow for 360° continuous pan rotation&-90° to +90° tilt camera operations.
The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring.
Applications
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Main Features
CNEx certificated
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·1 cable gland
·Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication : Pelco-D/ Pelco-P/TCP/IP
·Communication rate: 2400~19200bps
·Resolution: Network &AHD&SDI 2.0MP/1.3MP/Anolog 700TVL/1200TVL
·Sensor: CCD/HD-CMOS
·Output: AV/H.264/H.265/SDI/H.264
·Camera: SONY, SAMSUNG
·Telephoto limited speed: optional
·Variable angle: horizontal 360°, vertical -90° to +90°
·Preset patrol: 256/ 128 points
If your security and surveillance needs include monitoring extreme, flammable, and explosive environments,armed conflict, S-Ex808PTZ is built for your environment.
it adopts strong stainless steel 304, 316L station, tempered window glass.
S-Ex808PTZ bullet proof ptz camera, 360 degree with pan and tilt, regards as a small explosion proof video supervising system, which consists of explosion proof camera, pan/tilt and decoder.
The 304, or optional 316L, stainless steel housing is IP67rated for all weather use and is corrosion/explosion resistant.
its housing/ enclosure surface also can be special treated, like electropolished, corrosion painting finish,according to customer requirement.
Base and bracket installation options allow for 360° continuous pan rotation&-90° to +90° tilt camera operations.
The camera is equipped with sun shield and wiper, with an auto-heat option for outdoor monitoring.
Applications
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Main Features
CNEx certificated
·Adopts stainless steel 304 or 316L
·Surface finish: electropolished or corrosion resistant paint finish
·IP68
·1 cable gland
·Tempered glass with nanometer paint film
·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.
·installation: mounted on ceiling, wall with pan &tilt, brackets.
·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.
·Communication : Pelco-D/ Pelco-P/TCP/IP
·Communication rate: 2400~19200bps
·Resolution: Network &AHD&SDI 2.0MP/1.3MP/Anolog 700TVL/1200TVL
·Sensor: CCD/HD-CMOS
·Output: AV/H.264/H.265/SDI/H.264
·Camera: SONY, SAMSUNG
·Telephoto limited speed: optional
·Variable angle: horizontal 360°, vertical -90° to +90°
·Preset patrol: 256/ 128 points
| Model | EX808PTZ-20XIP2 | EX808PTZ-30X |
| Ex-proof mark | CNEX: ·ExdⅡCT6 /·DIP A20 TA, T6 | |
| Material | S304 | |
| IP garde | IP68 | |
| CNEX certificate no. | CNEx: 14.0068 | |
| Tempered window glass | Φ 100x thick:8 mm (in),Φ 80x thick:12 mm (in) | |
| Variable angle | horizontal rotation: 360° continuous Tilt range/vertical rotation:-90° to +90° | |
| Pan speed | 40°/S | |
| Tilt speed | 40°/S | |
| Baud rate | self-adaption | |
| Preset position | 128 | |
| Preset position precision | ≤1° | |
| Installation | Wall bracket, pillar mount bracket and so on | |
| Electrical Specifications | 220VAC / 24VAC | |
| Working current | <250mA (220VAC),<2A (24VAC) | |
| Power | 30W | |
| Atmospheric pressure | 80KPa~106Kpa | |
| Auto keep temperature | 0°C ~ 65°C (32°F~149°F) | |
| Relative Humidity | ≤95% (+25°c) | |
| IR distance | 50m,80m,100m | |

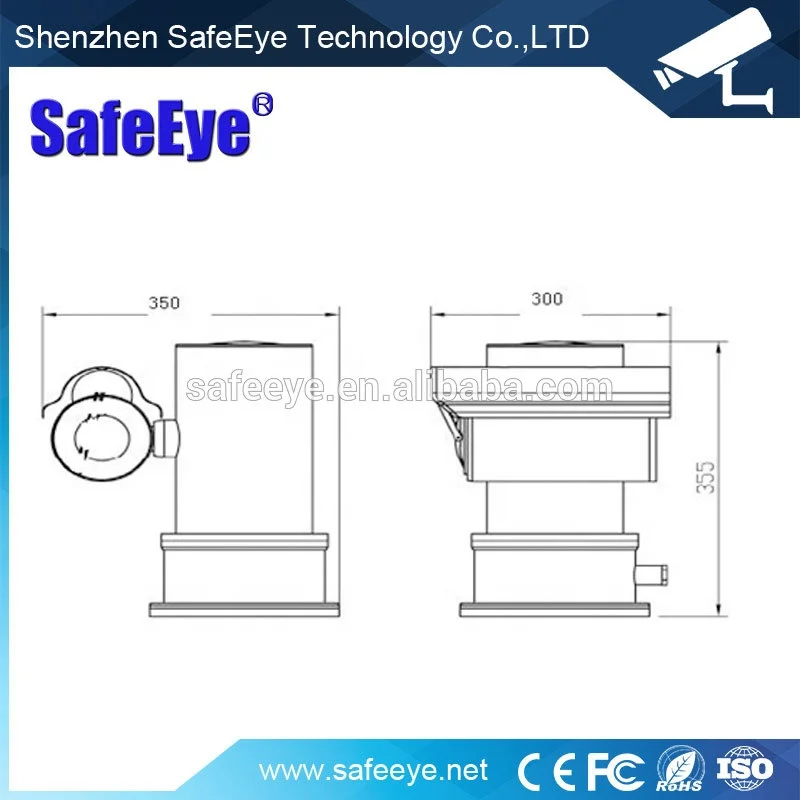

| Housing inside size | 220 (L) x 112 (W) x 90 (H) mm | |
| stepping motor Wiper | Yes | |
| telephoto speed limit | Yes | |
| Preset patrol | 128 | |
| Control way | RS485 | |
| Control protocol | TCP/IP | PELCO-D/PELCO-P, other |
| Communication way | network transmit | AV |
| Flexibility tube | explosion proof flexibility tube,NGe25×1000, NGe25×1500, NGe25×2000 | |
