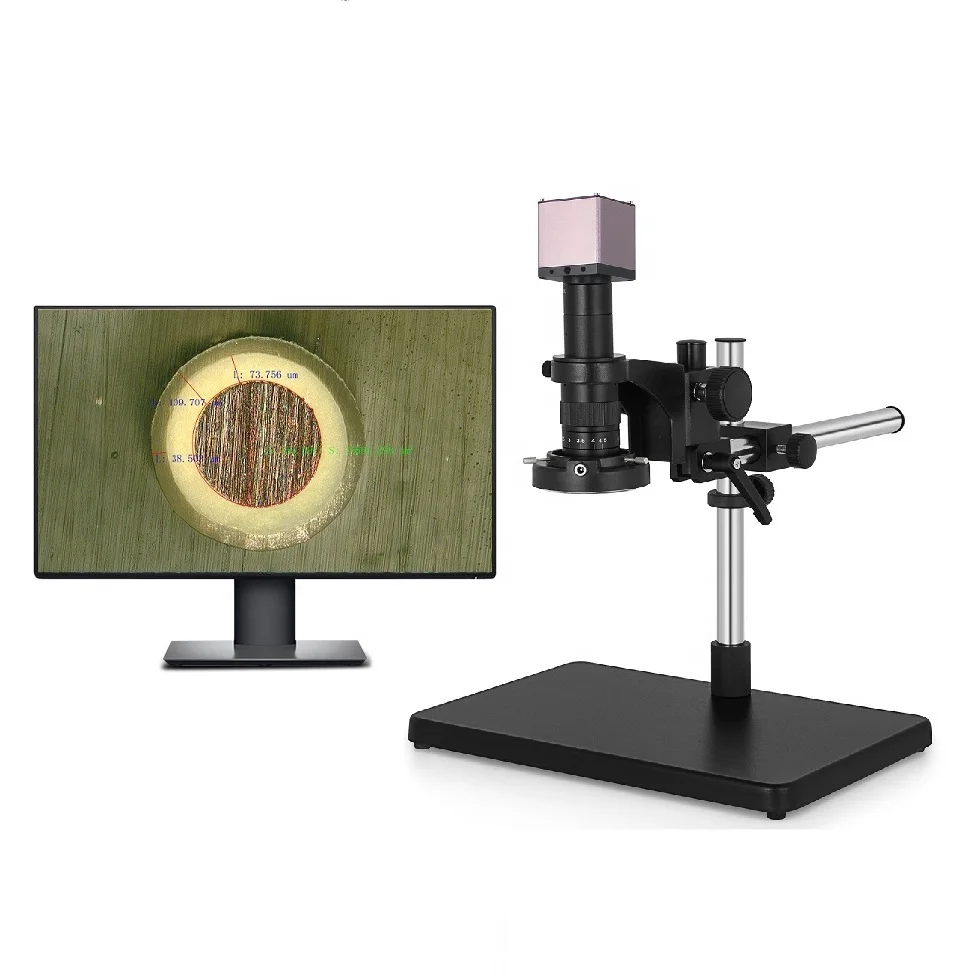

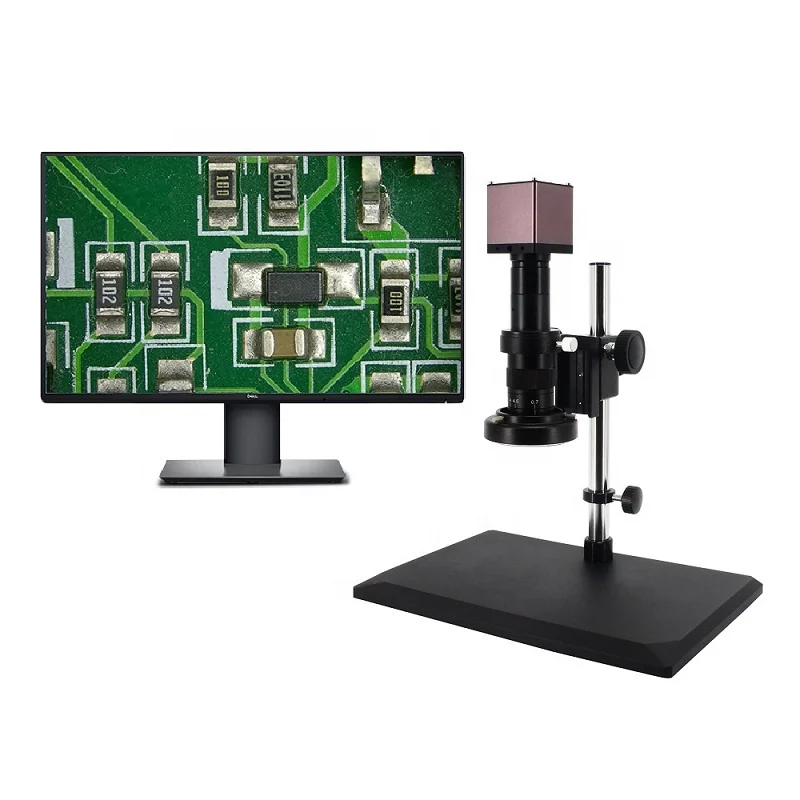

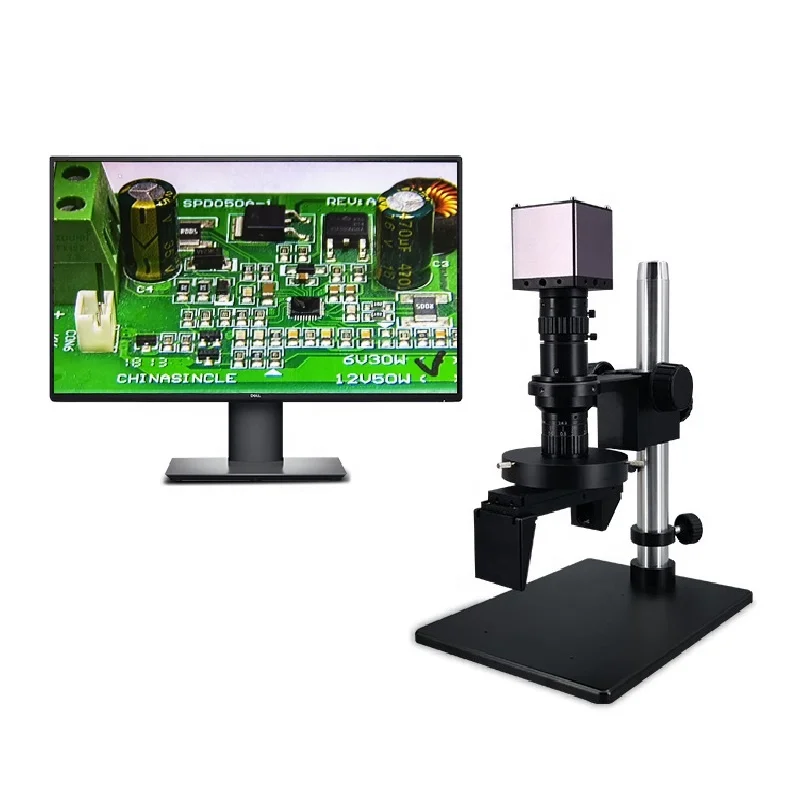

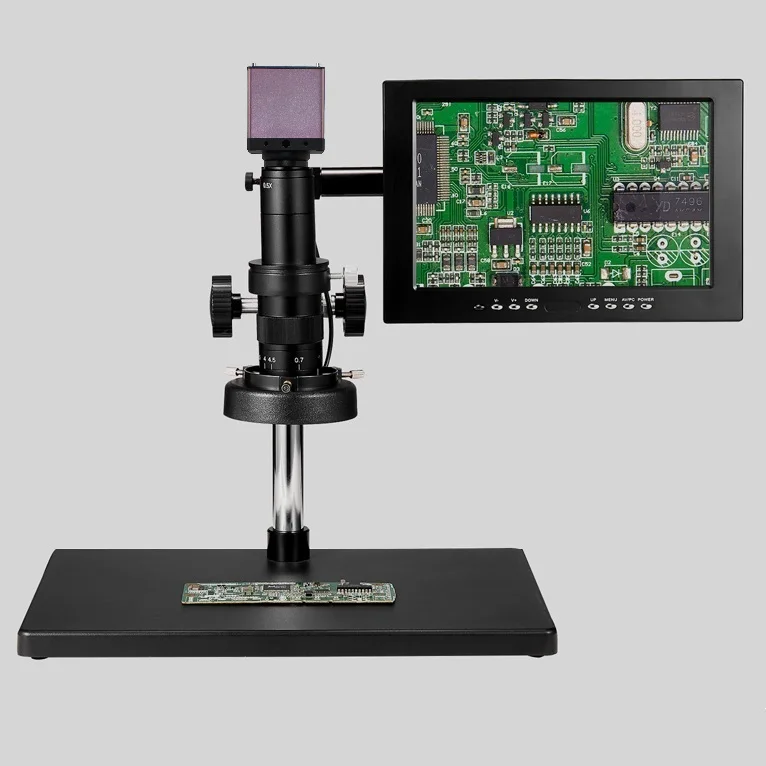

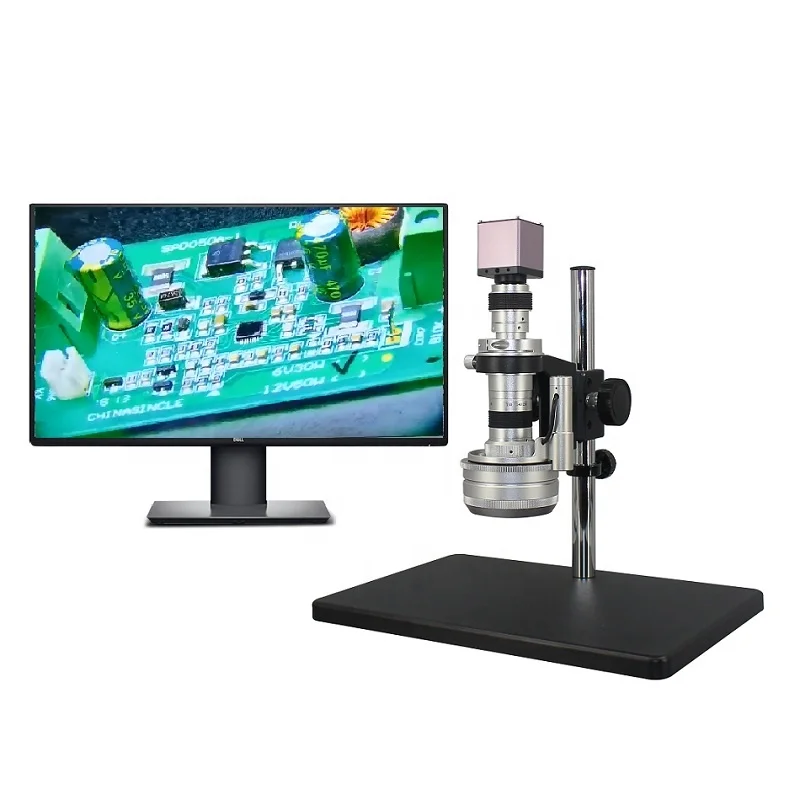

Boshida HD2000 serial Universal Industrial digital Measuring Microscope with 12 inch LCD Screen
- Category: >>>
- Supplier: Shenzhen Boshida Optical Instrument Co. Ltd.
Share on (60408884444):
Product Overview
Description
Products Description
Model | HD1002CL-A01 | ||||||
Magnification | 14X-180X | ||||||
Functions | Living image, capture image, record video. Measurement, report to EXCEL/WORD. Moveable Cross lines. | ||||||
Lens | Main lens: 0.7-4.5X Optional auxiliary lens: 0.5X, 2X | ||||||
Camera | HDMI camera. Resolution: 2MP, 1920*1080P. Sony 1/2 inch CMOS color sensor. Frame rate: 60fps. Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.. | ||||||
Memory | USB flash disk 256M~32G | ||||||
Stage | Standard base board: 380mm*260mm | ||||||
Illumination | Hight light LED ring light, brightness adjustable. | ||||||
Optional parts | ▲Flexiable LED ring light ▲Auxiliary lens ▲Main lens ▲Boom arm stand ▲12-22 inch monitor. | ||||||
Power supply | AC100-240V, 50/60Hz. | ||||||
Optional parts
Optional parts
Lens
Auxiliary Lens
Illuminator
XY stage
Boom arm stand
21~32 inch monitor
Recommend Products
ABOUT US
PRODUCT APPLICATION
FACTORY EXPERIMENT
PRODUCT PACKAGING
FAQ
Q1：How can you do sample testing?
A1：We can suggest microscope according to applications of user. We had thousands of sucessful cases.If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it,don't need to buy it.
Q2：What kind of customization you can supply?
A2：Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements.
Q2：What kind of customization you can supply?
A2：Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements.
