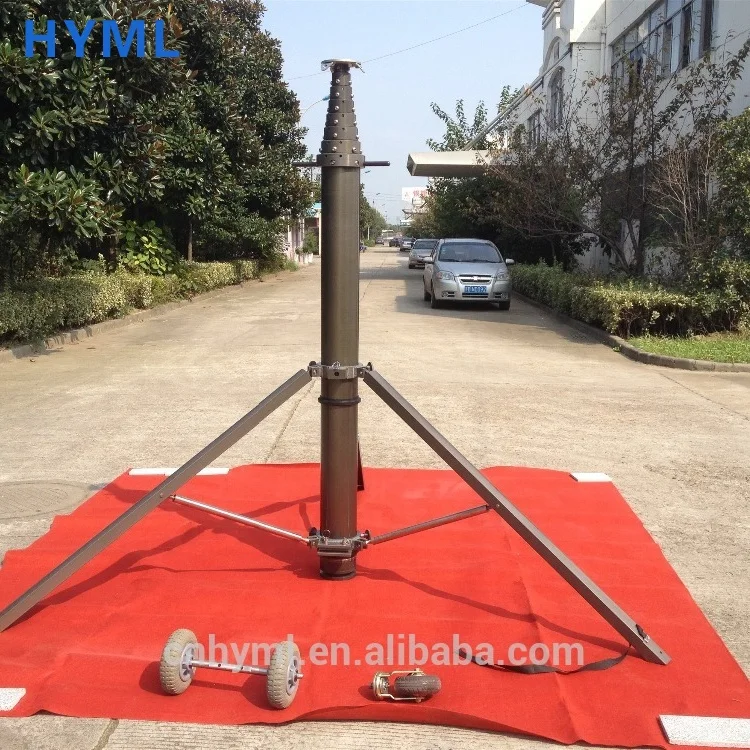

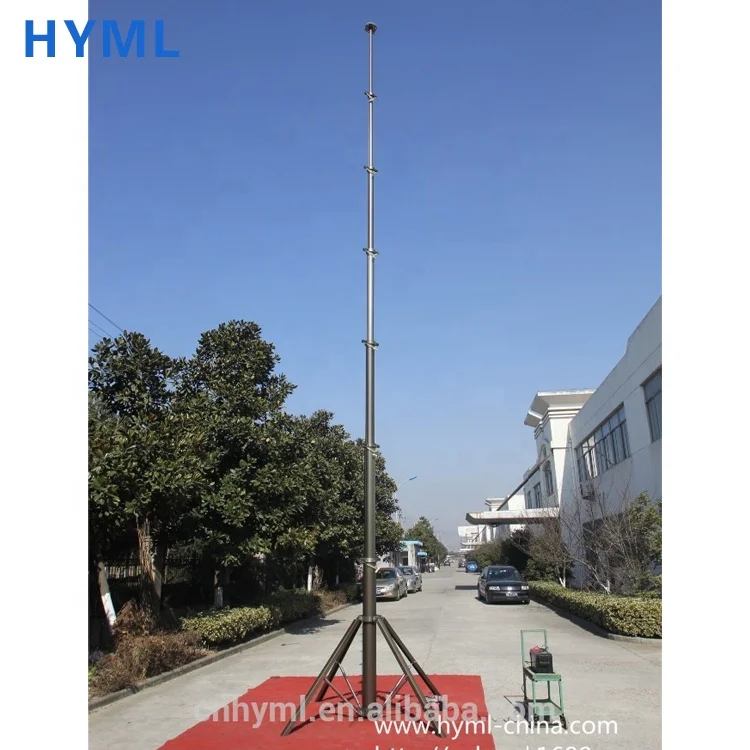

The portable tripod telescopic camera mast with supporting poles

Product Overview

Description

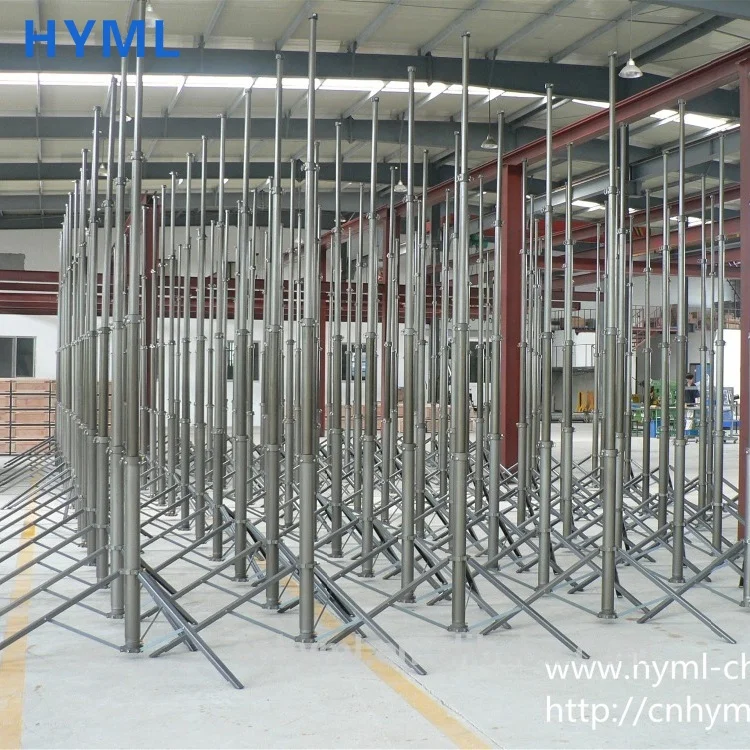

 HYML produces many various type supporting poles masts every year . There are two main categories

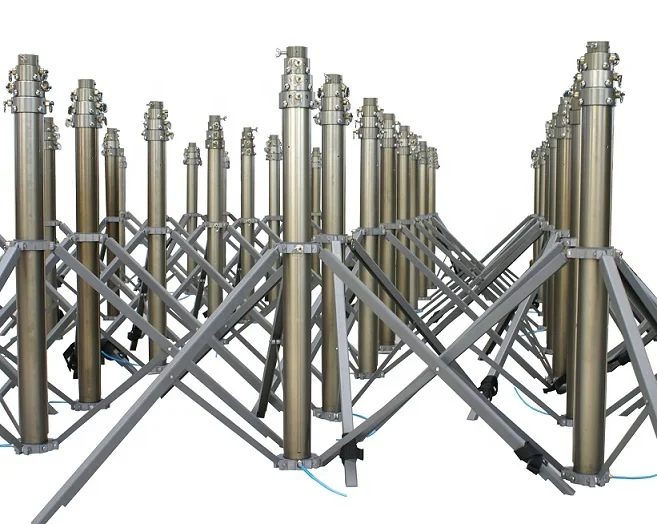

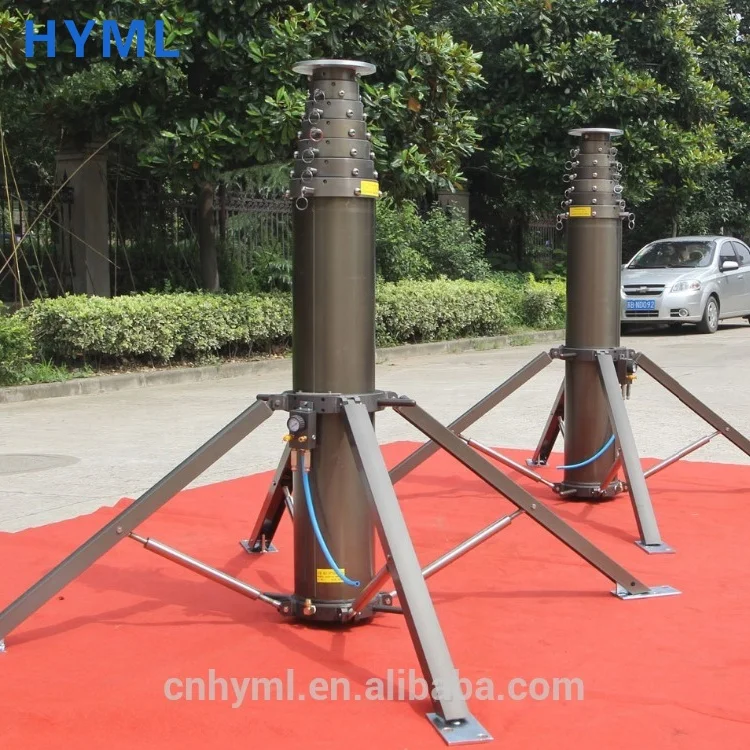

A) Using tripod or Four tripod supporting telescopic mast    please  see the below pictures

B) Using Car wheel supporting stand telescopic mast



Some tripod or Four tripod supporting telescopic mast can be installed with wheels . It is easy to move on sites. Some have a diagonal brace leg to install the top load easily for the client

These both masts with the supporting poles, they can be the common telescopic mast , also can be the mast with the brake and locking.



These both masts with the supporting poles, you can install the lights, cameras, communications antenna, surveying instruments on the top .



Some clients want us to make the mounting parts for them, we can specially design and manufacture.

These both masts with the supporting poles are mostly small & medium masts , light masts , they are set up without space limited. We also have a special canvas bag for easy transport.



If you want to know more information about this equipment, please see Tripod or Four tripod supporting mast,Car wheel supporting stand mast in Product Categories.





Do you have Skype ID ? My Skype is erinyixing

Welcome to buy one sample and visit our factory

Erin

Mobile : 0086 -13706155652



Tripod Telescopic Mast
DATE:2016.1
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
AB4-75	1.2	3.5	82	30	<20
AB4-75	1.4	4	82	30	<20
AB4-75	1.5	4.5	82	30	<20
AB/AK4-75	1.6	5	82	30	<20
AK5-90	1.2	4	98	30	<20
AK5-90	1.4	5	98	30	<20
AK5-90	1.6	6	98	30	<20
AK5-90	1.8	7	98	30	<20
AK6-110	1.2	4.5	118	30	<20
AK6-110	1.3	5	118	30	<20
AK6-110	1.4	6	118	30	<20
AK6-110	1.6	7	118	30	<20
AK6-110	1.8	8	118	30	<20
AK7-130	1.2	5	140	30	<20
AK7-130	1.45	6.5	140	30	<20
AK7-130	1.5	7	140	30	<20
AK7-130	1.7	8	140	30	<20
AK7-130	1.8	9	140	30	<20
AK8-150	1.6	8	160	30	<20
AK8-150	1.7	8.5	160	30	<20
AK8-150	1.85	10	160	30	<20
