Product Overview
Description
Ceramic Fiber Blankt

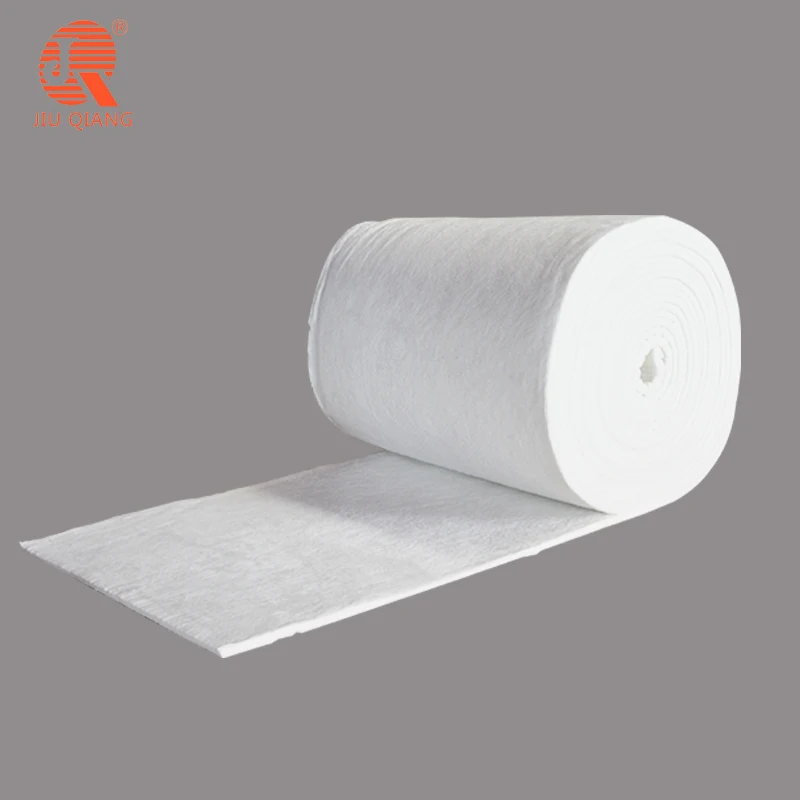

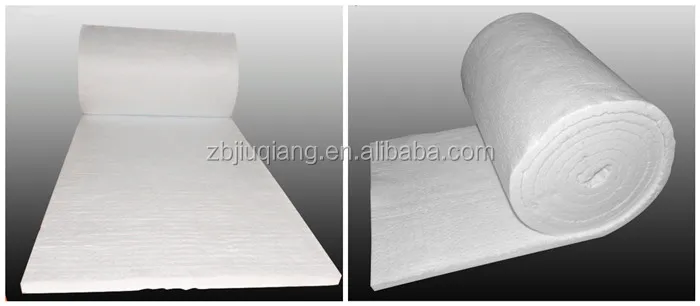

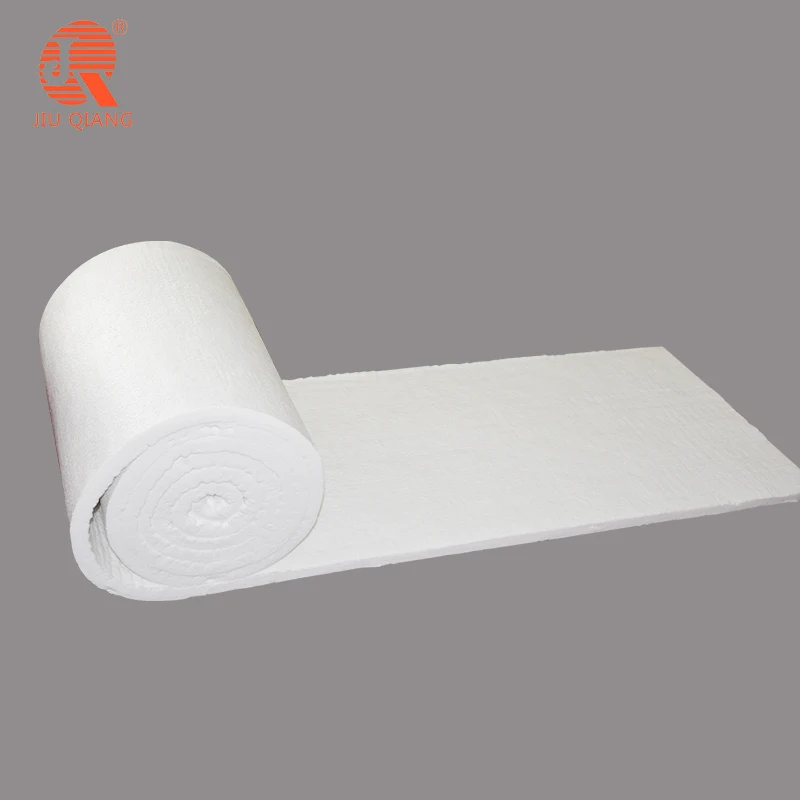

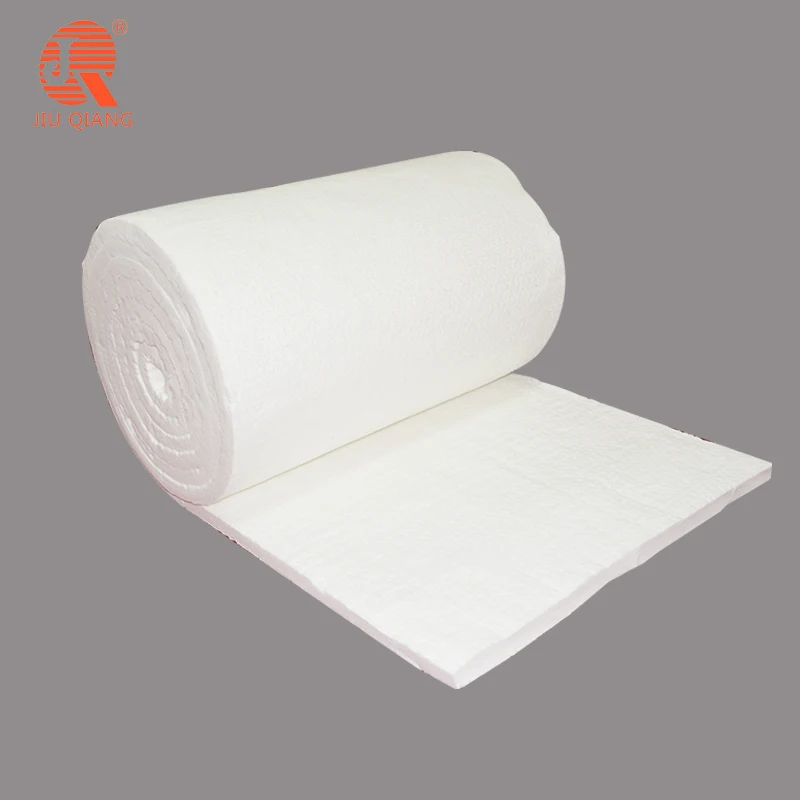

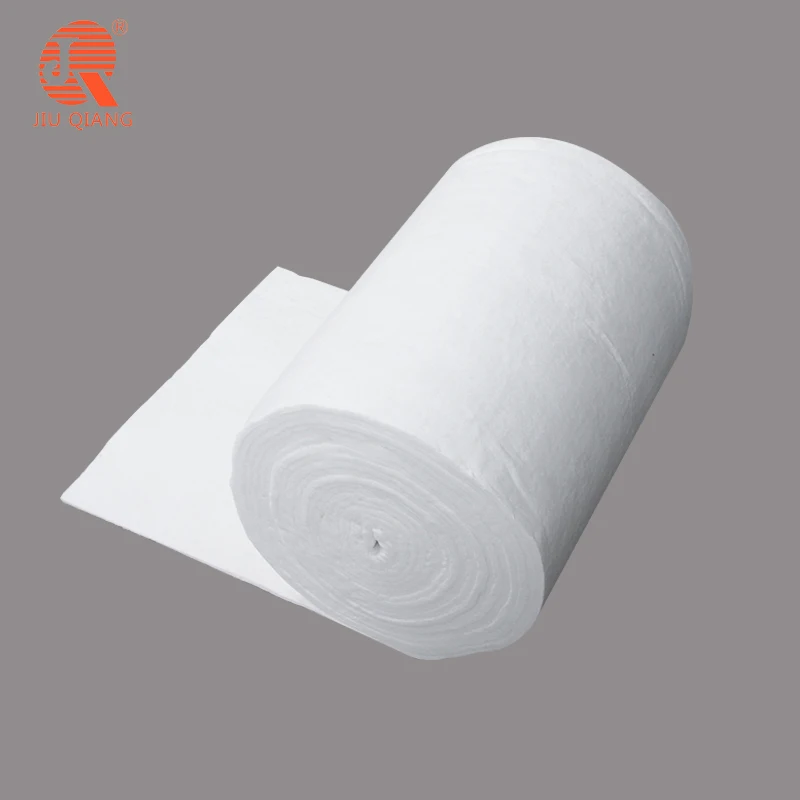

CERAMIC FIBER BLANKET
Jiuiang heat insulation blanket for is a new kind fire-resistant heat insulation material with white
color, standard dimension and the function of fire-resistance, heat insulation and heat preservation.
Without any bonding agent, good tensile strength, tenacity and fiber structure can be kept while
using under the normal and oxidation condition. Temperature level is 1100-1430°c.
1.Low thermal conductivity, low heat storage
2.Excellent thermal stability and thermal shock resistance
3.Excellent tensile strength
4.Excellent thermal insulation, fire-proof and sound absorption
1.Industrial furnace, heating devices, high temperature pipe wall linings
2.High tempeture boilers, steam turbine and Nuclear power thermal insulation
3.Chemical industrial high-temperature reaction equipment and
heating equipment wall linings
4.High building fireproof and thermal insulation
5.Furnace door and roof thermal insulation
6.High temperature filter materials
Type | Common | Standard | High Purity | High Aluminium | Zirconia | |
Classification temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1400 | |
Working Temperature (°C) | < 1000 | 1050 | 1100 | 1260 | 1350 | |
Color | White | Pure white | Pure white | Pure white | Pure white | |
Density (kg/m3) | 96/128/160 | 96/128/160 | 96/128/160 | 128/160 | 128/160 | |
Shrinkage on heating (%) (24 hours, density as 128/m3) | -4 | -3 | -3 | -3 | -3 | |
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3) | 0.09(400°C) | 0.09(400°C) | 0.09(400°C) 0.16(800°C) | 0.12(600°C) | 0.16(800°C) | |
Tensile strength (MPa) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
AL2O3+SiO2+ZrO2 | - | - | - | - | 99 | |
ZrO2 | - | - | - | - | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
Size (mm) | 14400/7200/4500/3600×1220/610×6-50; Other sizes can be available. | |||||
Production Line
Certification

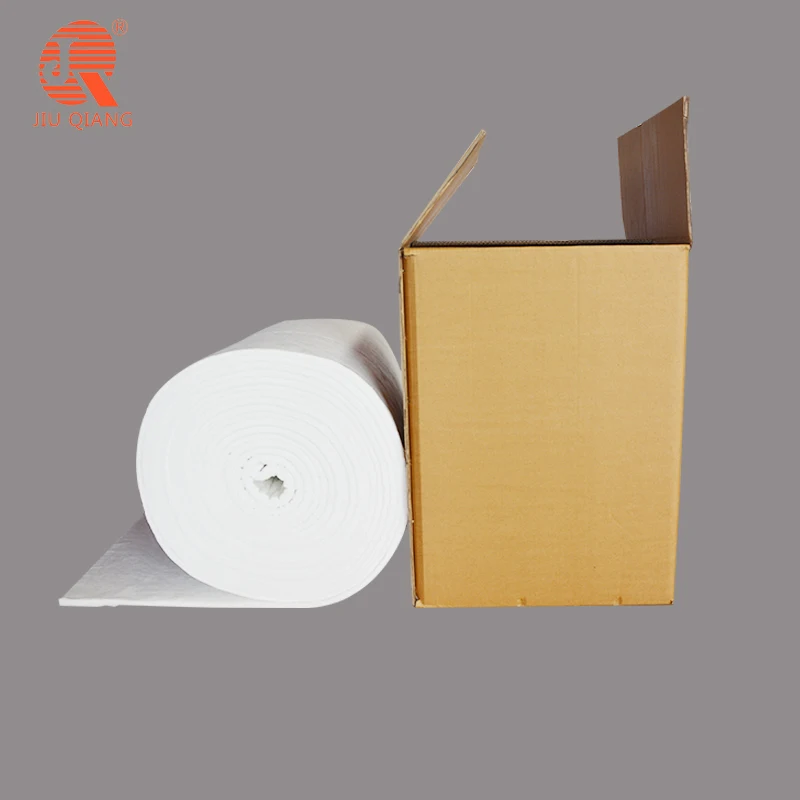

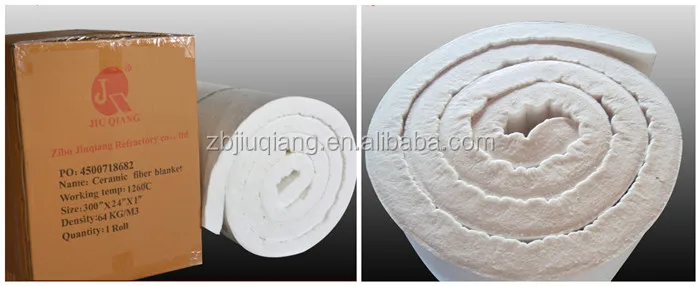

Package Arrangment
1. woven bag
2. carton box outside
first loading port :Qingdao
According the goods,we send by sea,by air ,or by express
Company Inforation
Zibo Jiuqiang Refractory Co.,Ltd is a professional ceramic fiber paper,board,blanket,textitles
(cloth,tape,rope) manufacture,the ceramic fiber paper (cotten fiber paper) we produced has been
exported to all over the world and won a very good reputation.Ceramic fiber paper,ceramic fiber
board,ceramic fiber blankets and felts,ceramic fiber bulk,ceramic fiber modules ,with kinds of
mecihanical anchor fixings,ceramic fiber textiles(cramic fiber yarn,cloth,tape,twisted rope&briaded
rope),special shaped ceramic fiber products/vacuum formed ceramic fiber products.
Our Main products
Choose US,Why ?
1.Zibo Jiuqiang Refractory Co., Ltd is a professional manufacture and
exporter of the heat insulation material.
2.Senior R&D team and quality managers guarantee the product quality.
3. Large-scale production lines ensure the fast delivery time.
Welcome your kind inquiry on our High quility products,
happy to set a good coopration with you
