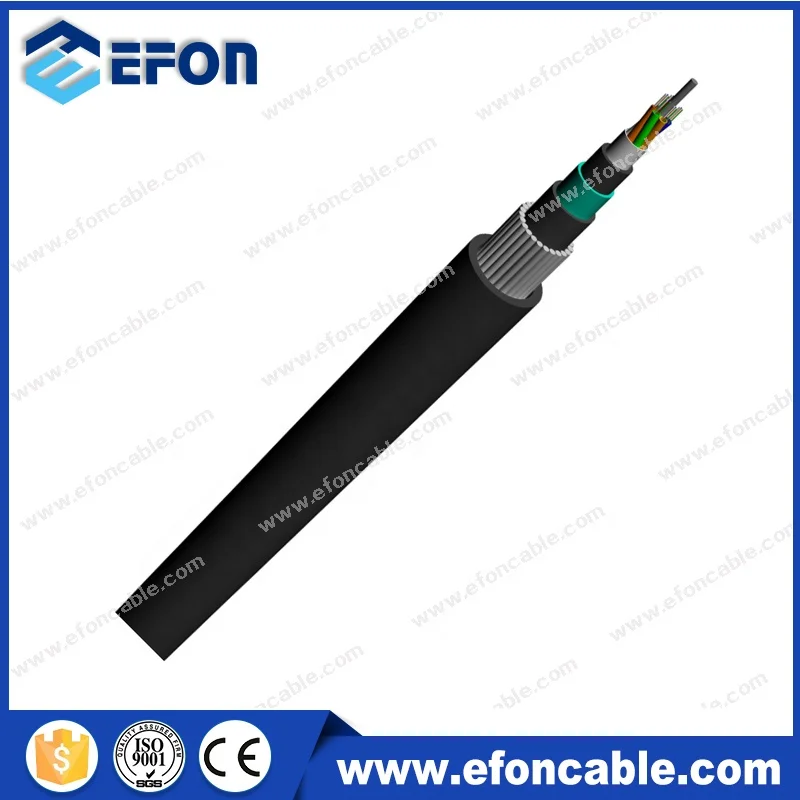

Wholesale Max 288core Wire Braided Armoured Submarine Fiber Optic Cable
Product Description
The fibers,250um,are positioned in a loose tube made of a high modulue plastic.The tubes ate filled wth a water-resistant filling compound,A steel wire located in the center of core as a metallic strength member into a compact and circular cable core .An Aluminium Polyethylene Laminate (APL) is applied around the cable core .which is filled with the filling compound to protect it fron water ingress.Then the cable core is covered with a PE outer sheath.After the single steel armored,the cable is finally completed with an outer sheath.
Feature
- Good mechanical and tempereture performance
- Single-steel ensures good performance of tensile strength
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fbier
- Crush resistance and flexibility
- The following messures are taken to ensure the cable watertight
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking
Performance
- Applications: Suitable for long-distance communication and indoor communication
- Way of laying: Direct burial, pipeline
- Operating temperature: -40 ~ + 70 °C
- Bending Radius: Static 12.5*Cable-diameter: Dynamic 25*Cable-diameter
Technical Parameter
Cable Type | Fiber Count | Tubes | Fillers | Cable Weight Kg/km | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N | Bending Radius Static/Dynamic mm |
GYTA53+33-2~6 | 2~6 | 1 | 5 | 819 |
4000/10000
| 3000/5000 | 12.5D/25D |
GYTA53+33-8~12 | 8~12 | 2 | 4 | 819 | |||
GYTA53+33-14~18 | 14~18 | 3 | 3 | 819 | |||
GYTA53+33-20~24 | 20~24 | 4 | 2 | 819 | |||
GYTA53+33-26~30 | 26~30 | 5 | 1 | 819 | |||
GYTA53+33-32~36 | 32~36 | 6 | 0 | 819 | |||
GYTA53+33-2~6 | 2~6 | 1 | 5 | 1002 |
10000/20000
| ||
GYTA53+33-8~12 | 8~12 | 2 | 4 | 1002 | |||
GYTA53+33-14~18 | 14~18 | 3 | 3 | 1002 | |||
GYTA53+33-20~24 | 20~24 | 4 | 2 | 1002 | |||
GYTA53+33-26~30 | 26~30 | 5 | 1 | 1002 | |||
GYTA53+33-32~36 | 32~36 | 6 | 0 | 1002 |
Note:

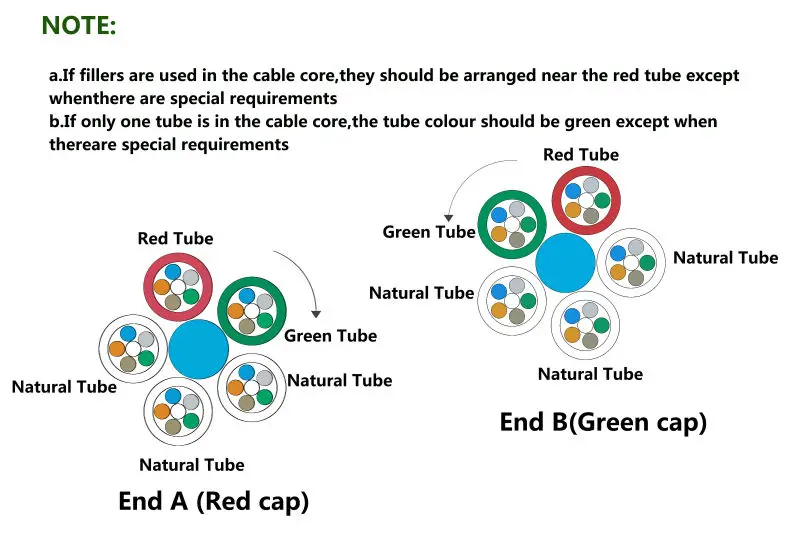

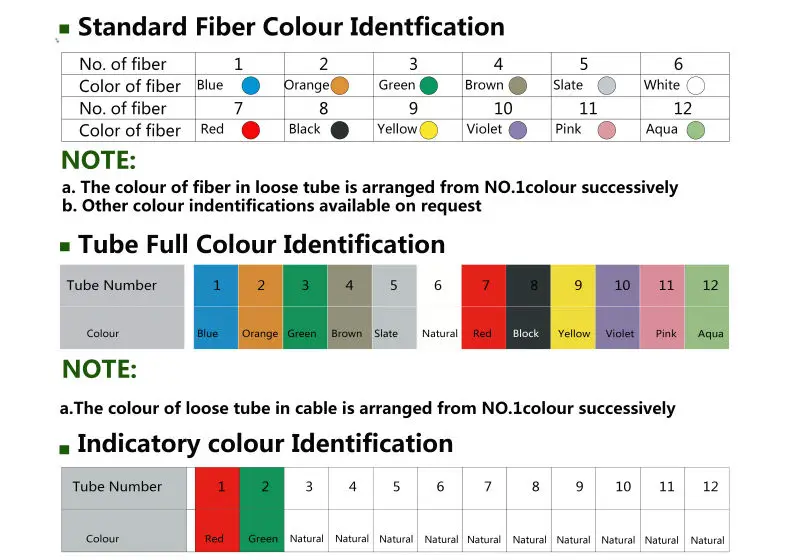

1. The color arrangements of fiber and tube are specified in the color identification table
2. The nominal value of the outer sheath thickness is 2.2mm;the nominal value of the PE outer sheath thickness is 2.0mm;and the nominal value of the PE inner sheath thickness is 1.0mm.

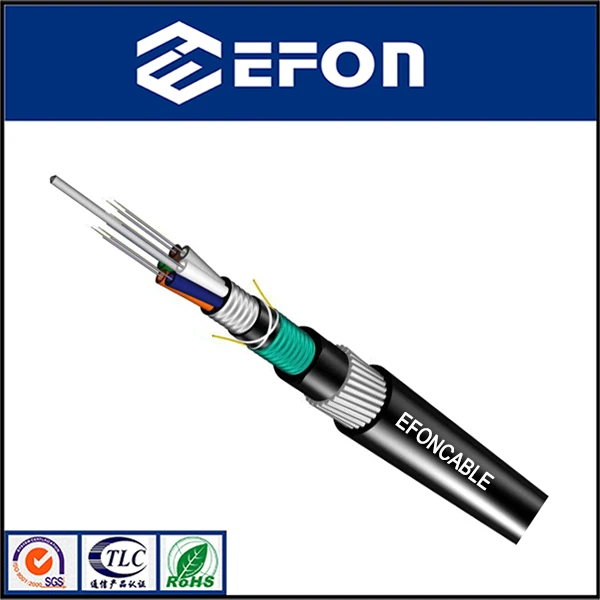

Fiber optic cable price per meter

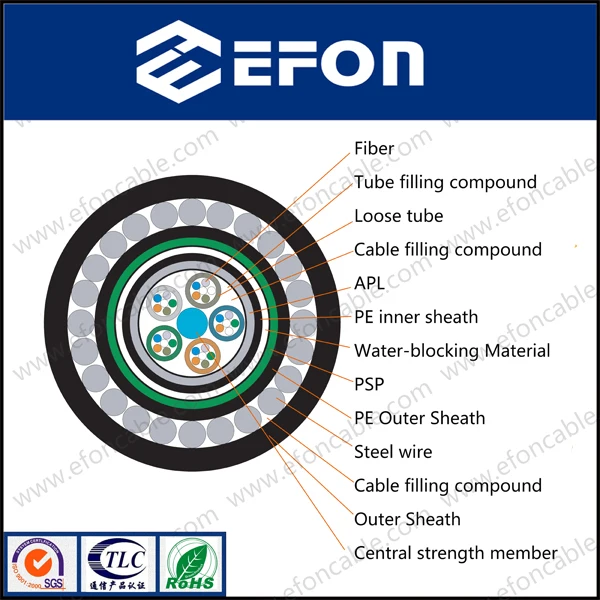

submrine fiber optic cable
Fiber optic cable price list
MORE INFORMATION

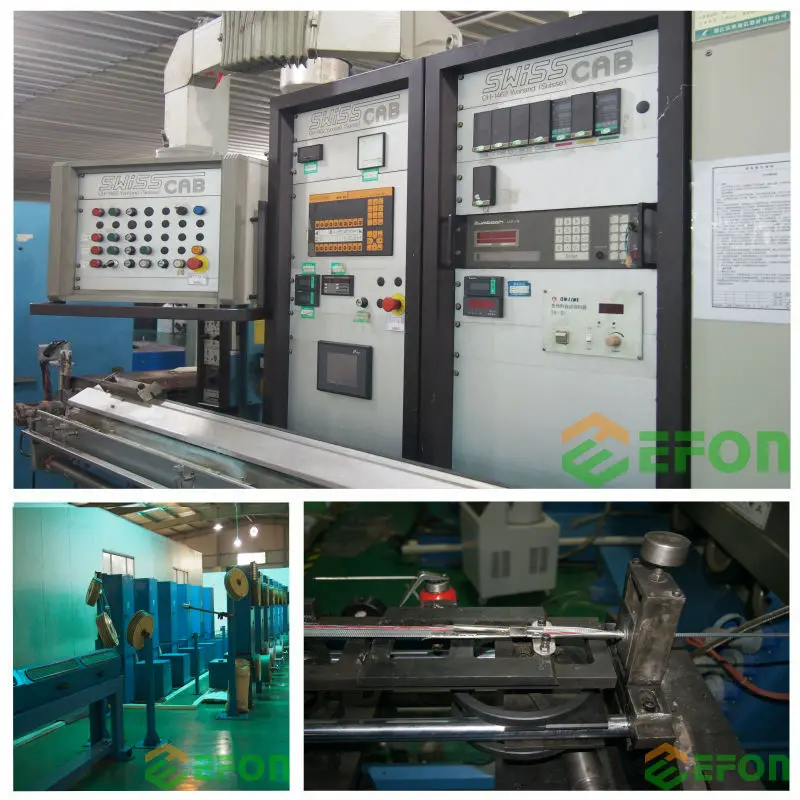

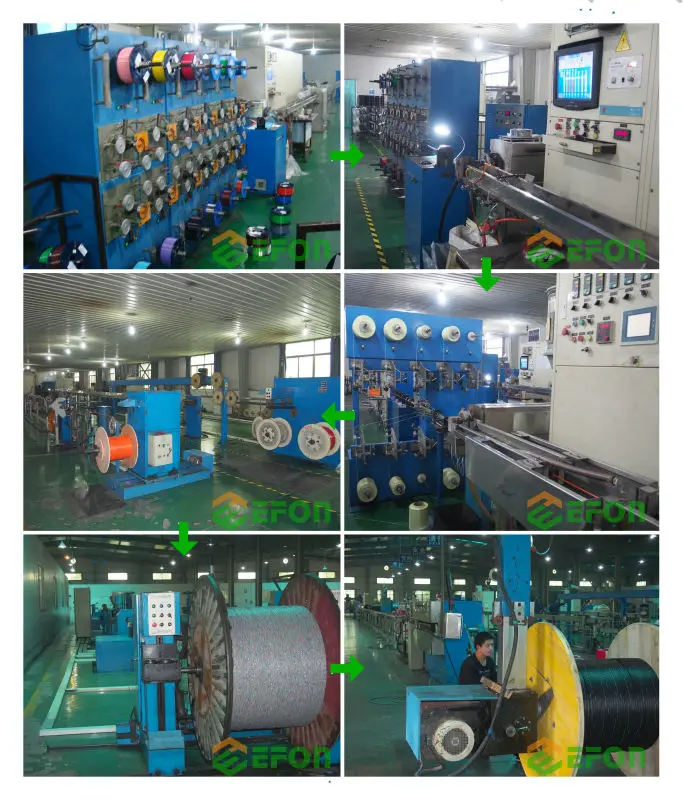

P R O D U C T I O N L I N E

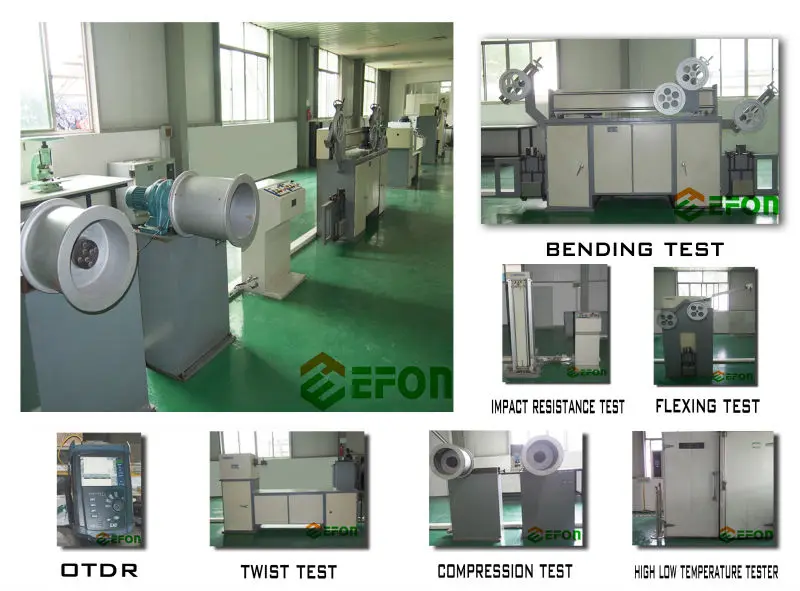

T E S T C E N T R E
D E T A I LS
Packaging & Shipping
| PACKING | |

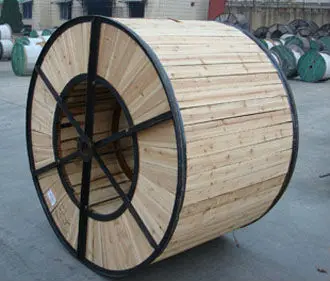

| Packing | 3km-5km/wooden drum ,iron-wooden drum with fumigated or not |
| Packing Size | Depend on cable size and packing length |
| Packing Photo |

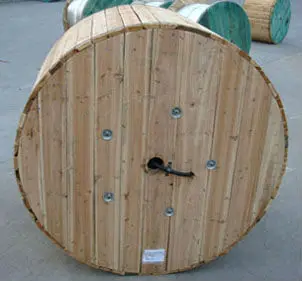

iron-wooden drum wooden drum |
Our Services
- We are the one of biggest manufacture of fiber optic cable in China and has more than 25 years manufacturing and selling experience.
- We accept OEM.ODM.The cable size and material are customized.Ur own logo and own design are welcome. We will produce according to ur requirment and description;
- Please send us inquiry for more products info and we will give you feedback in 2 hours.
- Guarantee period: 5 years free replacement if quality problem.
