Low Price Spark optical emission spectroscopy

This apparatus is widely used in material analysis of various industries, such as iron and steel, non-ferrous metal, metallurgy, machinery, chemical equipment, quality inspection system and so on. It is also used in , routine identification and analysis in metallic smelt industry.

1,Manage blast furnace process control by various processes of blast furnace celerity analysis.

2,Identification of product specifications.

3,Material checking and acceptance.

4,Quality inspection.

Description

• JB750 Optical Emission Spectrometer is the best assistant for rapid quantitative analysis of metallurgical furnace and metallic quality monitoring. Its accuracy and stability meet laboratory requirements and can make measurements for dozens of matrix based on elements such as Fe,Al,Cu,Ni,Co,Ti,Mg,Zn,Sn,Pb, etc. It is widely used in steel, metallurgy, foundry and machinery for IQC, QC and OQC.
• JB-750 is a design of zero fault operation, which requires little maintenance and offering high reliability and convenience.

Features

• 750 mm focal length grating design with palmer type-runge device which has the features of high vacuum, high resolution and high sensitivity etc.
•  Adopt high stability digital sources. You can choose different excitation parameters to analyze different samples which can get the best analysis results.
• The automation is very high which adopts high integration of the acquisition and control system.
• The photomultiplier tubes from Hamamatsu which has the features of low dark current, high signal-to-noise ratio, long service life etc.
•  It can be used for variety of bases such as Fe, Al, Cu, Co, Ni, Pb, Mg, Zn, Sn etc.
•  The temperature of the optical part is stable which ensure the instrument running well and reduce the requirement of the environment.
• The system adopts independent power supply and becomes unit which is easy to use and simple maintenance.
• The computer adopts Windows 7 system and English operation software which is simple to understand.

Allocating and analyzing channel and quantitative work scale

Major Features

1,The human oriented design, the standardized and modularized manufacture make the apparatus smaller.

2,The core components are all imported, which strengthen the stability and reliability of the apparatus.

3,We adopt the advanced foreign technologies of excitation source and design the excitation source of high energy, high stability by our own to fulfill the needs of ultrahigh content and trace analysis.

4,It adopts overall exit slit using technology which is convenient for choosing passage and regulating.

5,The high voltage of the PHT in the apparatus is controlled directly by computer and regulated by software, which improved efficiency of the passage.

6,In the apparatus, there is an automatic constant temperature system which solve the problem of bad effects to the optics system caused by changing temperature.

7,The multi-language operation software and flexible configuration enable the apparatus more humanistic.

8,This apparatus can analyze various kinds of matrix, such as Fe, Co, Ni, Ti, Cu, Al, Pb, Mg, Zn and Sn.

Main Parameters
Excitation light source:
Supply voltage: 50Hz, 220V ± 1%
Input power: 1.0KVA
Charging capacitor: pre-combustion 8μF, exposure 1.5μF
Peak Current: pre-combustion 100A, exposure 20A
The main circuit peak pressure: 300VDC (with automatic adjustment of peak pressure)
Ignition circuit: pulse amplitude: +15 KV
Auxiliary gap: Using Tunnel Diode
Discharge frequency: 200 Hz ~ 600 Hz

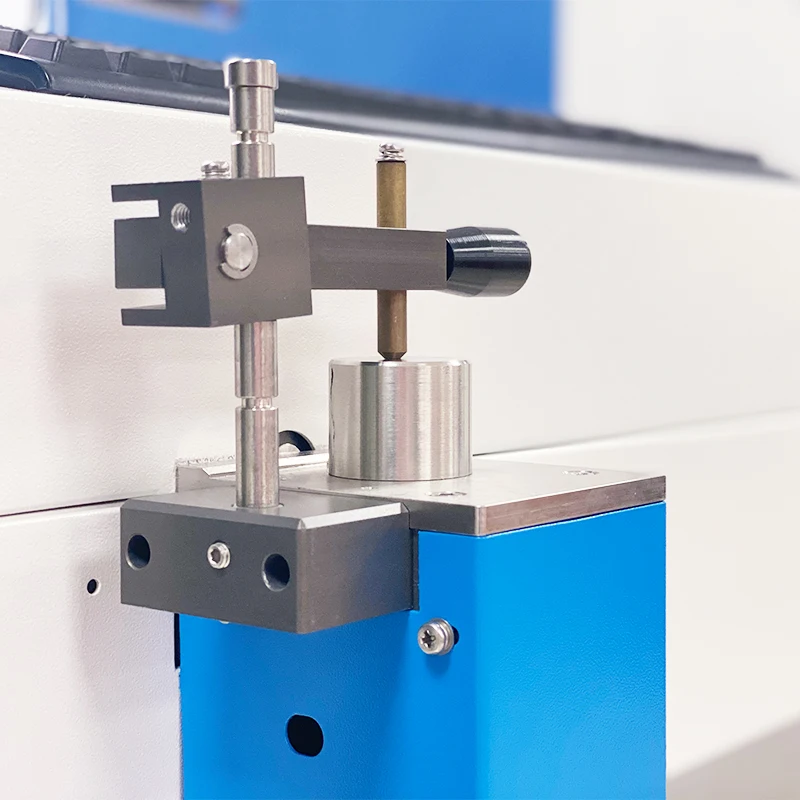

Sample sets of gap: 4mm

Spectrometer:
Analysis band range: 130 ~ 650nm
Machine engraved concave grating: Curvature radius of 750mm
Depicts the density: 1667/mm
Incidence angle: 35 degrees
Allows a maximum of channels: 36 (expandable to 64 channels)
Spectrometer Local temperature: 35 °C ± 0.5 °C

Control System:
Measurement and Control System: The single board computer measurement and control, data exchange with the Host Computer
Reproducibility: RSD ≤ 0.2%
Photomultiplier tube high voltage power supply:
Stability: 8 hours is better than 0.5%

Data processing system
1, Hardware configuration (basic configuration)
Computer
Printer
2, Software functions
Multi-languages operation software under WINDOWS operation system
Various samples calibrate one analysis result simultaneously
Polygon and polynomial curve fitting
The concentration base of drawing curve management
Matrix correction and disturbance correction
There is a power management module
Quality controlling standard and management
System condition inspection
Data outputting management
