etl dlc ballast compatible 4ft led tube bulb

Product Overview

Description

etl dlc ballast compatible 4ft led tube bulb

Product Description



etl dlc ballast compatible 4ft led tube bulb

1. Specifications

Physical Specification
Light Source	Epistar Chips
Size	L1218.4*R16
Weight	400g
Material	Aluminum Housing+ PC Lens(Transparent ,stripped or Milky)
Operation Temperature	(-20)~40°C (-4~104°F)
IP Grade	IP54
Electrical Specification
LED Power(W)	18Watt
Suggested Replacement	45-60Watt Traditional Fluorescent Tube
Power Efficiency	>85%
Input Voltage	100-277V AC
Frequency Range	50 ~ 60 Hz
Life Span	>5years
Optical Specification
LED Luminous Efficacy	90-110 lm/w
Total Lumen	WW:1700 lm	PW:1800lm	CW:1980 lm
Color Rendering Index(CRI)	Ra >80
Luminous Decay
Beam Angle	The Horizontal Axis 120° The Vertical Axis 60°
Illumination ( E )	(Height=1 m ) =245lux
	(Height=2 m ) =103lux
	(Height=3 m ) =39lux
Effective Illuminated Area	(Height=1 m ) = 3.4 x 2.2m
	(Height=2 m ) = 7.0 x 2.6m
	(Height=3 m ) = 10.4 x 4.6m
Temperature Color	Warm White(WW): 2700~3500K
	Pure White(PW): 4000~5500K
	Cool White(CW): 6000~7000K
Packing Information
Packing	Foam Protection or paper box
Packing Quantity	25 pcs/carton
Carton Size	1250x190x190mm
Carton Gross Weight	9.5 kg
Container Loading QTY	10750pcs/20'GP, 21500pcs/40'GP



   A. Terms and Conditions

1). Lead Time: 5-7 business days for samples order, 7-10 business days for bulk order in general
2). Payment Term:  T/T, Western Union, papal or L/C can be accepted
3). MOQ: 1 pcs
4). Warranty: 3 years

5). We can arrange shipment directly to your address via DHL, UPS, sea shipment etc.





   B. The information you should got before making order

1) You should make sure if the led tube lights will fit your existing fixtures

2) Its important to figure out the bellowing specification led tube

a. the voltage: 110vac, 277vac

b. color temperature: warm white(2700-3500k), natural white(4000-5000k) or cool white(5000-7000k) or even more Kelvin 7000+

c. the type of original fluorescent tube light: T5(15mm), T8(26mm) or T10(30mm)

d. the type of lens: Clear, Frosted(Milky) or striped,,





etl dlc ballast compatible 4ft led tube bulb

2. Commodity Exhibition

etl dlc ballast compatible 4ft led tube bulb



a. Easily repair and maintenance.

b. Can be compatible with over 80% brands od ballasts in market.

c. Single end powered or double ends powered are available at same time.

d. Can work without ballast. When ballast is broken, you use our tube by passing-by the ballast.

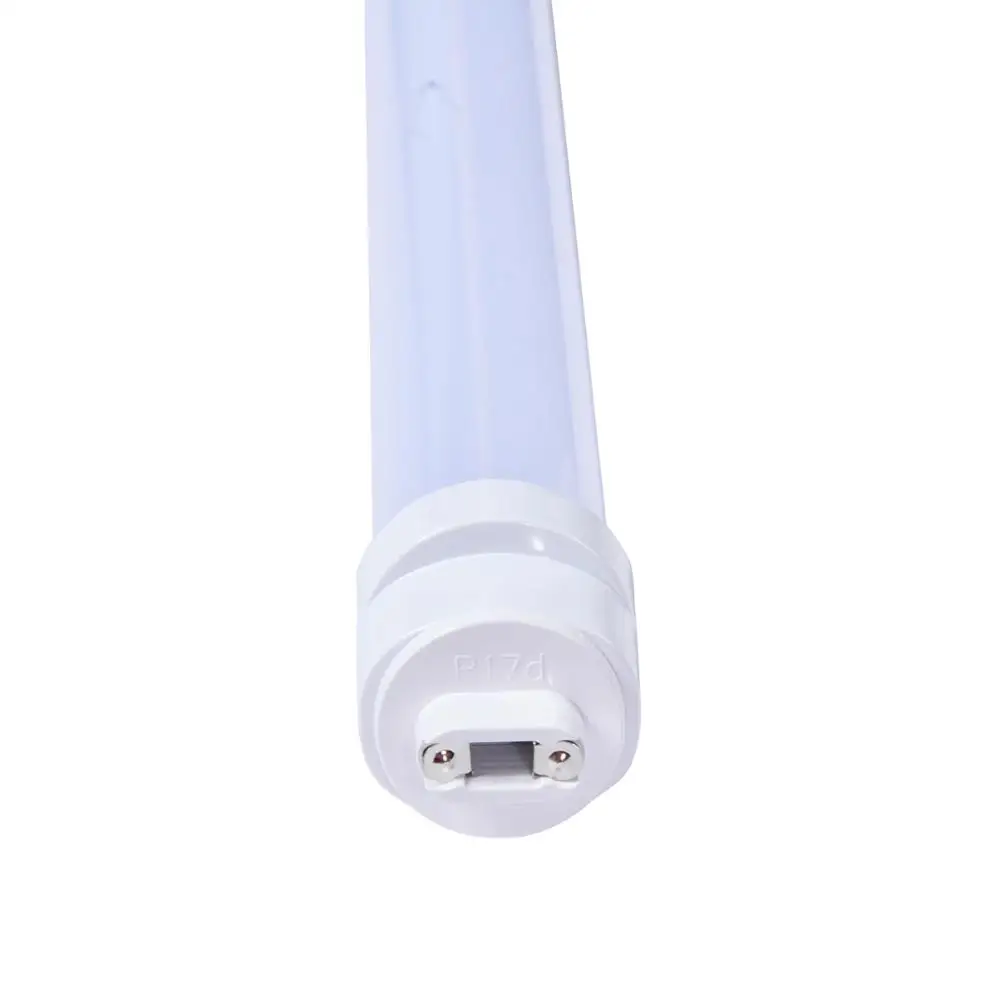

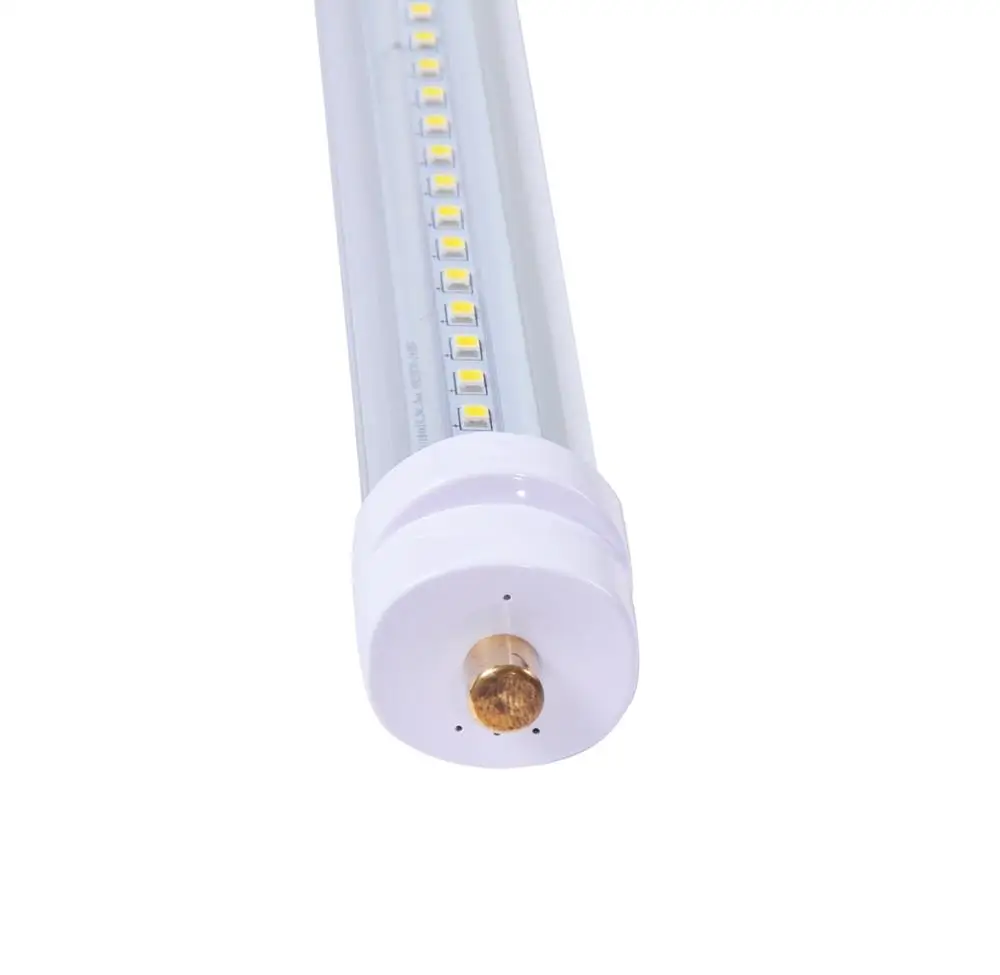

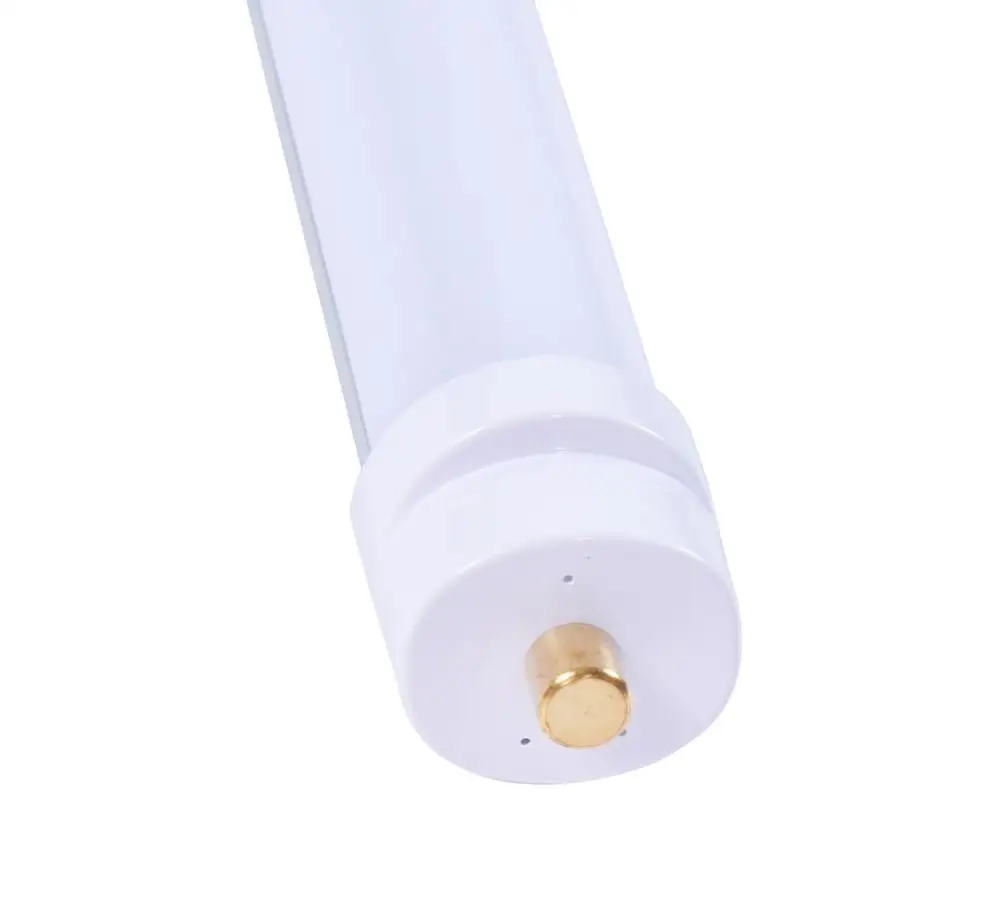

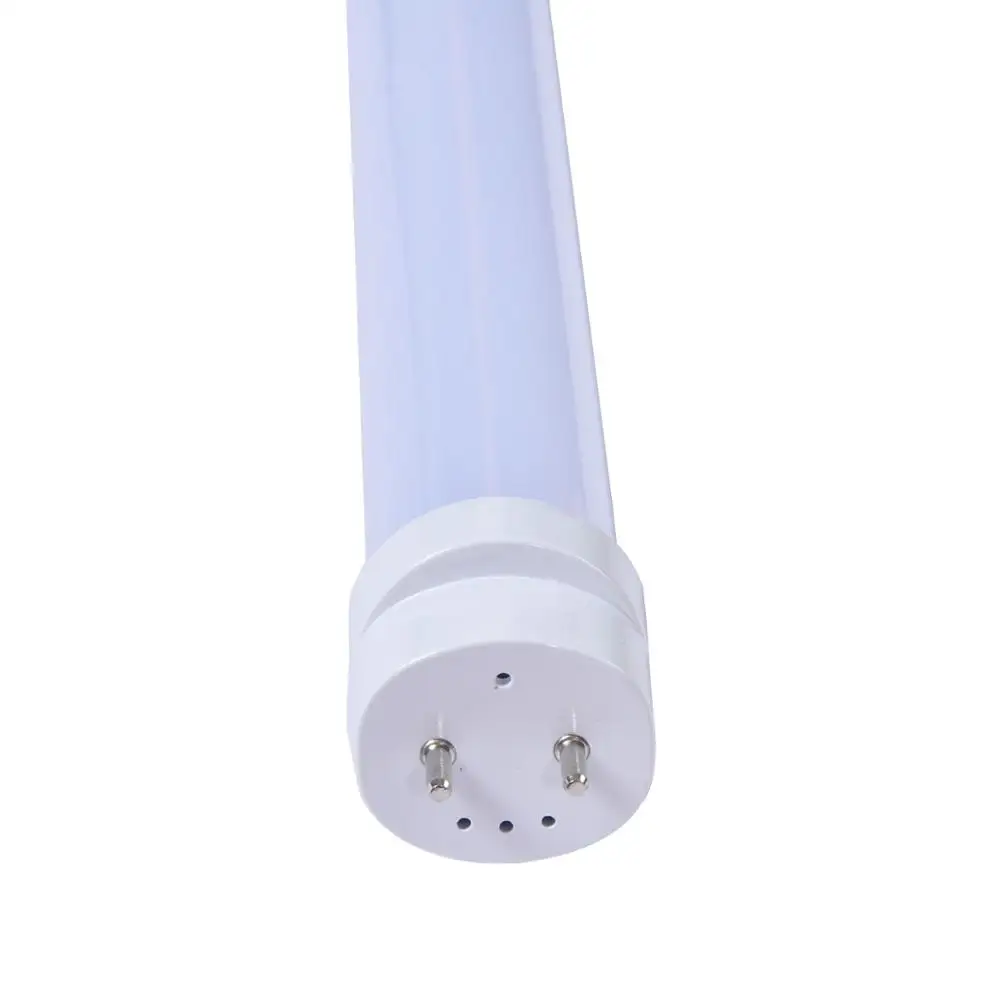

End-caps:







4. Certifications

5. Production Line





 6. Packaging







etl dlc ballast compatible 4ft led tube bulb



 FAQ



 Q: there are so many vendors in market who can offer similar or same appearance led

       products,how to distinguish good qualified led products?

Comparing the weight of housing. Because good heat sink housing is much heavier than the lighter ones for good

heat dissipation.



Comparing the chips. Good and responsible vendors use 80% of Max chips current so that chips will have good

performance in lumens maintained and long life span.Simple way is to get the information of the chips power and

quantity of the chips.



Comparing the drivers. Drivers are the most important keys for led products. The life spans of led products are

equal to that of drivers. So it’s important to adopt good quality drivers.



Remember that its no way for vendors tooffer good quality products while also offer extremely low prices.

there are some cost secrets in materials.



Q: which specs are needed to be known very well?

The data for total lumens of fixture. Some time, the lumens you get is not for the whole fixture, but the lumens of

chips. These two are different conception.



Lumnens of whole fixtures are actually needed by end-customers.



Knowing well what the type of original and traditional lights and power so that you can calculate the lumens you

need and decide the power of led products basing on the total lumens of fixture.



With improvement of led chips tech,the lumens efficiency had been increased a lots, so that its not correct that

higher power led lights are better than lower power led lights. The Key factor is the lumens of whole fixture.

Sometime, lumens of 10w led bulbs from some vendors are not good as that of our 7w bulb.



Q: What is CRI and the relationship between the CRI and Lumens?

CRI is some kind of eyes’ feeling when our eyes see the real color from objects in sunshine. Higher CRI,

higher comfort for eyes. While higher CRI, lower lumens efficiency compared to relatively lower CRI. For

LED lights, the CRI is mostly from 70 to 75Ra,which is enough for normal usages.

CRI with 80Ra or morewill be much higher in cost. In some special and professional place, CRI80

is necessary, such as in museumor High-end clothing store or Hospitals.



Q: Can LED lights really last 50,000 hours in lifespan?

In theory, after 50,000hrs, the lumens maintain should be 70%, in fact, the lifespan can be 100,000hrs

(good quality). But we should note the lifespan of the driver or the components which is shorter than

50,000hrs. Normally the lights can last less than 30,000hrs. so drivers are also much more important

for led lights.





 Our Services



1. Promptly reply within 24 hours

2.Well-trained, professional and experienced salesmen with good English

3.OEM&ODM are welcomed

4. Factory offers 3-5 year warranty for our LED lights.

5. Factory will responsible to maintenance or replace any defective products within warranty period.

6. Factory will keep secret for your sales area, design ideas and all of your private information.



1. Payment terms: T/T 30% deposit in advance, the balance of 70% before delivery;

Western Union and Paypal for small amount are accepted also.

2. Delivery time: 3-5 days for samples, 7-12 days for normal order

3. Shipment: UPS/DHL/FEDEX/TNT or sea shipment.

4. Shipping port: Shenzhen Guangdong

5. Discounts are offered based on order quantities.
