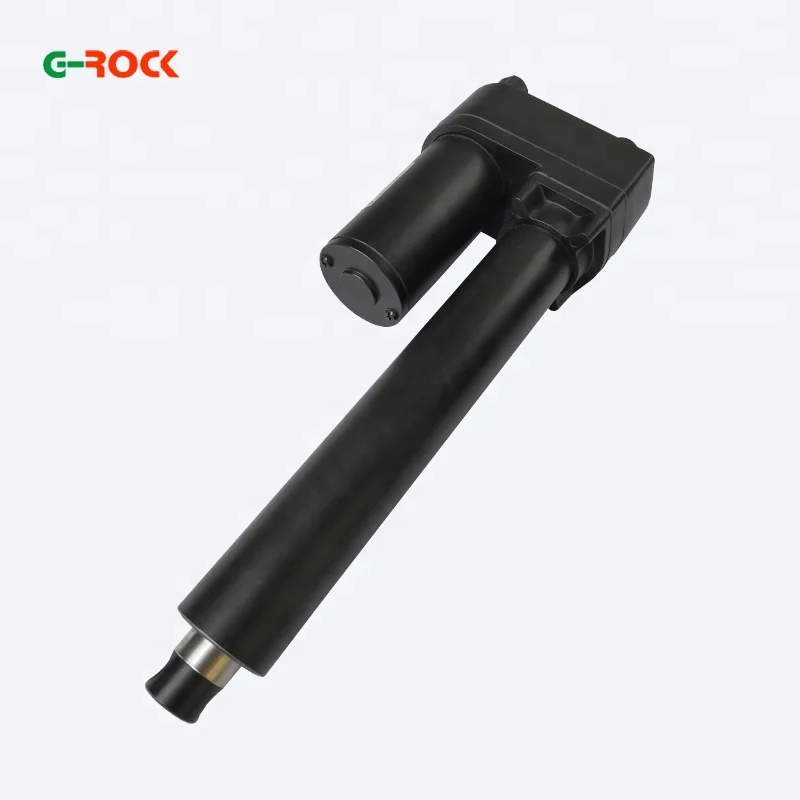

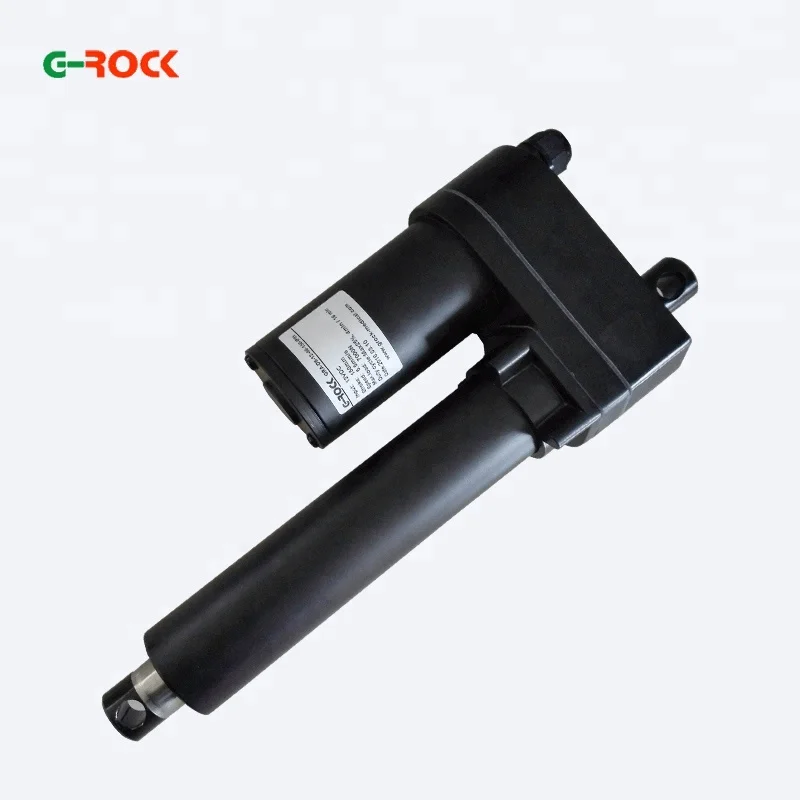

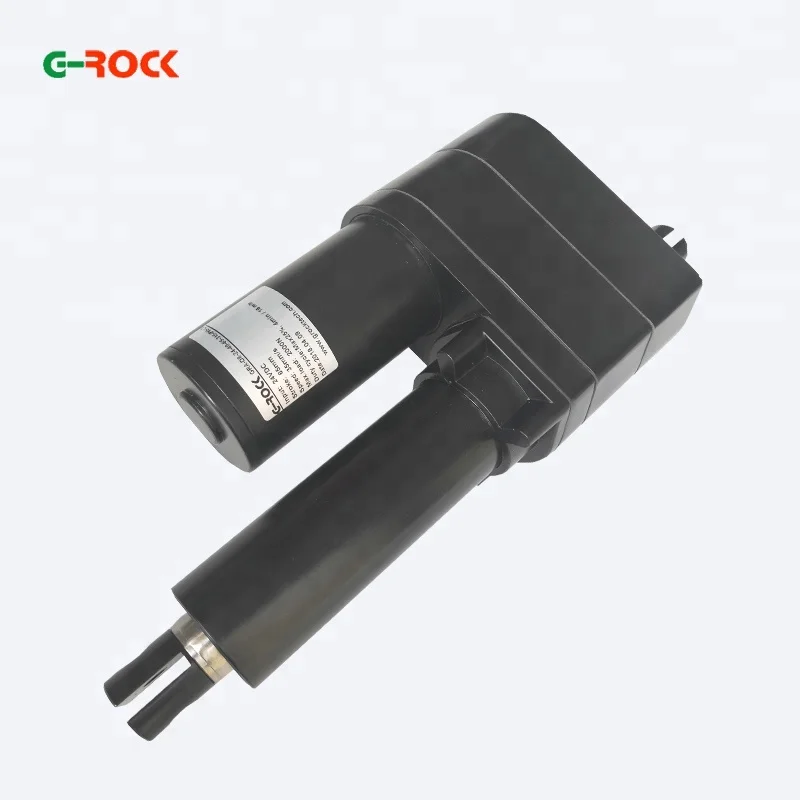

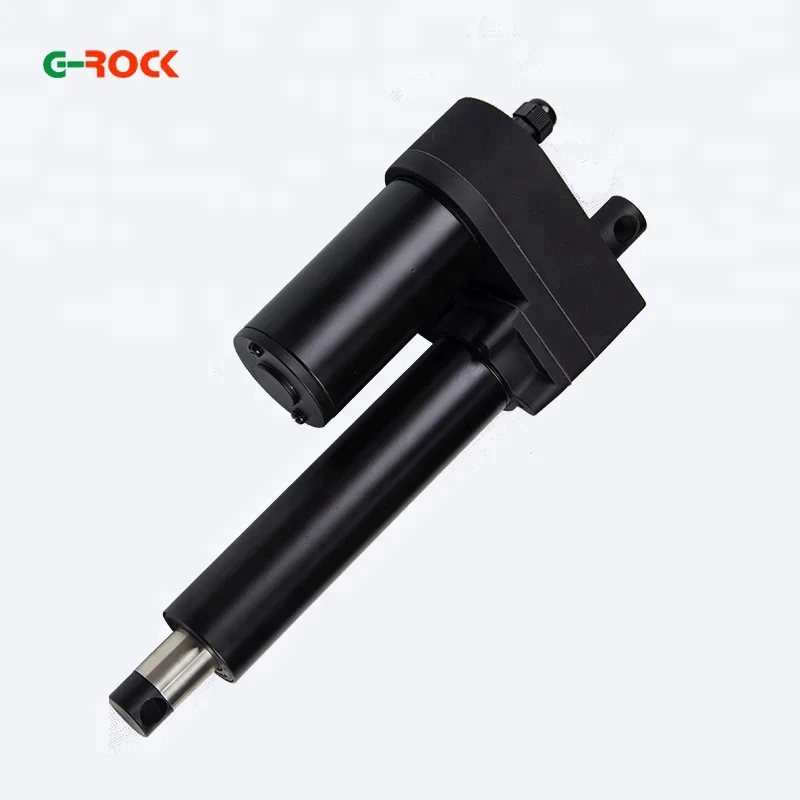

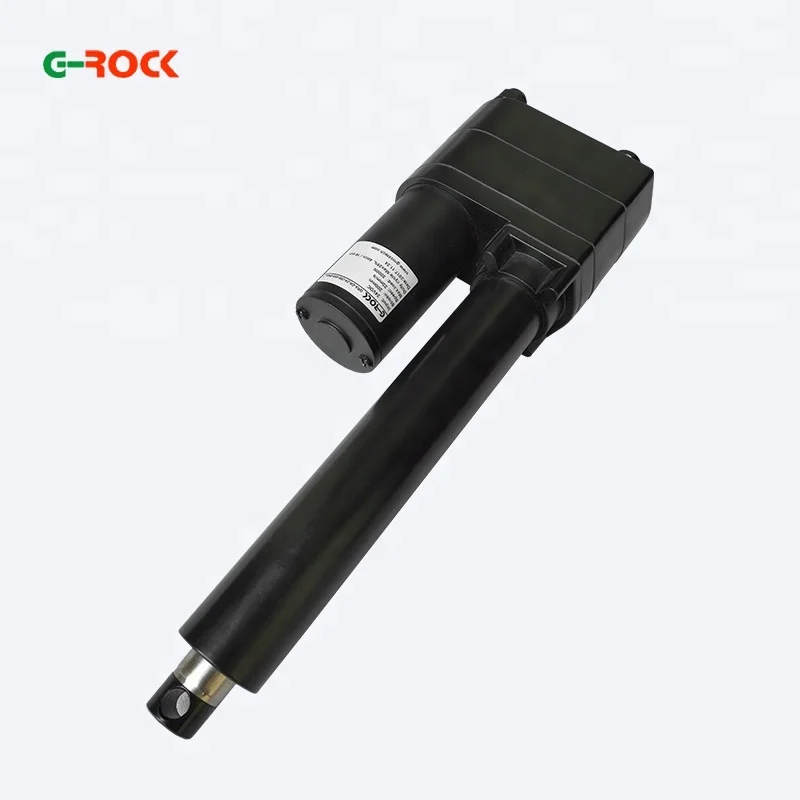

CE Certification 8000N strong power linear actuator

Feature of Strong power linear actuator

GRA-D8 linear actuator with heavy load capability and high speed design,which is suitable for various  industrial application ans special vehicle with harsh conditions. Ball and Acme screw threaded spindle is available for users to choose.

1.Input voltage:24V/12V

2.Max load:8000N

3.DC Permanent magnet motor,compact structure, Strong, Durable

4.Speed: 5mm/s to 50mm/s

5.Max current:8.5A@24V

6.25% ducty cycle,or continuous 4 minutes in 16 minutes

7.Signal Feedback: POT or Hall sensor for option

8.Bulit-in limit switch or clutch mechanical limit

9.High protection level IP65

10.Colour:Black

11.Overload protection

12.CE Certification

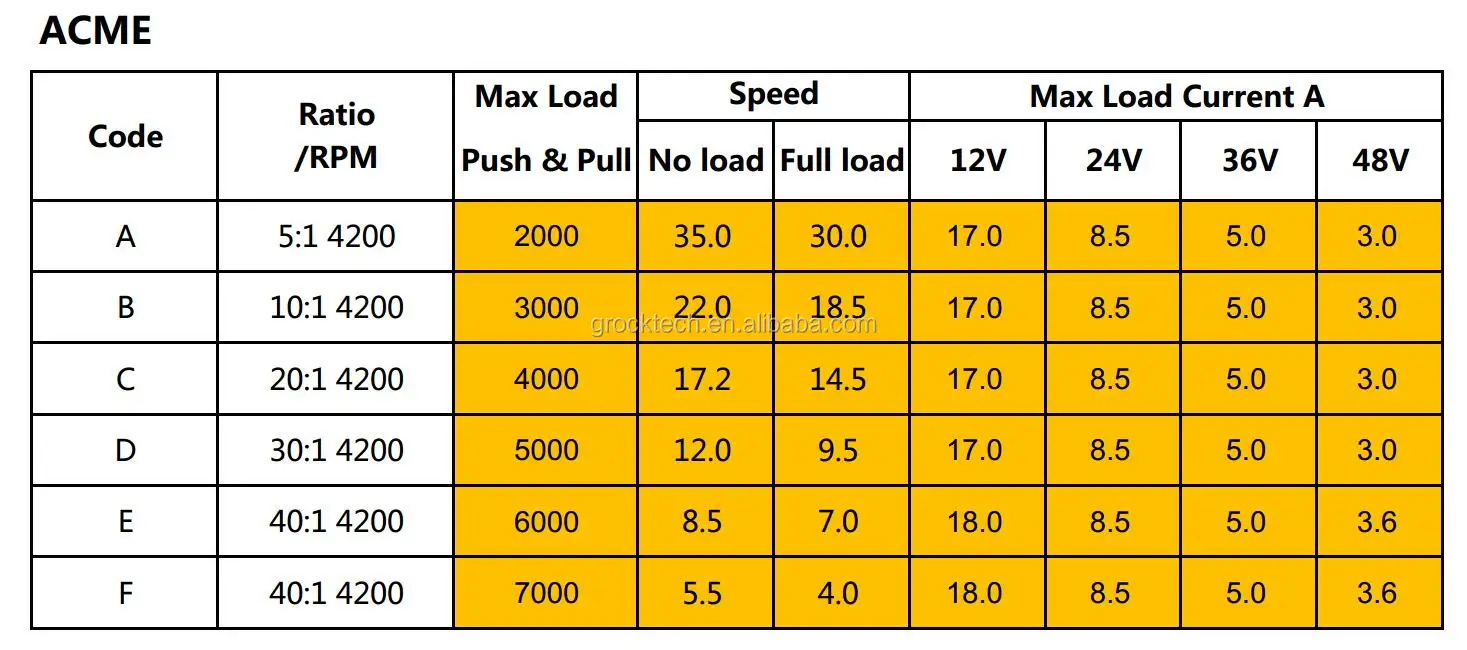

Standard Parameters

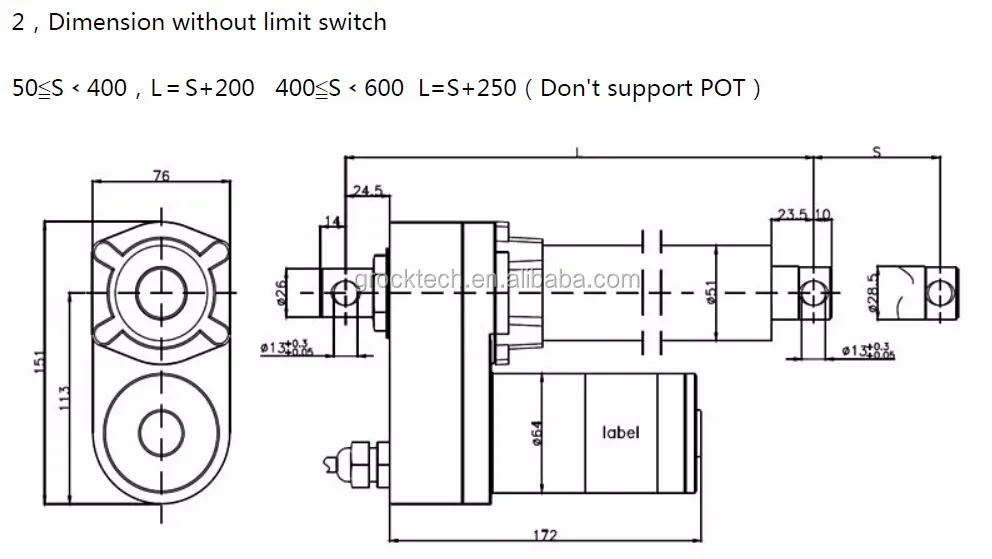

Drawing & Dimension

Parameters

Packaging Detail

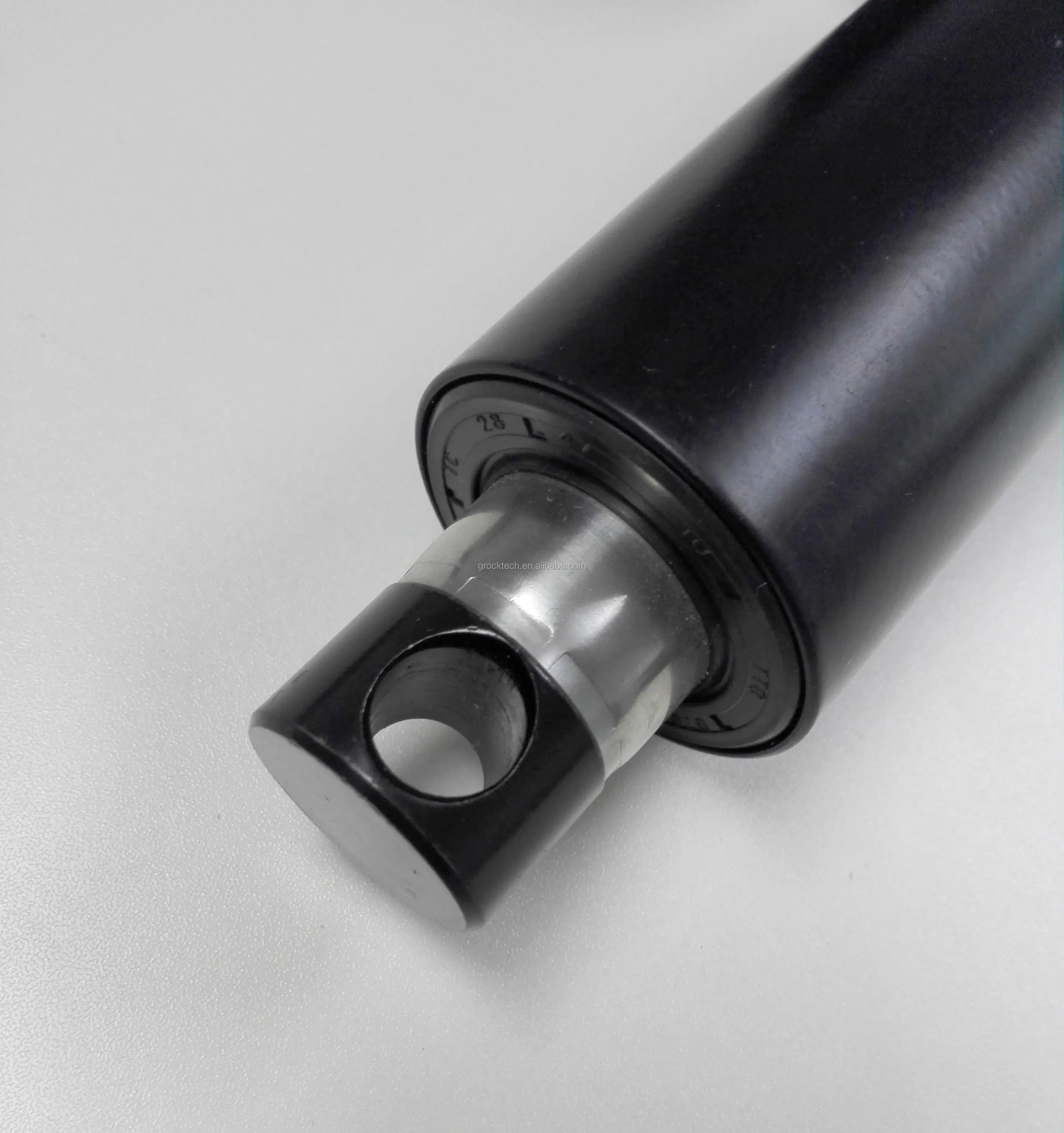

Photos View

Why choose G-Rock

1, 10 years manufacturing experience in linear motion.

2, Professional R&D team, can meet non-standard design at any time.

3, Gold supplier for well-known enterprise.

4, Lots of success industry installation project at home and abroad.

G-ROCK factory
