Cumin Seed Specific Gravity Separator (3T/H, 5T/H and10T/H models available)

Share on (60409468585):


Price:

Quantity:


Product Overview

Description


Product Description



5XZ Series Cumin Seed Specific Gravity Separator



Application of 5XZ Cumin Seed Specific Gravity Separator:

The Cumin Seed Specific Gravity Separator can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Cumin Seed Specific Gravity Separator can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.

The Cumin Seed Specific Gravity Separator also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.



Working Principle of 5XZ Series Cumin Seed Specific Gravity Separator:

The Pulses Cereals Maize Specific Gravity Separator works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.

Specification of 5XZ Series Cumin Seed Specific Gravity Separator:



Model

5XZ-3

5XZ-6

5XZ-10

Capacity(Count by wheat)

3000kg/h

5000kg/h

10000kg/h

Sieve Table Dimension

2250×1150mm

3000×1200mm

3900×1550mm

Total Power

7.45kw

8.95kw

15kw

Motor for build-in Air Blower

4.5kw

6kw

9.9kw

Motor for vibration

2.2kw

2.2kw

4kw

Motor for Good Grain Release

0.75kw

0.75kw

1.1kw

Lateral angle of inclination

3°~6°

3°~6°

3°~6°

Longitudinal angle of inclination

0~6°

0~6°

0~6°

Amplitude

7mm

7mm

7mm

Dimension (L*W*H)

2600×1500×2100 mm

3440×1630×1900 mm

4300×1960×2500 mm

Weight

1300kg

2000kg

2500kg

Remarks

3 mute air blower

4 mute air blower

6 mute air blower

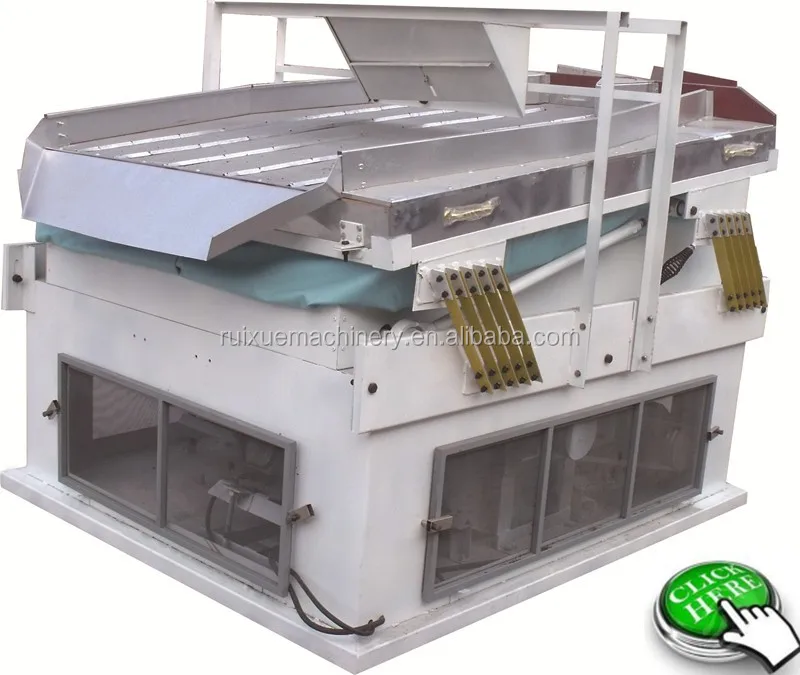

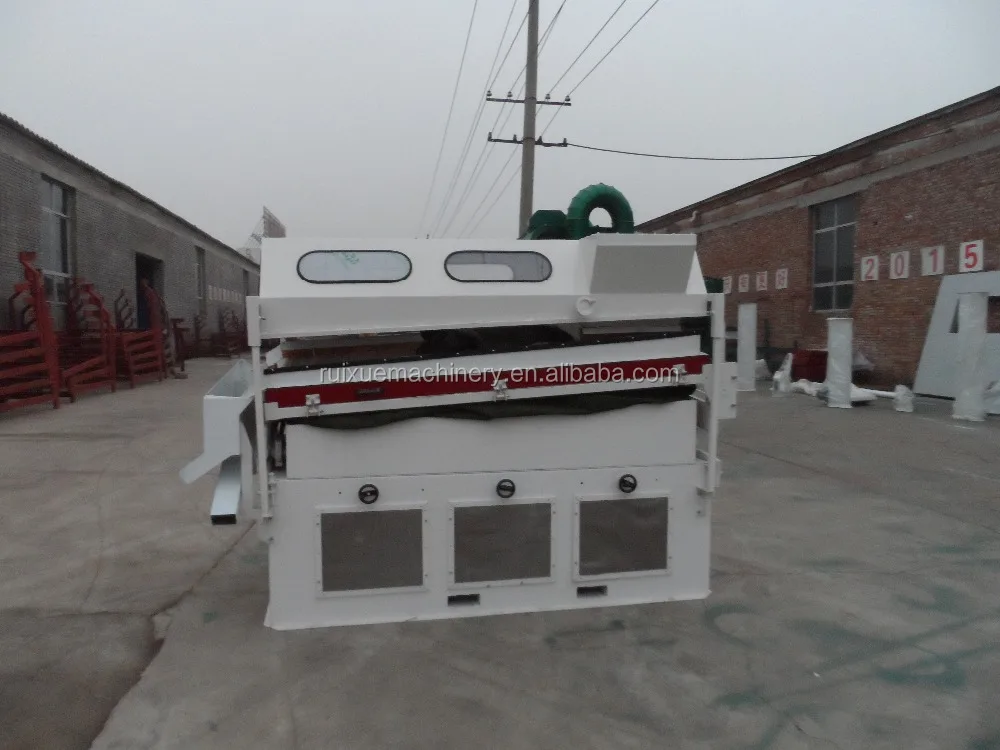

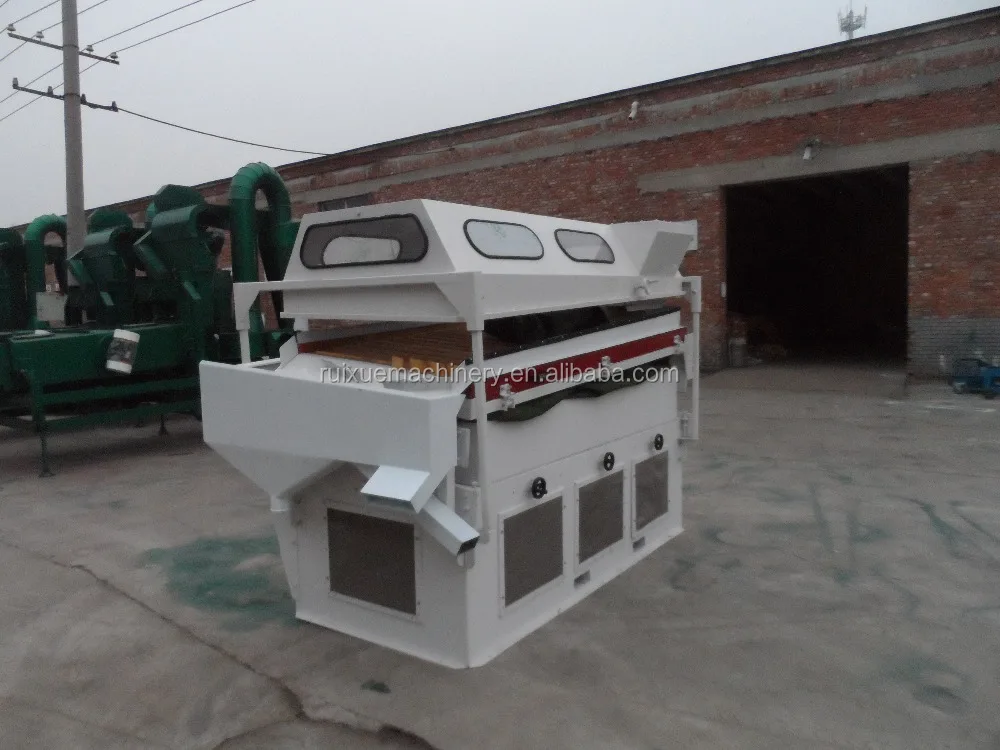

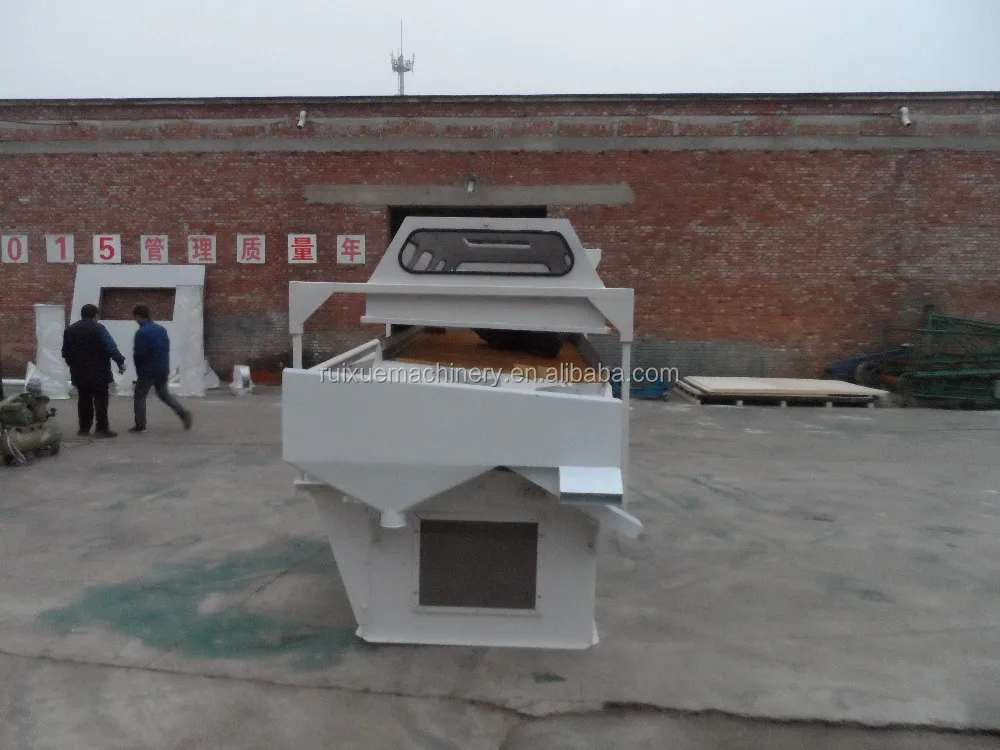

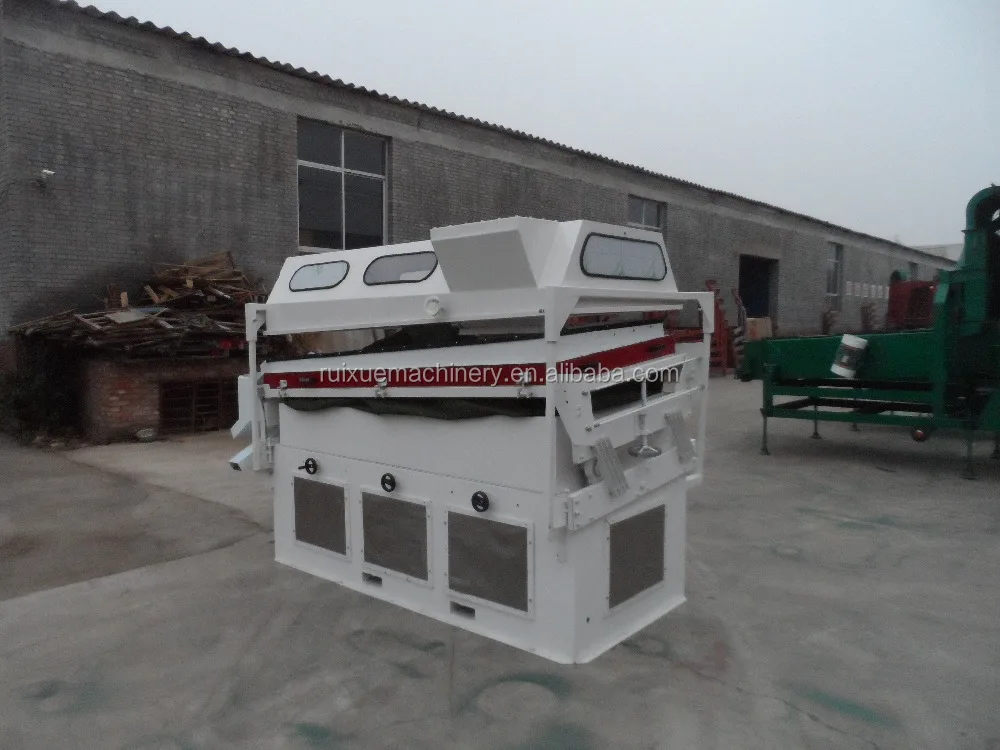

Photos of  5XZ-3 Cumin Seed Specific Gravity Separator

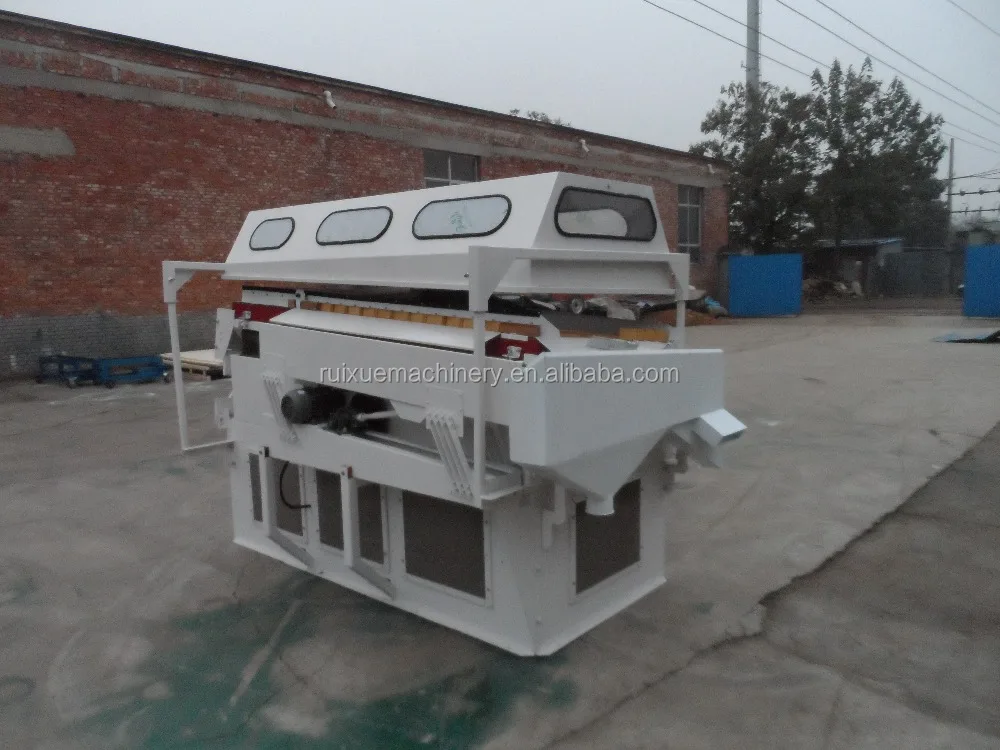

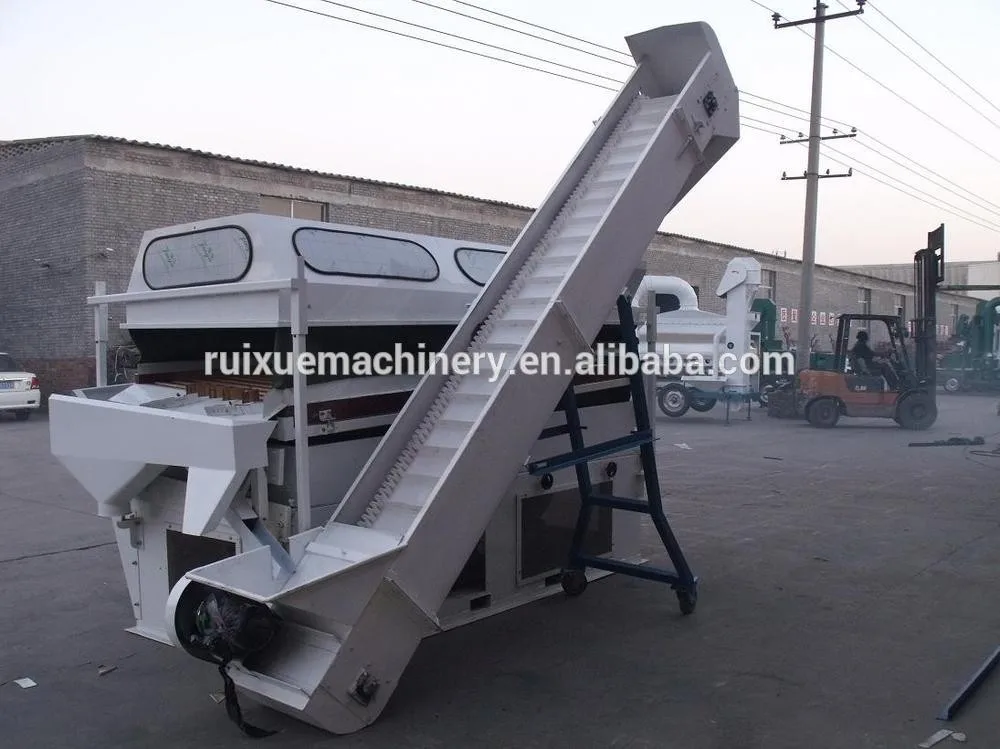

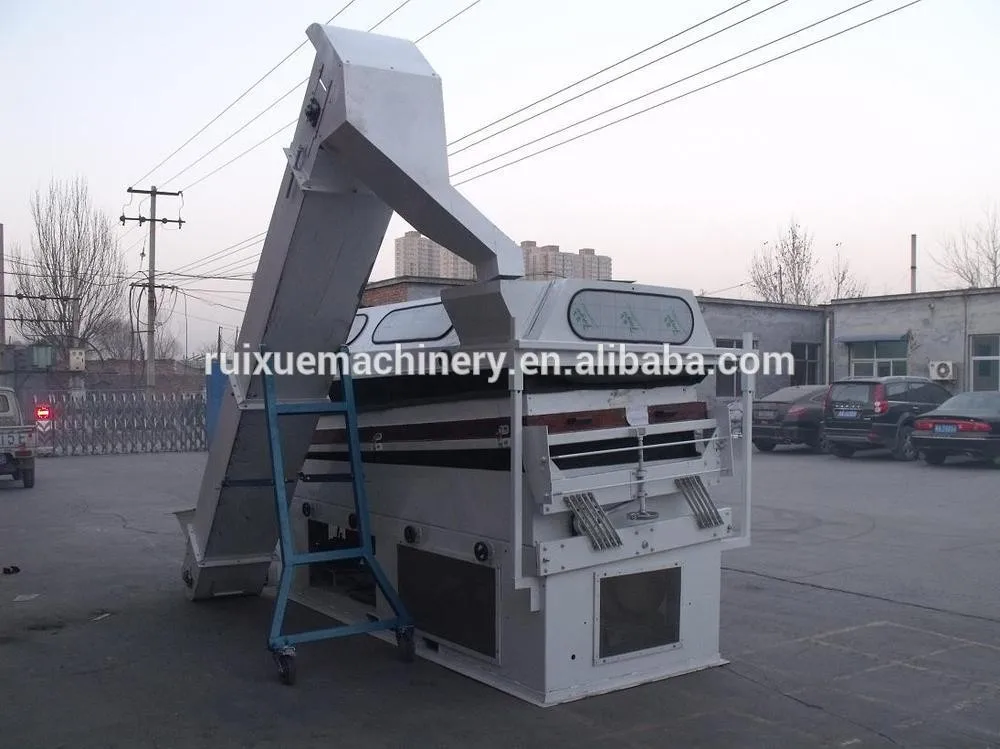

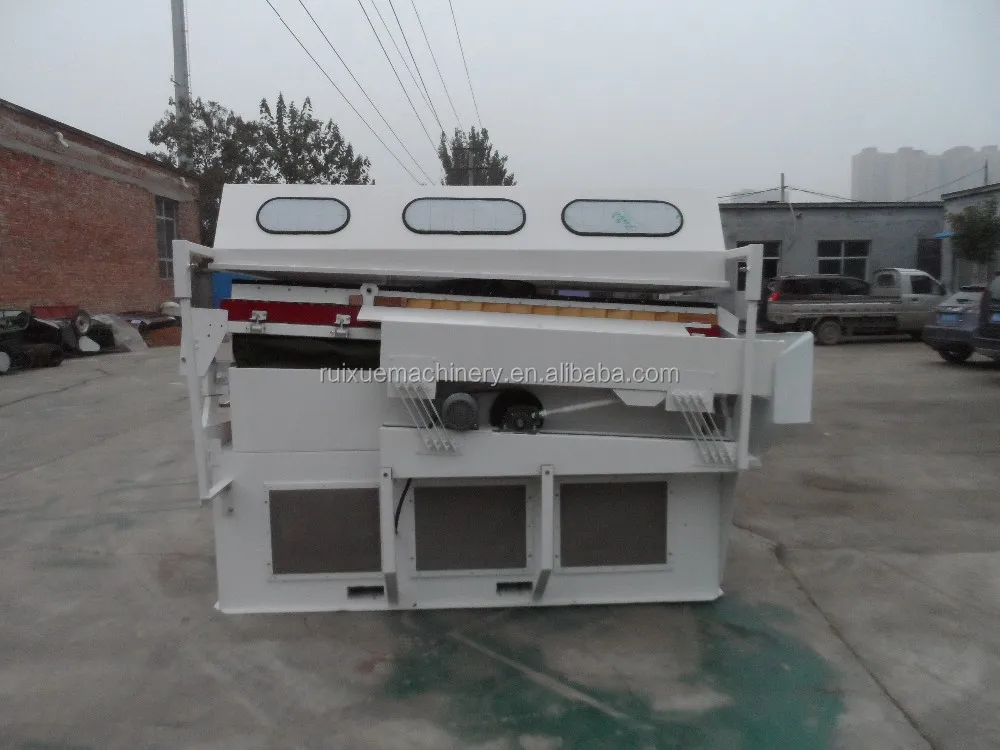

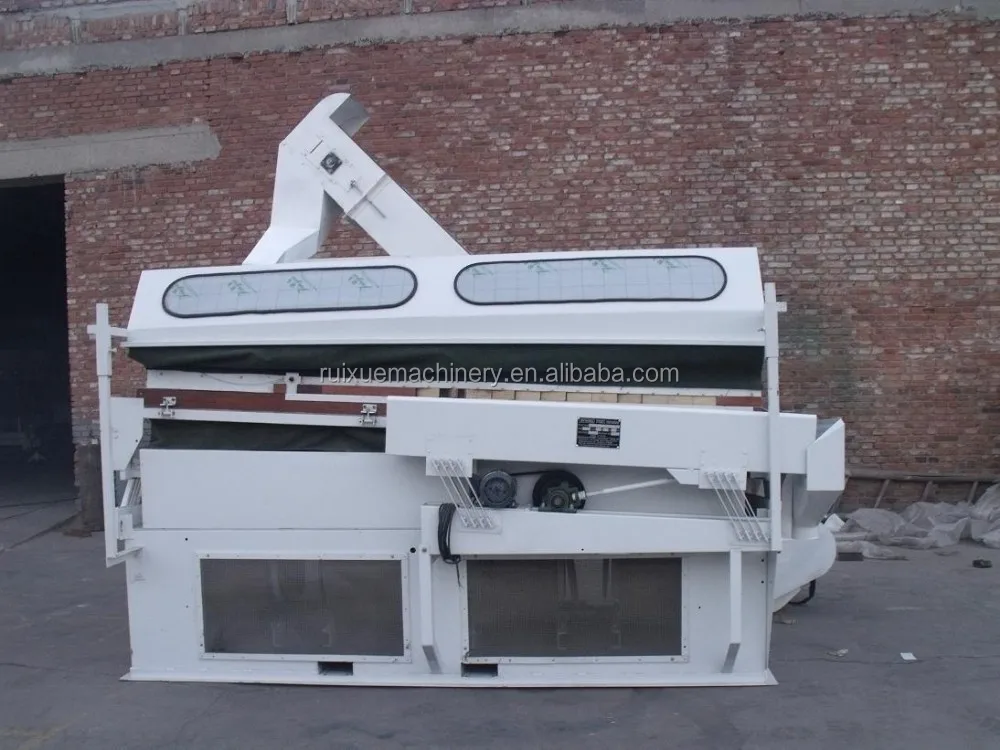

Photos of  5XZ-6 Cumin Seed Specific Gravity Separator

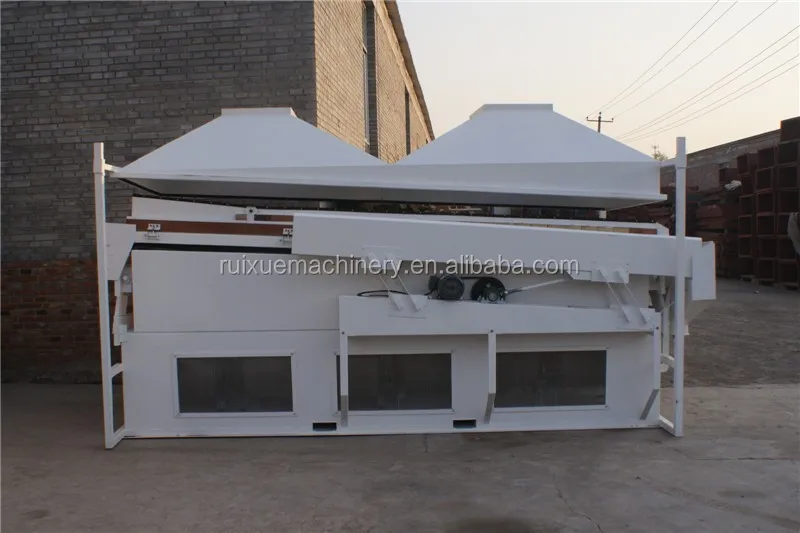

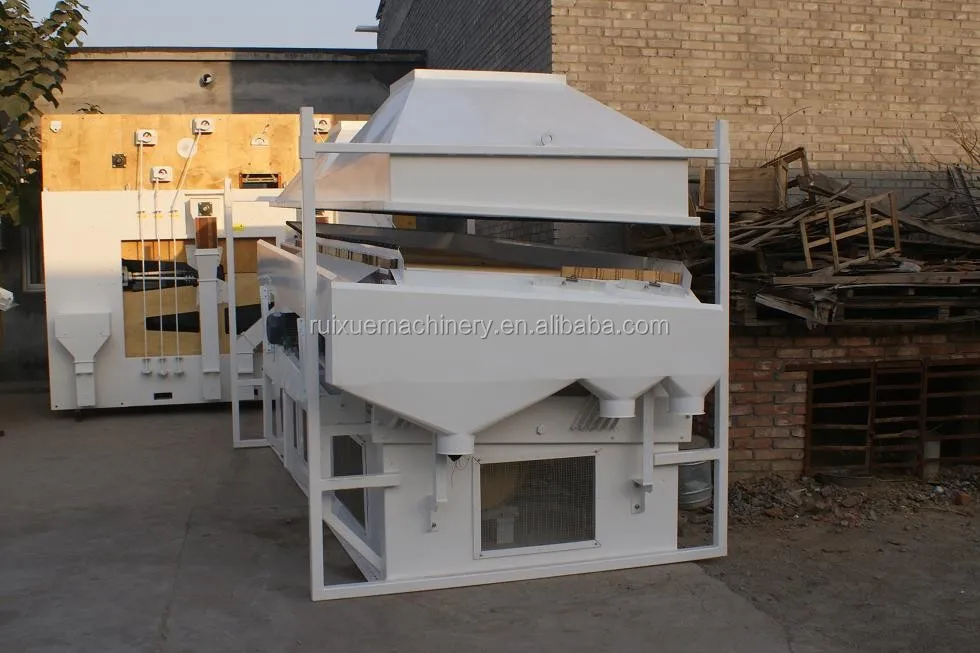

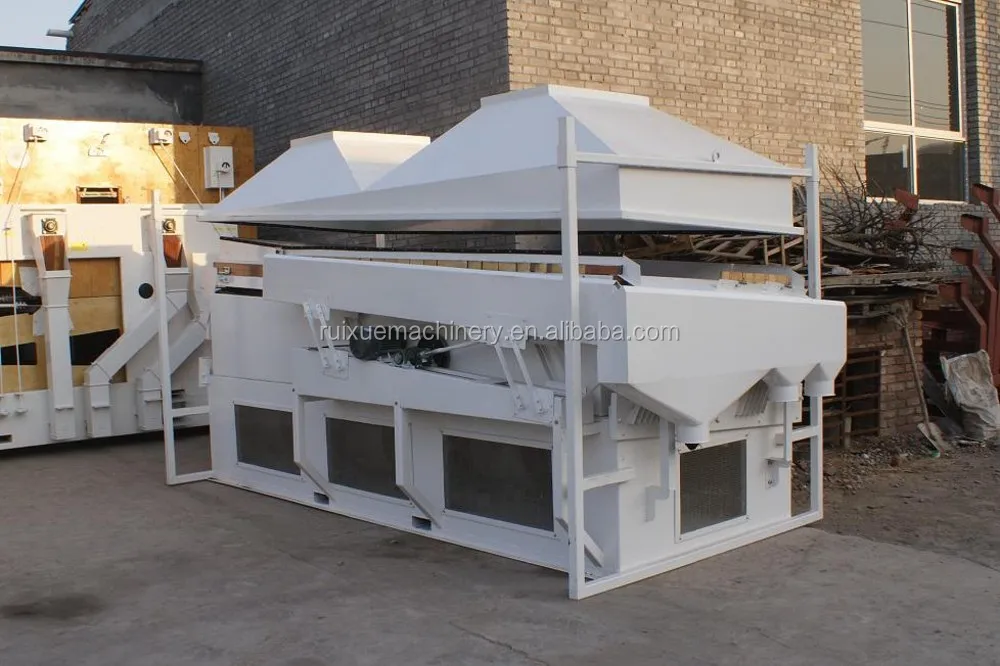

Photos of  5XZ-10 Cumin Seed Specific Gravity Separator




Do you need a Fine Seed Cleaner?




If your material have many stones, you should buy a destoner.

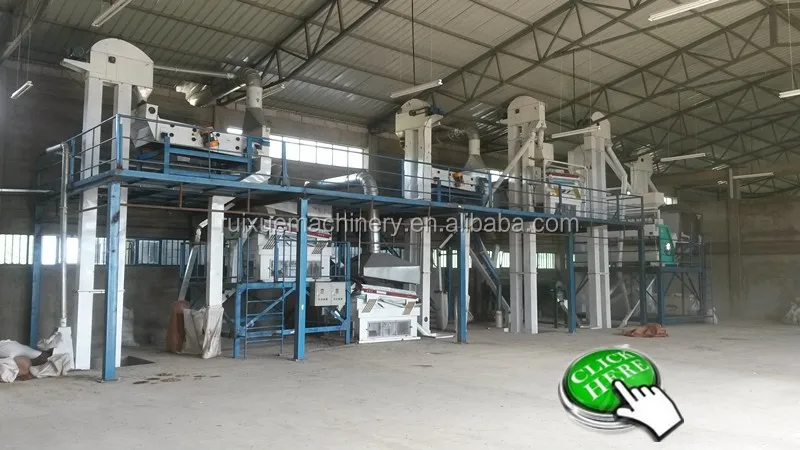

Do you need Seed Cleaning/ Processing Plant ?
