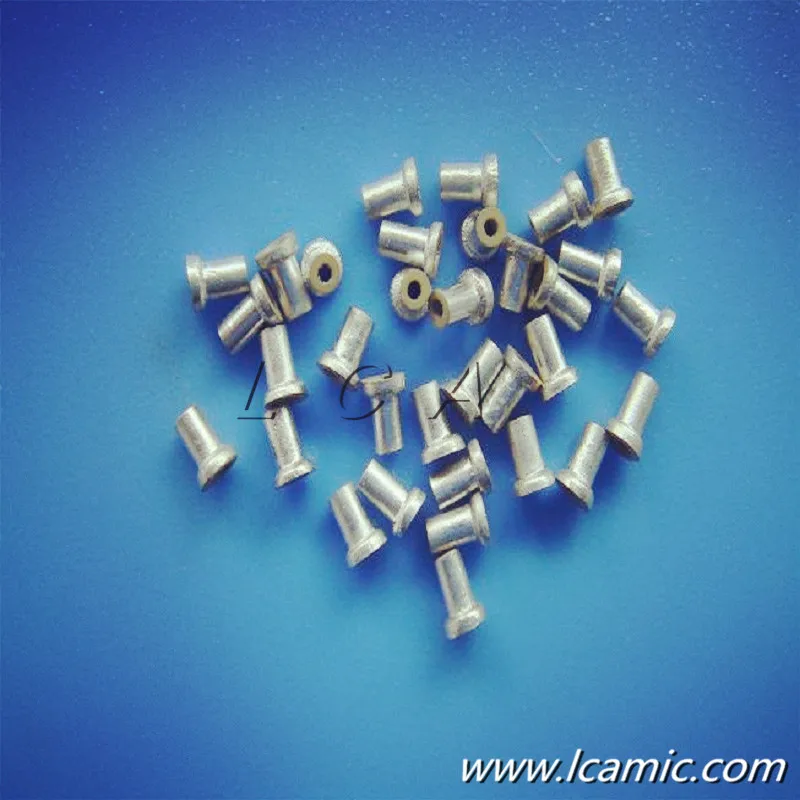

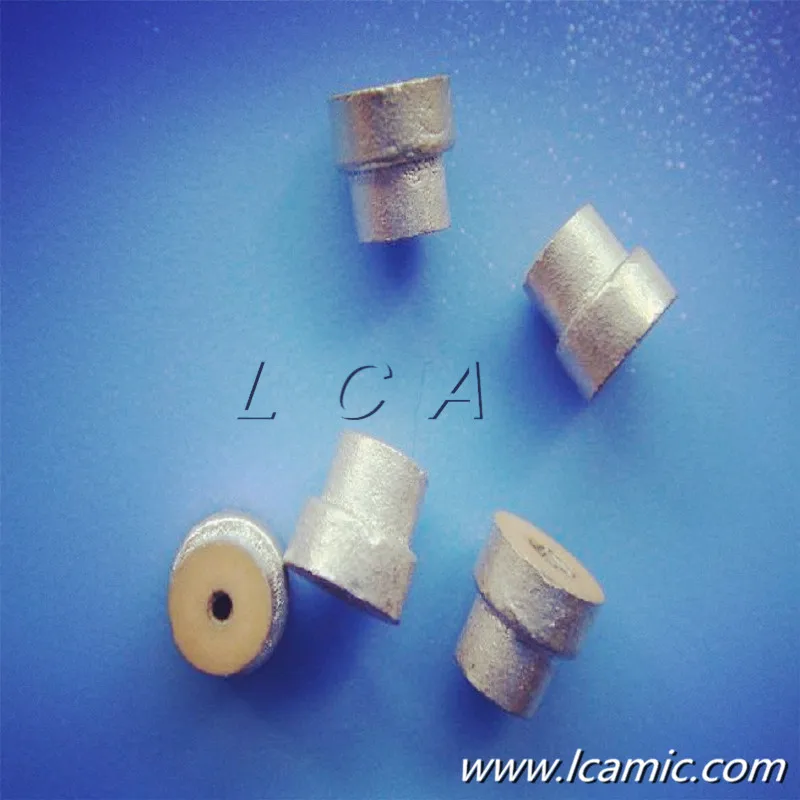

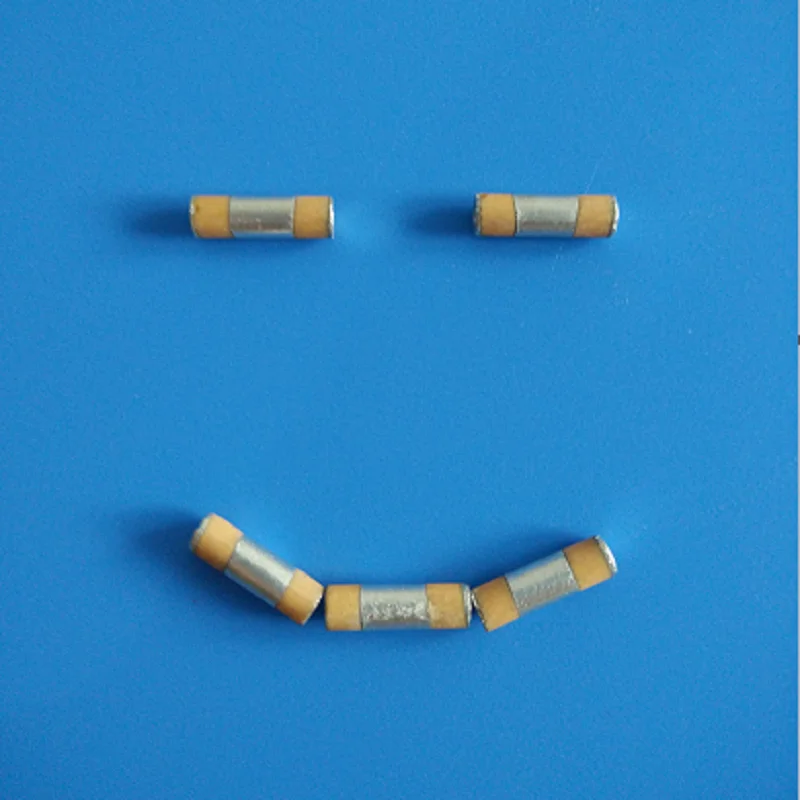

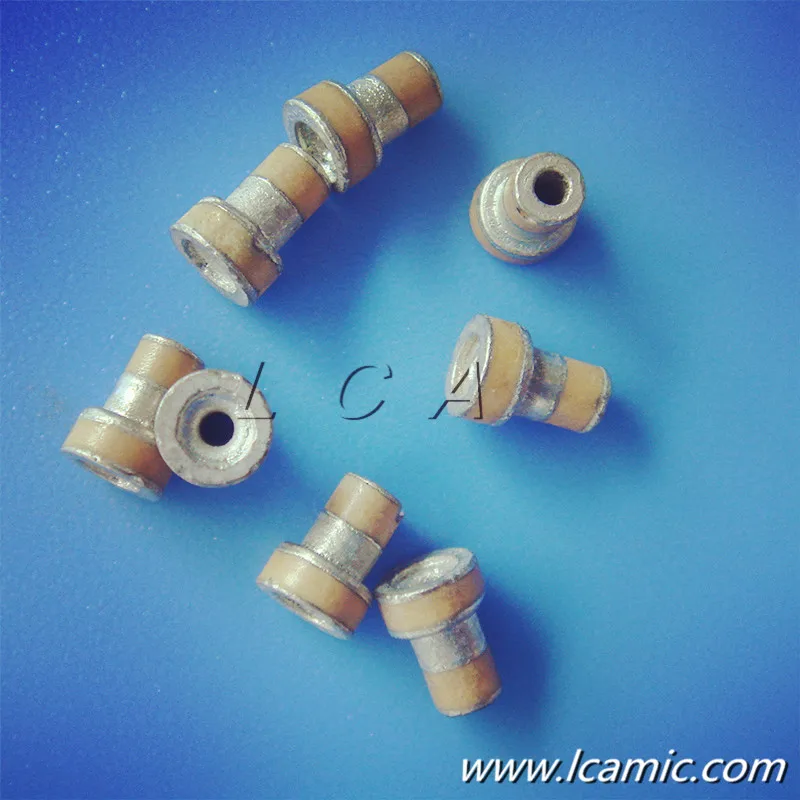

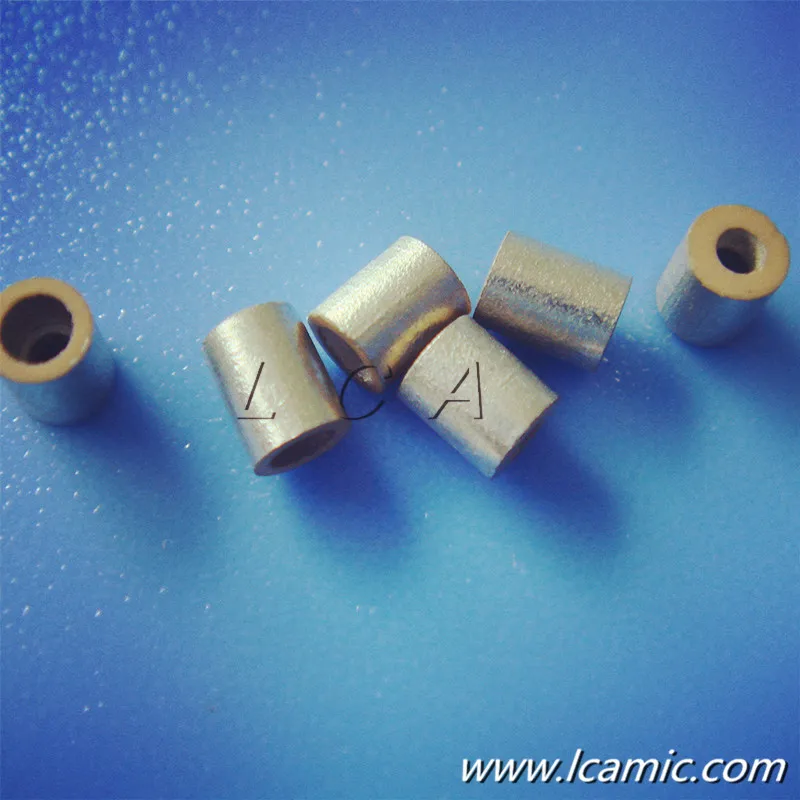

10pf 10nf Leaded mini discoidal tube capacitor

Product Overview

Description

10pf 10nf Leaded mini-discoidal  tube capacitor



1.Temperature Feature:        -55 C  +125 C

2.Caps and Tolerance:         0.12uF  +80%  -20%

3.Dissipate Factor:              <3%

4.Insulation Resistor:           >3000 M Ohms

5.Rated Voltage:                 100VDC

6.Withstand Voltage:           200VDC

CUSTOM DESIGN IS AVAILABLE.

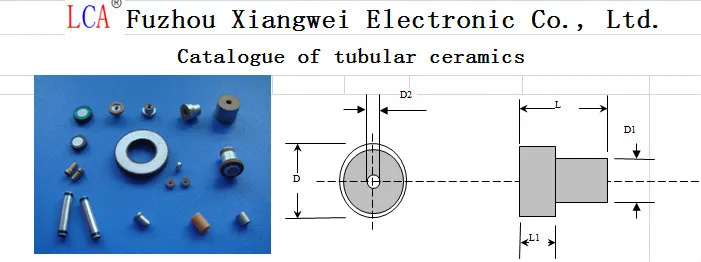

Part No.	Dimension(unit:mm)					Capacitance	withstand voltage	Circuit
	D	D1	D2	L	L1
XWL1717	1.7	1.7	1	2.7	0	10PF-10nF	100VDC-300VDC	C
XWG1915	1.9	1.5	0.7-0.8	2-3.5	0.5-1	10PF-10nF	100VDC-300VDC	C
XWG2020	2	2	1.3	4.2	0	10PF-10nF	100VDC-300VDC	C
XWG2222	2.2	2.2	1.6	12	0	860PF/223/103	100VDC-300VDC	PI/C
XWG2416	2.4	1.6	0.75-0.8	4	1.5	10PF-10nF	100VDC-300VDC	C
XWG2424	2.4	2.4	0.8	5	0	10PF-10nF	100VDC-300VDC	C
XWG2525	2.5	2.5	0.8	2.5	0	10PF-10nF	100VDC-300VDC	C
XWG2618	2.6	1.8	0.75-0.8	3.5	1	10PF-10nF	100VDC-300VDC	C
XWG2727	2.7	2.7	2	11.5	0	702	100VDC-300VDC	PI
XWG2828	2.8	2.8	1.1	3.5	0	10PF-10nF	100VDC-300VDC	C
XWG3822	3.8	2.2	0.75-0.8	4.5-6.5	1.5-2	10PF-10nF	100VDC-500VDC	C
XWG4020	4	2	0.9	2.5	1.2	10PF-10nF	100VDC-500VDC	C
XWG4224	4.2	2.4	1	3	1	10PF-10nF	100VDC-500VDC	C
XWG4330	4.3	3	1.1-1.6	2.5-2.7	1-1.2	10PF-10nF	100VDC-500VDC	C
XWG4532	4.5	3.2	0.8-1.3	5.6-6	2.1	10PF-10nF	100VDC-500VDC	C
XWG4545	4.5	4.5	2.7	3	0	10PF-10nF	100VDC-500VDC	C
XWG4722	4.7	2.2	0.7-1	3.2-4	1-1.5	10PF-10nF	100VDC-500VDC	C
XWG4737	4.7	3.7	1.5-2	6-6.5	2-2.1	10PF-10nF	100VDC-500VDC	C
XWG4848	4.8	4.8	0.8	1	1	10PF-10nF	100VDC-500VDC	C
XWG5034	5.1	3.4	1.5	4	1.5	10PF-10nF	100VDC-500VDC	C
XWG5038	5	3.8	0.8-0.85	4.1-4.5	2.2	10PF-10nF	100VDC-500VDC	C
XWG5122	5.1	2.2	1	4.5-6	1.5-2.5	10PF-10nF	100VDC-500VDC	C
XWG5124	5.1	2.4	1.4	6	1.5	10PF-10nF	100VDC-500VDC	C
XWG6045	6	4.5	2.5	6.5	1.5	10PF-10nF	100VDC-500VDC	C
Custom design is available.
